Comparing the Debris Profiles and Engagement Timelines of Kinetic, Co-Orbital, and Directed-Energy Anti-Satellite Weapons

At an altitude of 800 kilometers above the Earth, objects travel at roughly 7.5 kilometers per second. When a ground-launched interceptor meets a satellite at these velocities, no explosive warhead is required [4]. The kinetic energy of the impact alone shatters the target into thousands of fragments. A 10-centimeter piece of debris carries the kinetic energy of a 15-kilogram mass moving at highway speed, concentrated onto an area the size of a coin [4]. This is the baseline reality of orbital physics that governs the design and deployment of anti-satellite (ASAT) weapons.[4]

The architecture of space denial is currently divided into three distinct mechanisms: kinetic-kill systems, co-orbital platforms, and directed-energy weapons [6]. The evidence surrounding these systems reveals a clear operational tradeoff between engagement speed, deniability, and environmental consequence. Direct-ascent missiles can reach low Earth orbit in a matter of minutes, offering immediate and highly visible destruction of a target. However, the resulting debris clouds indiscriminately threaten the attacker's own space assets, effectively acting as a natural deterrent against their widespread operational use [3].[3][6]

The primary claim supporting the shift away from kinetic ASATs is that their environmental cost heavily outweighs their tactical utility. Kinetic kill vehicles rely on direct physical impact to destroy satellites in orbit [4]. All four confirmed destructive ASAT tests conducted by major space powers utilized these direct-ascent kinetic interceptors [4]. The data shows that these tests inject hundreds to thousands of uncontrollable fragments into orbits shared by critical infrastructure, including weather satellites, navigation constellations, and crewed space stations [4].[4]

The evidence for this environmental degradation is tracked daily by space domain awareness networks. Unlike a controlled satellite deorbit, a kinetic ASAT test produces fragments that spread across a wide range of altitudes and orbital inclinations, making avoidance maneuvers exponentially harder for surviving spacecraft [4]. Because the physics of invariant manifolds dictate that debris cannot be easily contained or removed, the environmental cost of a kinetic strike imposes irreversible, long-term costs on all commercial and military space users [2].[2][4]

However, the evidence regarding the long-term cascading effects of this debris remains bounded by observational limits. While space surveillance networks track over 29,000 objects in orbit, fragments smaller than 10 centimeters are notoriously difficult to monitor consistently [4]. The threshold at which a specific orbital plane becomes entirely unusable—often referred to as the Kessler Syndrome—is heavily modeled but remains an area of transparent uncertainty, dependent on variables like solar activity and atmospheric drag that fluctuate unpredictably over time [7].[4][7]

In response to the debris problem, military programs have advanced co-orbital ASAT systems, which claim to provide targeted interference with built-in deniability. A co-orbital interceptor is launched into the same orbit as the target, maneuvering alongside it to either ram the asset, deploy a localized explosive, or utilize robotic arms to dismantle components [4]. These systems prioritize stealth and precision over raw speed, operating from within the orbital environment rather than striking directly from a terrestrial launch pad [5].[4][5]

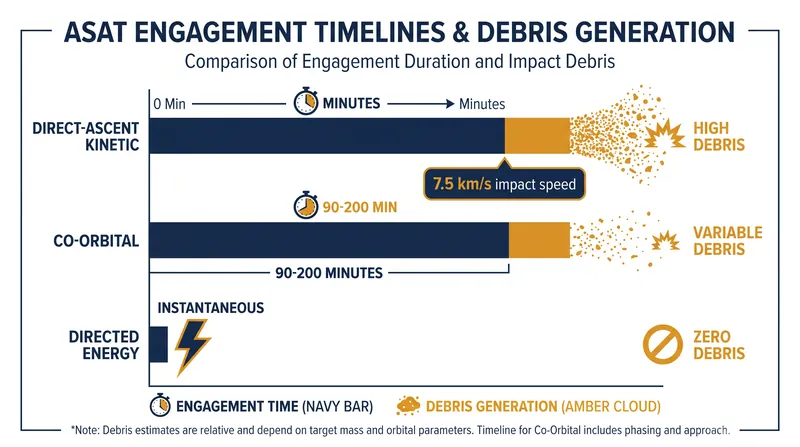

The evidence for co-orbital engagement timelines highlights their primary limitation: speed. Historical and current test data indicates that these systems require 90 to 200 minutes—one to two full orbits—to match a target's trajectory and close the distance [5]. This extended rendezvous window provides an adversary ample time to detect the approach using space domain awareness sensors. However, the co-orbital satellite can masquerade as a benign inspection or debris-removal vehicle until the final moments of engagement, significantly complicating the defender's response [2].[2][5]

The uncertainty surrounding co-orbital systems lies primarily in the attribution of intent. Because rendezvous and proximity operations are identical for both hostile ASAT platforms and peaceful servicing missions, determining when a satellite crosses the threshold from observation to attack is legally and operationally ambiguous [2]. The evidence required to definitively classify a co-orbital maneuver as an act of war is often thin, relying on classified telemetry and behavioral analysis rather than the overt weaponization seen in direct-ascent missile launches [7].[2][7]

Directed-energy weapons represent the third mechanism, claiming to bypass the physical constraints of orbital mechanics entirely by delivering effects at the speed of light. Ground-based or airborne lasers are designed to dazzle or permanently blind optical and infrared sensors on reconnaissance satellites [3]. The strategic advantage of directed energy lies in its reversibility at lower power levels; a dazzled sensor recovers once the beam is removed, allowing a state to control escalation without crossing the threshold of irreversible physical destruction [6].[3][6]

The evidence supporting directed-energy efficacy is grounded in the rapid advancement of industrial and military laser technology. As researchers at Stanford University note, 'Anti-satellite (ASAT) laser engagements would be a revolutionary laser application, as they would in principle enable an option of attacks on satellites with only minor debris' [3]. Experimental lasers achieved continuous output powers of 140 kilowatts in 1966 and reached two megawatts by 1980 [3]. Modern systems utilize these high power levels to overwhelm the sensitive focal plane arrays of imaging satellites, permanently degrading the spacecraft's optical and power generation capabilities without creating a single piece of shrapnel [3].[3]

Despite these capabilities, the operational evidence for ground-based directed-energy weapons is constrained by atmospheric physics. Atmospheric distortion, cloud cover, and thermal blooming severely limit the effective range and beam coherence of ground-based lasers [3]. The precise power thresholds required to permanently blind modern, hardened military sensors are highly classified, leaving public assessments reliant on theoretical models rather than empirical combat data [7]. Furthermore, attributing a temporary sensor anomaly to a deliberate directed-energy attack versus a natural cosmic ray strike remains technically challenging for satellite operators [6].[3][6][7]

To counter these evolving kinetic, co-orbital, and directed-energy threats, defensive space control relies heavily on signature management and active countermeasures. Spacecraft are increasingly designed with reduced radar cross-sections, radar-absorbing coatings, and specific geometric shapes to minimize the observable signatures that ASAT targeting sensors require [1]. By controlling the emission and reflection of radar, optical, and infrared energy, defenders aim to break the kill chain before an interceptor can achieve a reliable lock on the targeted orbital space asset [1].[1]

When a threat is detected, satellites can execute evasive maneuvers to complicate the orbit determination required for a successful kinetic intercept or co-orbital rendezvous [1]. These maneuvers are executed at unexpected times or with trajectories that intentionally degrade the accuracy of the attacker's targeting solutions. However, evasive maneuvers consume finite onboard propellant, reducing the operational lifespan of the satellite and forcing a difficult tradeoff between immediate survival and the long-term viability of the spacecraft's primary mission objectives [7].[1][7]

Active electronic countermeasures further degrade an attacker's targeting solution. According to analysts at The Aerospace Corporation, 'Defensive jamming and spoofing are active electronic countermeasures that may disrupt or deceive the terminal guidance sensors of an incoming kinetic anti-satellite weapon' [1]. Against directed-energy threats, satellites can employ optical filters or mechanical shutters to protect vulnerable sensors [3]. The effectiveness of these defenses depends entirely on timely threat detection, precise knowledge of the incoming sensor's characteristics, and the available transmit power to overcome the attack [1].[1][3]

The proliferation of these technologies has fundamentally altered the strategic calculus of space operations. As the barrier to entry for electronic and directed-energy counterspace capabilities lowers, the threat environment expands well beyond traditional spacefaring states [2]. The ability to render space services unreliable or unverifiable—without launching a single missile—represents the most immediate challenge to orbital security [2]. The future of space deterrence will be measured not by the capacity to destroy satellites, but by the resilience of the systems that protect them and the precision of the tools that disable them [7].[2][7]
