Why Venting Gas Accumulators Flushes Trapped Condensate Into Air Dryers

When a gas accumulator vents rapidly, the sudden pressure drop accelerates the exiting air to extreme velocities that physically rip pooled liquid water from the bottom of the tank. This high-speed aerosol bypasses standard moisture traps and slams directly into downstream air dryers, flooding desiccant beds designed only for vapor.[3]

The physics of this failure come down to aerodynamic shear, a force that engineers routinely underestimate when designing pneumatic blowdown protocols. We argue that treating an accumulator as a simple gas storage vessel ignores the inevitable presence of liquid condensate, creating a blind spot that destroys expensive downstream equipment.[3]

Compressed air systems naturally generate liquid water because compressing ambient air concentrates its humidity, which then condenses as the gas cools inside the storage vessel. Under normal operation, this condensate sits harmlessly at the bottom of the steel accumulator, waiting for an electronic drain valve to clear it.[2]

However, when an operator opens a ball valve to vent the system quickly, that harmless pool becomes a destructive projectile. The sudden expansion of gas transforms the internal environment from a static storage volume into a high-velocity wind tunnel, fundamentally altering how the liquid behaves.[1]

The Mechanics of Aerodynamic Shear

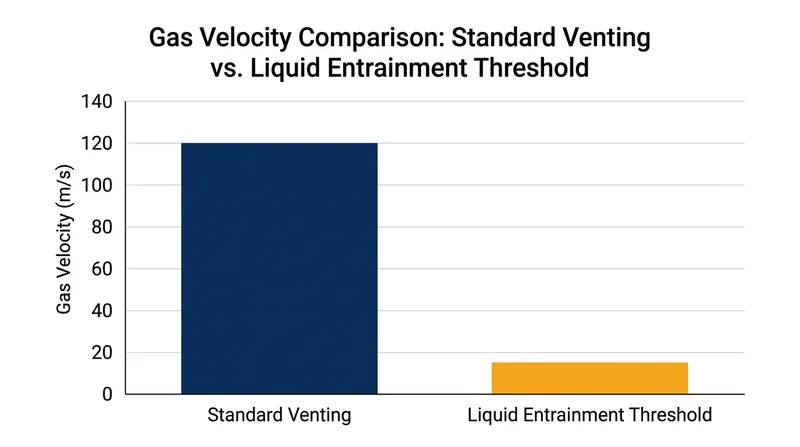

When an automated valve vents the accumulator, the static pressure drops instantly from a standard 7 bar down to atmospheric levels. The compressed gas expands to fill the lower-pressure void, rushing toward the exit port at velocities that routinely exceed 100 meters per second.[1]

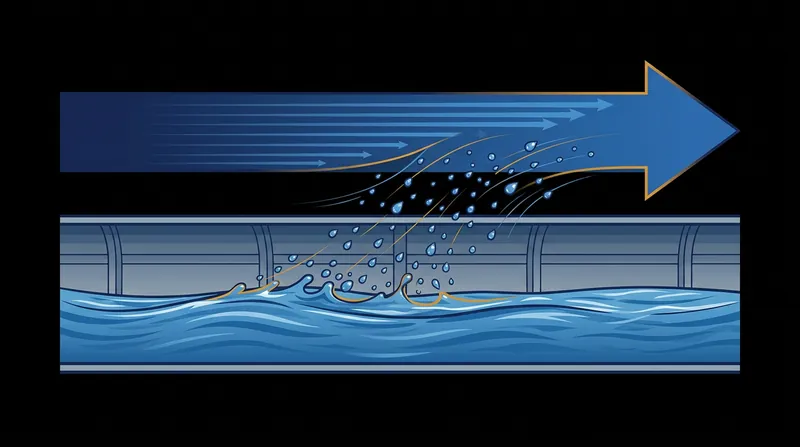

At these extreme speeds, the moving air exerts a massive friction force across the surface of the pooled condensate. Fluid dynamics dictates that when gas velocity crosses roughly 15 meters per second, it overcomes the surface tension and gravity holding the water in place.[1]

The air shears the top layer of the liquid, shattering it into microscopic droplets that measure less than 10 microns in diameter. Instead of a pool of water sitting at the bottom of a tank, the system now contains a high-velocity mist traveling directly toward the sensitive drying equipment.[1]

"When gas velocity exceeds the critical entrainment threshold, surface tension yields to aerodynamic drag, transforming pooled liquids into high-velocity aerosols," states a 2024 analysis in the Journal of Fluids Engineering. This phase interaction explains why seemingly dry tanks suddenly eject massive volumes of water during blowdowns.[1]

The sheer volume of entrained liquid scales with the duration of the venting event and the size of the accumulator. A 2,000-liter vessel venting from 10 bar can sustain entrainment velocities for over thirty seconds, atomizing liters of water into the downstream piping network.[1][3]

Why Desiccant Dryers Fail Under Liquid Load

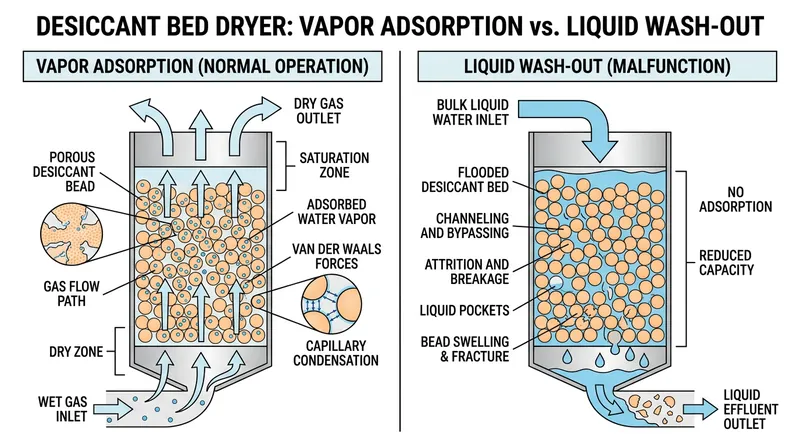

Compressed air dryers, particularly twin-tower desiccant models, are engineered strictly to adsorb water vapor, which is moisture that remains in a gaseous state. They rely on porous beads of activated alumina to trap individual water molecules within their microscopic crystalline lattice.

These highly engineered desiccant beds are completely defenseless against bulk liquid water. When the aerosolized condensate from the vented accumulator hits the dryer, it coats the activated alumina beads in a solid film of water, blocking the microscopic pores required for vapor adsorption.

This phenomenon, known in the industry as desiccant wash-out, instantly destroys the material's ability to achieve its target minus 40-degree Celsius dew point. The bulk liquid physically breaks down the structural integrity of the beads, turning the expensive drying agent into a useless, chalky sludge.

Once the desiccant is saturated by the liquid slug, the dew point of the entire pneumatic system spikes dramatically. Wet air then travels downstream to pneumatic tools, control valves, and manufacturing equipment, triggering corrosion and mechanical failure across the plant floor.[2]

Replacing a ruined desiccant bed is a massive financial penalty, often costing facilities upward of $15,000 in materials and lost production time. A single improper venting procedure can destroy a dryer bed that was otherwise engineered to last for three to five years of continuous operation.[3]

The Thermodynamics of Condensation

To understand why the water pools in the first place, one must look at the thermodynamics of industrial air compression. An air compressor pulling in ambient air at 20 degrees Celsius and 60 percent relative humidity heavily concentrates that moisture as it squeezes the gas.[2]

The compression process generates intense heat, often pushing discharge temperatures above 80 degrees Celsius, which keeps the concentrated moisture suspended entirely as vapor. However, once the hot air enters the large, uninsulated steel volume of the gas accumulator, it rapidly cools back toward ambient temperature.[2]

Because cold air holds significantly less moisture than hot air, the water vapor condenses into liquid droplets on the inner walls of the pressure vessel. These droplets run down the steel sides and pool at the lowest point, creating the reservoir that a rapid venting event will eventually weaponize.[2]

The ISO 8573-1 standard for compressed air purity explicitly warns about this phase change, noting that temperature drops in storage vessels are the primary source of bulk liquid in pneumatic networks. Managing this liquid requires constant drainage, but drains often fail or clog with compressor oil.[2]

The Counter-Argument for Rapid Venting

Proponents of rapid venting argue that it is a necessary procedure for emergency depressurization or rapid cycle testing. In safety-critical applications, bringing a pressurized vessel down to atmospheric pressure quickly is often prioritized over protecting downstream moisture equipment.[3]

Plant managers frequently rely on automated blowdown valves to clear lines during shift changes or maintenance lockouts. The prevailing assumption is that standard coalescing filters, installed directly ahead of the air dryers, will catch any liquid water before it reaches the vulnerable desiccant beds.

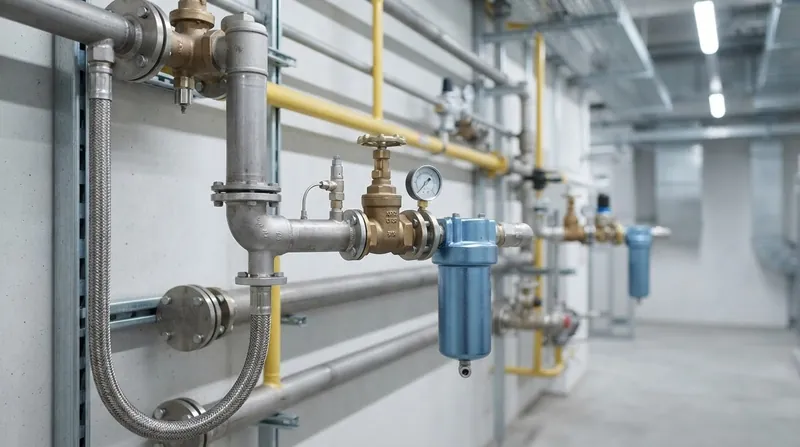

However, this assumption fundamentally misunderstands how coalescing filters operate under extreme differential pressure. These filters are rated for specific flow velocities, relying on a tortuous path of borosilicate glass fibers to merge microscopic aerosols into larger drops that fall to a drain.

When a rapid vent pushes air through the filter at five to ten times its rated capacity, the extreme differential pressure forces the liquid straight through the filter media. The high-velocity air simply blows the water past the protective barrier, rendering the coalescing filter entirely useless.

Engineering Defenses Against Entrainment

The most effective defense against condensate entrainment is controlling the expansion rate of the gas during a blowdown. Installing a flow-restricting orifice or a slow-opening proportional valve on the vent line limits the maximum gas velocity to well below the 15-meter-per-second shear threshold.[1]

By keeping the air speed low, the pooled water remains undisturbed at the bottom of the accumulator. The gas vents safely over a period of several minutes, and the liquid can be removed later through a dedicated electronic zero-loss drain valve.

Additionally, piping geometry plays a critical role in mitigating aerodynamic shear. Routing the exit port from the top of the accumulator, rather than the side or bottom, maximizes the distance between the exiting gas and the pooled liquid, further reducing the forces applied to the water.[1]

Some facilities install dedicated liquid separators immediately downstream of the accumulator to catch bulk water before it reaches the coalescing filters. These centrifugal separators use cyclonic action to spin heavy water droplets out of the airstream, providing a robust mechanical defense against entrainment.

Viewing gas accumulators as simple storage tanks ignores their complex fluid dynamics. Recognizing the vessel as a two-phase environment—where high-speed gas and pooled liquid interact—is the only way to design a venting protocol that protects the entire pneumatic infrastructure.[3]

The solution requires a shift in maintenance culture, moving away from the convenience of instant blowdowns toward controlled, engineered depressurization. Respecting the aerodynamic limits of pooled water ensures that desiccant dryers survive their intended lifespan, keeping industrial air systems dry and functional.[3]
