Spring-Loaded Discs Eliminate Water Hammer by Seating Check Valves Before Flow Reverses

The fate of a municipal water main is not decided when a pump fails, nor when the resulting pressure wave shatters a pipe joint. The outcome is entirely determined in the fraction of a second when the forward flow of water begins to decelerate, but has not yet reversed direction.[7]

If a check valve waits for the water to flow backward before it swings shut, the system is already doomed. The returning fluid column will slam the valve disc into its seat, converting massive kinetic energy into a destructive acoustic wave that tears at every flange and fitting.[2][6]

This phenomenon, universally known as water hammer, destroys industrial piping from the inside out. Yet the solution relies on a surprisingly simple mechanical intervention: adding a calibrated spring to the valve disc to force it closed before the fluid can change its mind.[1][4]

Spring-loaded axial flow check valves do not wait for gravity or reverse flow to do their job. They actively push against the fading forward momentum of the water, seating the valve at the exact millisecond the fluid velocity reaches zero, neutralizing the threat entirely.[1][5]

By closing before the water can reverse course, these valves eliminate the kinetic energy that causes the shockwave. The engineering consensus is clear: controlling the deceleration phase is the only reliable defense against hydraulic shock in high-capacity pumping systems.[5][7]

The Anatomy of a Hydraulic Shock

To understand why timing is everything, one must look at the physics of a pump trip. When a 500-horsepower municipal pump suddenly loses power, the water it was pushing forward does not stop immediately; it continues moving, driven by its own substantial mass.[3][7]

Inertia carries the fluid column down the pipe, creating a temporary low-pressure zone immediately downstream of the pump. Eventually, the friction of the pipe walls and the static head of the elevated system overcome this forward momentum, bringing the water to a brief standstill.[3][5]

The water slows to a halt, and then gravity pulls it backward. In a typical municipal system, this reverse acceleration can reach 15 feet per second squared, turning thousands of gallons of water into a high-speed battering ram aimed directly at the pump station.[5]

When this reversing column hits a suddenly closed valve, the fluid abruptly stops, but its energy must go somewhere. The kinetic energy converts into a pressure spike that propagates through the water at the speed of sound, roughly 4,800 feet per second in a rigid steel pipe.[2][5]

This pressure wave bounces between the closed valve and the nearest open reservoir, causing the pipe to expand and contract violently. "Check valve slam, whether it occurs as a minor nuisance or a building shaking thunderclap, warrants careful study," notes a 2003 analysis published in Water Technology.[2]

Why Gravity Fails the Swing Valve

For over a century, the standard defense against reverse flow has been the traditional swing check valve. This design features a hinged disc that hangs in the flow path, pushed open and held out of the way by the forward movement of the water.[1][6]

When the pump stops, the disc relies on gravity and the beginning of reverse flow to push it back against its seat. This inherently reactive design is the root cause of the water hammer problem in modern, high-velocity fluid transport networks.[5][6]

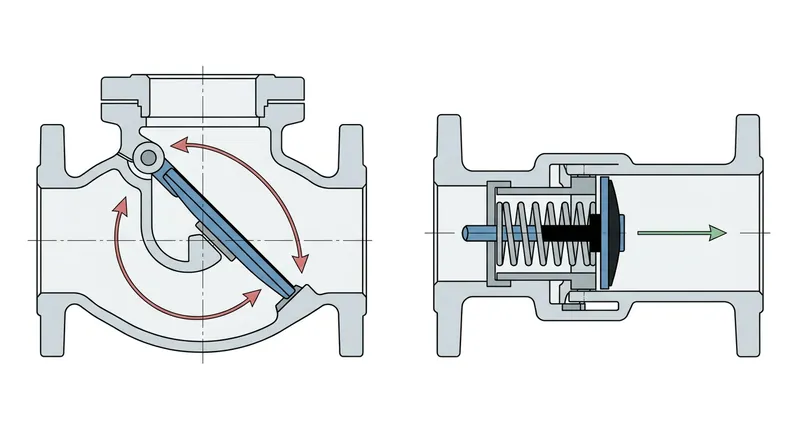

Because the disc has a relatively long stroke—often swinging through a 60- to 90-degree arc—it takes precious time to close. During this mechanical delay, the water has already reversed direction and is accelerating rapidly back toward the pump housing.[1][5]

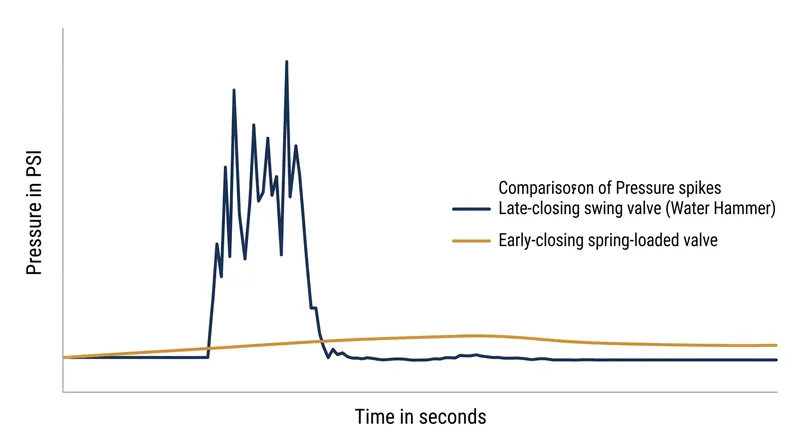

By the time the returning water catches the disc and slams it shut, the fluid may be traveling at several feet per second. The sudden arrest of this reverse velocity generates the massive pressure transients that rupture pipes and destroy expensive pumping equipment.[2][4]

A 2015 technical bulletin from Crane Engineering describes water hammer as a check valve's "Achilles heel," noting that traditional swing valves are inherently vulnerable because they require the very reverse flow they are meant to stop in order to function properly.[6]

The Spring-Loaded Solution

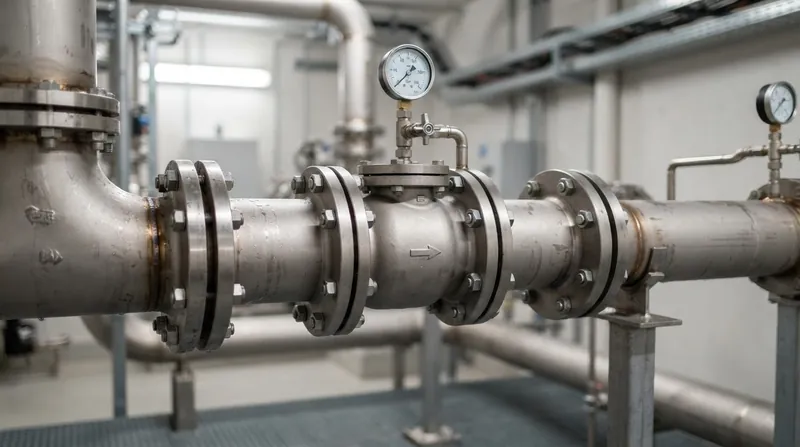

The mechanical counter-argument to the swing valve is the spring-loaded axial flow check valve. Instead of a hinged door swinging from the top, this design uses a central disc that slides linearly along the horizontal axis of the pipe, guided by a central shaft.[1][7]

A precisely calibrated spring sits behind the disc, constantly pushing it toward the closed position. During normal operation, the forward pressure of the pump is strong enough to compress the spring and keep the valve open, allowing water to flow around the aerodynamic disc.[1][4]

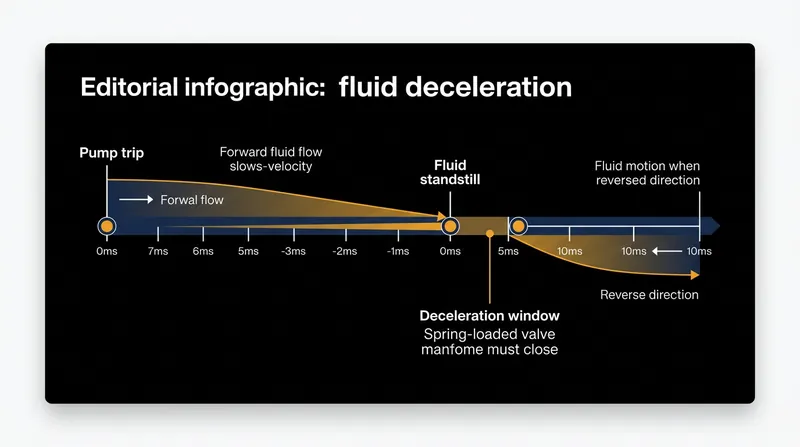

The critical difference emerges the moment the pump trips. As the forward flow begins to decelerate, the hydraulic pressure holding the valve open drops, allowing the mechanical force of the spring to take over and begin moving the disc toward the seat.[3][5]

The spring forces the disc toward its seat while the water is still moving forward. "The deceleration of the fluid column dictates the required dynamic response of the valve," states a comprehensive engineering report from Val-Matic Valve and Manufacturing Corporation, highlighting the importance of timing.[5]

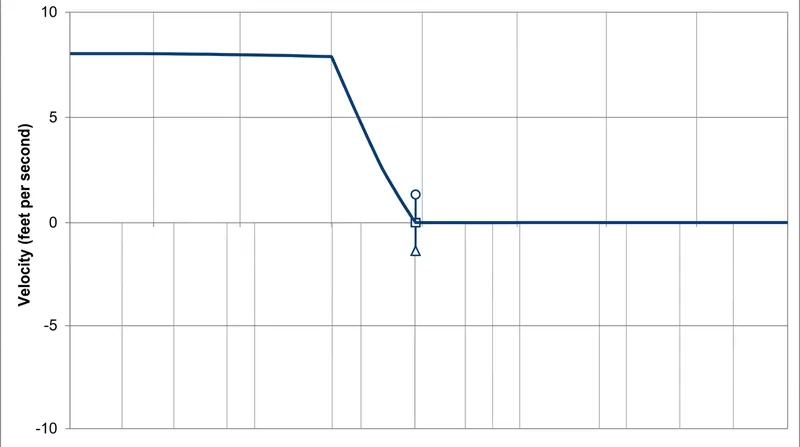

Because the spring acts independently of gravity and reverse flow, it ensures the valve is fully seated at the exact moment the forward velocity reaches zero. There is no reverse flow to arrest, and therefore no pressure spike is generated within the pipeline.[1][5]

Dynamic Characteristics and System Limits

The effectiveness of a spring-loaded valve depends entirely on its dynamic characteristics, specifically its closure response time. If the spring is too weak, the valve will close too late; if it is too stiff, the pump must work excessively hard just to keep it open.[3][5]

A 2022 study published in the journal MDPI modeled the transient flow of dual-disc check valves during opening and closing. The researchers found that matching the spring tension to the specific deceleration profile of the piping system is absolutely essential for preventing slam.[3]

Critics of spring-loaded designs often point to their higher pressure drop. Because the pump must constantly fight the spring to keep the valve open, these valves consume slightly more energy during normal operation than a free-swinging disc that simply hangs open in the flow.[1][7]

However, this continuous energy cost is generally accepted as a necessary insurance premium in critical infrastructure. The financial impact of a ruptured 24-inch water main far exceeds the marginal increase in electrical costs required to overcome the spring tension over the valve's lifespan.[4][7]

ValvTechnologies, in a 2026 technical review, emphasizes that preventing water hammer is not just about protecting pipes, but also shielding the pumps themselves. A severe pressure wave can force a pump to spin backward, destroying its bearings and requiring a complete mechanical overhaul.[4]

The Engineering Consensus

The transition from reactive swing valves to proactive spring-loaded designs represents a fundamental shift in fluid dynamics management. Engineers now recognize that attempting to absorb a pressure wave with surge tanks is far less effective than preventing its creation in the first place.[5][7]

By focusing on the deceleration phase rather than the reverse flow phase, spring-loaded valves attack the root cause of the problem. They decouple the valve's operation from the destructive forces of the fluid column, relying on stored mechanical energy instead of fluid momentum.[1][5]

The physics are unforgiving, but they are also entirely predictable. When a valve seats before the water reverses, the system remains quiet, the pipes remain intact, and the destructive potential of water hammer is neutralized at the exact moment it would otherwise begin.[4][7]
