Why the 60-Millivolt Thermal Limit Ended Dennard Scaling and Stalled Processor Voltages

The Carnot cycle dictates the maximum theoretical efficiency of a heat engine based entirely on the temperature difference between its hot and cold reservoirs. Engineers can push an engine closer to that limit by running it hotter, but they cannot rewrite the underlying thermodynamic law.[4]

The silicon transistor faces an identical thermodynamic floor known as the subthreshold swing limit, which dictates the minimum voltage required to turn a switch off. The crucial difference is that while mechanical engineers can increase combustion temperatures to cheat the Carnot limit, electrical engineers cannot force consumer electronics to operate at absolute zero to bypass the thermal voltage.[2]

This invisible barrier sits at exactly 60 millivolts per decade of current at room temperature. It is the reason a modern smartphone processor cannot run on 0.1 volts, no matter how small its transistors become.[2][4]

Understanding this limit requires looking past the marketing language of "3-nanometer" or "Intel 18A" nodes. While those labels suggest continuous, unbroken progress in miniaturization, the electrical reality of how a transistor operates stalled nearly two decades ago.[4]

The Physics of the Spillway

To see why, one must examine the mechanism of thermionic emission that governs standard silicon logic. A transistor is essentially a dam holding back a reservoir of electrons, with the gate voltage acting as the height of the spillway.[2]

When the gate voltage drops below the threshold, the transistor is supposed to be off. However, the electrons in the source terminal are not sitting perfectly still; they are vibrating with thermal energy at 300 Kelvin.[2]

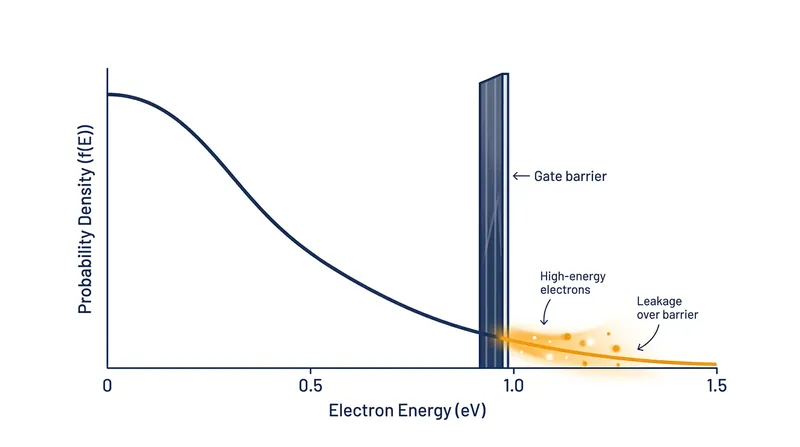

Because this energy follows a Boltzmann distribution, a small fraction of electrons always possesses enough energy to jump over the barrier. This creates a leakage current that does not shut off instantly, but rather decays exponentially as the barrier rises.[2][4]

"The subthreshold swing is fundamentally limited by the thermal energy of electrons, making it impossible to turn off a standard transistor faster than 60 millivolts per decade at room temperature," notes the canonical device physics literature on subthreshold conduction.[2]

That metric—60 millivolts per decade—means an engineer must apply at least 60 millivolts of gate voltage to reduce the leakage current by a factor of ten. In practice, a modern logic chip requires an on-to-off current ratio of about one million to one to function efficiently.[4]

The Collapse of Dennard Scaling

Achieving a six-decade drop in current requires a minimum of 360 millivolts of threshold voltage. If the threshold voltage drops below that floor, the transistor leaks so much current in its "off" state that the chip melts itself from the inside out.[4]

During the first thirty years of the microprocessor era, this thermal floor was too far away to matter. In 1974, IBM researcher Robert Dennard published a paper outlining what became known as Dennard scaling.[1][3]

Dennard observed that as transistors shrank in physical size, their operating voltage could be scaled down by the exact same proportion. If a transistor became 30 percent smaller, it could run on 30 percent less voltage, keeping the overall power density constant.[1][3]

This scaling law allowed companies to double the clock speed of their processors every few years without requiring exotic cooling systems. A 1995 processor and a 2004 processor both dissipated manageable heat, despite the latter running ten times faster.[3][4]

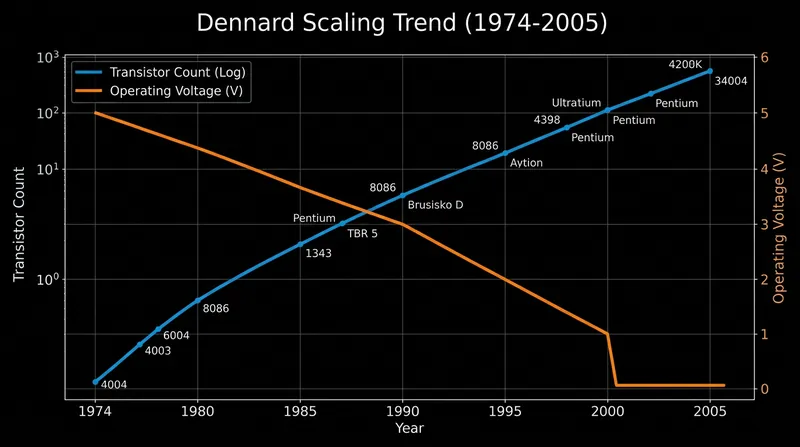

But around 2005, at the 90-nanometer manufacturing node, the industry slammed into the 60-millivolt limit. The operating voltage, which had steadily dropped from 5.0 volts in the 1980s to about 1.0 volt, could not go any lower without pushing the threshold voltage below the 360-millivolt safety margin.[3][4]

The Multi-Core Workaround

Because the voltage stopped dropping, the power density of the chips skyrocketed. If engineers had continued pumping up clock speeds without dropping voltage, a central processing unit would have reached the heat density of a nuclear reactor core by 2010.[3][4]

Unable to lower the voltage, the semiconductor industry was forced to abandon the pursuit of raw clock speed. Processor frequencies stalled at around 3.0 to 4.0 gigahertz, where they have largely remained for the last twenty years.[4]

Instead of making a single core run faster, designers began packing multiple cores onto a single die. This architectural pivot allowed performance to scale through parallel processing, masking the fact that the underlying electrical efficiency of the transistors had plateaued.[4]

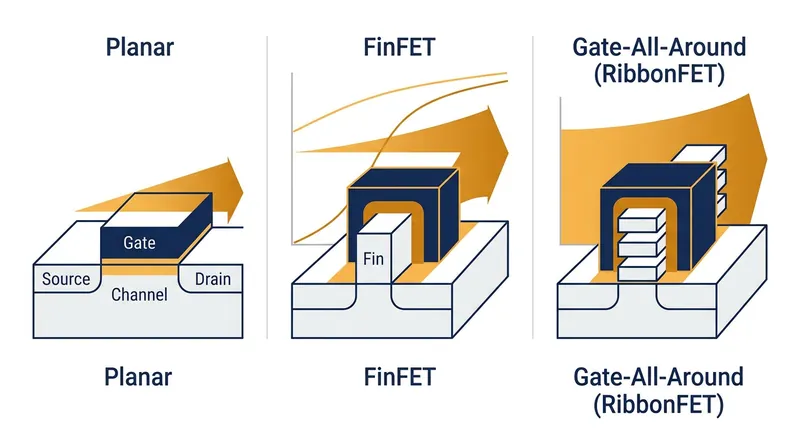

Modern marketing heavily emphasizes structural innovations like FinFET, introduced in 2011, and the Gate-All-Around (GAA) RibbonFET designs slated for advanced nodes. These three-dimensional structures wrap the gate around the silicon channel to exert better electrostatic control.[4]

However, these structural changes do not break the thermodynamic limit; they merely help the transistor get closer to it. A planar transistor from 2001 might have had a subthreshold swing of 90 millivolts per decade due to poor capacitance ratios, while a modern GAA transistor achieves roughly 65 millivolts per decade.[2][4]

The Quest for Steep-Slope Devices

The physical limit remains 60. No amount of structural wrapping or extreme ultraviolet lithography can change the Boltzmann distribution of electrons at room temperature.[2]

Recognizing this hard barrier, research laboratories have spent the last decade attempting to build "steep-slope" switches that operate on entirely different quantum mechanical principles. The most prominent candidate is the Tunnel Field-Effect Transistor, or TFET.[5][6]

Instead of pushing electrons over a thermal barrier, a TFET forces them to tunnel through it using quantum mechanics. Because quantum tunneling does not rely on the thermal energy tail of the electron distribution, a TFET can theoretically achieve a subthreshold swing below 60 millivolts per decade.[5][6]

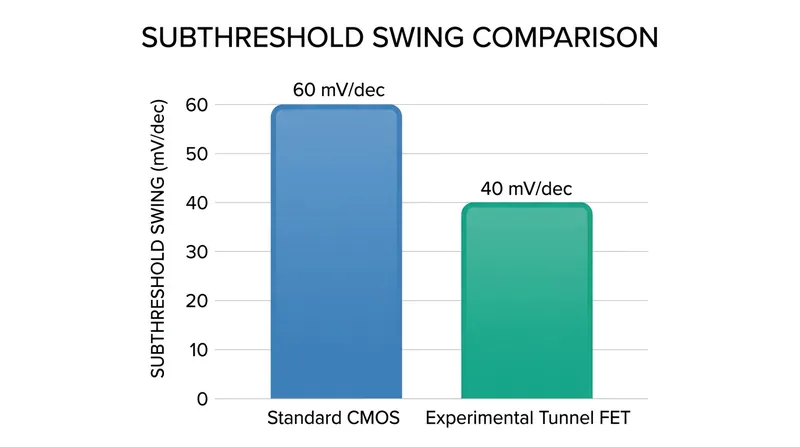

By 2015, researchers had demonstrated experimental TFETs achieving swings as low as 40 millivolts per decade in laboratory conditions. This sparked a wave of hype suggesting operating voltages could soon drop to 0.2 volts.[5]

The reality of commercial manufacturing has proven far more stubborn. While TFETs can turn on sharply, they struggle to deliver enough total current to drive high-performance logic circuits. A switch that turns on efficiently but cannot push enough current is useless for a multi-gigahertz processor.[5][6]

The Permanent Power Wall

Another experimental approach involves negative capacitance, utilizing ferroelectric materials in the gate stack. These materials theoretically amplify the internal voltage of the gate, tricking the silicon into experiencing a larger voltage swing than the battery actually provides.[4]

Despite billions of dollars in research, neither TFETs nor negative capacitance devices have shipped in a commercial consumer product. The entire global computing infrastructure remains anchored to thermionic emission and its 60-millivolt floor.[4][5]

This thermodynamic reality explains why modern data centers consume gigawatts of power, and why mobile device battery life has not fundamentally changed in a decade. The energy required to flip a bit is bounded by the temperature of the room.[4]

To extract more performance, companies now rely on specialized silicon—building dedicated hardware accelerators for video encoding or neural networks. These accelerators do not run on lower voltages; they simply waste fewer clock cycles executing specific math operations.[4]

The end of Dennard scaling was not a failure of engineering, but an encounter with a fundamental law of nature. The semiconductor industry spent thirty years shrinking the transistor, only to discover that they could not shrink the electron.[3][4]

Until a steep-slope device proves viable for mass manufacturing, the 360-millivolt threshold will remain the absolute floor for silicon logic. Every architectural decision made in processor design today is a direct response to that single, unyielding number.[4]
