Why Supercar Monocoques Use Carbon Fiber Over Aluminum and Steel for Torsional Rigidity and Crash Safety

A modern carbon fiber supercar chassis weighs less than 80 kilograms—roughly the mass of an average adult passenger—yet it can resist 40,000 Newton-meters of twisting force for every degree it flexes. That basis, the ratio of absolute rigidity to physical weight, is the defining metric of high-performance engineering. For a buyer configuring a seven-figure vehicle, the architecture beneath the leather dictates every physical sensation the car delivers.[2][4]

The transition away from metal began in 1981, when McLaren introduced the MP4/1 to Formula 1, abandoning aluminum for a full carbon fiber monocoque. The leap in stiffness and crash survivability forced the entire grid to adapt. Today, that same race-bred philosophy forms the backbone of the road-going supercar market, replacing traditional steel and aluminum spaceframes with composite tubs.[3]

Unlike a body-on-frame design where a separate chassis carries the load, a monocoque—or "single shell"—uses its exterior skin to provide structural integrity. In a supercar, this takes the form of a central passenger cell, often called a tub. The engine, suspension, and crash structures bolt directly to this composite core.[4]

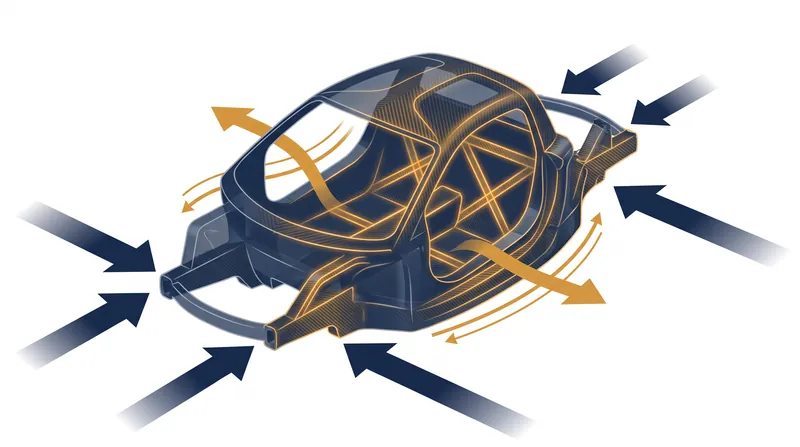

The primary job of this tub is resisting twist. When a driver pushes a car through a corner, the suspension transfers immense lateral loads into the chassis. If the chassis flexes, the suspension geometry changes, and the tires lose their optimal contact patch with the asphalt. Engineers measure this resistance in Newton-meters per degree (Nm/deg).

A standard passenger sedan might achieve 15,000 Nm/deg. In contrast, Lamborghini's LB744 (the Revuelto) utilizes a carbon fiber "monofuselage" that hits 40,000 Nm/deg—a 25% increase over its aluminum-intensive predecessor, the Aventador. Pagani's Huayra Roadster BC achieves similar gains, using a proprietary carbo-titanium weave to increase torsional rigidity by 12% over previous iterations.[4]

Achieving that stiffness with steel or aluminum requires adding mass—thicker walls, heavier bracing, and complex cross-members. Carbon fiber breaks that linear relationship. A McLaren carbon tub weighs under 80 kilograms, making it 25% stiffer than a comparable aluminum chassis and significantly lighter.[2]

The secret to this efficiency lies in the material's fibrous nature. "Whereas metal is homogenous – it has equal properties in all directions – with composites, because it's fibrous you can lay the fibres up to give you the performance in the direction you want," explains a McLaren composites engineer. Manufacturers weave and orient the carbon strands specifically to counter the exact loads the car will face.[2]

For an owner, rigidity translates to handling, but energy absorption translates to survival. When a vehicle strikes a barrier, the structure must manage the kinetic energy. Aluminum bends and crumples, which is useful for designated crash zones, but less ideal for the passenger compartment itself.

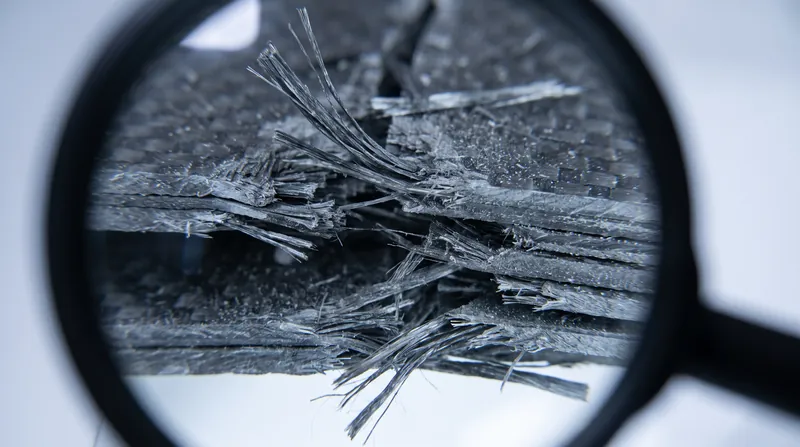

Carbon fiber does not bend. When subjected to an impact exceeding its threshold, it shatters, delaminating and breaking into smaller pieces. This controlled destruction absorbs massive amounts of energy. Lamborghini notes that its carbon fiber front cone structures absorb double the energy of a traditional aluminum front frame.[2][4]

Because the central tub is so rigid, it acts as an impenetrable vault. In a severe crash, the aluminum subframes bolted to the front and rear of the carbon tub are designed to crush and tear away, dissipating the impact. The carbon monocoque remains intact, protecting the occupants inside.[2]

The barrier to entry for this technology remains the production process. Stamping a steel chassis takes seconds. Laying up a carbon fiber tub requires precision molds, vacuum bagging, and hours inside a pressurized autoclave oven. This lack of flexibility in production means that once a mold is set, altering the chassis design is incredibly expensive.[1][2]

For the owner, this material reality changes the calculus of a minor collision. A bent metallic chassis can sometimes be heated and pulled straight on a frame machine. Carbon fiber cannot be un-shattered. If the structural tub cracks, repairing it requires specialized aerospace-grade composite patching, and in many cases, the entire shell must be replaced.[2]

To push the boundaries further, manufacturers are blending carbon with other elements. Pagani's Carbo-Triax HP62 and Carbo-Titanium formulas weave titanium wire directly into the carbon fabric. This hybrid material maintains the extreme lightness of carbon but adds the yielding, fracture-resistant properties of titanium, preventing catastrophic shattering under localized stress.

Traditional carbon fiber uses long, continuous woven sheets. Lamborghini has pioneered "Forged Composites," which uses short, chopped carbon fibers mixed with resin and pressed in a heated mold. This allows engineers to create complex, three-dimensional structural shapes—like the LB744's monolithic rocker ring—that would be impossible to weave by hand.[4]

As the industry shifts toward electrification, the weight penalty of heavy battery packs makes carbon fiber even more critical. The mass saved by a composite tub directly offsets the mass of the lithium-ion cells, preserving the power-to-weight ratio that defines the supercar experience.

The transition from metal to carbon fiber is complete at the top tier of automotive performance. The composite monocoque is no longer an exotic experiment; it is the mandatory foundation for any vehicle attempting to manage 1,000 horsepower, generate a ton of downforce, and keep its driver alive when the physics run out.
