Why Solid-State Batteries Still Short Circuit: The Mechanics of Discharge Voids

Battery startups and automakers routinely claim that solid-state ceramics physically block lithium dendrites, promising a future of fireproof, fast-charging electric vehicles. The empirical evidence from operando X-ray tomography contradicts this entirely. Solid electrolytes do not inherently stop dendrites; under normal operating conditions, they actively facilitate them.[2][7]

The misconception stems from a fundamental misunderstanding of how lithium metal behaves at the microscopic level. Marketing materials present the ceramic separator as an impenetrable wall that simply resists puncture. However, peer-reviewed materials science demonstrates that the failure mechanism is a matter of fluid dynamics and current concentration.[1][6]

To understand the discrepancy, researchers must look at the discharge cycle, not just the charging phase. When a lithium metal battery discharges, lithium ions are stripped away from the anode and move through the solid electrolyte. This process removes physical material directly from the interface.[3][4]

In a traditional liquid battery, the liquid electrolyte simply flows to fill the newly created space. A solid ceramic cannot flow. If the lithium metal does not deform fast enough to maintain contact with the ceramic, microscopic empty spaces—voids—begin to open up at the boundary.[8][9]

"The formation of voids at the interface is the critical first step in the degradation of the battery," notes a 2021 briefing from the Diamond Light Source. This voiding happens quietly during the discharge phase, long before any short circuit occurs.[2]

The physics of lithium stripping

The rate at which these voids form is governed by the critical stripping current. If the battery draws current faster than the lithium can mechanically creep to fill the gaps, the interface begins to detach. The metal simply cannot stretch fast enough to keep touching the ceramic.[1][3]

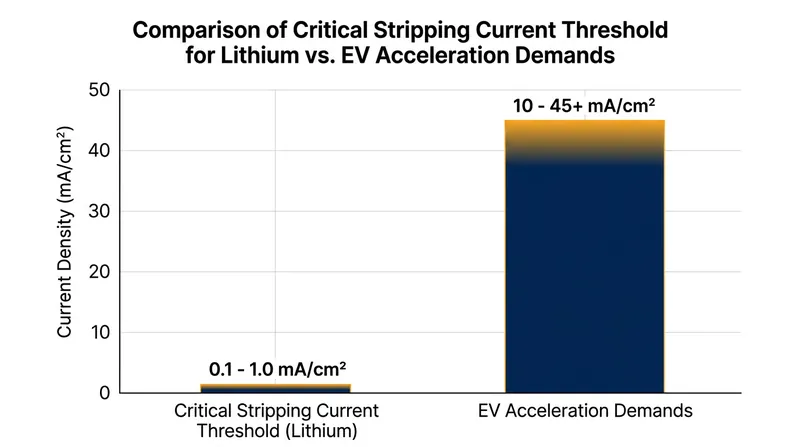

A 2019 study published in Nature Materials quantified this threshold. Researchers found that at room temperature, stripping currents as low as 0.1 to 1.0 milliamperes per square centimeter can outpace lithium's ability to maintain conformal contact. Exceeding this limit guarantees interfacial separation.[1]

Electric vehicle acceleration demands significantly higher discharge rates than this laboratory threshold. When a driver steps on the accelerator, the rapid stripping of lithium practically ensures the formation of microscopic voids across the entire anode surface.[5][7]

Operando X-ray tomography, which allows scientists to see inside the battery while it operates, reveals the scale of the detachment. A 2021 Nature Materials paper showed that after just a few cycles, the actual contact area between the lithium and the ceramic can drop by more than 50 percent.[9]

This loss of contact fundamentally changes the electrical properties of the cell. The battery may still appear to function normally on a voltage readout, but internally, the architecture has been severely compromised. The stage is set for a catastrophic failure during the next charge.[3][8]

Current concentration and the bottleneck

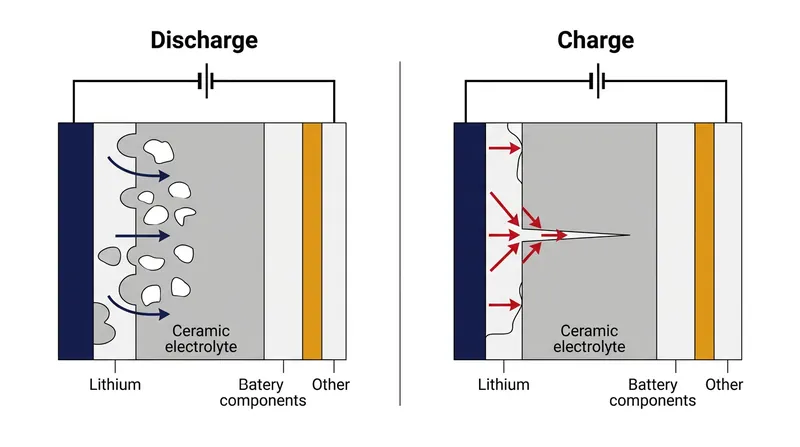

The true danger of these discharge voids manifests when the battery is plugged in to recharge. During charging, lithium ions must travel back through the ceramic separator and plate onto the anode to replenish the metal layer.[4][6]

Because electric current cannot flow through the empty vacuum of a void, the returning lithium ions are forced to detour. They funnel exclusively into the remaining points where the lithium metal and the ceramic are still physically touching.[1][8]

This creates a severe electrical bottleneck. If 50 percent of the interface has detached, the local current density at the remaining contact points doubles. In highly localized hotspots, the current density can easily spike to ten times the nominal charging rate.[6][9]

"The single-void dynamics reveal how solid-state batteries quietly fail," researchers explained in a 2026 Scienmag report. The concentrated current at these microscopic pinch points overwhelms the local structural integrity of the ceramic material.[8]

At these extreme local current densities, the lithium does not plate smoothly. Instead, the intense electrochemical pressure forces the lithium to deposit as sharp, needle-like structures directly into the microscopic flaws of the ceramic surface.[5][7]

Driving dendrites through ceramic

This is the mechanism that shatters the solid-state promise. The ceramic electrolyte is indeed hard, but the localized pressure generated by the concentrated current is immense. The lithium acts like a microscopic wedge driven by an electrical hammer.[1][2]

The 2021 Diamond Light Source imaging demonstrated exactly how this infiltration occurs. The X-ray computed tomography showed lithium dendrites exploiting grain boundaries and microscopic cracks in the ceramic, wedging them apart like tree roots breaking concrete.[2]

Once a dendrite begins to penetrate the ceramic, the electric field concentrates even further at its sharp tip. This creates a runaway feedback loop, accelerating the dendrite's growth through the solid electrolyte until it reaches the cathode on the other side.[4][6]

The resulting short circuit destroys the battery and can lead to thermal runaway. The irony is that the failure occurs during charging, but the architectural flaw that caused it was entirely constructed during the preceding discharge.[3][9]

This sequence of events explains why simply making the ceramic harder does not solve the problem. As long as voids are allowed to form during discharge, the resulting current concentration will eventually drive a dendrite through any solid separator.[7][8]

The limits of pressure and heat

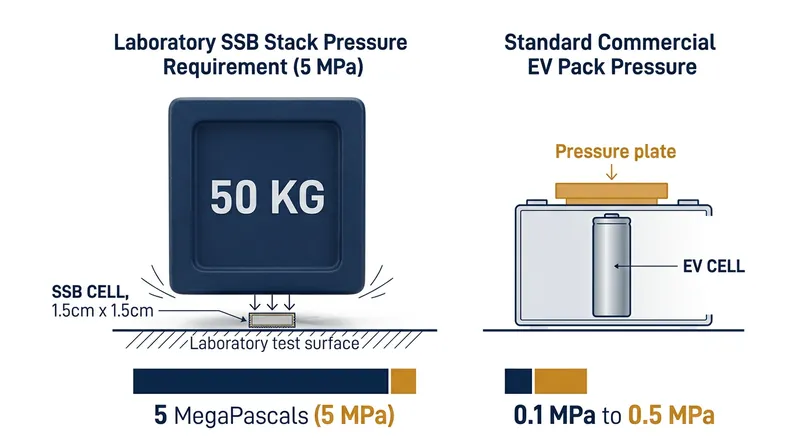

To combat void formation, laboratory tests of solid-state batteries typically rely on extreme external conditions. Researchers apply massive mechanical pressure to the cells to physically squeeze the lithium into the ceramic as it strips away.[1][5]

These stack pressures often exceed 5 megapascals, roughly equivalent to resting a 50-kilogram weight on a surface the size of a postage stamp. Engineering such heavy, bulky clamping mechanisms into a commercial electric vehicle pack drastically reduces the overall energy density.[3][7]

Temperature also plays a critical role in lithium's mechanical behavior. At elevated temperatures, lithium metal becomes softer and creeps more easily, helping it maintain contact with the ceramic during rapid discharge cycles.[1][4]

However, requiring a battery pack to operate at 60 degrees Celsius introduces significant thermal management challenges. It consumes energy to heat the pack and accelerates other parasitic chemical degradation mechanisms within the cell.[5][9]

For a solid-state battery to be commercially viable, it must operate safely at room temperature and with minimal external pressure. Under those real-world constraints, the void-dendrite failure loop remains a formidable barrier to mass production.[6][8]

Engineering the interface

Recognizing that pure ceramics cannot solve the problem alone, materials scientists are shifting their focus from the bulk electrolyte to the microscopic interface itself. The goal is to engineer a boundary that yields without detaching.[3][7]

One approach involves applying ultra-thin interlayers between the lithium metal and the ceramic. These coatings, often made of silver-carbon composites or specialized polymers, are designed to maintain electrical contact even as the lithium strips away.[5][9]

A 2026 study in Energy & Environmental Science demonstrated that promoting lateral lithium flux—encouraging the lithium to move sideways along the interface—can help suppress dendrite formation. By redistributing the current, the local hotspots are mitigated.[5]

Other teams are exploring three-dimensional structured anodes that increase the total surface area of the interface. This reduces the baseline current density, giving the lithium more time to mechanically relax during both charging and discharging.[4][6]

Until these interfacial challenges are resolved, the commercial timeline for solid-state electric vehicles remains highly uncertain. The technology works perfectly in marketing presentations, but the physics of void formation requires a solution that goes beyond simply swapping liquid for ceramic.[7][8]
