Why Ring-Spun Combed Cotton Resists Pilling Better Than Open-End Knits

A premium cotton garment sheds up to 15 percent of its shortest fibers before it ever reaches a spinning frame. That single mechanical step dictates whether the fabric will survive a year of washing or pill into a fuzzy mess within months. When combined with the slow twist of a ring-spinning machine, this alignment fundamentally changes how the material handles friction.

The difference between a durable knit and a disposable one comes down to how the raw cotton is prepared and spun. Ring-spun combed cotton represents the highest standard for everyday apparel. It relies on a meticulous alignment process that forces individual fibers to lie parallel to one another.[1]

This structural discipline eliminates the microscopic loose ends that typically protrude from cheaper yarns. Without those stray loops catching on external surfaces, the fabric resists the abrasive forces of daily wear. The result is a textile that maintains its smooth hand feel long after cheaper alternatives have degraded.

The Mechanics of Fiber Alignment

The ring-spinning process is an older, more labor-intensive method of producing yarn. It draws a continuous bundle of cotton fibers through a traveler that rides on a metal ring. This mechanism twists the fibers together under constant tension, pulling them into a tight, parallel bundle.[2]

Because the traveler limits the rotational speed, the machine forces the fibers into a highly organized structure. This slow, controlled twisting yields a yarn that is remarkably smooth and dense. The parallel alignment ensures that the structural load is distributed evenly across the entire length of the strand.[2]

Procurement comparisons consistently show that ring-spun yarn achieves a higher breaking strength than alternative methods. In standard tensile testing, ring-spun cotton tests between 10 and 30 percent stronger than equivalent yarns produced on faster machinery. That strength translates directly into how garments perform after repeated washing.

The tight twist also minimizes the yarn's hairiness, which is the textile industry's term for fibers protruding from the main strand. A lower hairiness index means fewer opportunities for the fabric to catch, snag, or tangle. This smooth profile is the primary reason ring-spun garments feel noticeably softer against the skin.

When a fabric lacks this structural integrity, the friction of normal movement pulls loose fibers out of the yarn bundle. These stray filaments tangle together on the surface, forming the small, hard balls known as pills. Ring-spun cotton suppresses this process by keeping the fibers locked securely within the twisted core.

Why Open-End Yarn Fails Under Friction

The alternative to ring spinning is a highly automated process known as open-end or rotor spinning. This method skips the roving stage entirely, feeding loose cotton fibers directly into a high-speed rotor. The centrifugal force twists the yarn at speeds reaching up to 140,000 revolutions per minute.

While open-end spinning is up to seven times faster than ring spinning, it sacrifices fiber alignment for speed. The fibers are deposited randomly into the rotor, creating a bulkier, less organized strand. This chaotic arrangement leaves numerous wrapper fibers sitting loosely on the surface of the yarn.

Those unaligned surface fibers are the primary catalyst for pilling. Because they are not anchored deeply within the twisted core, everyday abrasion easily pulls them loose. Once freed, they tangle with neighboring filaments to create a rough, uneven texture across the garment.[2]

Open-end yarn is also inherently weaker, suffering a 10 to 30 percent deficit in tensile strength compared to ring-spun equivalents. The random fiber orientation means the strand cannot distribute stress evenly. Under tension, the yarn breaks more easily, leading to microscopic tears that accelerate surface degradation.

This manufacturing shortcut is why budget promotional t-shirts often feel coarse and wear out quickly. The open-end process reduces production costs by 15 to 30 percent, making it the default choice for fast fashion. However, the savings come at the direct expense of the garment's lifespan and comfort.

The Role of the Combing Process

Spinning technique alone does not guarantee a durable fabric; the preparation of the raw cotton is equally critical. Before spinning begins, raw cotton is carded, a process that uses mechanical brushes to untangle the fibers. Carding creates a basic sliver but leaves short, prickly fibers and microscopic impurities intact.[1]

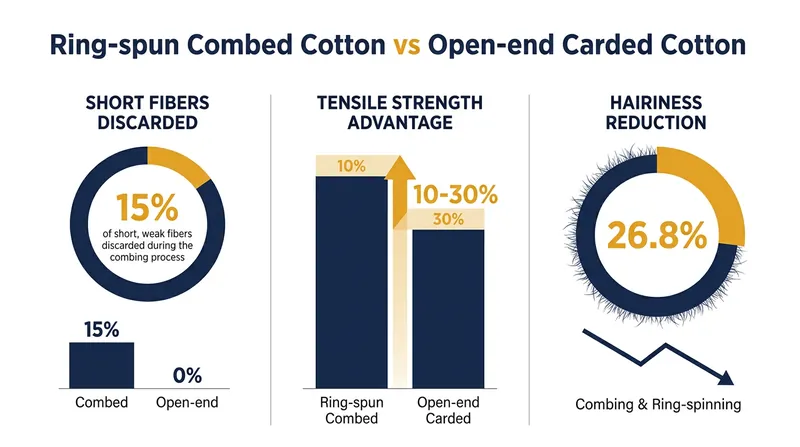

Combed cotton undergoes an additional, rigorous refinement step. Fine-toothed combs mechanically filter the carded cotton, actively discarding the shortest and weakest fibers. This process removes up to 15 percent of the initial fiber volume, leaving only the longest, most resilient staples behind.[1]

Eliminating these short fibers is essential for preventing abrasion damage. Short staples are notoriously difficult to anchor within a spun yarn, making them the first to pull loose under friction. By removing them entirely, combing reduces the yarn's hairiness by nearly 27 percent before spinning even begins.

The resulting combed yarn is exceptionally pure and uniform. When paired with the tight twist of ring spinning, the long-staple fibers bind together with remarkable cohesion. This combination produces a lustrous, ultra-smooth textile that resists the mechanical stress of commercial laundering.[1]

Fabrics made from carded, open-end yarn lack both of these protective measures. They retain the short, weak fibers that are prone to shedding, and they spin them loosely, allowing those fibers to escape. The resulting garments are fundamentally disadvantaged against the friction of daily wear.[2]

Measuring Abrasion Resistance

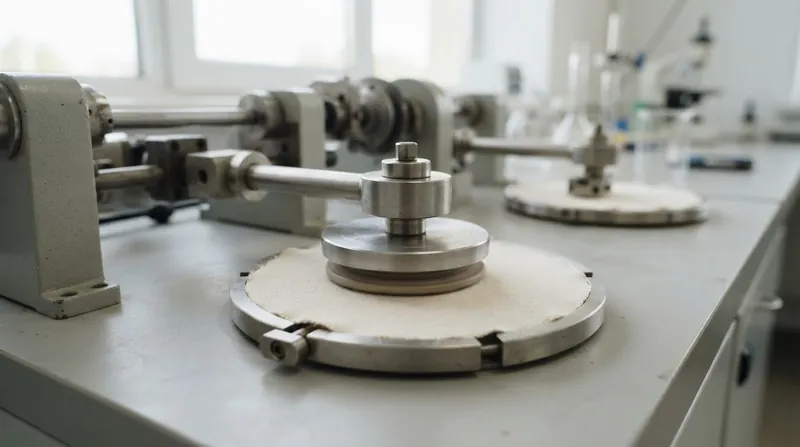

The textile industry quantifies this durability gap using standardized testing protocols like ASTM D4970. This method employs a Martindale tester to simulate the friction a garment experiences during normal use. The machine rubs a circular fabric specimen against a standard abrasive material under controlled pressure.[3]

The Martindale tester moves in a Lissajous pattern, an overlapping elliptical motion that ensures equal friction across all parts of the sample. After a set number of cycles, technicians evaluate the fabric's surface for fuzzing and pill formation. The results are graded on a scale from one to five.[3]

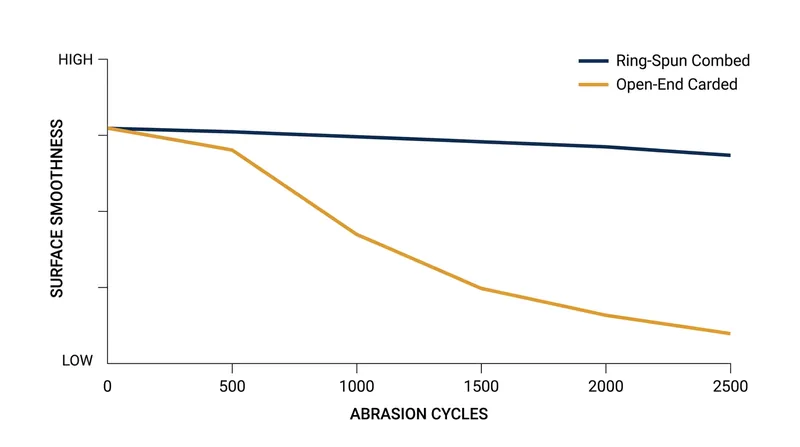

Ring-spun combed cotton consistently achieves higher ratings in these controlled abrasion tests. The tightly bound, long-staple fibers resist the abrasive pad, maintaining a smooth surface long after cheaper fabrics have failed. A grade of five indicates no visible pilling, a standard rarely met by open-end knits.[3]

In contrast, carded open-end fabrics typically show significant surface changes early in the testing cycle. The abrasive motion quickly catches the protruding wrapper fibers, pulling them into dense tangles. These fabrics often score a three or lower, indicating moderate to severe pilling.[3]

These laboratory results mirror the real-world performance of the garments. A shirt that fails the Martindale test will inevitably look worn and fuzzy after just a few trips through a household washing machine. The mechanical agitation of laundering acts as a continuous abrasion test on the fabric.[2]

Cost Versus Longevity

The decision between these manufacturing methods ultimately comes down to the intended lifespan of the product. Ring-spun combed cotton requires more raw material, specialized machinery, and significantly more time to produce. These factors drive up the wholesale cost, making it a premium choice for brands focused on quality.[1]

Open-end carded cotton remains the logical choice for single-use promotional items or heavy-duty workwear where raw bulk matters more than surface smoothness. The high-speed rotor spinning and minimal fiber preparation keep costs low. For these applications, a coarse texture and eventual pilling are acceptable trade-offs.[2]

However, for garments worn directly against the skin, the investment in fiber alignment pays off. The superior tensile strength prevents seams from tearing, while the lack of loose end loops keeps the fabric looking new. The initial price premium buys a measurable increase in the garment's usable life.

Understanding these mechanical differences allows consumers to look past marketing claims and evaluate the actual construction of their clothing. A label boasting of ring-spun combed cotton is not just promising softness. It is guaranteeing a structural resilience that cheaper manufacturing methods simply cannot replicate.[4]
