Why HDR Video Looks Dimmer Than SDR: The Mechanics of Absolute Luminance and Tone Mapping

In the music industry's infamous "loudness wars" of the 2000s, pop albums were heavily compressed so that every snare hit and vocal line peaked at maximum volume. Classical recordings, by contrast, preserve a massive dynamic range, keeping the baseline whisper-quiet so a sudden timpani strike can actually hit hard.[1]

The crucial difference between audio and video is that when a classical track feels too quiet, a listener can simply turn the amplifier's volume knob past ten. When a high-dynamic-range movie looks too dim, a viewer cannot turn their television's physical backlight past 100 percent.[1]

This hard physical limit is the reason why upgrading to a High Dynamic Range (HDR) television often results in a surprisingly dim picture. Consumers expect blinding highlights and vibrant colors, but instead find themselves squinting at shadowy living rooms in prestige streaming dramas.[3]

The culprit is not a broken television, a faulty HDMI cable, or a bad internet connection. It is a fundamental, mathematical shift in how modern screens interpret digital video signals, driven by a standard published in 2014 known as SMPTE ST 2084.[5]

To understand why HDR looks dark, one must first understand how television worked for the previous seventy years. Standard Dynamic Range (SDR) video operated on a highly flexible, albeit inaccurate, system of relative luminance.[4]

The relative luminance era

Under the SDR standard, the video signal did not tell the television exactly how bright a pixel should be in absolute terms. Instead, it sent a simple percentage: zero meant the darkest black the screen could produce, and 100 percent meant maximum brightness.[4]

If a viewer watched an SDR movie on a cheap 200-nit computer monitor or a premium 800-nit television, both screens simply stretched the signal to fit their hardware. The television's processor mapped the 100 percent signal to whatever its physical backlight could achieve.[2]

This relative scaling allowed consumer televisions to crank their backlights up across the entire image. Midtones—the faces, the indoor rooms, the everyday scenery—were pushed to be punchy and bold, regardless of the cinematographer's original intent.[2]

SDR traded accuracy for a consistently bright average picture level. A television in a sunlit living room could simply blast the entire image at 800 nits, ensuring that nothing was ever too dark to see.[2]

Anchoring light to reality

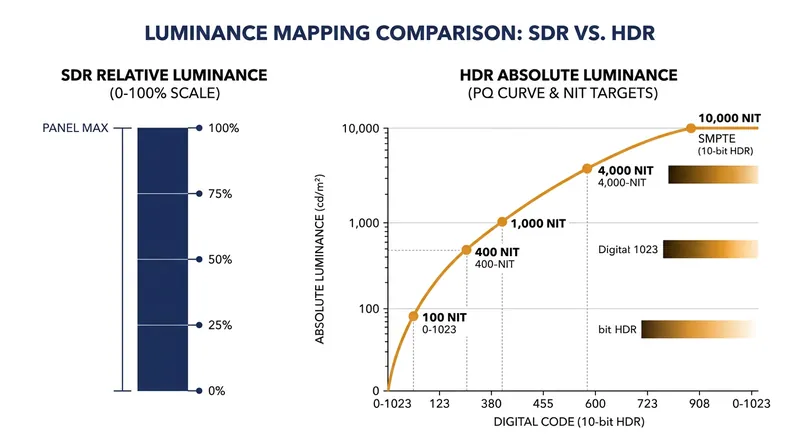

HDR threw out the relative percentage system entirely, replacing it with the SMPTE ST 2084 standard, commonly known as the Perceptual Quantizer (PQ). PQ maps digital code values to absolute, real-world luminance levels, measured in candelas per square meter, or nits.[5]

Under the PQ standard, a digital value no longer means "maximum brightness" relative to the screen. It means exactly 1,000 nits, or exactly 4,000 nits, demanding a specific, measurable physical output from the display hardware.[6]

The PQ curve is designed with a theoretical ceiling of 10,000 nits, providing massive headroom for specular highlights. This allows elements like explosions, neon signs, and direct sunlight to pierce through the image with blinding realism.[5]

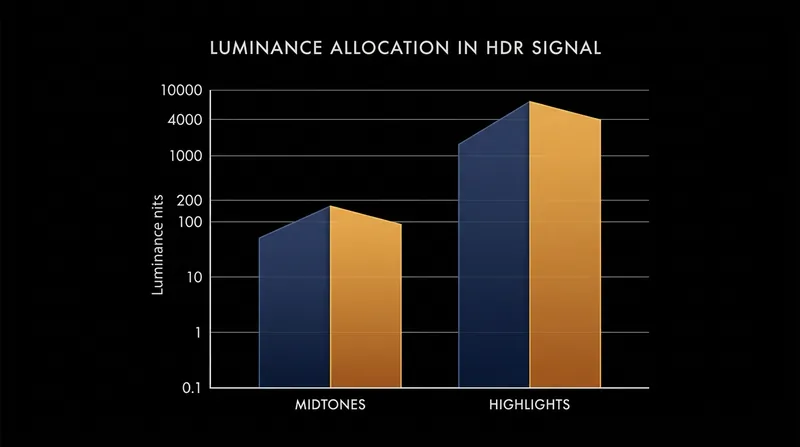

To leave room for those blinding peaks, the standard anchors everyday midtones to a highly realistic baseline. Faces, indoor rooms, and overcast skies are typically mastered to sit firmly between 100 and 200 nits, regardless of the screen's capabilities.[2]

This restraint is entirely intentional on the part of the mastering engineer. By keeping the average picture level relatively low, the colorist ensures that the television has enough reserve power to make a sudden lightning strike feel genuinely bright by comparison.[1]

When hardware falls short

The absolute math of PQ works flawlessly on a $30,000 Hollywood reference monitor capable of hitting 4,000 nits. The colorist sees exactly what the math dictates: a 200-nit face standing next to a 4,000-nit sun.[1]

The problem arises in the consumer living room, where the vast majority of televisions physically max out between 400 and 1,000 nits. When a consumer display receives a signal demanding 4,000 nits of light, it faces an immediate mathematical crisis.[2]

If the television simply outputs its maximum 600 nits for the sunlit window, it will clip the highlight. The subtle gradients of the sky will be destroyed, turning a detailed cloud formation into a flat, blown-out white blob.[2]

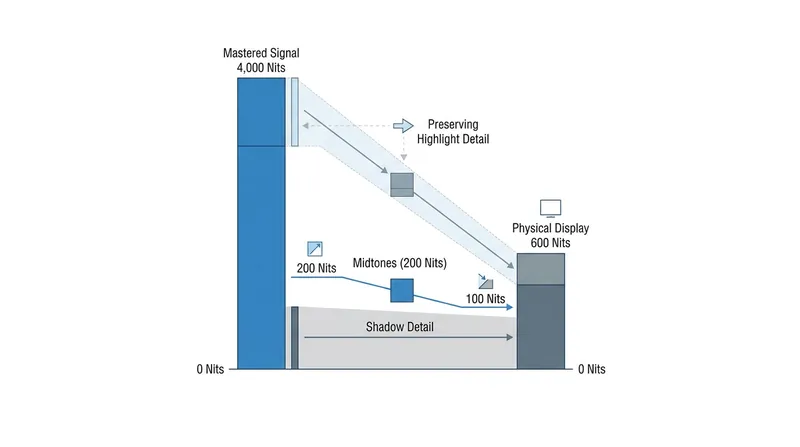

To preserve the detail in those bright extremes, the television employs a processing algorithm called tone mapping. Tone mapping compresses the entire luminance range of the incoming signal to fit within the physical limits of the panel.[2]

Preserving the highlights

Because the television must reserve its limited backlight power to differentiate the brightest highlights, it forces the midtones even lower. The algorithm squashes the dynamic range, pulling the entire image down to leave room at the top.[3]

As home theater reviewers frequently note, this compression is a necessary evil. When a display lacks the hardware to hit 4,000 nits, "the television will lower the brightness of the image to preserve details in the highlights, but obviously resulting in a dimmer picture."[2]

A scene that was mastered to sit comfortably at 200 nits might be pushed down to 100 nits just to keep an explosion from blowing out. The television sacrifices the brightness of the midtones to save the integrity of the highlights.[2]

Meanwhile, if a viewer switches to the SDR version of the exact same film, the television abandons absolute accuracy. It reverts to relative luminance, blasting the midtones at 600 nits and delivering a much brighter overall image.[1]

The result is a frustrating paradox of modern display technology that confuses many consumers. The video format explicitly designed to deliver unprecedented brightness often yields a darker average picture level than the legacy standard it replaced.[3]

Fighting the ambient light

This dimming effect is severely exacerbated by the environments in which most people actually watch television. HDR content is graded in pitch-black mastering suites, where a 150-nit face appears perfectly legible and a 1,000-nit highlight is genuinely dazzling.[6]

In a sunlit living room, however, the human eye adapts to the ambient light in the room. Those carefully anchored, tone-mapped midtones suddenly look muddy, washed out, and frustratingly dim to a viewer fighting window glare.[3]

Manufacturers have attempted to patch this vulnerability with dynamic metadata formats like Dolby Vision IQ and HDR10+ Adaptive. These formats use ambient light sensors in the television to adjust the tone curve on the fly, artificially boosting midtones in bright rooms.[4]

These dynamic adjustments help, but they are ultimately a software bandage over a hardware limitation. Until consumer panels can routinely and affordably output 4,000 nits, the absolute math of HDR will continue to force a compromise.[1]

For now, viewers are left with a choice between the consistent, inaccurate brightness of SDR and the dynamic, often dim realism of HDR. The technology works exactly as designed, even if the design requires drawing the curtains.[1]
