Unified Memory vs. Dedicated RAM: Quantifying the Bandwidth and Latency Trade-Offs in Console Hardware

Unified Memory Architecture (UMA) trades the ultra-low latency of dedicated CPU RAM for the massive, shared bandwidth required by modern graphics processors. By placing both the central processor and the graphics processor on the exact same physical memory pool, systems like the PlayStation 5 and Xbox Series X eliminate the need to copy data across a motherboard, feeding 4K textures directly into the rendering pipeline.[1][3]

The stakes for this design choice are absolute. In a traditional desktop computer build, a CPU accesses DDR5 memory with latencies as low as 10 to 15 nanoseconds, while the graphics card relies on its own isolated GDDR6 VRAM. When a game needs to render a new environment, the CPU must pull data from storage, process it in system RAM, and then copy it over the PCIe interface to the GPU.[6]

That duplication costs milliseconds, and in a 60-frame-per-second render target, developers only have 16.6 milliseconds to finalize a frame before the screen tears or stutters. UMA bypasses the toll booth entirely. As outlined in a 2026 technical breakdown, "Unified Memory Architecture allows the processing unit and the graphics processing unit to share the same physical memory," meaning an asset loaded by the CPU is instantly accessible to the GPU without a secondary transfer.[2][6]

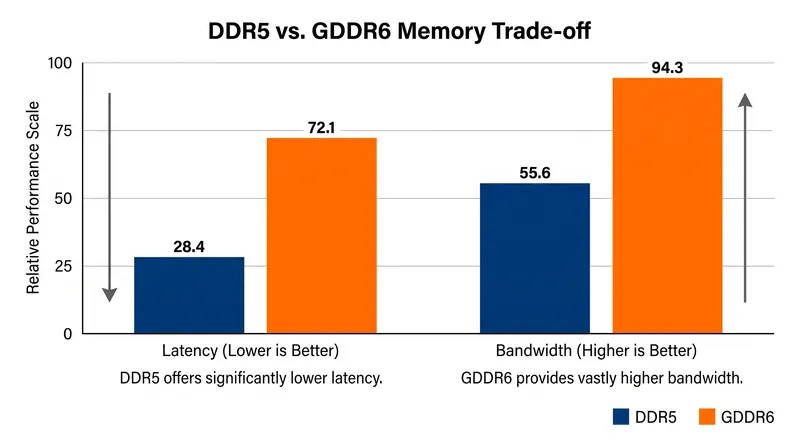

But that zero-copy efficiency introduces a severe hardware compromise. GDDR6 memory is engineered to move massive amounts of data simultaneously, but it takes longer to initiate each individual request. For a graphics processor rendering millions of parallel pixels, bandwidth is king. For a central processor executing sequential game logic and physics calculations, that higher latency acts as a persistent drag on performance.[1][4]

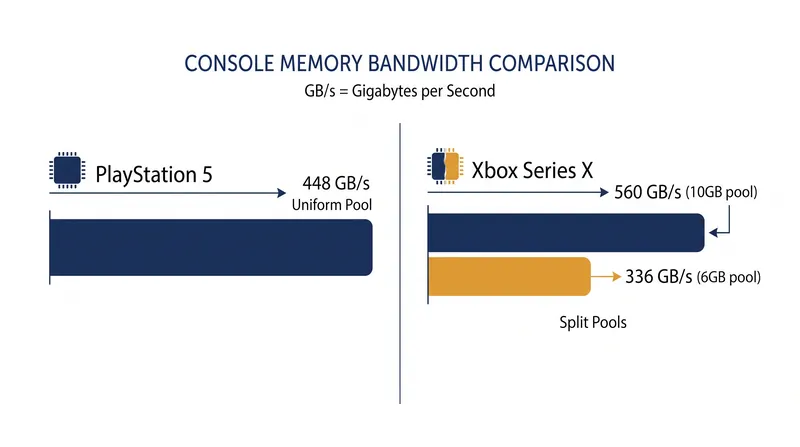

Sony and Microsoft approached this physics problem differently when designing their 2020 console hardware. Sony opted for a strictly uniform approach in the PlayStation 5, equipping the system with 16 GB of GDDR6 memory operating across a 256-bit interface. This setup delivers a flat, consistent 448 GB/s of bandwidth to both the Zen 2 CPU and the RDNA 2 GPU, simplifying development at the cost of peak speed.[4][7]

Microsoft, conversely, split the difference. As Kevin Murnane noted in Forbes, "The Xbox Series X and PS5 are very different animals" when it comes to memory topology. The Xbox Series X divides its 16 GB of GDDR6 into two asymmetrical pools: a 10 GB segment running at a blistering 560 GB/s for optimal GPU performance, and a 6 GB segment operating at 336 GB/s for standard CPU and operating system tasks.[4][5]

This split pool forces developers to manually manage memory allocation, ensuring high-resolution textures land in the fast lane while audio and physics data sit in the slower segment. While this requires more deliberate engine programming, it prevents the CPU from starving the GPU of bandwidth during heavy processing spikes, offering a higher theoretical ceiling for developers willing to optimize for it.[5][6]

The implications extend far beyond gaming consoles. Research published in the PMC-NIH database investigating UMA performance in CUDA environments demonstrates that unified memory significantly simplifies code complexity for compute-heavy applications. By removing explicit memory copy commands, developers can focus on optimization rather than data traffic control, a principle that Apple has since validated with its M-series silicon.[3][8]

Yet the latency penalty remains the hard ceiling for UMA in competitive environments. While a console can stream a massive open world seamlessly, a high-end PC with dedicated DDR5 memory will consistently deliver lower input latency and higher frame rates in CPU-bound esports titles. The hardware industry is now watching how this trade-off scales, as the console approach proves that massive bandwidth can often mask latency in highly parallel workloads.[1][6]
