Adaptive Sync Trade-Offs: How G-Sync and FreeSync Eliminate Screen Tearing

The graphics processing unit (GPU) dictates the rendering pace, pushing completed frames to the display buffer the exact millisecond they finish. The monitor, however, operates on a rigid schedule, refreshing its panel at a fixed interval—typically 60, 144, or 240 times a second.[4]

When the GPU shoves a new frame into the buffer while the monitor is only halfway through drawing the previous one, the screen displays a fractured image. The top half shows the old frame, while the bottom half shows the new one.[4]

This horizontal fracture is screen tearing. In high-stakes competitive shooters, a torn frame or a micro-stutter means a missed flick shot, a delayed reaction, and a lost round. The hardware is effectively fighting itself.[2][5]

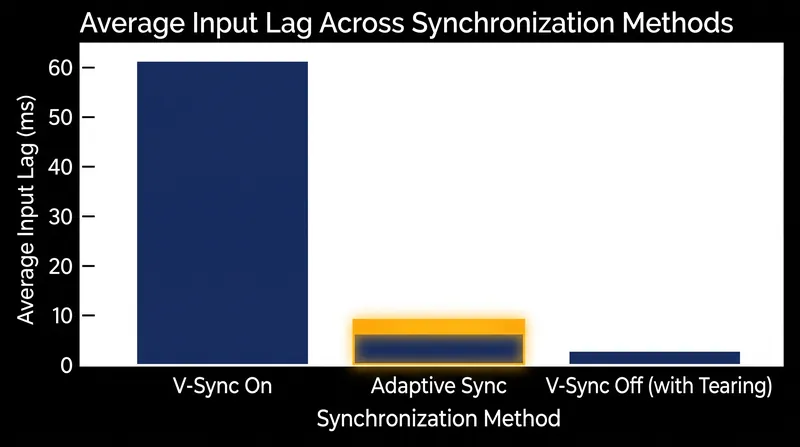

The legacy software solution, V-Sync, forced the GPU to hold its completed frames and wait for the monitor's next cycle. This eliminated the tearing but introduced severe input lag, disconnecting the player's physical mouse movements from the on-screen action.[3][4]

Adaptive sync flips the hardware hierarchy. Instead of the monitor dictating the refresh interval, the GPU takes total control of the display's timing controller, issuing draw commands only when a frame is fully baked.[1][4]

As PCMag defines the underlying technology, adaptive sync "synchronizes the refresh rate of the monitor with the frame rate of the GPU." If the graphics card renders 87 frames in a specific second, the monitor refreshes exactly 87 times.[4]

Nvidia commercialized this concept first with G-Sync in 2013, engineering a proprietary hardware solution to guarantee performance. Lenovo notes that G-Sync requires the display to feature "a G-Sync module that takes the place of the standard scaler."[3]

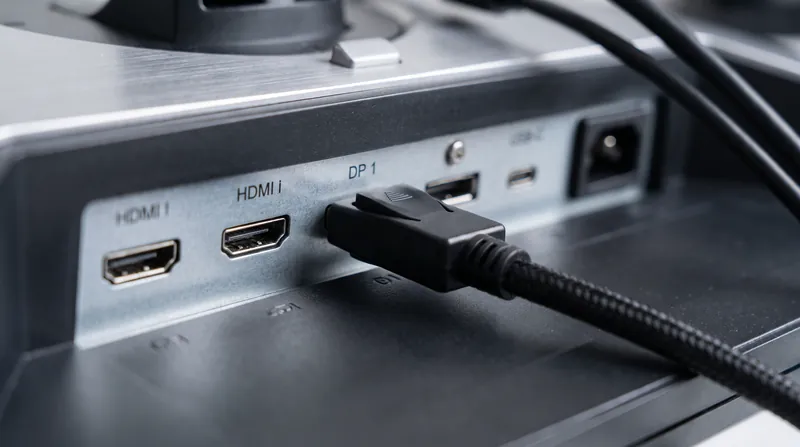

AMD responded by championing FreeSync, a royalty-free alternative that utilizes the open VESA DisplayPort standard. HP India highlights that FreeSync delivers "stutter-free, tear-free gaming" without requiring expensive proprietary chips inside the monitor chassis.[2][5]

Because FreeSync relies on the monitor's built-in scaler rather than a dedicated module, adoption exploded across the industry. Manufacturers could implement variable refresh rates at zero additional licensing cost, bringing smooth gameplay to budget displays.[2]

However, the open standard initially suffered from inconsistent quality control. Without a mandatory hardware module managing the voltage transitions, cheaper FreeSync monitors struggled with pixel overshoot and ghosting when frame rates dropped below 60 frames per second.[1][5]

To establish a baseline of quality, VESA updated its Adaptive-Sync Display standard in May 2023. The consortium introduced tighter specifications and rigorous testing protocols for gray-to-gray response times.[1]

The VESA 1.1a update forces manufacturers to prove their panels can handle rapid refresh fluctuations without degrading image quality. By standardizing the testing methodology, the industry has largely closed the performance gap between proprietary modules and open-standard implementations.[1][6]
