TPU vs. GPU: The Hardware Powering the AI Boom, Explained

Open with the short version: GPUs are general-purpose parallel processors that juggle thousands of tasks by constantly reading and writing to memory, while TPUs are highly specialized matrix calculators that stream data through a physical grid to save power. That fundamental architectural difference is why the tech industry is currently spending billions to redesign the silicon inside everything from cloud data centers to the smartphone in your pocket.[1][2]

For years, the Graphics Processing Unit (GPU) was the undisputed king of the artificial intelligence boom. Originally engineered to render 3D video games by calculating thousands of polygons simultaneously, GPUs proved accidentally perfect for the massive parallel math required to train early neural networks.[4]

But as AI models scaled from experimental research into everyday consumer products, the GPU's versatility became a liability. Because a GPU is a general-purpose processor, it relies on a traditional memory architecture. For every calculation its thousands of cores perform, the chip must fetch data from memory, compute the result, and write it back.[1][4]

That constant shuttling of data creates a severe bottleneck. In massive AI workloads, reading and writing to memory consumes significantly more time and electrical power than the actual math itself. When tech giants began serving billions of AI requests daily, the energy costs of GPU-based inference became unsustainable.[2][6]

Enter the Tensor Processing Unit (TPU). Developed internally by Google and first deployed in 2015, the TPU is an Application-Specific Integrated Circuit (ASIC)—a chip designed to do exactly one thing, at the expense of everything else. A TPU cannot render a video game, run a web browser, or manage an operating system. It exclusively performs the matrix multiplication required by neural networks.[3][6]

The secret to the TPU's efficiency is a hardware layout known as a "systolic array." The name is borrowed from the Greek word for heartbeat, describing how data pulses rhythmically through the chip.[5]

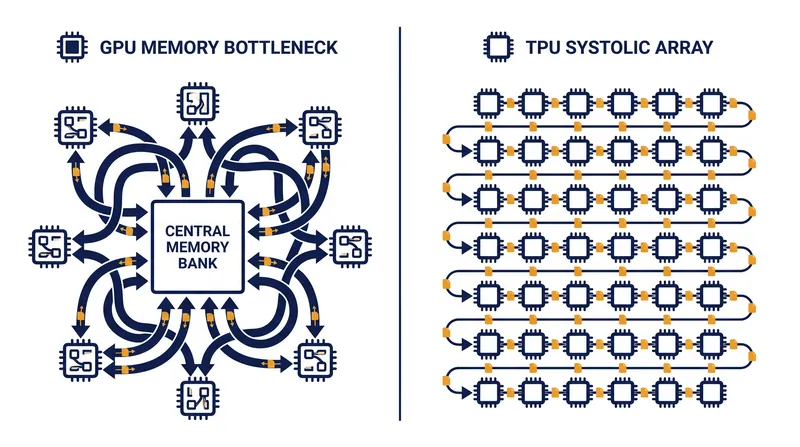

Instead of constantly fetching and storing data in memory, a systolic array passes values through a two-dimensional grid of multipliers. The output of one calculation flows directly into the adjacent unit as the input for the next step. By reusing the same data multiple times as it waves through the silicon, the TPU drastically reduces expensive memory reads and slashes power consumption.[1][5][6]

This architectural divergence is no longer confined to massive server farms. The same physical constraints that forced cloud providers to build custom silicon are now reshaping mobile devices. To run Small Language Models (SLMs) locally on a phone without draining the battery in an hour, manufacturers are embedding miniaturized AI accelerators directly into mobile processors.[1]

This is where the marketing language often obscures the actual hardware. Apple, Qualcomm, and Intel generally brand their local AI chips as Neural Processing Units (NPUs). Google, however, heavily markets the AI accelerator in its new Pixel 11 smartphone as a "TPU," boasting of massive compute gains.[1]

In reality, a smartphone TPU is functionally an NPU. It is a low-power, miniaturized matrix calculator designed for local inference tasks like real-time translation, computational photography, and basic text generation. It shares the philosophical DNA of its data center namesake, but it is a vastly different piece of silicon than the massive, liquid-cooled TPUs powering cloud infrastructure.[1][3]

The distinction between what is actually shipping and what is merely announced is critical. While companies promise on-device AI that rivals cloud models, current mobile NPUs and TPUs are strictly relegated to the shallow end of the machine learning pool. They excel at well-defined, low-power tasks, but they lack the memory bandwidth to run frontier-class models locally.[1][8]

Meanwhile, the broader AI industry remains locked in a hardware arms race. As copyright lawsuits and regulatory scrutiny mount over how AI models are trained and controlled, the underlying silicon dictates the economics of the entire ecosystem.[7][8]

GPUs remain the undisputed standard for training new models, because their general-purpose flexibility allows researchers to experiment with novel architectures. But for inference—the act of running a finished model for billions of consumers—the brutal math of power consumption heavily favors the systolic array.[2][6]

Ultimately, the alphabet soup of processors inside modern devices represents a fundamental shift in computing. We are moving away from versatile chips that can do everything adequately, toward highly specialized silicon that does one thing exceptionally well. Whether it is branded as a GPU, a TPU, or an NPU, the goal is the same: executing the math of artificial intelligence as cheaply and quickly as the laws of physics allow.[1][2]
