How the 8x8 Discrete Cosine Transform and Quantization Table Permanently Discard Image Data

An uncompressed 12-megapixel smartphone photograph requires exactly 36 megabytes of storage space—a basis calculated by assigning three bytes of color data to every single one of its 12 million pixels. Yet, when that image is saved to a camera roll, it occupies just 2.5 megabytes. The missing 33.5 megabytes are not hidden or compressed in a way that can be unpacked; they are permanently destroyed. The algorithm responsible for this deletion is the Joint Photographic Experts Group (JPEG) standard, formalized in 1992.[1]

The term "compression" suggests a suitcase being squeezed shut, implying the contents remain intact and can be fully recovered when opened. JPEG does not work this way. It is an algorithmic shredder that relies on human biological limitations to decide what to throw away. Specifically, the human eye is highly sensitive to changes in brightness but remarkably poor at detecting rapid shifts in high-frequency color.[3]

Before the core mathematics even begin, the JPEG pipeline exploits this biological blind spot through a process called chroma subsampling. The image is converted from the standard Red-Green-Blue (RGB) color space into Luminance (brightness) and Chrominance (color). Because our eyes prioritize brightness, the algorithm immediately discards up to 50 percent of the color data, sharing a single color value across neighboring pixels.[4]

The image is then shattered into a grid of isolated squares, each measuring 8 by 8 pixels. This 64-pixel block is the fundamental unit of JPEG compression. The algorithm stops looking at the photograph as a cohesive whole and instead processes it as thousands of disconnected 8x8 islands. This isolation is the mechanical reason why heavily compressed JPEGs develop visible, blocky artifacts along the edges of objects.[5]

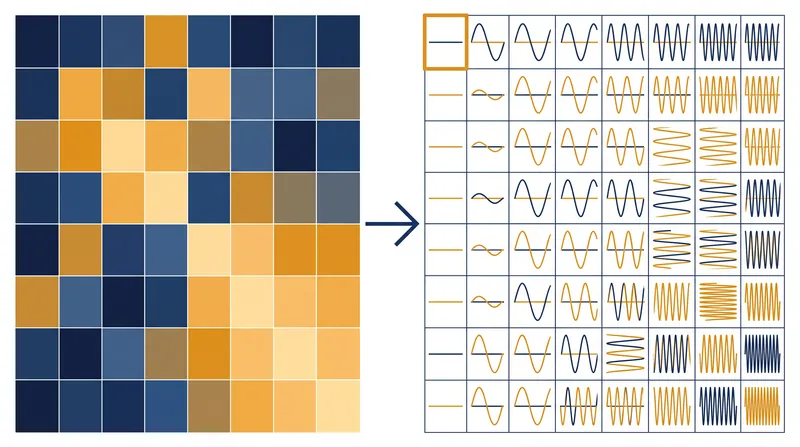

Inside each 8x8 block, the spatial pixels are fed into the Discrete Cosine Transform (DCT). This mathematical engine translates the visual data from the spatial domain into the frequency domain. Instead of recording that the top-left pixel is dark blue and the bottom-right is light blue, the DCT describes the entire 64-pixel block as a combination of 64 standard oscillating wave patterns.[5]

The output of the DCT is a matrix of 64 coefficients. The first value, known as the DC coefficient, represents the average baseline color of the entire block. The remaining 63 values, the AC coefficients, represent increasingly detailed, high-frequency patterns. At this exact stage, no data has been lost; the DCT is a reversible mathematical translation.[3]

The permanent destruction of data occurs in the next step: quantization. The 64 DCT coefficients are divided by a corresponding 8x8 quantization table and then rounded to the nearest whole number. "The quantization step is where the lossy part of JPEG compression takes place," notes the technical breakdown from TechSpot.[3][4]

The quantization table is deliberately weighted to target the high-frequency details our eyes struggle to see. Low-frequency values, which represent the broad strokes of the image, are divided by small numbers such as 1 or 2, leaving them largely intact. High-frequency values, representing the fine, granular details, are divided by much larger numbers, often 50, 100, or more.[5]

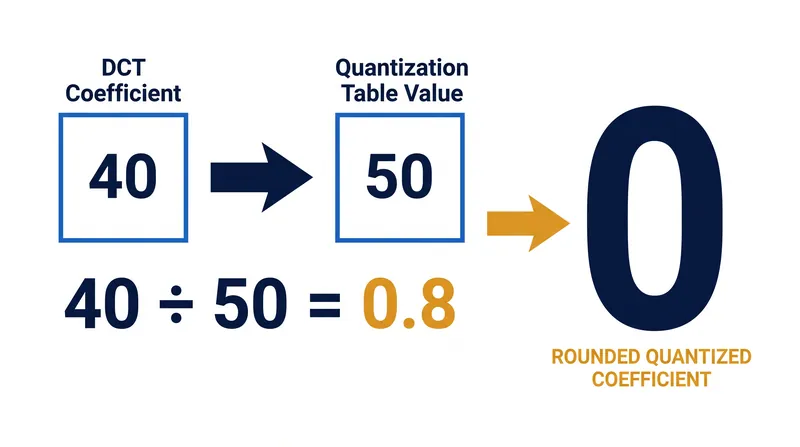

The rounding operation serves as the executioner. If a high-frequency detail generates a DCT coefficient of 40, and the quantization table divides it by 50, the mathematical result is 0.8. Because JPEG requires integers, that 0.8 is rounded down to 0. The detail is entirely erased from the file.[4]

By forcing the vast majority of the high-frequency AC coefficients to zero, the matrix becomes mostly empty. This allows the final stage of the pipeline, entropy coding, to pack the remaining data with extreme efficiency. A continuous string of thirty zeros requires almost no storage space compared to thirty distinct numbers.[1]

The 1992 IEEE standard does not mandate a single, universal quantization table. It provides baseline examples, but software developers and camera manufacturers are free to write their own matrices. This flexibility has spawned decades of optimization research.[1]

In 1994, researchers at NASA's Ames Research Center demonstrated that quantization matrices could be dynamically optimized for individual images. A paper by Andrew Watson detailed how adjusting the table based on human contrast sensitivity could maximize data deletion without triggering visible artifacts.[2]

Today, when a user adjusts the quality slider in image editing software from 100 down to 50, they are not changing the resolution of the image. They are applying a multiplier to the quantization table. A lower quality setting increases the divisors in the table, forcing more coefficients to round to zero and permanently discarding more of the original photograph.[4]

We willingly trade mathematical fidelity for storage density. The 8x8 DCT and its accompanying quantization table form a highly efficient, lossy pipeline that assumes what we cannot perceive does not matter, permanently shedding the rest to keep the digital world moving.[6]
