The Science of Thermal Runaway: Why Lithium-Ion Hand Warmers Catch Fire

Lithium-ion batteries have revolutionized consumer electronics, packing immense chemical energy into remarkably small spaces. From smartphones to electric vehicles, these power cells operate safely for years by carefully balancing heat generation with heat dissipation. But when that delicate thermodynamic balance fails, the stored chemical energy is released uncontrollably, transforming a peaceful power source into a severe fire hazard.[2]

The stakes of this balance were highlighted recently when Ocoopa recalled 1.5 million of its rechargeable hand warmers. The company received 1,480 reports of the devices overheating, resulting in 15 fires and 350 burn injuries. The massive recall underscores a critical vulnerability in how engineers design and consumers use small, high-density electronics.[1]

To understand why a pocket-sized device can suddenly ignite, one must look inside the battery cell itself. A standard lithium-ion battery consists of a cathode, an anode, a highly flammable liquid electrolyte, and an ultra-thin separator that keeps the positive and negative electrodes apart. Under normal operation, lithium ions flow smoothly back and forth through the separator to provide steady power.[3]

The danger begins when the battery is subjected to abuse—whether mechanical from a drop or puncture, electrical from overcharging, or thermal from external heat. If the ultra-thin separator is compromised, the cathode and anode touch, creating an internal short circuit. This short circuit generates immediate, intense heat within the confined space of the cell.

This initial heat triggers a cascading chemical reaction known as thermal runaway. The rising temperature breaks down the solid electrolyte interphase (SEI) layer, which normally protects the anode. As the SEI degrades, highly active oxygen species within the cathode are released and immediately react with the flammable liquid electrolyte.[3]

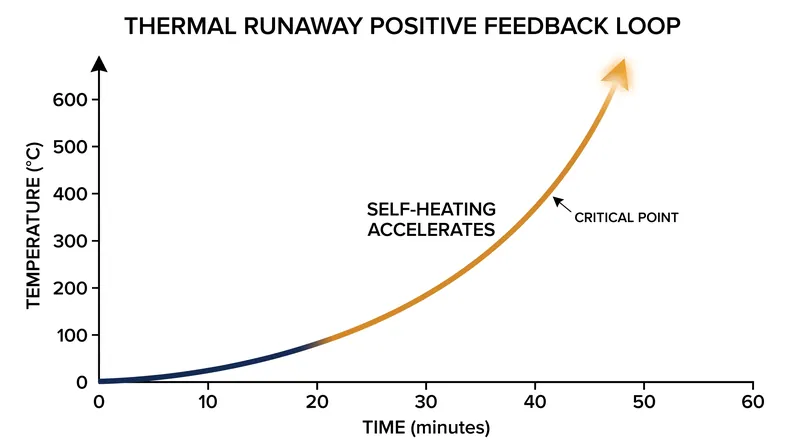

This reaction is entirely exothermic, meaning it generates its own heat. Once the heat generation rate exceeds the battery's ability to dissipate that heat into the surrounding environment, a self-sustaining positive feedback loop begins. The rising temperature accelerates the chemical reaction rate, which in turn generates even more heat.[2]

The speed of this snowballing sequence is staggering. Within minutes of the initial short circuit, the internal temperature of the battery cell can skyrocket to over 600 degrees Celsius. At these extreme temperatures, the internal components melt and the liquid electrolyte vaporizes into a cocktail of dozens of toxic and flammable gases, including hydrogen and fluoroorganic compounds.

As these gases rapidly expand, pressure builds continuously within the battery's rigid casing. Once the internal pressure exceeds the mechanical tolerance of the enclosure, the battery violently ruptures. The venting gases, already superheated, mix with atmospheric oxygen and ignite, resulting in the explosive fires often seen in viral videos of failing electronics.[2]

While thermal runaway can happen in any lithium-ion battery, devices like rechargeable hand warmers present a unique engineering paradox. The fundamental defense against thermal runaway is heat dissipation—allowing the battery to cool faster than it heats up. However, a hand warmer is explicitly designed to generate and trap heat within an insulated, handheld shell.[2]

By wrapping a high-density lithium-ion cell in an insulating layer designed to keep human hands warm, manufacturers inadvertently neutralize the battery's primary safety mechanism. If a short circuit occurs, the trapped heat has nowhere to go, drastically lowering the temperature threshold required to trigger the unstoppable thermal runaway chain reaction.[4]

In larger applications like electric vehicles or aerospace systems, engineers mitigate this risk through sophisticated thermal management systems. These include active liquid cooling, advanced battery management systems (BMS) that monitor individual cell temperatures, and engineered venting mechanisms like rupture discs that release pressure safely before an explosion occurs.[2]

Unfortunately, inexpensive consumer electronics often lack these robust safety features. The push for smaller, cheaper, and higher-capacity devices leaves little room or budget for advanced thermal management. When a low-cost hand warmer or power bank experiences a manufacturing defect or physical damage, there is no backup system to halt the runaway reaction.[4]

The recent recall of 1.5 million units serves as a stark reminder of these engineering limitations. Consumers are advised to immediately stop using the affected models, mark them as recalled, and dispose of them through municipal hazardous waste programs rather than standard trash, where they could ignite in a garbage truck or sorting facility.[1]

Preventing thermal runaway in everyday life requires treating lithium-ion batteries with the respect their energy density demands. Consumers should avoid leaving devices in hot cars, stop using electronics that show signs of physical swelling, and only use manufacturer-approved charging cables to prevent electrical abuse.[2]

As battery technology continues to advance, researchers are exploring safer alternatives, such as solid-state batteries that replace the flammable liquid electrolyte with a stable solid material. Until these innovations reach the consumer market, understanding the science of thermal runaway remains our best defense against the hidden hazards in our pockets.[3][4]
