The Science of Perovskite: How the New 'Tandem' Solar Cells Shattered Silicon's Limits

Silicon has dominated the solar power industry for 70 years, serving as the undisputed backbone of the global renewable energy transition. But in 2026, a material discovered in the Ural Mountains in 1839 is rewriting the rules of how humanity harvests light.[2]

Perovskite solar cells have officially crossed the threshold from fragile laboratory curiosities to commercial reality. With certified efficiencies now shattering the theoretical limits of standard silicon, the solar industry is undergoing its most significant paradigm shift in decades.

The commercial milestones of the past year are staggering. UK-based Oxford PV has begun shipping the first commercial-sized tandem modules to utility customers, while Chinese manufacturing giant LONGi recently certified a world-record efficiency of 34.85%.

To understand why this matters, one must look at the limitations of traditional silicon. Silicon panels are heavy, rigid, and require highly energy-intensive manufacturing processes that involve melting purified crystals at extreme temperatures.[1]

More importantly, silicon is bumping up against the Shockley-Queisser limit—a fundamental physics boundary that caps a single-junction silicon cell's theoretical efficiency at roughly 33.7%. In the real world, premium commercial silicon panels hover around 22% to 24%.[2]

Enter perovskite. The term refers not to a specific element, but to a family of materials that share a specific crystal structure, defined by the chemical formula ABX3. By combining organic ions, metals, and halogens, scientists can synthesize this structure in a lab.[1]

In a perovskite solar cell, this crystal acts as the light-absorbing active layer. When photons from the sun strike the perovskite, they excite the material's electrons, knocking them loose to create what physicists call "electron-hole pairs."[1]

Internal electric fields then drive these charges in opposite directions. The negatively charged electrons flow toward an electron transport layer (ETL), while the positively charged "holes" move toward a hole transport layer (HTL), creating a steady electrical current.[1]

What makes perovskites uniquely powerful is their "tunable bandgap." By slightly altering the chemical recipe—swapping out different metals or halides in the ABX3 structure—scientists can tune the crystal to absorb very specific wavelengths of light.[1]

This tunability unlocked the "tandem cell" revolution. Instead of trying to replace silicon entirely, manufacturers realized they could print a microscopic, semi-transparent layer of perovskite directly on top of standard silicon cells.

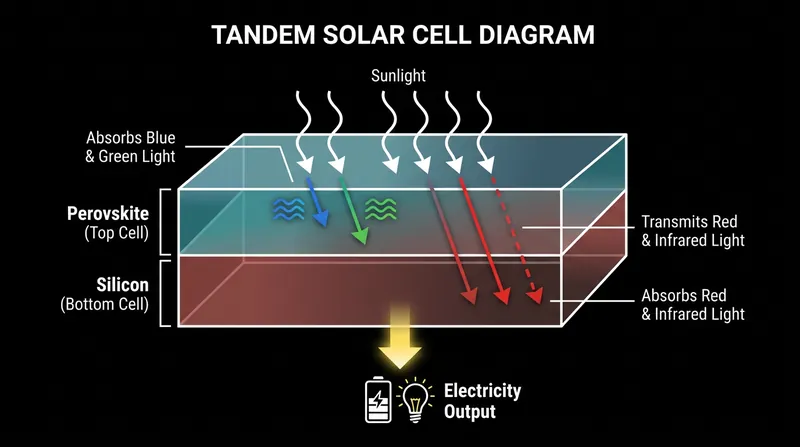

In this tandem architecture, the perovskite top layer acts as a specialized net, capturing higher-energy blue and green light. The lower-energy red and infrared light passes right through the perovskite and is absorbed by the silicon layer underneath.[1]

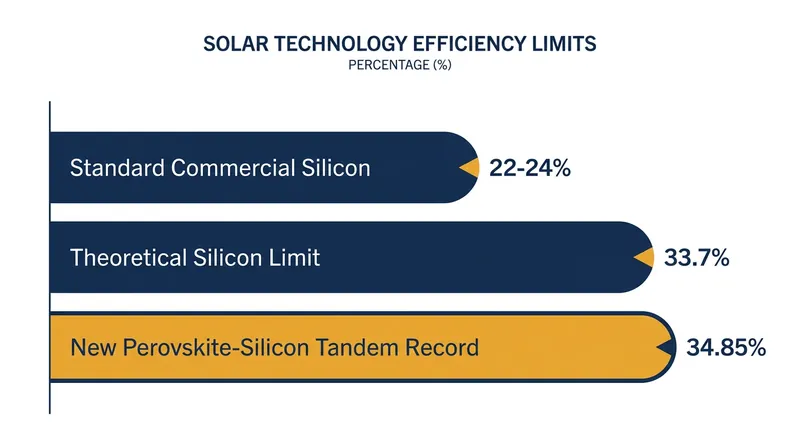

By dividing the solar spectrum, tandem cells bypass the efficiency limits of single materials. LONGi's 34.85% record proves that stacking these technologies yields significantly more power per square meter than either material could achieve alone.

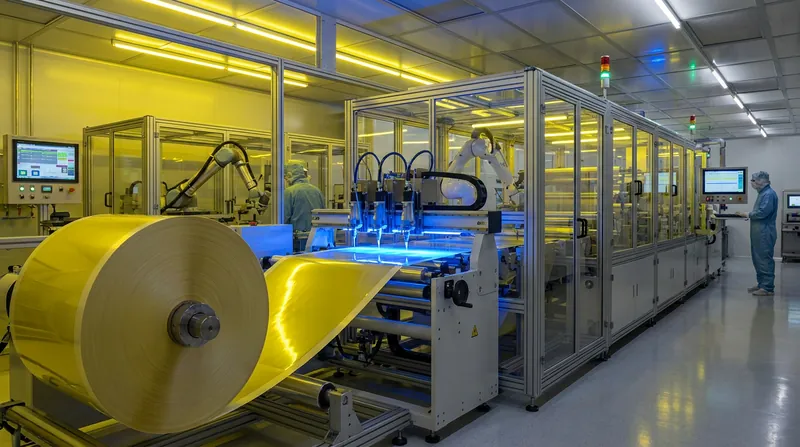

Beyond efficiency, perovskites offer a manufacturing revolution. Unlike rigid silicon wafers, perovskite layers can be synthesized from liquid ink solutions and printed or coated onto surfaces at relatively low temperatures.[1]

This "solution-processable" nature means perovskites can be manufactured using roll-to-roll printing techniques, similar to how newspapers are printed. It also allows the solar cells to be applied to flexible plastics or semi-transparent glass, opening up new applications in building-integrated photovoltaics.[1]

However, the journey to commercialization has been fraught with a major technical hurdle: stability. Early perovskite cells degraded rapidly when exposed to moisture, heat, or even prolonged sunlight, making them useless for a 25-year rooftop lifespan.

The breakthroughs of late 2025 and early 2026 have largely solved this durability crisis. In January 2026, researchers at Xi'an Jiaotong University published a landmark paper in Science detailing a "Molecular Press Annealing" technique.

By imprinting a dense layer of molecular templates onto the perovskite surface, the team stabilized the crystal framework, preventing the formation of structural defects. Their cells retained 98% of their efficiency after 1,600 hours of rigorous heat and humidity testing.

Similar advancements in interface passivation—using ultra-thin organic molecules to smooth the boundaries between the perovskite and transport layers—have pushed the operational lifespan of commercial modules past the critical viability threshold.

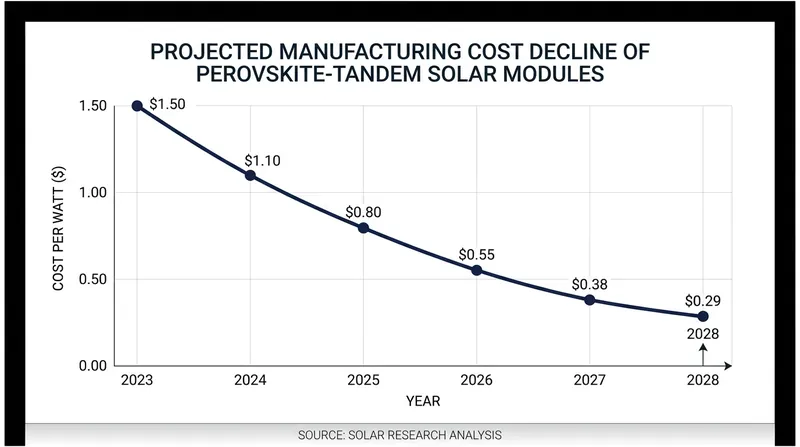

The economics are now following the science. Analysts project that as manufacturing scales, the low-temperature production of perovskite-tandem modules could drive costs down to $0.29 per watt by 2028, undercutting the price of premium silicon.

Governments are taking notice. Japan recently launched a $1.5 billion initiative to build a domestic perovskite supply chain, viewing the technology as a strategic way to reduce reliance on imported silicon panels. As 2026 unfolds, the transition from lab records to utility-scale deployment is no longer a question of if, but how fast.[2]
