The Overhead of Logical Qubits: Why Thousands of Physical Qubits Are Needed to Create One Error-Free Qubit

In February 2023, Google Quantum AI researchers demonstrated that grouping 49 physical qubits into a single logical qubit using a surface code actually reduced the overall error rate compared to a smaller 17-qubit grouping. This marked the first time that adding more error-prone hardware to a quantum system made it more reliable, rather than less. The milestone shifted the industry's focus from merely accumulating raw hardware to proving that quantum error correction could actually work in practice, establishing a new benchmark for fault-tolerant computation.[4]

The central bottleneck in quantum computing is not a lack of ambition, but the inherent fragility of the hardware. Physical qubits—the actual superconducting circuits, trapped ions, or neutral atoms that perform calculations—are notoriously susceptible to environmental noise. Stray vibrations, electromagnetic fluctuations, thermal interference, or even cosmic rays can cause a qubit to lose its quantum state, a destructive process known as decoherence. Because quantum mechanics relies on delicate phase relationships, even the slightest disturbance can corrupt an entire calculation before it yields a usable result.[1][2]

Even the most advanced physical qubits today suffer from error rates of roughly 1 in 1,000 per operation. While a 99.9 percent fidelity rate sounds impressive in the context of classical computing, commercially relevant quantum algorithms require millions or billions of sequential operations to solve problems in cryptography or materials science. At current physical error rates, a complex computation degrades into pure noise long before it finishes, rendering the raw hardware effectively useless for deep, sustained algorithmic execution without an intervention layer.[3]

To solve this degradation, researchers do not compute directly on physical qubits. Instead, they use quantum error correction to encode information across a vast array of physical qubits, creating a single, highly stable 'logical qubit.' A logical qubit is not a physical object you can point to on a silicon chip; it is a distributed quantum state, a complex pattern of entanglement spread across many physical components. This redundancy allows the system to detect and correct individual hardware failures without destroying the underlying data.[1][2]

The distinction between physical and logical qubits is the most critical metric for evaluating quantum progress, yet it is frequently obscured in industry marketing. When a company announces a new '1,000-qubit processor,' they are referencing physical qubits. A machine with 1,000 noisy physical qubits operating without error correction cannot run deep circuits, whereas a machine with a few dozen high-quality logical qubits could fundamentally alter computational chemistry. The translation from logical to physical is handled by a classical control system that constantly monitors the array.[6]

The cost of this algorithmic protection is steep. Under standard surface code implementations, encoding one logical qubit capable of running deep algorithms requires roughly 1,000 physical qubits. This massive 1,000-to-1 overhead ratio means that a quantum computer capable of breaking RSA-2048 encryption—which requires an estimated 1,400 logical qubits—would need over a million physical qubits to function. Managing a million fragile quantum states simultaneously presents an engineering challenge that dwarfs the complexity of modern classical supercomputers, requiring unprecedented advances in cryogenic cooling and microwave control wiring.[3]

The surface code has become the industry standard for error correction because it is relatively forgiving to manufacture. It arranges physical qubits in a two-dimensional checkerboard lattice, requiring each qubit to interact only with its immediate neighbors. This nearest-neighbor connectivity is exceptionally well-suited for superconducting chips, which are fabricated using traditional semiconductor techniques on flat silicon wafers. By avoiding complex, overlapping wiring, hardware developers can scale the physical grid with fewer manufacturing defects, making it the architecture of choice for companies like Google and IBM.[4]

However, the surface code demands a massive footprint to function effectively. It requires continuous 'syndrome measurements,' where auxiliary physical qubits constantly check the adjacent data qubits for errors without directly measuring—and thereby destroying—the delicate quantum information. A classical decoder then analyzes these syndromes in real-time to determine where errors occurred and how to correct them. This constant cycle of measurement, analysis, and correction consumes vast amounts of hardware real estate, driving up the physical-to-logical ratio and creating a severe data bottleneck between the quantum processor and its classical controllers.[2]

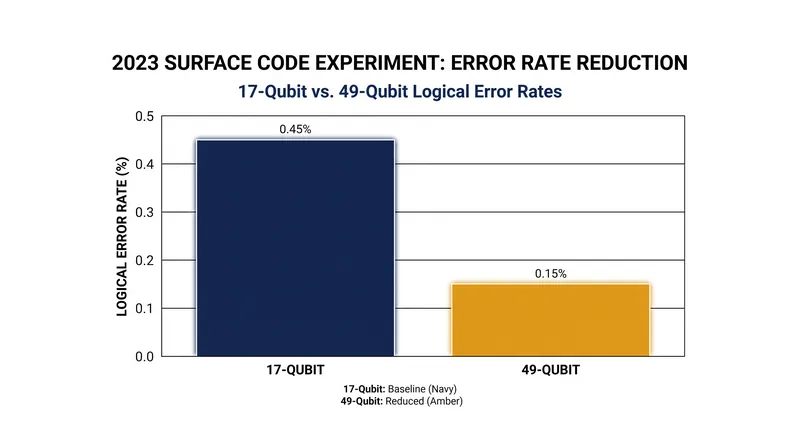

For this error correction process to work, the physical qubits must operate below a specific 'fault-tolerant threshold.' If the baseline physical error rate is too high, the act of adding more qubits and performing more syndrome measurements actually introduces more errors than it fixes. Google's 2023 experiment was a 'break-even' demonstration precisely because their hardware finally crossed this threshold, proving that a distance-5 code utilizing 49 qubits outperformed a distance-3 code utilizing 17 qubits, validating the theoretical foundation of the surface code.[4]

'Information is encoded across several physical qubits to construct a single logical qubit that is more resilient and capable of running large-scale quantum algorithms,' the Google Research team noted in their 2023 publication detailing the milestone. 'Under the right conditions, the more physical qubits used to build a logical qubit, the better that logical qubit becomes.' This dynamic is the core engine of fault tolerance: trading quantity for quality, provided the underlying hardware is quiet enough to support the exchange.[4]

Despite this experimental success, scaling the surface code to commercial utility remains a daunting manufacturing challenge. Building a million-qubit system requires unprecedented advances in cryogenic cooling capacity, control electronics miniaturization, and fabrication yields. This harsh reality has prompted a subset of the quantum industry to search for more efficient error-correcting codes that do not require a 1,000-to-1 overhead, hoping to bypass the brute-force scaling era entirely by utilizing smarter mathematical frameworks that demand fewer physical resources.[6]

Quantum Low-Density Parity Check (QLDPC) codes have emerged as the leading alternative to the surface code. Unlike surface codes, which only allow local interactions on a flat grid, QLDPC codes require high connectivity, meaning qubits must be able to entangle with other qubits located far away on the processor. This long-range entanglement allows the system to share the burden of error correction more efficiently across the entire quantum array, drastically reducing the number of redundant physical qubits required to protect a single logical state.[5]

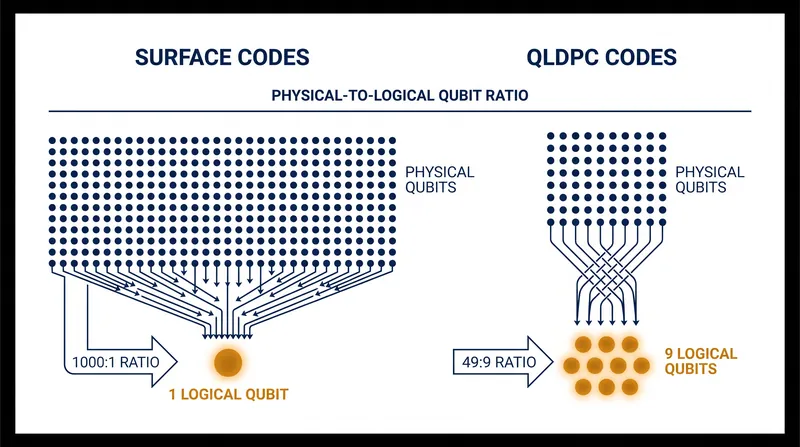

The efficiency gains of QLDPC codes are staggering when compared to traditional methods. A recent paper detailing the SHYPS QLDPC code demonstrated a physical-to-logical ratio of 49 to 9. In other words, 49 physical qubits could encode 9 logical qubits. To achieve the same 9 logical qubits using a standard surface code would require 225 physical qubits at a minimum, and potentially thousands depending on the target error rate required by the algorithm, showcasing a fundamental shift in hardware economics.[5]

'Simply put, QLDPC codes generate more logical qubits per physical qubit,' researchers at Photonic noted in a recent technical breakdown of the architecture. This efficiency fundamentally alters the hardware roadmap, shifting the focus from manufacturing massive arrays of physical qubits to engineering highly connected systems that can execute complex codes with a fraction of the raw hardware, potentially accelerating the timeline to commercial utility by years or even decades.[5]

However, implementing QLDPC codes is exceptionally difficult on traditional superconducting chips, where long-range microwave wiring introduces severe cross-talk and thermal noise. As a result, QLDPC codes are primarily being pursued by companies using alternative hardware modalities, such as neutral atoms or trapped ions, which naturally support the complex routing required by these advanced error correction schemes without suffering the same physical degradation seen in solid-state devices.[6]

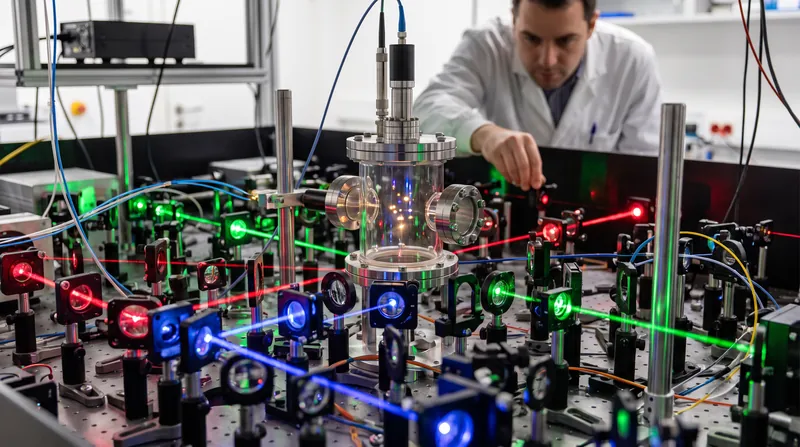

Companies like QuEra and IonQ utilize architectures where qubits can be physically moved or optically connected, allowing for the long-range entanglement required by QLDPC codes. QuEra's neutral atom architecture, for instance, uses optical tweezers to dynamically rearrange atoms during a computation. This physical mobility enables the high-rate codes that drastically reduce physical overhead, turning a hardware disadvantage into an algorithmic edge that could leapfrog static superconducting grids in the race to fault tolerance.[2][3]

The quantum computing industry is now effectively bifurcated into two distinct engineering philosophies. On one side are the hardware scaling advocates, led by giants like Google and IBM, who are betting that their semiconductor manufacturing prowess will allow them to brute-force the surface code's massive overhead. They argue that building two-dimensional grids of superconducting qubits is the most predictable, reliable path to a million-qubit machine, relying on decades of existing silicon fabrication expertise to solve the scaling challenge.[4]

On the other side are the algorithmic efficiency proponents, who argue that the 1,000-to-1 overhead is economically and physically unviable. They are betting that the engineering challenges of building high-connectivity hardware will be offset by the massive reduction in physical qubit requirements. By adopting QLDPC codes, they aim to reach fault tolerance with far smaller systems, bypassing the need for warehouse-sized cryogenic refrigerators and millions of control cables.[3][5]

The timeline for commercial quantum computing hinges entirely on this physical-to-logical ratio. As physical gate fidelities improve across all modalities, the overhead required for both surface and QLDPC codes will shrink. But until a system can sustain hundreds of logical qubits for billions of operations, the transformative promises of quantum computing will remain locked behind a wall of hardware noise, waiting for error correction to catch up to the theoretical hype that has defined the industry for the past decade.[6]
