The Mechanics of Vehicle Weight Ratings: How GVWR, GCWR, and Payload Capacity Actually Work for Road Trip Planning

The short version is this: your vehicle has a maximum total weight it can carry, a maximum combined weight it can move including a trailer, and a specific allowance for everything inside the cabin and bed. The most common mistake road-trippers make is assuming their advertised maximum towing capacity means they can pull that much weight while also packing the car full of passengers and gear. You cannot do both.[3][8]

Picture the perfect departure morning. The cooler is iced down, the dogs are in the back, the bikes are on the roof, and the travel trailer is hitched up. The engine sounds fine idling in the driveway. But the physics of moving mass do not care about your vacation plans. The moment you hit a six-percent grade in the summer heat, the true weight of your setup will test every component of your vehicle's drivetrain and braking system.[8]

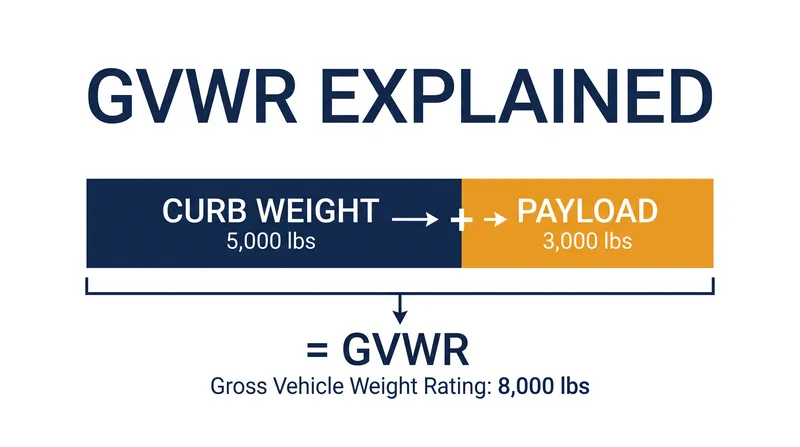

To understand what your vehicle can actually handle, you have to start with the Gross Vehicle Weight Rating, or GVWR. This is the absolute maximum your vehicle can weigh on its own four tires, as determined by the manufacturer. It is not a suggestion; it is a structural and mechanical limit that accounts for the strength of the frame, the suspension, the axles, and the brakes.[6]

You can find your GVWR on the safety compliance certification label, usually located on the inside of the driver's side door frame. This number includes the vehicle's curb weight—which is the weight of the vehicle empty but full of fluids like gas and oil—plus the payload. If you put your fully loaded SUV on a scale, without a trailer attached, the number on that scale must not exceed the GVWR.[2][6]

This brings us to the most frequently misunderstood number in the towing world: Payload Capacity. Payload is simply your GVWR minus your vehicle's curb weight. It represents the total weight of everything you can put inside or on the vehicle. That includes you, your passengers, the snacks, the luggage, the roof box, and crucially, the downward pressure exerted by the trailer on the hitch, known as tongue weight.[4][7]

Tongue weight is the silent killer of payload capacity. For a trailer to tow stably and not sway dangerously at highway speeds, standard guidelines dictate that 10 to 15 percent of the trailer's total weight must rest on the hitch. If you are towing a 5,000-pound travel trailer, you are adding between 500 and 750 pounds of downward force directly onto the rear axle of your tow vehicle.[1][7]

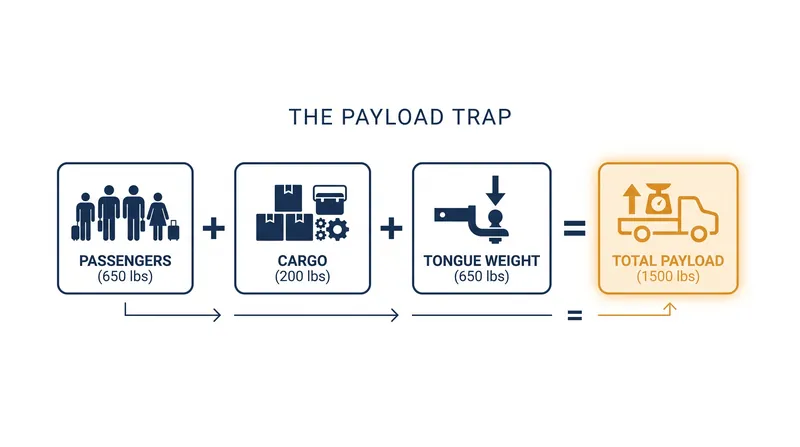

Let's do the math on a typical road trip scenario. Imagine a half-ton pickup truck with a payload capacity of 1,500 pounds. You load up four adults weighing a combined 650 pounds, plus 150 pounds of luggage and a 50-pound cooler. You have just used 850 pounds of your payload. You only have 650 pounds of payload remaining. If your trailer's tongue weight exceeds 650 pounds, you are officially overloaded and exceeding your GVWR, even if the trailer is well under the truck's maximum towing capacity.[5][8]

Once you have the vehicle's internal weight sorted, you must look at the Gross Combined Weight Rating, or GCWR. This is the maximum allowable weight of the fully loaded tow vehicle and the fully loaded trailer combined. The GCWR is the ultimate test of your vehicle's powertrain—the engine's ability to get that much mass moving, and the transmission's ability to manage the heat generated by the effort.[2][4]

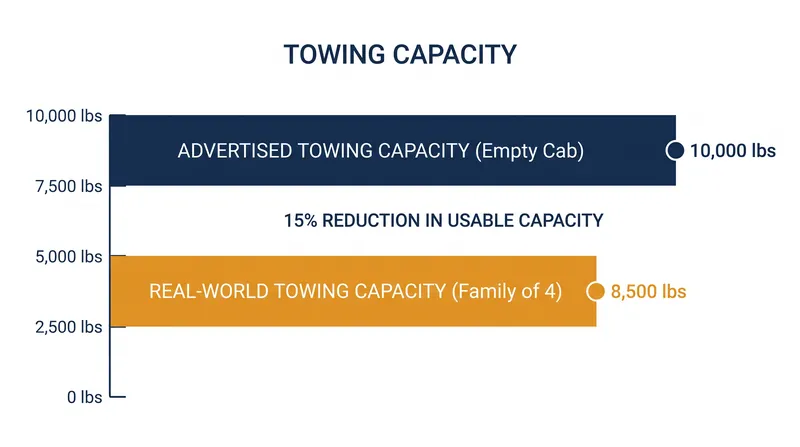

The interplay between GVWR and GCWR is where the marketing numbers fall apart. Automakers love to advertise massive maximum towing capacities. However, those maximum numbers are almost always calculated using a base-model vehicle with a 150-pound driver and absolutely nothing else in the cab.[3]

The moment you add a spouse, two kids, and a dog, you are eating into the payload, which in turn reduces the amount of trailer weight you can safely pull before hitting the GCWR limit. You rarely get to max out your payload and your towing capacity at the same time. It is a zero-sum game; every pound inside the car is a pound you cannot pull behind it.[3][5]

The stakes here go far beyond accelerated wear and tear on your transmission. From a legal and compliance standpoint, exceeding these ratings can have severe consequences. While commercial drivers are strictly monitored by the Department of Transportation (DOT) for compliance with weight ratings, recreational drivers are bound by the same physics and liability laws.[2]

If you are involved in an accident while towing, and an investigation reveals that your setup exceeded the manufacturer's GVWR or GCWR, you could be found negligent. Insurance companies can, and do, deny claims if a vehicle was operating beyond its engineered limits. The numbers on your door sticker are legal boundaries, not just engineering guidelines.[2][6]

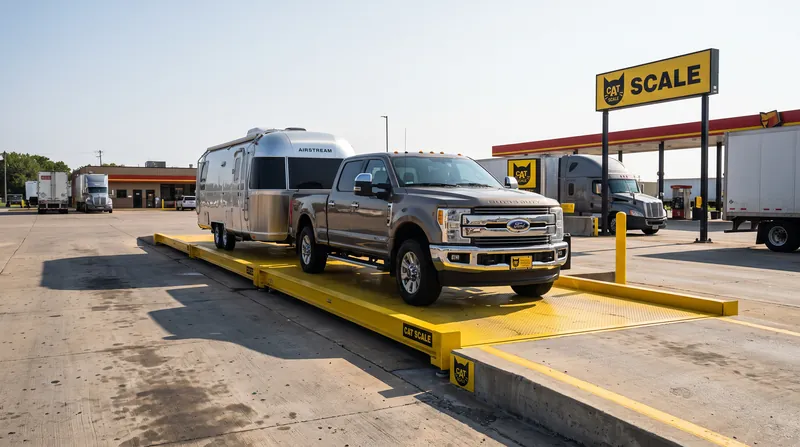

So, how do you know your actual numbers? You have to weigh your setup. The most reliable method is to visit a commercial weigh station, like a CAT Scale found at many highway truck stops. For a few dollars, you can pull your fully loaded rig onto the segmented platforms to get the exact weight on your front axle, rear axle, and trailer axles.[1][7]

Modern technology is also making this easier. Products like specialized hitches now feature built-in scales that measure tongue weight in real-time, allowing you to adjust your trailer's cargo distribution before you ever leave the driveway. Some newer trucks even feature onboard scales that display payload usage directly on the infotainment screen.[1]

Taking the time to do the math and verify your weights transforms a stressful, white-knuckle drive into a confident, enjoyable road trip. When you know for a fact that your engine, transmission, and brakes are operating within their engineered limits, you can stop worrying about the mechanics of your rig and start enjoying the scenery outside your window.[8]
