The Mechanics of USB-C Power Delivery: A Guide to E-Marker Cables, PPS, and Fast Charging

What everyone gets wrong: If the cable fits the port, it should charge the device at maximum speed. The reality is that USB-C only describes the physical shape of the connector. The actual transfer of power is governed by a complex, invisible negotiation between the wall charger, the cable itself, and the device being charged. If any one of those three components lacks the right protocol, the system defaults to a baseline trickle charge, leaving you tethered to the wall for hours.[3]

The actionable takeaway is simple: to fast-charge modern laptops, tablets, and smartphones, you need a charger certified for USB Power Delivery (USB-PD), a cable with an embedded "e-marker" chip if you want more than 60 watts, and a device that supports the standard. Buying a 100W charger does absolutely nothing if your cable is only rated for 60W, as the charger will refuse to send the higher wattage for safety reasons.[1][3]

Before USB-PD, charging was a chaotic landscape of proprietary standards. Manufacturers created their own protocols, meaning a fast charger from one brand would only slow-charge a competitor's phone. The USB Implementers Forum (USB-IF) introduced Power Delivery to standardize this, allowing devices to safely request higher voltages and currents over a universal connection.[1]

USB-PD operates on a handshake system. When you plug a device in, the charger sends a data packet listing its available power profiles—typically combinations of 5V, 9V, 15V, and 20V. The device replies by requesting the highest profile it can safely handle. If the two cannot agree, they fall back to a standard 5V at 1A (5 watts), which is why a high-end laptop might warn that it is "plugged in, not charging" when connected to an incompatible brick.[1][3]

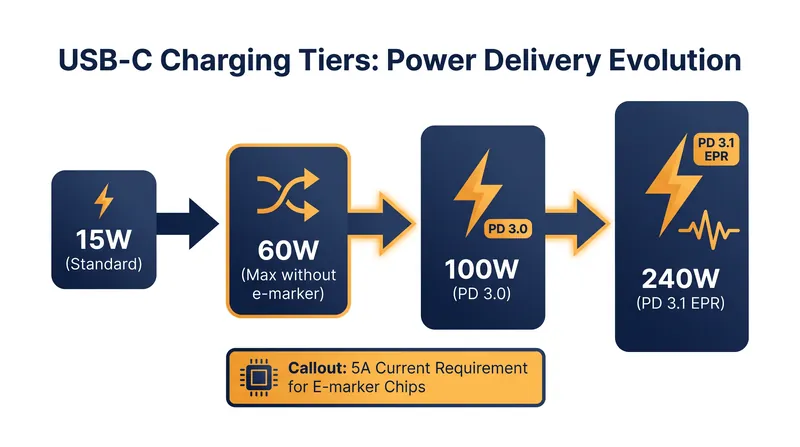

The most common point of failure in this chain is the cable. Standard USB-C cables are only rated to carry 3 amps of current, which maxes out at 60 watts (20V x 3A). To go higher—up to 100W or the newer 240W standard—the cable must contain an electronically marked (e-marker) chip.[1]

This tiny integrated circuit sits inside the cable's connector housing. During the initial handshake, the charger queries the cable. If the e-marker chip responds and verifies that the copper wiring is thick enough to handle 5 amps without melting, the charger unlocks the higher power profiles. Without that chip's verification, the charger strictly limits output to 60W to prevent fire hazards.[1][3]

While standard USB-PD relies on fixed voltage steps (like 9V or 15V), modern smartphones demand more finesse to manage heat. This led to the introduction of Programmable Power Supply (PPS), an extension of the PD 3.0 specification. PPS allows the device to request granular voltage changes in 20-millivolt increments.[1]

Lithium-ion batteries charge most efficiently when the incoming voltage closely matches the battery's current internal voltage. By constantly adjusting the voltage via PPS, the charger does the heavy lifting of power conversion, keeping the smartphone cooler. A cooler battery accepts a charge faster and suffers less long-term degradation.[2][3]

PPS is no longer a niche feature; it is a strict requirement for fast-charging flagship devices from manufacturers like Samsung and Google. If you plug a Galaxy S-series phone into a 65W charger that lacks PPS support, it will not achieve its "Super Fast Charging" speeds, capping out at a lower standard PD rate. Shoppers must explicitly look for "PPS" on the charger's spec sheet.[3]

The latest revision, USB-PD 3.1, introduced Extended Power Range (EPR), pushing the maximum theoretical limit from 100W to 240W by increasing the voltage up to 48V. This massive leap is designed to replace the proprietary barrel jacks on high-performance gaming laptops and mobile workstations, bringing them into the universal charging ecosystem.[1]

However, consumers often overspend on high-wattage chargers for devices that cannot use them. A smartphone battery physically cannot absorb 100W of sustained power without severe thermal throttling. Beyond 45W, the charging time curve flattens dramatically; a 100W charger might only shave three minutes off a full charge compared to a 45W charger.[2][3]

The limitation is the chemistry of the lithium-ion cell. Fast charging pushes lithium ions into the graphite anode at high speed, generating heat. If the temperature exceeds safe limits, the device's power management IC throttles the incoming wattage. This means a phone might draw 45W for the first ten minutes, but drop to 15W for the remainder of the cycle.[2]

When buying utility chargers, multi-port GaN (Gallium Nitride) bricks are the current standard. GaN semiconductors are more efficient than traditional silicon, allowing for smaller chargers that run cooler. However, consumers must read the power distribution chart; a "100W" charger with three ports might only deliver 65W to the primary port when a second device is plugged in.[3]

The era of "any cable works" is over, replaced by a system that is vastly more powerful but requires a basic understanding of specifications. By matching a PD/PPS-certified charger with an e-marked cable and understanding your device's actual maximum input, you can build a charging setup that is fast, safe, and future-proof.[1][3]
