The Mechanics of the Jam: How Military GPS Exercises Reshape Civilian Aviation Safety After Fatal Crash

When you settle into your window seat for a night flight, you trust the invisible web of satellite signals guiding you through the dark. For decades, the Global Positioning System (GPS) has been the silent utility of modern aviation, enabling efficient routes, complex approaches, and unparalleled situational awareness. But that web is more fragile than it appears, and its vulnerability is reshaping how the industry thinks about safety in the skies.

The fragility of this system was brought into sharp relief in the early hours of May 14, 2026. A Beechcraft King Air 90, operating as a medevac flight, departed Roswell Air Center in New Mexico to pick up a patient in Ruidoso. The night was pitch black, with zero percent moon illumination, leaving the crew entirely reliant on their instruments to navigate the mountainous terrain.[3][6]

Just eight minutes after takeoff, the aircraft's GPS went dark. The crew was not alone; at least three other aircraft in the area reported similar navigation disruptions to air traffic control. The sudden loss of satellite navigation forced the pilots to abandon their automated approach and rely on visual flight rules in an environment where visual cues were virtually non-existent.[3][6]

The preliminary report from the National Transportation Safety Board (NTSB) linked the disruption to a routine military electronic warfare exercise known as NAVFEST, conducted at the nearby White Sands Missile Range. It is believed to be the first known case in American airspace where military GPS jamming has been identified as a potential factor in a fatal civilian plane crash.[2][3][6]

To understand how a military exercise could blind a civilian aircraft, it is necessary to examine the mechanics of the jam. Electronic warfare encompasses both jamming—which simply blocks affected devices from receiving a signal—and spoofing, a more sophisticated attack that broadcasts counterfeit signals to deceive a receiver about its actual location.[1][7]

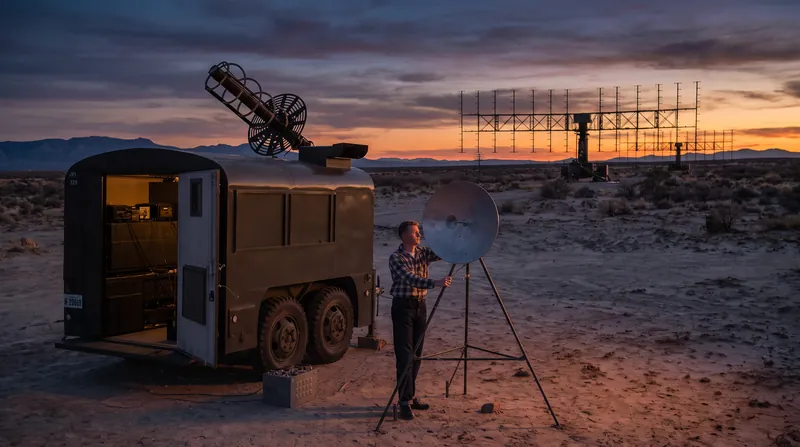

At facilities like White Sands, the military routinely tests equipment in GPS-denied environments to prepare forces for modern combat. However, some of these tests involve active spoofing. To prevent these deceptive signals from escaping the range and misleading civilian aircraft, the military employs a technique known as "cover jamming."[2][4]

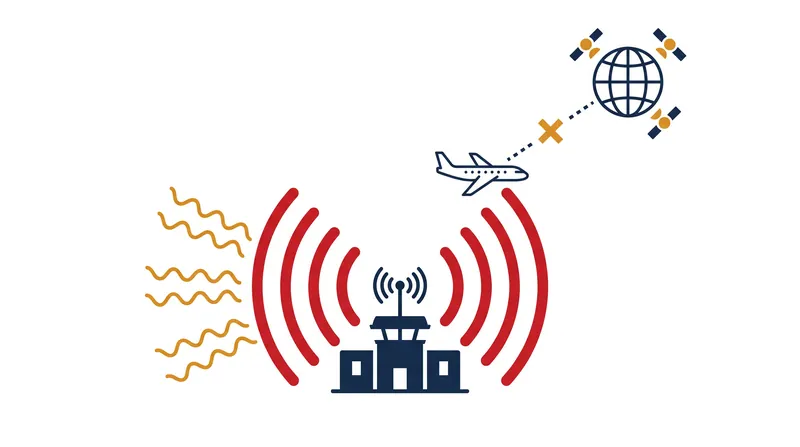

Cover jamming involves placing powerful GPS jammers along the perimeter of the testing range to drown out the spoofing signals. According to Dr. Todd Humphreys, a navigation expert at the University of Texas at Austin, this preventative jamming is incredibly intense, reaching all the way up to low Earth orbit. It acts as an electronic wall, but one that inadvertently knocks out legitimate GPS connections for miles around.[4]

The vulnerability of civilian aircraft to this intense jamming is compounded by a significant hardware gap. FAA-certified navigation hardware is heavily reliant on the L1 GPS frequency. Because the certification process is notoriously onerous and conservative, many civilian aircraft are flying with aviation-grade receivers that rely on technology more than a decade old.[4]

These legacy L1-reliant systems are far more susceptible to interference than modern multi-frequency or multi-constellation receivers. When they encounter the intense cover jamming from a facility like White Sands, they are instantly overwhelmed, leaving the flight crew without their primary navigation tool.[4][5]

To mitigate this risk, the military and the FAA rely on a protocol known as the "stop buzzer." Pilots are warned of scheduled jamming through federal notices, and air traffic controllers are given the authority to ask the military to pause the exercise if it begins interfering with civilian flights.[3]

In the case of the New Mexico medevac flight, the stop buzzer was activated. After the crew reported losing GPS, a supervisor contacted the military, and the jamming was temporarily halted. The aircraft's GPS returned, and the crew subsequently reported having the airport in sight, accepting a visual approach.[3][6]

With the aircraft lined up for landing, the supervisor advised the military that they could resume the exercise. The jamming was turned back on. Roughly five minutes later, the King Air struck a mountain ridge 230 feet below the summit, killing all four people aboard. The crash occurred just 14 minutes before the exercise was scheduled to end for the night.[3][6]

The tragedy highlights a structural flaw in the manual pause protocol: it relies on human coordination that cannot match the speed of electronic warfare. The moment the jamming resumed, the decade-old receivers were likely overwhelmed again, precisely when the crew was executing a critical visual approach in total darkness.[5]

While the New Mexico crash brings the issue to domestic airspace, the weaponization of GPS is a rapidly escalating global crisis. In conflict zones around the world, particularly in the Eastern Mediterranean and the Black Sea, GPS spoofing has become a daily hazard for commercial aviation.[7][8]

A recent report by OpsGroup documented a staggering increase in these incidents, growing from an average of 300 affected flights per day in early 2024 to 1,500 flights per day by August 2024. These counterfeit signals, broadcast at high strengths to defend against drones, are picked up by civilian receivers hundreds of kilometers away.[8]

When spoofing occurs, the consequences are severe. Spoofed data can lead to a barrage of false "PULL UP" warnings, eroding pilot trust in life-saving terrain avoidance systems. It can also corrupt the aircraft's internal clock, disrupting vital communication links with air traffic control.[7][8]

Aviation does have fallback systems. When GPS fails, modern aircraft rely on Inertial Reference Systems (IRS) that calculate position based on speed and direction. However, IRS systems drift over time and often use GPS to enhance their accuracy, meaning they can be corrupted by spoofed data if the manipulation goes undetected.[7][8]

Older ground-based radio beacons, such as VOR and DME, provide another layer of redundancy. But these systems are gradually being phased out in favor of satellite navigation, and they are often insufficient in remote or mountainous areas where line-of-sight signals are blocked.[5]

The path forward requires a fundamental shift in how the aviation industry approaches Position, Navigation, and Timing (PNT). Experts are urging the accelerated adoption of multi-frequency receivers and cryptographic authentication to verify satellite signals, closing the vulnerability gap that currently plagues legacy hardware.[1][4][8]

As the NTSB prepares its final report for 2027, the aviation community is left grappling with a new reality. The invisible utility of GPS is no longer an infallible guide, and ensuring the safety of the thousands of flights crossing the night sky will require both technological upgrades and a rethinking of how military exercises share the air.[3][5]
