Balancing Radar Shaping, Absorbent Materials, and Thermal Management in Stealth Aircraft

At a radar cross-section of roughly 0.0001 square meters—the electromagnetic equivalent of a steel marble—a modern low-observable aircraft entering contested airspace is not invisible. Instead, it is managing a complex, continuous budget of electromagnetic and thermal energy. The architecture of stealth technology is a system of physical and electronic compromises designed to shrink an adversary's engagement envelope, delaying detection just long enough to complete a mission and survive.[1][5]

The foundation of this architecture is Radar Cross-Section (RCS) reduction. Radar systems operate by emitting pulses of radio frequency energy and measuring the reflections that bounce back from a target. To defeat this, stealth platforms rely primarily on geometric shaping. By aligning the edges of the wings, tail, and fuselage to specific angles, engineers ensure that incoming radar waves are deflected away from the source receiver rather than reflected directly back to it.[1]

However, shaping alone cannot eliminate all reflections, particularly from complex structures like engine intakes, antennas, and weapons bay doors. To manage these anomalies, designers apply Radar Absorbent Materials (RAM). These specialized coatings contain microscopic iron or carbon particles suspended in a polymer matrix, which convert incoming electromagnetic energy into minute amounts of heat, effectively absorbing the radar pulse before it can bounce back.[1]

This conversion of energy introduces the second major node in the stealth infrastructure: the infrared (IR) signature. While RAM generates negligible heat, the aerodynamic friction of supersonic flight and the massive thermal output of the aircraft's turbofan engines create a glaring beacon in the infrared spectrum. Modern air defense networks increasingly rely on Infrared Search and Track (IRST) systems, which passively scan the sky for thermal anomalies without emitting any detectable signals themselves.[2]

Managing this thermal vulnerability requires extensive infrared suppression. The primary source of IR radiation is the engine exhaust plume and the heated metal of the nozzle. To mitigate this, engineers utilize axisymmetric vectoring exhaust systems and specialized mixing ducts that inject cold bypass air from the engine's fan into the hot exhaust stream before it exits the aircraft. This rapidly cools the plume, shifting its thermal emission out of the highly detectable 3-5 micrometer and 8-12 micrometer atmospheric transmission windows.[2]

Additionally, the physical placement of the engines is heavily engineered. By burying the engines deep within the fuselage and shielding the exhaust nozzles from below using the aircraft's tail structure, designers can physically block the line-of-sight between the hottest engine components and ground-based IRST sensors.

Yet, surviving contested airspace requires more than just hiding; the aircraft must also actively search for targets. This presents the third critical challenge: active emissions. Using a traditional radar system acts like turning on a high-powered flashlight in a dark room—it illuminates the target, but it instantly alerts every enemy intercept receiver to the aircraft's exact location.[4][5]

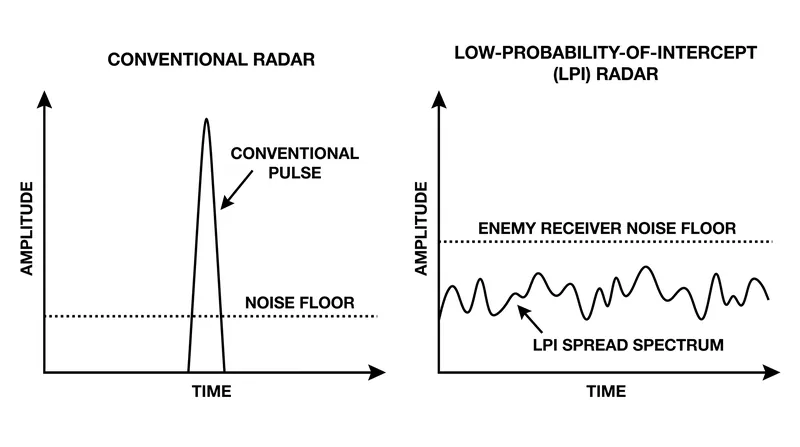

To solve this, modern platforms employ Low-Probability-of-Intercept (LPI) radar strategies. LPI radars are designed to see without being seen, operating below the noise floor of enemy warning receivers. They achieve this through rigorous power management, emitting the absolute minimum amount of energy required to track a target, and by spreading that energy across a wide bandwidth.[4]

A key mechanism of LPI radar is the use of complex, noise-like waveforms. By utilizing spread-spectrum techniques and frequency hopping—changing the transmission frequency thousands of times per second—the radar signal becomes nearly indistinguishable from background cosmic radiation and atmospheric static to an adversary's passive sensors.[3][4]

Advanced LPI systems also rely on Low-Peak-to-Average Power Ratio (PAPR) waveforms. Traditional radars emit high-power, distinct pulses that are easily categorized by enemy computers. Low-PAPR waveforms, conversely, maintain a continuous, low-power transmission that lacks the sharp power spikes warning receivers are programmed to detect, allowing the stealth platform to build a high-resolution targeting track while remaining electronically silent to the enemy.[3]

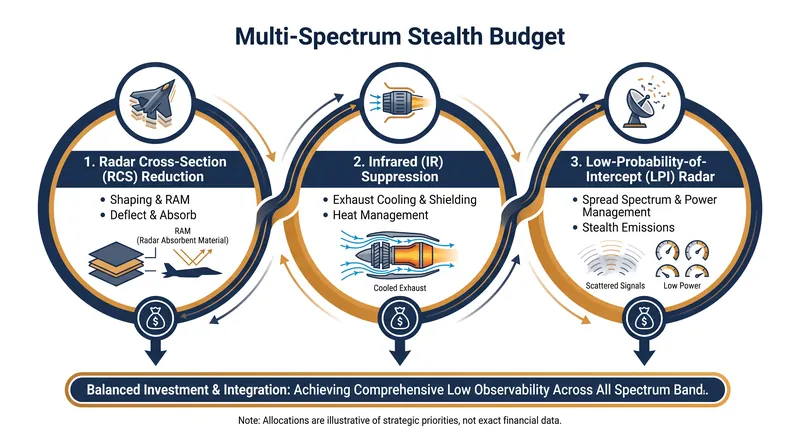

The true complexity of stealth technology lies in the inherent contradictions between these three domains. Optimizing an aircraft's geometric shape for RCS reduction often degrades its aerodynamic efficiency, requiring the engines to work harder to maintain speed. This increased engine workload elevates the platform's baseline infrared signature, which in turn demands heavier, more complex IR suppression systems that add weight and further reduce kinematic performance.[1][2][5]

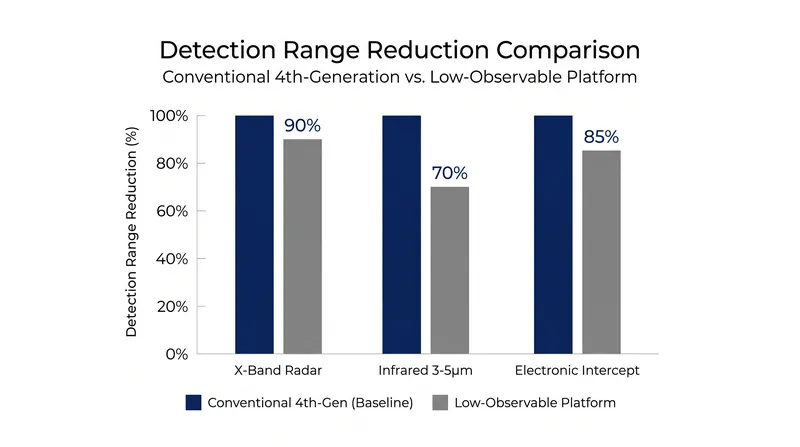

This interconnected web of physical trade-offs means that true stealth is never absolute. It is a highly calibrated, multi-spectrum balancing act. As peer adversaries continue to deploy fused sensor networks that combine low-frequency VHF radars—which can detect the broad shaping of stealth aircraft—with high-resolution IRST and advanced electronic intelligence receivers, the margin for error in low-observable engineering continues to shrink.[5]
