The Mechanics of Hydrogen Fuel Cells: Comparing PEM, SOFC, and Alkaline Architectures for Transportation

The most common misconception about the future of zero-emission transportation is that it will be a monoculture. The public narrative often assumes that the lithium-ion battery, having conquered the passenger car market, will simply scale up to power long-haul trucking, rail, and maritime shipping. This fundamentally misunderstands the physics of energy density and the tyranny of mass. When a vehicle's primary job is hauling heavy freight over vast distances, the weight of the batteries required to move the vehicle begins to cannibalize the payload it was designed to carry.[4]

This is where hydrogen fuel cells enter the transportation system, not as a competitor to batteries in passenger sedans, but as a necessary parallel architecture for heavy-duty applications. However, "hydrogen fuel cell" is a categorical term, much like "internal combustion engine." Beneath that umbrella exist entirely different electrochemical systems, each with distinct operating temperatures, catalyst requirements, and fuel purity tolerances.[1][2]

To understand how these systems will integrate into global supply chains, one must examine the mechanics of the three primary architectures currently vying for commercial dominance: Proton Exchange Membrane (PEM), Solid Oxide Fuel Cells (SOFC), and Alkaline Fuel Cells (AFC). Each represents a different engineering compromise between efficiency, cost, and durability.[4]

At a fundamental level, all fuel cells operate on the same basic principle: they convert the chemical energy of a fuel and an oxidant directly into electricity, water, and heat. Unlike a combustion engine, there is no burning. Hydrogen gas is introduced to an anode, where a catalyst strips the electrons from the hydrogen molecules. The resulting protons travel through an electrolyte to the cathode, while the electrons are forced through an external circuit, creating the electrical current that drives the vehicle's motors.[2][3]

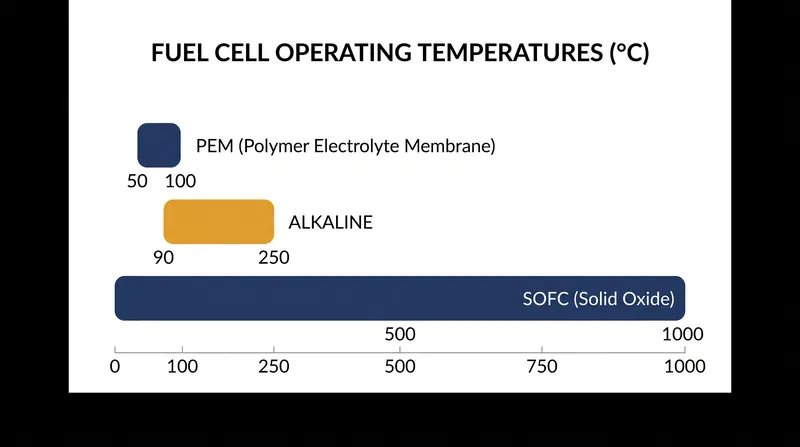

The Proton Exchange Membrane (PEM) fuel cell is currently the undisputed leader in the automotive sector. Its defining characteristic is a solid polymer electrolyte that only conducts protons. PEM cells operate at a relatively low temperature, typically between 50 degrees and 100 degrees Celsius. This low thermal threshold is their greatest systemic advantage for passenger and light commercial vehicles, allowing the system to start up rapidly and respond dynamically to sudden changes in power demand, such as accelerating onto a highway.[1][2]

However, the low operating temperature of a PEM cell creates a significant downstream constraint. Because the electrochemical reaction is relatively cold, it requires a highly active catalyst to force the hydrogen molecules apart. Historically, this has meant relying heavily on platinum. Furthermore, the polymer membrane is highly sensitive to impurities; if the hydrogen fuel contains even trace amounts of carbon monoxide, the platinum catalyst becomes poisoned, rapidly degrading the cell's efficiency and lifespan.[2][3]

In stark contrast to the low-temperature PEM architecture is the Solid Oxide Fuel Cell (SOFC). Instead of a polymer, SOFCs utilize a hard, non-porous ceramic compound as the electrolyte. To achieve the necessary ionic conductivity through this solid ceramic, the system must operate at extreme temperatures, typically ranging from 500 degrees to 1,000 degrees Celsius.[1][2]

This intense heat fundamentally changes the economics and utility of the cell. At 1,000 degrees Celsius, the electrochemical reaction is energetic enough that expensive precious metal catalysts like platinum are no longer required; cheaper base metals can be used instead. More importantly, the high temperature allows the SOFC to internally reform hydrocarbon fuels. While a PEM cell requires pure, medical-grade hydrogen, an SOFC can theoretically run on natural gas, biogas, or ammonia, making it highly attractive for maritime shipping where pure hydrogen infrastructure is non-existent.[1][4]

The trade-off for this flexibility is thermal inertia. A system operating at 1,000 degrees Celsius cannot be turned on and off like a passenger car. It requires a long, carefully managed thermal ramp-up to prevent the ceramic components from cracking under thermal shock. Consequently, SOFCs are entirely unsuited for stop-and-go driving. They are designed for continuous, steady-state operation—the exact duty cycle of a cargo ship crossing the Pacific or a freight locomotive hauling coal across a continent.[3][4]

The third architecture, the Alkaline Fuel Cell (AFC), represents the legacy of the aerospace industry. Used extensively by NASA during the Apollo and Space Shuttle programs, AFCs utilize an aqueous solution of potassium hydroxide as the electrolyte. They operate at moderate temperatures and offer some of the highest electrical efficiencies of any fuel cell design, often exceeding 60 percent.[2][3]

Despite their high efficiency and historical pedigree, traditional AFCs have struggled to penetrate the commercial transportation market due to a fatal vulnerability: carbon dioxide poisoning. The potassium hydroxide electrolyte reacts aggressively with the trace amounts of carbon dioxide present in ambient air, forming solid potassium carbonate crystals that physically block the porous electrodes and destroy the cell.[2][3]

To function in a terrestrial environment, an AFC requires either a complex and expensive carbon dioxide scrubber system for its air intake, or it must operate on pure oxygen rather than ambient air—a logistical impossibility for commercial trucking. However, recent advancements in solid alkaline exchange membranes are attempting to solve this issue, aiming to combine the low-cost catalysts of the alkaline chemistry with the durability of a solid polymer design.[3][4]

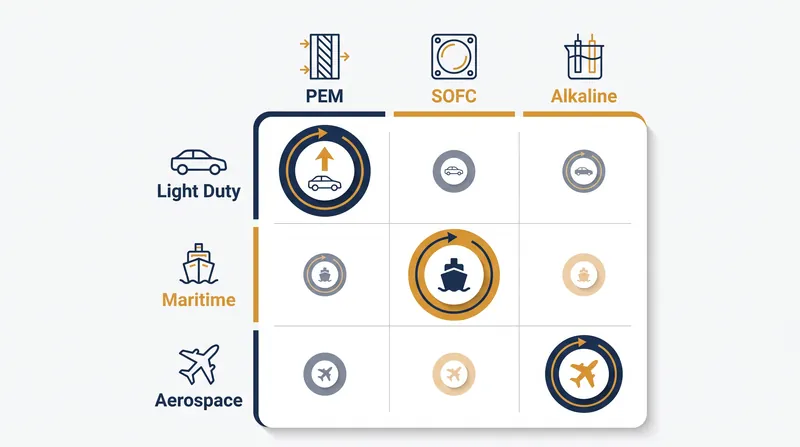

The transportation sector is not moving toward a single, unified powertrain solution. Instead, it is fracturing into specialized technological niches dictated by duty cycles. Battery-electric architectures will dominate the light-duty and short-haul sectors where energy density is less critical and charging infrastructure is easily deployed.[4]

For the heavy-duty, long-haul, and maritime sectors, the fuel cell provides the necessary bridge between zero-emission mandates and the physical realities of freight transport. The ultimate winner in this space will not be the system with the highest theoretical efficiency, but the one that best balances catalyst costs, fuel purity requirements, and thermal management within the brutal operational realities of global logistics.[1][4]
