The Mechanics of Diffusion Models: How Noise, Latent Space, and U-Nets Generate High-Fidelity Images

A user types 'a futuristic city at sunset' and hits enter. Behind the screen, the system does not search a database or collage existing photos; instead, it starts with a canvas of pure, randomized digital static—television snow. Over the next few seconds, that static is systematically sculpted, pixel by pixel, until a photorealistic skyline emerges.[7]

This process is driven by diffusion models, the architecture that powers systems like Midjourney, DALL-E, and Stable Diffusion. To understand how they work, one must look past the prompt and examine the underlying physics-inspired mathematics.[7]

The core concept borrows from non-equilibrium thermodynamics. In physics, diffusion describes how a drop of ink slowly disperses in a glass of water until the water is uniformly gray. The information—the distinct shape of the ink drop—is destroyed by entropy.[1]

AI researchers realized that if they could mathematically model this destruction of information, they could train a neural network to reverse it. This is the foundation of the Denoising Diffusion Probabilistic Model (DDPM).[1]

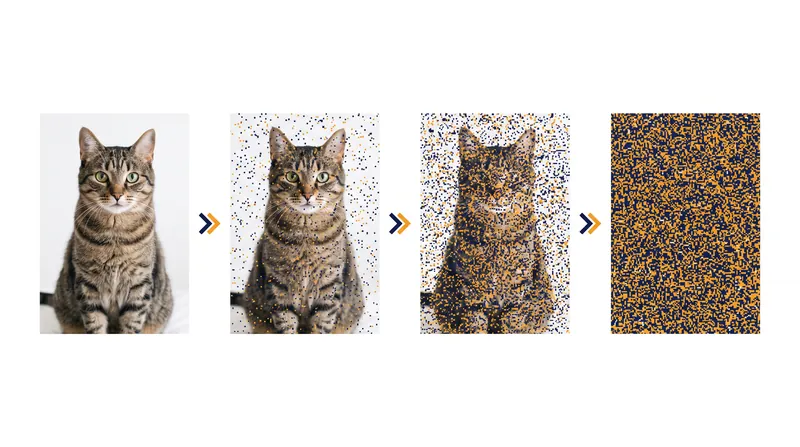

The training process begins with a forward diffusion phase. The system takes a clean, high-resolution image and incrementally adds Gaussian noise over hundreds or thousands of steps. By the final step, the original image is completely obliterated, leaving only random static.[1]

Because the system controls this forward process, it knows exactly how much noise was added at each specific step. This creates a perfect training dataset for the reverse process, teaching the model what noise looks like at various stages of corruption.[1]

The reverse diffusion phase is where the actual generation happens. The model is handed a frame of pure noise and asked to predict the noise that was added in the very last step of the forward process. It subtracts that predicted noise, moving one step closer to a clean image.[1]

Repeating this subtraction hundreds of times gradually reveals a coherent image. But predicting the exact pattern of noise across millions of pixels requires a highly specialized neural network architecture known as a U-Net.[3]

Originally developed for biomedical image segmentation, the U-Net gets its name from its U-shaped architecture. It first downsamples the image, compressing it into a smaller, denser representation to understand the broad context—like the overall shape of a face or a building.[3]

It then upsamples the image back to its original resolution to fill in the fine details. Crucially, the U-Net uses 'skip connections' that pass high-resolution information directly from the downsampling side to the upsampling side, preventing the loss of fine details during compression.[3]

While effective, early diffusion models operating directly on pixels were computationally ruinous. Calculating noise predictions for every single pixel of a high-resolution image required massive data-center GPUs and minutes of processing time per image.[5]

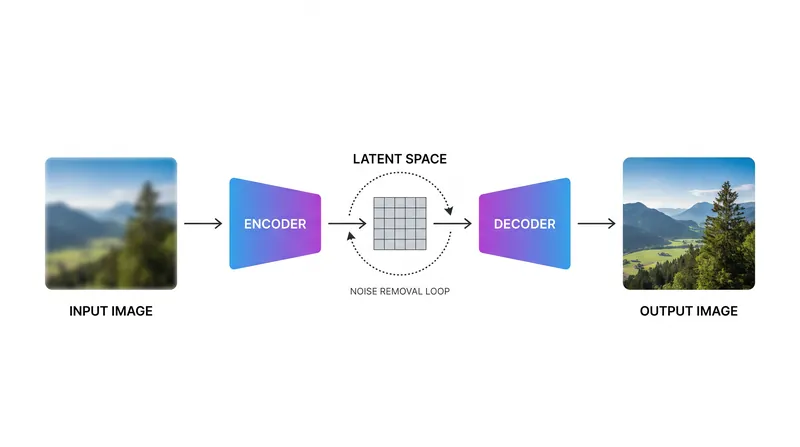

The breakthrough that democratized AI image generation was the Latent Diffusion Model (LDM), introduced by researchers at LMU Munich and Runway. Instead of running the diffusion process in 'pixel space,' LDMs run it in 'latent space.'[2][4][6]

Latent space is a highly compressed mathematical representation of an image. An encoder network analyzes a high-resolution image and squashes it down by a factor of 48 or more, discarding redundant pixel data while preserving the core semantic meaning—the 'concept' of the image.[2]

The entire forward and reverse diffusion process is then performed on this tiny, compressed latent representation. Because the computational area is vastly smaller, the process becomes exponentially faster and requires a fraction of the memory.[4]

Once the reverse diffusion is complete in latent space, a separate decoder network translates the compressed mathematical representation back into a full-resolution pixel image. This is why models like Stable Diffusion can run on consumer laptops.[4][6]

But removing noise is only half the equation; the model must also know what to generate. This is achieved through conditioning, typically using text prompts that guide the noise-removal trajectory.[7]

When a user inputs a prompt, a language model translates the text into mathematical embeddings. These text embeddings are injected into the U-Net during the reverse diffusion process using a mechanism called cross-attention.[2]

Cross-attention acts as a steering wheel. As the U-Net predicts which noise to remove, the text embeddings guide it to remove noise in a way that aligns with the prompt. If the prompt says 'dog,' the network selectively denoises the latent space to reveal dog-like features.[5]

Despite their dominance, diffusion models have known limitations. They struggle with spatial coherence, which is why early models frequently generated hands with six fingers or text that looked like alien hieroglyphics. The model understands the texture of a hand or a letter, but not the underlying anatomical or linguistic rules.[5]

Furthermore, the iterative nature of reverse diffusion makes it inherently slower than older generative architectures like Generative Adversarial Networks (GANs), which produce images in a single forward pass. However, diffusion models offer far greater stability during training and a much wider diversity of outputs, cementing them as the current industry standard.[1][5]
