The Evidence Pack: How Incorrect Assembly Instructions Triggered the 320,000-Unit Wyze Camera Recall

The smart home revolution has empowered millions of consumers to install their own security systems, bypassing professional installers in favor of affordable, wire-free devices. But the DIY model relies heavily on clear documentation, and a recent misstep by a major manufacturer highlights the hidden risks of self-installation. Wyze Labs, in cooperation with the Consumer Product Safety Commission (CPSC), has issued a voluntary recall for approximately 321,360 of its Solar Cam Pan security cameras in the United States, alongside an additional 2,560 units in Canada.[1]

The recall, which affects white, motorized pan-and-tilt cameras equipped with an integrated solar panel, stems from a surprisingly simple error: incorrect assembly instructions. Unlike many electronics recalls that involve manufacturing defects or faulty battery cells, the Wyze Solar Cam Pan's hardware is fundamentally sound when assembled correctly. The danger arises entirely from a documentation mix-up that guides users to use the wrong piece of mounting hardware.[2][3]

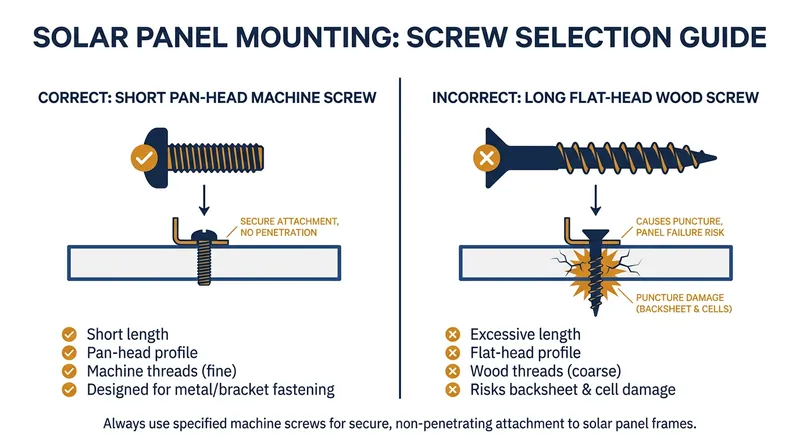

Inside the box, the $80 camera shipped with two distinct sets of screws. The first set consists of short, pan-head machine screws, which are specifically designed to attach the solar panel bracket to the top of the camera housing. The second set features long, flat-head wood screws, intended strictly for mounting the entire camera assembly to the exterior wall of a house or garage.[2]

According to the CPSC and Wyze's official recall notice, the printed instructions included with the cameras inadvertently directed some users to use the long, flat-head wood screws to attach the solar panel to the camera body. This seemingly minor mix-up creates a severe mechanical conflict. The threaded brass inserts on the top of the camera are closed-bottomed and shallow, designed only to accommodate the short machine screws.[1][2]

When a consumer forcefully drives the long wood screw into the shallow insert, the screw breaches the bottom of the brass fitting and penetrates deep into the camera's internal chassis. Directly beneath these mounting points sits the device's power source: a high-capacity lithium-ion battery. The sharp tip of the wood screw can easily puncture the battery's protective metal casing, initiating a catastrophic chemical reaction.[1]

Puncturing a lithium-ion battery compromises the thin separator between the anode and cathode, causing an immediate short circuit. This triggers a phenomenon known as thermal runaway—a rapid, uncontrollable increase in temperature within the battery cells. As the internal temperature spikes, the flammable electrolyte inside the battery vaporizes and ignites, leading to intense off-gassing, smoke, and ultimately, fire.

The real-world consequences of this documentation error have already materialized. Wyze has received 13 formal consumer reports of the security cameras overheating after installation. More alarmingly, six of those incidents involved the cameras actively exploding and catching on fire, resulting in six reports of consumers suffering minor burn injuries.[1][3][4]

The recall applies specifically to the Wyze Solar Cam Pan, identifiable by the model number WYZESCPWH printed on the back of the device. These units were sold online through Wyze.com, Amazon, and Best Buy, as well as in physical retail locations like Home Depot and Micro Center, between October 2025 and April 2026. Wyze has stated that any units purchased after April 3, 2026, are not affected by the incorrect instructions and are safe to use.[1][3][5]

For consumers who own the recalled model, the immediate directive from the CPSC is to stop using the camera. However, because the risk of fire is tied directly to the physical puncture of the battery, Wyze is advising customers who are unsure about which screws they used to contact customer support before attempting to remove or disassemble the camera. Removing a screw that has already punctured a swollen battery can sometimes trigger a delayed thermal event.[1][2]

To manage the recall safely, Wyze has implemented a novel digital disablement process. When affected users register for the recall at the company's dedicated portal, Wyze pushes a specialized firmware update to the connected camera over the internet. This firmware is designed to intentionally and safely deplete the camera's battery to a zero-charge state, rendering the lithium-ion cells chemically inert. Once depleted, the camera is permanently disabled and will no longer function, even if the correct screws were originally used.[2]

After the camera is digitally disabled, consumers face the challenge of safe disposal. The CPSC explicitly warns users not to throw the recalled cameras into the regular household trash or standard curbside recycling bins. Even a depleted lithium-ion battery that has been compromised poses a residual fire risk if it is crushed or compacted in a municipal garbage truck or standard recycling sorting facility.[1][3]

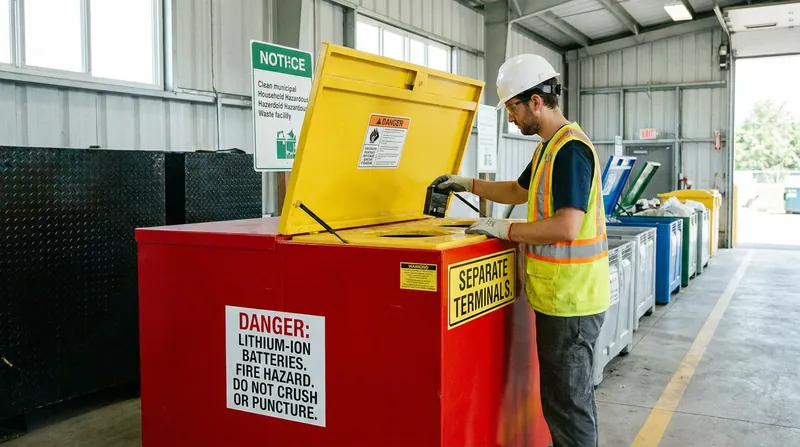

Instead, consumers are required to dispose of the disabled cameras at a designated Household Hazardous Waste (HHW) collection center. These municipal facilities are equipped to safely handle, store, and recycle damaged lithium-ion batteries. Because policies vary by municipality, the CPSC advises consumers to call their local HHW center ahead of time to confirm they accept recalled battery products.[1][3]

To compensate affected users, Wyze is offering a comprehensive remedy package. Participants can choose between a full refund to their original payment method, a store gift card, or a free replacement device. The replacement offered is the Wyze Battery Cam Pro, bundled with a compatible solar panel accessory, ensuring users can maintain their wire-free security setup without the associated hardware risks.[2]

Industry analysts note that this recall highlights a growing challenge in the consumer electronics market: the need for poka-yoke, a Japanese manufacturing term for mistake-proofing. When designing products for amateur installation, relying solely on written instructions is increasingly viewed as insufficient. Hardware should ideally be designed so that incorrect assembly is physically impossible—for example, by using different thread pitches or physical blockers that prevent a long screw from entering a shallow hole.

As smart home ecosystems continue to expand, the Wyze Solar Cam Pan recall serves as a critical reminder for both manufacturers and consumers. For companies, it underscores the vital importance of foolproof hardware design and rigorous documentation review. For consumers, it reinforces the necessity of reading instructions carefully, double-checking hardware before installation, and registering devices to ensure they receive timely safety alerts.[1][2][3]
