The Biomechanics of Bike Fit: How Saddle Height, Reach, and Cleat Position Affect Power Output and Injury Risk

For decades, the prevailing wisdom in cycling was simple: to go faster, you must suffer more. The traditional "pro fit"—characterized by a sky-high saddle, a slammed stem, and a stretched-out reach—was viewed as the ultimate aerodynamic ideal. Riders contorted their bodies to fit the machine, accepting lower back pain and numb extremities as the unavoidable tax on speed. However, modern biomechanics has fundamentally inverted this relationship. The most efficient position is no longer defined by how aerodynamic a rider looks in a static wind tunnel, but by how sustainably they can produce power over time without mechanical breakdown.[2][6]

The tension at the heart of bicycle fitting lies between aerodynamic drag and physiological efficiency. Lowering the torso reduces the frontal area pushing through the wind, which is the single greatest source of resistance a cyclist faces. Yet, aggressively closing the hip angle restricts diaphragmatic breathing, compresses the lumbar spine, and alters the firing patterns of the gluteal muscles. Resolving this tension requires treating the bicycle and the rider as a single, dynamic kinetic chain where every adjustment to a contact point cascades through the rest of the body.[2][5]

The foundation of this kinetic chain is saddle height, often considered the most critical measurement in cycling. The saddle acts as the anchor point for the engine, dictating the leverage the legs can apply to the pedals. A systematic review of saddle height methods reveals that setting the saddle too low dramatically increases compressive forces on the patellofemoral joint (the kneecap), leading to anterior knee pain. Conversely, pushing the saddle too high forces the rider to overextend, shifting the workload disproportionately to the hamstrings and calves while causing the pelvis to rock side-to-side to reach the bottom of the pedal stroke.[1]

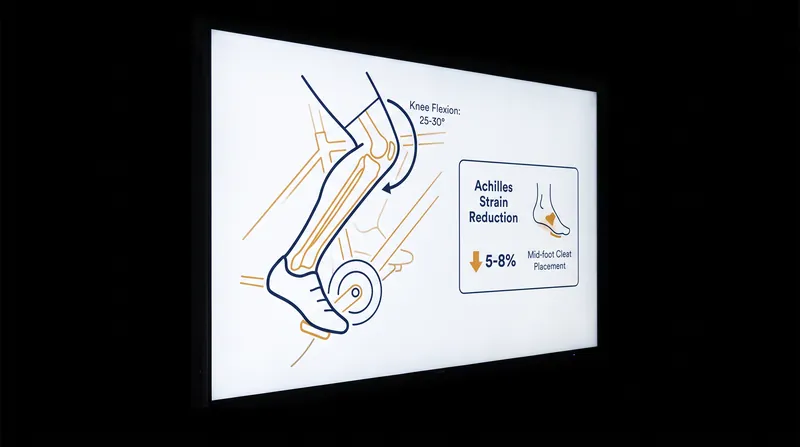

Clinical biomechanists generally target a knee flexion angle of 25 to 30 degrees at bottom dead center (when the pedal is at its lowest point). This specific window optimizes the length-tension relationship of the quadriceps and glutes, allowing them to produce maximum force without overstretching the connective tissue. When riders deviate from this window by even a few millimeters, metabolic cost increases. The body is forced to recruit secondary stabilizing muscles to control the pedal stroke, burning extra oxygen for the same wattage output.[1][6]

Once the saddle height is established, the focus shifts forward to the handlebars. Handlebar reach and drop dictate the rider's upper body kinematics and, crucially, their pelvic tilt. A longer reach stretches the torso, which can improve aerodynamics but places immense strain on the lower back and neck if the rider lacks the core strength to support the suspended weight of their trunk. Elite pursuit cyclists often utilize extreme handlebar drops, but kinematic studies demonstrate that this significantly alters lower-limb biomechanics, forcing the knees to track wider to clear the chest and abdomen.[5][7]

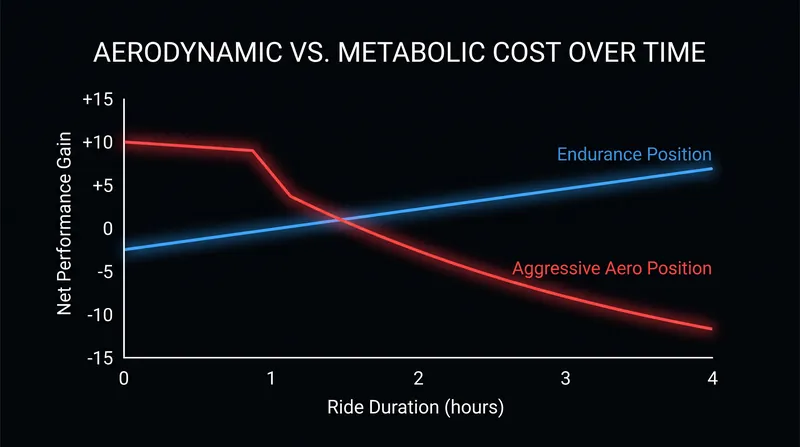

For the recreational or endurance cyclist, an overly aggressive reach is a net negative. The aerodynamic watts saved by a flatter back are quickly lost if the rider is too uncomfortable to remain in the drops, or if the closed hip angle prevents them from generating power over the top of the pedal stroke. A slightly shorter reach with a higher stack allows the pelvis to rotate forward naturally, maintaining a neutral spine. This preserves the ability to breathe deeply and recruit the gluteus maximus effectively, which is the largest power-producing muscle available to a cyclist.[2][7]

The final, and often most overlooked, contact point is the cleat position on the shoe. Traditionally, cyclists were taught to align the cleat directly beneath the ball of the foot (the first metatarsal). This forward position maximizes the lever arm of the foot, theoretically aiding in high-velocity sprints. However, recent kinetic analyses reveal that this placement places a massive, continuous eccentric load on the calf muscles and the Achilles tendon, as they must constantly fire to stabilize the ankle joint during the downstroke.[3][4]

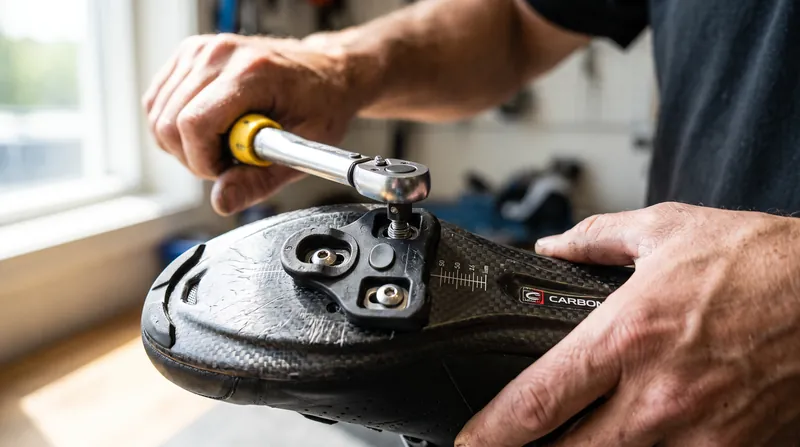

Moving the cleat rearward, toward the mid-foot, has emerged as a highly effective intervention for endurance riders and those suffering from Achilles tendon strains. By shortening the lever arm between the pedal spindle and the ankle joint, mid-foot cleat placement reduces the mechanical work required from the calves. While some traditionalists argue this blunts peak sprinting power, energetic cost studies show that for sub-maximal, steady-state riding, the metabolic penalty is negligible, while the reduction in tendon strain is profound.[3][4]

The complexity of bike fitting is that none of these three variables—saddle height, reach, and cleat position—exist in isolation. Moving the cleat rearward effectively shortens the leg's extension, requiring a corresponding drop in saddle height to maintain the optimal knee angle. Dropping the saddle height alters the relationship to the handlebars, effectively increasing the relative stack height and shortening the reach. A professional bike fit is an iterative process of balancing these interconnected levers.[6]

Ultimately, the best bike fit is the one that allows the rider to produce consistent power while remaining entirely free of joint pain. The human body is remarkably adaptable, but it will always seek the path of least resistance. If a position is too aggressive, the body will compensate by shifting weight, dropping a hip, or rolling an ankle, transferring the stress to vulnerable connective tissues. By prioritizing biomechanical sustainability over static aerodynamics, cyclists can unlock both greater comfort and higher long-term performance.[2][6][8]
