Spread-Squat M-Positioning in Baby Carriers Centers the Femoral Head to Prevent Hip Dysplasia

The consumer market for baby carriers shifted permanently when pediatric orthopedic guidelines converged on a single geometric standard for infant transport. Instead of narrow crotch-harnesses that leave legs dangling, modern carriers feature wide, structured bases. This design overhaul was driven entirely by the biomechanical requirements of the developing infant hip joint.[1][4]

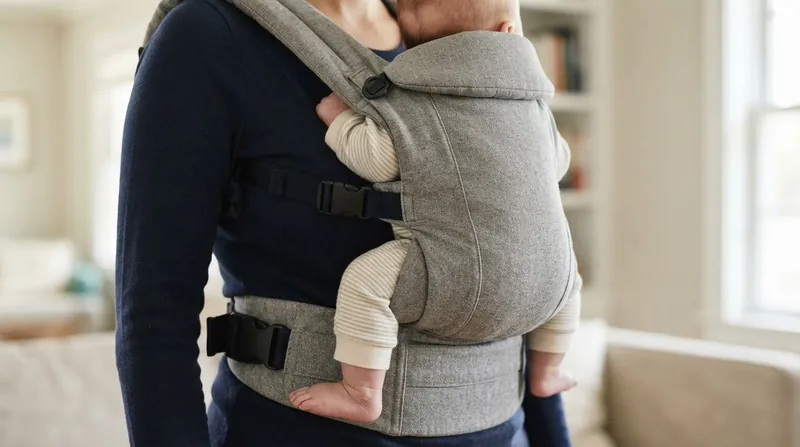

As of 2026, the International Hip Dysplasia Institute (IHDI) evaluates and acknowledges consumer baby carriers based on their ability to support the spread-squat, or M-position. This posture requires the infant's thighs to be spread around the caregiver's torso, with the knees resting higher than the buttocks.[1]

"The International Hip Dysplasia Institute recommends that infants be carried with the lower extremities in the M-position, and similar spread-squat positions, to support healthy hip development during the first six months of infancy when the hips are growing rapidly," the IHDI states in its educational guidelines.[1]

When an infant is held in this specific geometry, the physical forces acting on their lower body change completely. Rather than gravity pulling the leg downward and straining the hip socket, the M-position uses the child's own weight to press the femoral head inward. This active centering is critical during early development.[1][4]

The Anatomy of Infant Hip Dysplasia

Developmental dysplasia of the hip (DDH) occurs when the hip socket, or acetabulum, fails to form a deep enough cup to securely hold the femoral head. In a healthy joint, the ball fits snugly into the socket, allowing smooth rotation and weight-bearing without slipping.[1]

Approximately one in ten newborns exhibits some degree of mild hip instability at birth, and roughly one in 100 requires medical intervention. The condition is multifactorial, influenced by genetics, breech presentation during pregnancy, and postnatal environmental factors like swaddling or carrying practices.[1]

The infant hip joint is not a miniaturized adult joint; it is a rapidly developing structure that responds directly to mechanical stress. The cartilage of the acetabulum relies on the physical presence of the femoral head to shape its growth. If the ball is not consistently centered, the socket grows shallow and flat.[1][4]

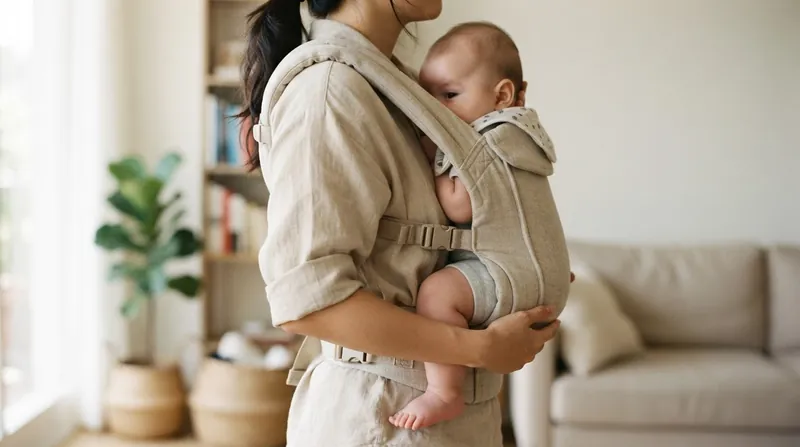

This mechanical dependency means that everyday infant transport devices play a passive but continuous role in orthopedic development. A carrier that holds the legs in a healthy position acts as a supportive scaffold for the joint. Conversely, a carrier that applies the wrong forces can gradually deform the soft cartilage.[1]

Medical treatments for severe dysplasia rely entirely on this principle of mechanical centering. The Pavlik harness, the gold-standard orthopedic device for DDH, uses a system of straps to hold the infant's legs in a continuous state of flexion and abduction, forcing the joint to remodel itself correctly.[2][3]

The Biomechanics of the M-Position

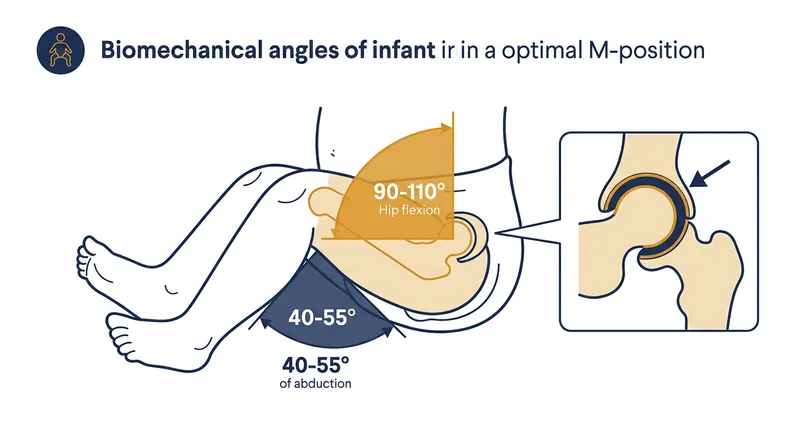

The M-position in a consumer baby carrier replicates the precise joint geometry achieved by medical harnesses. Biomechanical analysis defines this optimal zone as a "cone of stability," requiring approximately 40 to 55 degrees of hip abduction, or outward spread.[1][4]

Simultaneously, the hips must be held in 90 to 110 degrees of flexion, meaning the knees are brought up toward the abdomen. When an infant is seated with these specific angles, the vector of gravity aligns perfectly with the center of the acetabulum.[1][4]

A biomechanical study from the University of Arkansas compared the muscle activation and joint positioning of infants in a soft-structured ergonomic carrier to those in a medical Pavlik harness. Researchers captured movement data and surface electromyography during various carrying conditions.[3]

The researchers found that proper babywearing produces joint forces nearly identical to the orthopedic device. By supporting the thighs knee-to-knee and elevating the legs, a well-designed carrier effectively turns everyday transport into a preventative orthopedic measure.[3][4]

Furthermore, the infant's own muscle action contributes to this stabilizing effect. When facing inward and resting against the caregiver's chest, the baby naturally uses their inner thigh muscles to grasp the adult's torso. This active clinging generates additional inward force, pressing the femur securely into the socket.[1][4]

Why Narrow Carriers Pose a Risk

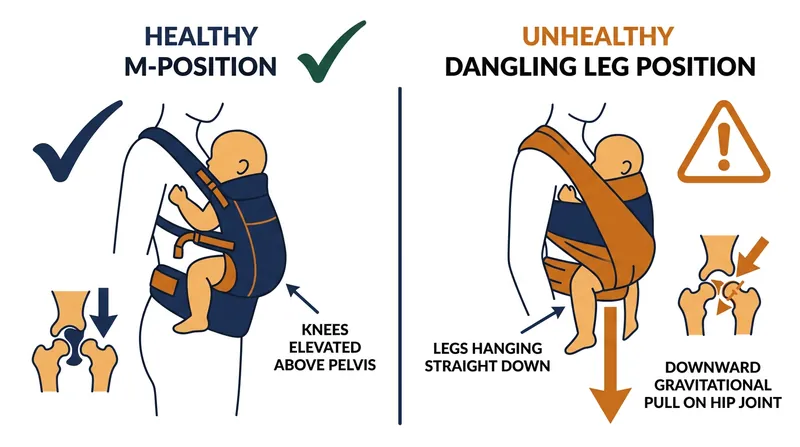

The biomechanical benefits of the M-position highlight the inherent risks of older, narrow-based carrier designs. Carriers that suspend the infant by the crotch without supporting the thighs force the legs into a straight, dangling position, with the hips and knees extended.[1]

This dangling position is the exact opposite of the fetal posture and represents the unhealthiest possible geometry for a developing hip. Gravity pulls the unsupported weight of the legs straight down, creating a lever effect that pulls the femoral head away from the center of the acetabulum.[1]

Over prolonged periods, this constant pressure on the cartilaginous rim can stretch the ligaments and deform the socket, leading to or worsening dysplasia. The IHDI explicitly warns against devices that maintain the legs in extension and adduction for extended durations.[1]

The same mechanical risks apply to traditional swaddling practices that bind the legs tightly together in a straight position. Hip-healthy swaddling techniques must leave the lower half of the blanket loose enough for the baby to bend and spread their legs naturally.[1]

The Six-Month Inward-Facing Rule

Because the hip joint develops so rapidly during the first half-year of life, the IHDI recommends that infants be carried exclusively in the inward-facing position for the first six months. Facing the caregiver naturally encourages the spread-squat posture.[1]

Outward-facing carrying positions present a unique biomechanical challenge. When a baby faces away from the caregiver, their back rests against the adult's chest, making it geometrically difficult to maintain the necessary 90 to 110 degrees of hip flexion.[1][4]

While outward-facing carrying is not inherently harmful for older infants with more developed joints, it requires a carrier specifically engineered to support the thighs in that orientation. Even with a wide seat, the outward-facing posture generally offers less hip stability than the inward-facing M-position.[1][4]

Ultimately, the convergence of pediatric orthopedics and consumer product design has transformed babywearing from a simple convenience into a tool for physical development. By adhering to the geometric principles of the M-position, modern carriers ensure that the simple act of holding a child actively protects their long-term mobility.[1][4]
