Ratcheted Crimps Resist Vibration Fatigue Better Than Solder by Preventing Capillary Wicking

A soldered joint and a ratcheted crimp both achieve the same electrical goal: joining a stranded copper wire to a terminal with near-zero resistance. The single respect in which they differ is how they handle mechanical stress just outside the connection.[4]

Solder relies on a metallurgical bond, melting a tin-lead or tin-silver alloy that flows between the copper strands. A ratcheted crimp relies on immense mechanical pressure, deforming the metals into a single solid mass without introducing heat.[2][4]

Many DIY mechanics and hobbyists have long assumed that a melted metal joint is inherently stronger than a squeezed one. That assumption fails entirely in environments where the wire moves, vibrates, or flexes during normal operation, which is why aviation and automotive industries abandoned the practice.[1][3]

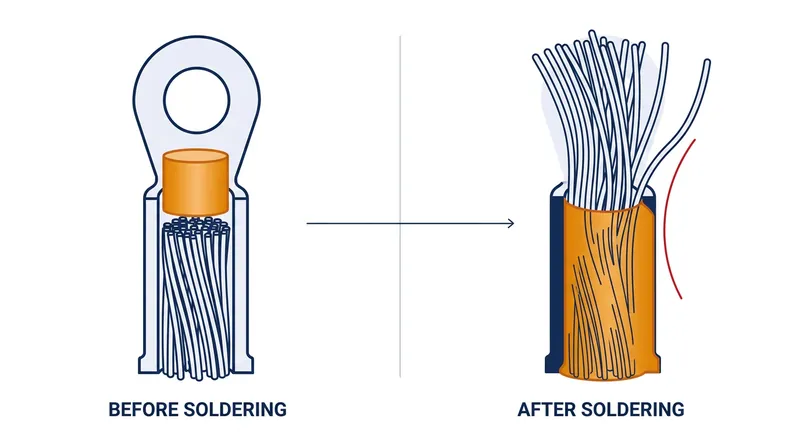

The primary failure mechanism for soldered wires in motion is capillary action. When solder melts, it wicks up the stranded copper wire, traveling under the polymer insulation far past the actual joint and into the flexible length of the cable.[3]

This wicking transforms a flexible, multi-stranded wire into a rigid, solid copper rod. The exact point where the solder stops wicking becomes a severe stress riser, concentrating all bending forces into a single microscopic line that the installer cannot even see.[3][4]

The mechanics of capillary wicking

Capillary wicking occurs because liquid solder is drawn into the microscopic gaps between individual copper strands by surface tension. The tighter the strands are twisted, the further the molten alloy travels before it cools and solidifies.[4]

In a typical 14 AWG automotive wire, solder can easily wick 10 to 15 millimeters up the wire jacket. This creates a hidden zone of rigidity that completely alters the mechanical properties of the cable, turning a dynamic component into a static one.[2][4]

"The wicking of solder into the stranded wire creates a stress concentration point at the exact boundary where the flexible wire meets the rigid solder," notes the Federal Aviation Administration in its AC 43.13-1B aircraft inspection and repair manual.[3]

When the wire vibrates, it no longer flexes evenly along its entire length. Instead, it acts like a lever prying against that rigid boundary, causing the copper strands to work-harden and snap one by one under the insulation.[3]

This invisible degradation is why aerospace standards strictly regulate or ban soldered connections in high-vibration environments. NASA’s STD-8739.4 standard for interconnecting cables explicitly warns against solder wicking in flexible harnesses, requiring specialized thermal shunts if soldering is absolutely unavoidable.[1]

How vibration finds the weak point

Vibration fatigue is a cumulative and inescapable process in moving vehicles. An engine bay, a motorcycle chassis, or an aircraft fuselage subjects wiring to continuous high-frequency oscillations, often exceeding 50 hertz during normal operation, which constantly tests the physical limits of the copper.[1][4]

Each oscillation bends the wire slightly. A flexible stranded wire distributes this bending energy across thousands of microscopic friction points between the individual copper strands, dissipating the mechanical stress harmlessly over a long physical distance rather than absorbing it in one spot.[2]

A solder-wicked wire cannot distribute this energy because the strands are fused together. The rigid section forces the entire bending load onto the first millimeter of un-soldered wire, rapidly exceeding the fatigue limit of the copper and initiating microscopic cracks.[3][4]

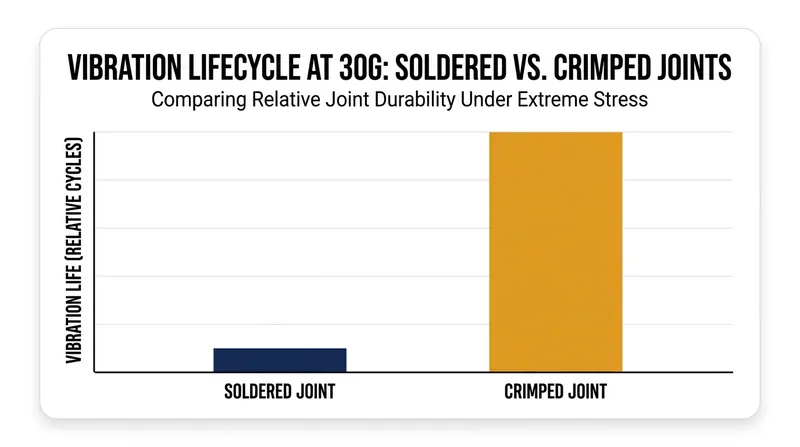

Testing by the Institute for Printed Circuits shows the dramatic difference in longevity. A soldered stranded wire subjected to 30G of vibration will typically fail at just 10 percent of the lifecycle of a properly crimped equivalent, making it a liability in critical systems.[2]

The failure is particularly insidious because it happens entirely underneath the PVC or Teflon insulation. The electrical connection appears perfectly intact during visual inspections until the final strand snaps, causing an immediate open circuit and a sudden loss of power.[1][3]

Cold welding and the ratcheted crimp

A ratcheted crimping tool solves this vulnerability by eliminating heat and liquid metal entirely. Instead, it uses a precisely calibrated steel die to compress the terminal and the wire together, relying on mechanical force rather than a metallurgical phase change.[4]

The pressure applied by a professional ratcheted tool is immense, often exceeding 2,000 pounds per square inch at the contact point. This extreme force breaks the microscopic oxide layers on both the copper strands and the inside of the terminal barrel.[2][4]

Under this pressure, the metals undergo plastic deformation. The individual round copper strands crush into hexagonal shapes, eliminating all air gaps and creating a gas-tight cold weld that is electrically indistinguishable from a solid piece of copper, preventing any future corrosion.[2]

"A properly executed crimp joint is mechanically stronger than the wire itself, while preserving the full flexibility of the strands immediately exiting the terminal," states the IPC/WHMA-A-620 standard for cable assemblies, which governs high-reliability electronics manufacturing across the globe.[2]

Because there is no liquid metal to wick up the strands, the wire remains fully flexible right up to the very edge of the crimp barrel. The stress of vibration is distributed naturally along the wire's length, exactly as the manufacturer intended.[1][2]

Aerospace and automotive standards

The superiority of crimping in dynamic environments is reflected in every major industrial manufacturing standard. Modern automotive wiring harnesses contain thousands of individual connections, and virtually zero are soldered, relying entirely on automated crimping machines to ensure vehicles survive decades of road vibration.[4]

The IPC/WHMA-A-620 Class 3 standard requires crimped connections to withstand specific tensile pull forces before failure. A standard 12 AWG crimp must hold at least 110 pounds of tension without the wire pulling out or the terminal breaking, ensuring immense physical durability.[2]

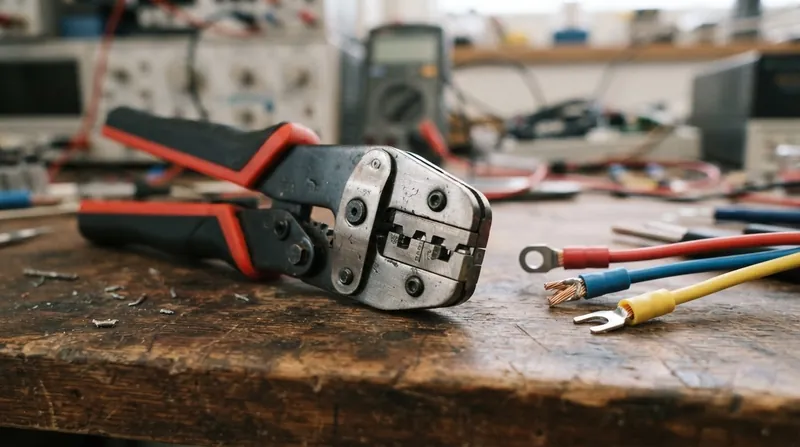

Achieving this consistency requires a ratcheted tool. Unlike cheap plier-style crimpers that rely on the user's grip strength, a ratcheted tool physically cannot open until the die has fully compressed to its factory-calibrated depth, removing human error from the equation.[4]

If an operator squeezes a ratcheted tool only halfway, the internal gear locks the handles shut. This mechanism guarantees that every single connection receives the exact same tonnage of pressure, ensuring a repeatable gas-tight seal regardless of who is holding the tool.[2][4]

When solder remains the right choice

Solder is not obsolete; it is simply the wrong tool for stranded wire in motion. It remains the absolute standard for joining components to rigid printed circuit boards, where capillary wicking is not a factor because the components do not flex.[4]

In a static environment, such as the internal wiring of a desktop computer or a home audio amplifier, a soldered joint will last for decades without degrading. Without vibration to exploit the stress riser, the rigid boundary poses no mechanical threat.[4]

The distinction comes down to the operating environment and the physical demands placed on the copper. When a wire is expected to move, the connection method must accommodate that movement rather than fighting against it with a rigid alloy barrier.[1][3]

For anything that flies, drives, or vibrates, mechanical compression is the only reliable choice. Investing in a $40 ratcheted crimper provides more security and longevity than the most expensive silver solder on the market, keeping critical systems powered when they matter most.[4]
