Modal Dispersion Caps 50-Micron Multimode Fiber at 500 Meters While Single-Mode Spans Kilometers

Network architects laying fiber today face a hard physical boundary: pushing 10 gigabits per second through a standard 50-micron multimode cable fails after 400 to 500 meters. To cross a campus or link distant data centers, they must switch to 9-micron single-mode fiber.[1][3]

That switch trades cheap optical transceivers for expensive precision lasers. The decision between the two fiber types dictates the entire cost structure of a network upgrade. Getting the crossover point right saves thousands of dollars per rack; getting it wrong requires ripping out cables.[2][4]

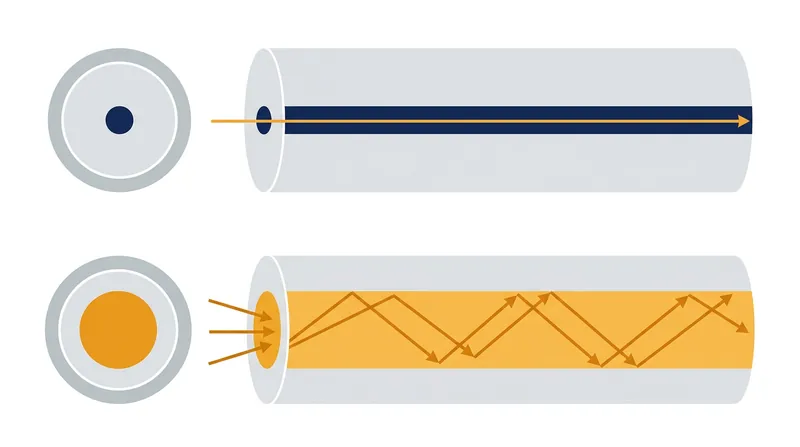

The physical difference between the two cables is invisible to the naked eye. Both feature a glass core wrapped in a 125-micron glass cladding, and both terminate in identical connector bodies. The distinction lies entirely in the microscopic light-carrying center.[1][3]

Single-mode fiber features a core measuring just 9 microns across, roughly one-tenth the width of a human hair. That channel is so narrow that light can only travel straight down the axis in a single path, or mode.[3][5]

Multimode fiber, by contrast, uses a 50-micron core for modern OM3, OM4, and OM5 grades. This channel is more than five times wider, allowing light to enter at multiple angles and bounce down the glass along dozens of different paths simultaneously.[1][3]

The physics of modal dispersion

That wider core sounds like an advantage, but it introduces the primary physical limitation of short-range networks. When a pulse of light enters a multimode fiber, the rays bouncing steeply off the cladding physically travel a longer distance than the rays moving straight down the center.[3][5]

Because the rays travel different distances, they arrive at the receiver at slightly different times. The sharp pulse of light that entered the cable smears out as it propagates down the line. Engineers call this phenomenon modal dispersion.[1][3]

As the cable gets longer, the smearing gets worse. Eventually, adjacent pulses of light overlap so much that the receiving equipment can no longer distinguish a one from a zero. Once that happens, the data link drops completely.[3][5]

Single-mode fiber completely eliminates modal dispersion because it only permits one light path. With nothing to smear, the signal remains sharp over vast distances. Single-mode links are limited only by the gradual dimming of the light, known as attenuation, allowing them to span tens of kilometers.[4][5]

To combat dispersion, manufacturers produce graded-index multimode fiber. This design alters the glass chemistry to slow down the light traveling straight down the center, allowing the bouncing rays to catch up. While this helps, it only delays the inevitable smearing.[2][3]

Speed accelerates the distance wall

The distance a multimode cable can reach depends entirely on how fast the network is transmitting data. Faster data rates mean shorter pulses of light packed closer together, which means they smear into each other much sooner.[3][4]

At a basic 1 Gigabit per second speed, standard OM2 multimode fiber can push a signal 550 meters. But when network administrators upgrade that same switch to 10 Gbps, the maximum reliable distance on that OM2 cable collapses to just 82 meters.[1][4]

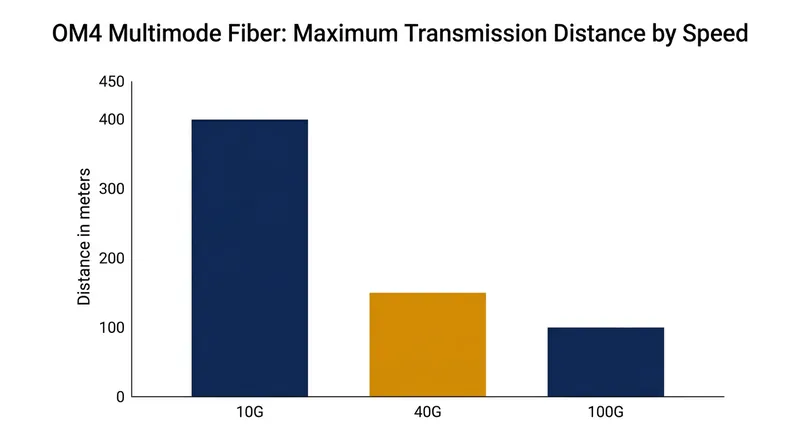

Modern data centers rely on laser-optimized OM4 multimode fiber to push those boundaries further. According to IEEE 802.3 standards, OM4 guarantees 10 Gbps transmission up to 400 meters. In practical deployments, engineers often stretch this to 500 meters with high-quality transceivers.[3][4]

However, the push toward 40 Gbps and 100 Gbps networks hits the modal dispersion wall even harder. At 100 Gbps, an OM4 multimode cable maxes out at just 100 meters. To go any further, the network must transition to single-mode fiber.[1][5]

Single-mode fiber ignores these speed penalties. Because it suffers no modal dispersion, a standard OS2 single-mode cable can carry a 10 Gbps, 40 Gbps, or 100 Gbps signal exactly the same distance. They typically span 10 kilometers with standard optics, or up to 80 kilometers with specialized gear.[3][4]

The transceiver cost paradox

The conventional wisdom in IT procurement states that multimode fiber is the cheaper option. This is entirely false at the cable level. Raw single-mode OS2 glass actually costs 60 to 70 percent less to manufacture than multimode glass.[2][3]

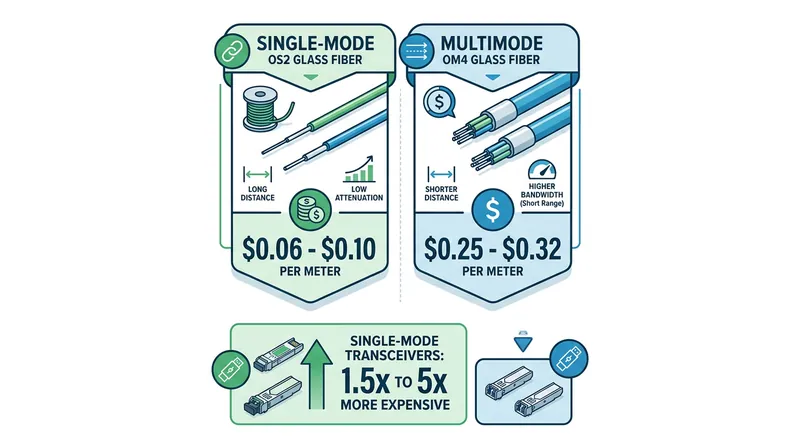

In 2026 market pricing, single-mode OS2 fiber costs roughly $0.06 to $0.10 per meter. Multimode OM4 fiber commands a premium, costing $0.25 to $0.32 per meter. The complex graded-index manufacturing required for multimode cores drives up the price of the physical cable.[2]

The financial advantage of a multimode network rests entirely at the ends of the cable. The optical transceivers that plug into the switches dictate the total cost of the link, and multimode transceivers are drastically cheaper to produce.[2][4]

A multimode transceiver uses an inexpensive Vertical-Cavity Surface-Emitting Laser to fire light into the forgiving 50-micron core. Because the target is large, the manufacturing tolerances are loose, keeping component costs low and assembly lines fast.[3][4]

A single-mode transceiver must precisely align a narrow-linewidth laser to hit a microscopic 9-micron target. This requires expensive Distributed Feedback lasers and rigorous manufacturing alignment. Consequently, single-mode transceivers cost 1.5 to 5 times more than their multimode counterparts.[3][4]

Calculating the crossover point

When building a network, administrators must calculate the total link cost: the price of the two transceivers plus the length of the glass. For short runs inside a single server room, the cheap optics make multimode the clear winner.[2][4]

A 50-meter link at 100 Gbps using multimode OM4 costs approximately $115 total for the optics and the cable. The exact same 50-meter link built with single-mode OS2 components costs over $217, driven entirely by the expensive laser transceivers.[2]

But as the cable gets longer, the expensive multimode glass eats away at the transceiver savings. Industry analysts note that the economic crossover point typically occurs around 200 to 250 meters for high-speed deployments, where the math flips entirely.[2][3]

Beyond 250 meters, the cheaper single-mode glass offsets the expensive optics. And once a link exceeds 400 to 500 meters, the physics of modal dispersion make the financial debate irrelevant. At that distance, single-mode becomes the only technology that actually works.[2][4]

Power consumption also factors into massive data center designs. Multimode transceivers draw less electrical power than single-mode lasers. In a facility with ten thousand links, that difference translates to measurable savings in cooling and electricity costs over the network's lifespan.[4]

Future-proofing the physical layer

Despite the short-term savings, many enterprise campuses are standardizing on single-mode fiber for all new installations. As bandwidth demands push toward 400 Gbps and 800 Gbps, multimode distance limits shrink to mere dozens of meters.[2][4]

Installing single-mode OS2 fiber today guarantees that the physical glass in the walls will support the next three generations of network speeds. The initial premium paid for the transceivers buys immunity from modal dispersion for decades.[1][2]

Mixing the two technologies is a common and costly mistake during these upgrades. Because both cables share a 125-micron outer diameter and use identical connectors, a technician can easily plug a single-mode patch cable into a multimode port.[3]

Launching a signal from a 9-micron core into a 50-micron core wastes optical power, but going the other direction is catastrophic. Light arriving across a wide 50-micron spot cannot funnel into a 9-micron pipe, resulting in massive signal loss and an immediate link failure.[3]

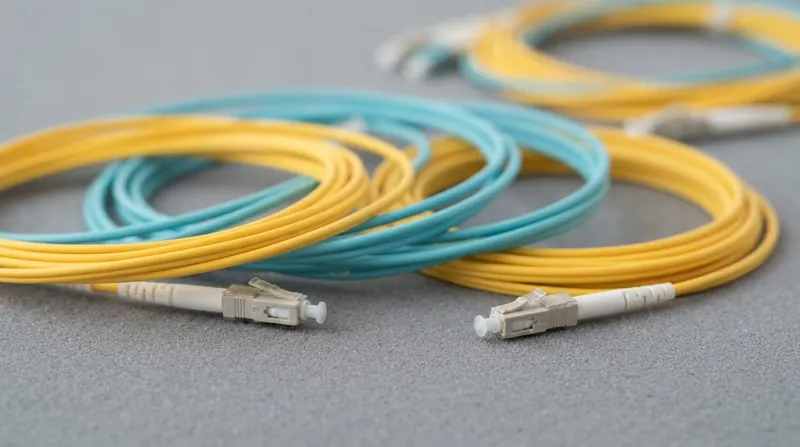

To prevent these mix-ups, the Telecommunications Industry Association standardized jacket colors. Single-mode OS2 cables are universally yellow. Multimode cables use orange for legacy OM1 and OM2, aqua for OM3 and OM4, and lime green for the newest OM5 wideband fiber.[1][3]

Ultimately, the choice between 9-micron and 50-micron cores is a choice between immediate capital expenditure and long-term physical capability. Multimode fiber easily wins the economics of the server rack, but single-mode fiber remains the undisputed king of the wider campus.[2][3]
