Quantum Tunneling at 5 Nanometers: The Physical Boundary Ending Moore's Law

When a silicon transistor's gate length drops below 5 nanometers, the barrier holding back the electrical current becomes so thin that an electron no longer needs to travel over it; it simply appears on the other side. This exact moment—when classical physics gives way to quantum mechanics—is where the future of computing is actually determined. If the gate cannot stop the electron, the transistor cannot hold a zero state, and the processor cannot compute.[4]

The semiconductor industry spent the last twenty years fighting heat. As engineers packed more transistors onto a single piece of silicon, thermal dissipation became the primary bottleneck for clock speeds. But heat is an engineering problem that can be managed with better materials and cooling systems. Quantum tunneling is a law of physics, and it represents a hard, non-negotiable boundary.

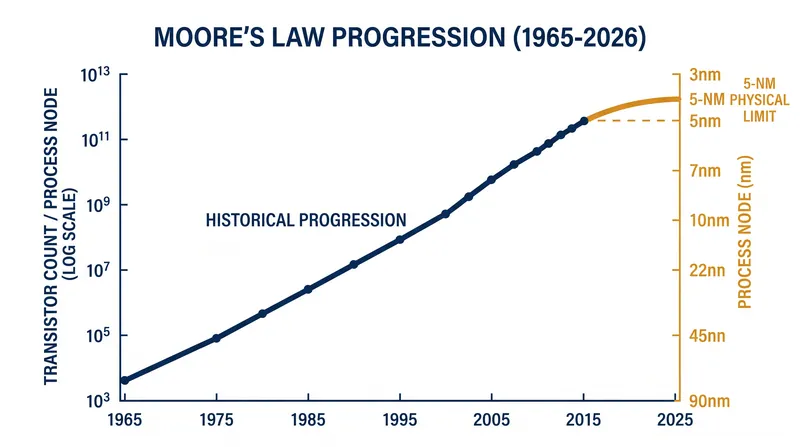

In 1965, Intel co-founder Gordon Moore observed that the number of transistors on a microchip doubled roughly every two years, a trajectory that became known as Moore's Law. That observation drove a half-century of economic and technological expansion. By 2024, commercial fabrication plants were producing chips with components measured in single-digit nanometers, pushing silicon to its absolute atomic limits.[3]

To understand the boundary, one must look at the architecture of a Complementary Metal-Oxide-Semiconductor (CMOS) transistor. It consists of a source, a drain, and a gate. The gate acts as a drawbridge. When voltage is applied, the bridge lowers, allowing electrons to flow from the source to the drain, registering a '1'. When voltage is removed, the bridge raises, stopping the flow to register a '0'.[2]

The physical width of that gate determines the size of the transistor. A silicon atom is roughly 0.2 nanometers wide. At a 5-nanometer gate length, the barrier separating the source from the drain is only about 25 atoms thick. This is roughly 10,000 times thinner than a human hair, operating at a scale where classical mechanics no longer apply.[2]

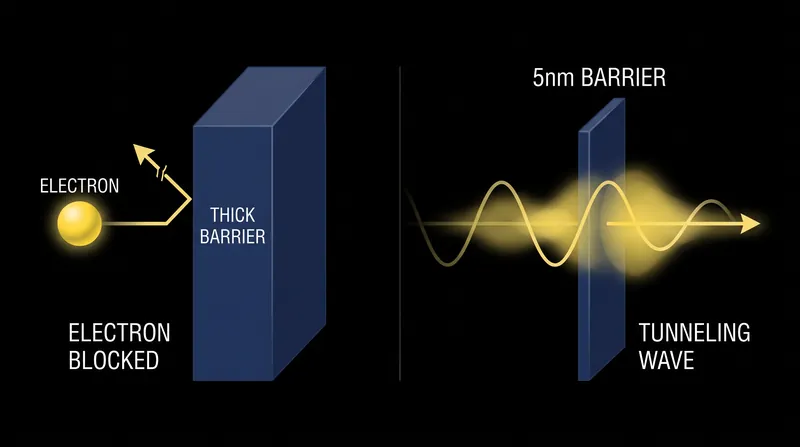

At this atomic scale, the Heisenberg uncertainty principle dictates that an electron's exact position cannot be perfectly pinned down. Instead of a solid particle bouncing off a wall, the electron acts as a probability wave. When the wall is only 25 atoms thick, the probability wave extends through the barrier. The electron has a statistical chance of simply existing on the other side, bypassing the gate entirely.[3]

This phenomenon produces what engineers call "leakage current." Even when the transistor is turned off, electrons bleed through the gate. According to a 2024 review in MDPI on "CMOS Scaling for the 5 nm Node and Beyond," this quantum leakage fundamentally degrades the signal-to-noise ratio of the processor. If too many electrons tunnel through, the chip cannot distinguish a zero from a one.[2]

The theoretical groundwork for this wall was laid decades ago. In a 1999 paper published in the IBM Journal of Research and Development, researchers modeled the "power-constrained CMOS scaling limits," warning that passive leakage would eventually consume more power than the active switching of the transistors themselves. That theoretical threshold is now a daily operational reality in modern fabrication facilities.[1]

The strongest counter-argument to the death of Moore's Law comes from architectural innovation. If transistors cannot be made smaller without leaking, they can be reshaped. Engineers have moved from flat planar transistors to 3D FinFETs, and now to Gate-All-Around (GAA) architectures, which wrap the gate entirely around the silicon channel to maximize physical control over the electrons.

MonolithIC 3D Inc. argues that the "fundamental limit to miniaturizing CMOS transistors" does not necessarily mean the end of computing density. By stacking layers of transistors vertically—building skyscrapers instead of sprawling suburbs—fabricators can continue to increase the number of operations per second without shrinking the individual gates past the 5-nanometer quantum threshold.

Yet vertical stacking introduces its own severe thermal constraints, bringing the industry back to the heat problem it spent the 2010s trying to escape. PCIM News notes that as the industry moves "Post Moore's Law," the focus must shift from shrinking the switch to changing the material. Silicon, the foundational element of the digital age, is reaching the end of its atomic utility.

Researchers at Imperial College London suggest that acknowledging this physical boundary is actually a catalyst for innovation. Asking "The end of Moore's Law?" is not a question of if computing will stall, but how it will pivot. The inability to shrink silicon further is driving billions of dollars in capital toward alternative paradigms, including neuromorphic chips that mimic the human brain and optical computing that uses photons instead of electrons.[3]

For the consumer, the era of relying on raw clock speed increases is over. Software developers can no longer write inefficient code and wait for the next generation of hardware to make it run faster. The burden of performance has shifted from the hardware fabricator to the software engineer, requiring highly parallelized code that distributes tasks across multiple, slightly larger cores rather than a single, infinitely shrinking one.[4]

The 5-nanometer threshold stands as a rare absolute in an industry built on breaking boundaries. It is not a failure of human engineering or a lack of manufacturing precision. It is the point where the foundational laws of quantum mechanics assert their jurisdiction over the digital world, forcing the next era of computing to build around physics rather than attempting to shrink through it.[4]
