Ion Exchange and Grains Per Gallon: How Water Softeners Actually Remove Hardness

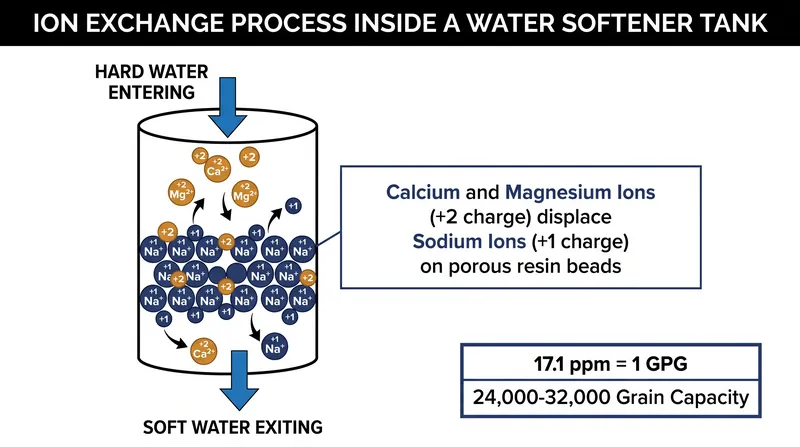

Water softeners remove hardness through a chemical process called ion exchange, where resin beads inside the tank strip calcium and magnesium from the water and replace them with sodium. That swap prevents the mineral buildup that destroys plumbing and appliances, answering the fundamental question of how these systems actually protect a home. For a homeowner watching their water heater lose efficiency or scrubbing scale off shower doors, understanding this mechanism is the difference between buying a permanent solution and wasting money on ineffective conditioners. The process relies on a simple magnetic attraction. Inside the primary tank, millions of microscopic, porous polystyrene beads carry a fixed negative electrical charge. Because opposites attract, these beads are initially loaded with positively charged sodium ions. When hard water flows into the tank, the calcium and magnesium ions—which carry a stronger positive charge than sodium—force the sodium off the beads and take its place. The water that flows out of the tank and into the house's plumbing is now soft, carrying harmless sodium instead of the minerals that form scale.[1][4]

The measurement that dictates this entire exchange is the grain per gallon, or GPG, a metric that translates abstract water chemistry into a specific equipment requirement for a property. While municipal water reports often list hardness in parts per million (ppm) or milligrams per liter (mg/L), the water treatment industry relies on grains per gallon to size equipment. One grain per gallon is equivalent to approximately 17.1 parts per million of dissolved calcium carbonate. For a buyer looking at a water quality report, converting parts per million to grains per gallon is the mandatory first step in sizing a system. If a municipal water report shows a hardness of 120 parts per million, dividing that figure by 17.1 reveals a hardness of roughly 7 GPG. That number dictates exactly how much work the ion exchange resin will have to do every time a faucet is opened.[1][2]

Sizing the system correctly requires matching that GPG figure against the household's actual water consumption. "The dissolved calcium (Ca2+) and magnesium (Mg2+) ions that cause hard water can be removed fairly easily by using an ion exchange procedure where the relatively large calcium and magnesium ions displace smaller sodium (Na+) ions," notes the 2017 guidance from NDSU Agriculture. But that removal capacity is finite. A standard residential water softener is typically rated to hold a specific number of grains—often between 24,000 and 32,000—before the resin beads become completely saturated with calcium and magnesium and can no longer soften the water. If a home requires the removal of 3,000 grains of hardness every single day, a 30,000-grain system will exhaust its capacity in exactly ten days.[1]

Once the resin beads are full, the system must clean itself through a process called regeneration, which is where the secondary brine tank comes into play. The first stage of this regeneration is the backwash. According to chiwatec's engineering specifications, the system reverses the flow of water, pushing it upward through the resin tank at a rate of 10 to 12 gallons per minute per square foot. This upward surge lasts for 10 to 15 minutes and physically expands the resin bed by 40 to 50 percent. The expansion reclassifies the beads for uniform flow and flushes out accumulated sediment, iron particles, and resin fines that would otherwise cause pressure drops and channeling.[4]

Following the backwash, the system floods the expanded resin bed with a highly concentrated saltwater solution from the brine tank. The sheer volume of sodium in this brine overwhelms the calcium and magnesium, breaking their bond with the resin beads and flushing them down the drain. The beads are left coated in fresh sodium, ready to begin the ion exchange cycle again. Setting the system to regenerate too frequently wastes salt and water, while waiting too long allows hard water to slip through into the plumbing. Modern metered valves track actual gallon usage rather than relying on a fixed calendar, ensuring the system only regenerates when the resin is genuinely nearing capacity.[1][4]

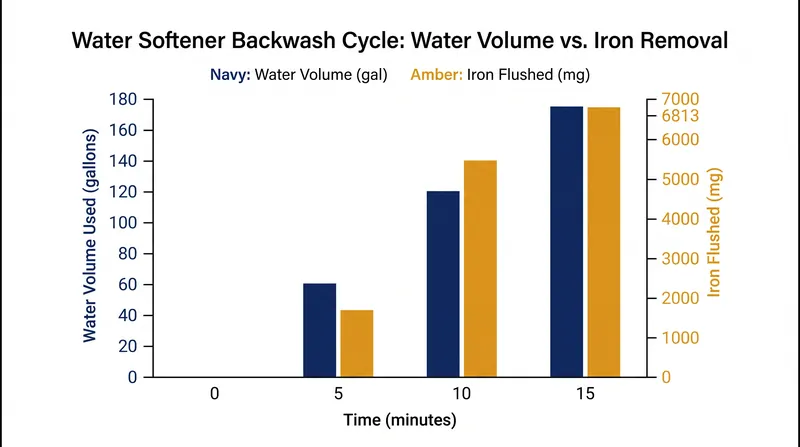

The presence of other contaminants, particularly dissolved iron, complicates the ion exchange math for rural homeowners relying on well water. Iron binds to the softening resin just like calcium and magnesium, but it is much harder to wash off during the regeneration cycle. The Nebraska Extension notes that while softeners are primarily designed for calcium and magnesium, they "may also remove as much as 5-10 ppm (parts per million; ppm is equal to milligrams per liter, or mg/L) of iron and manganese." However, pushing the system to its 10 ppm limit requires aggressive backwashing. A system operating at a peak backwash flow of 12 GPM per square foot for 15 minutes uses roughly 681 liters of water, flushing approximately 6,813 milligrams of accumulated iron and manganese per square foot of resin bed.[2][4][5]

The stakes for getting this sizing right are entirely financial, measured in the lifespan of the home's most expensive appliances. Calcium and magnesium precipitate out of water when heated, forming a rock-like scale inside water heaters, dishwashers, and washing machines. In a hot water heater, this scale coats the heating elements or the bottom of the tank, forcing the unit to heat the rock before it can heat the water. This dramatically increases energy consumption and causes premature equipment failure. The Nebraska Extension emphasizes that while hard water is primarily a nuisance rather than a health risk, the mineral ions "react with heat, metallic plumbing, and chemical agents such as detergents to decrease the effectiveness of nearly any cleaning task." By utilizing ion exchange to intercept these minerals at the point of entry, a properly sized softener acts as an insurance policy for the home's infrastructure.[2]

For the homeowner, navigating the technical specifications of ion exchange requires a clear understanding of what the equipment actually does. A water softener is not a filter; it does not remove sediment, chlorine, or heavy metals like lead. It is a highly specific chemical reactor designed to perform one exact task: swapping scale-forming minerals for soluble sodium. When properly matched to a home's specific grains-per-gallon hardness and daily water demand, it operates quietly in the background, extending the life of plumbing and reducing soap consumption. But treating it as a plug-and-play appliance without doing the underlying math guarantees poor performance. The decision to install a system must begin with a comprehensive water test, establishing the exact mineral baseline that will dictate the equipment's size, its regeneration schedule, and its ultimate value to the property.[1][3]
