CFM RISE Open Fan Engine Architecture Clears Strict ICAO Noise Standards

Aviation orthodoxy, established during the UnDucted Fan (UDF) flight tests of the late 1980s, holds that open-rotor engines are inherently too loud for commercial airports. The scimitar-shaped blades of the GE36 demonstrator produced a distinct, aggressive acoustic signature that regulators and airlines concluded would never be accepted by communities living under flight paths. But acoustic wind tunnel data from the CFM RISE program and NASA Glenn Research Center directly contradicts that historical consensus.

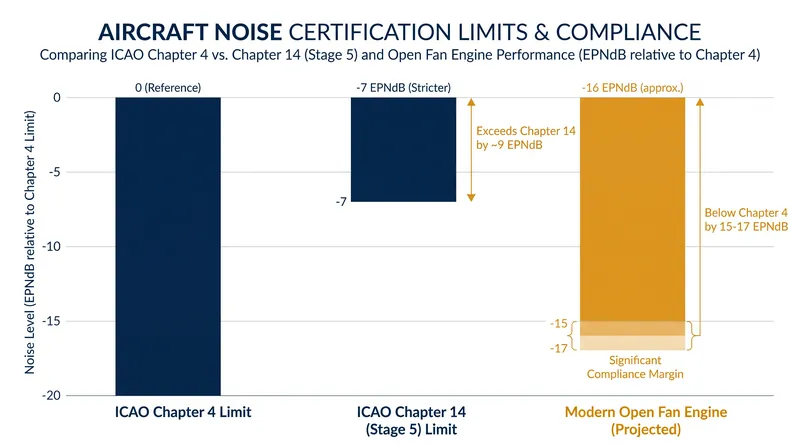

Modern computational fluid dynamics and acoustic shielding have allowed engineers to design an open fan architecture that not only matches the noise footprint of current ducted turbofans but operates with a 15 to 17 Effective Perceived Noise decibel (EPNdB) margin below stringent International Civil Aviation Organization (ICAO) Chapter 4 limits, comfortably clearing the Chapter 14 standard required for new aircraft.[2][4][5]

The physical mechanism driving the return to the open rotor is propulsive efficiency, which is governed by the bypass ratio—the volume of air moved by the fan compared to the air passing through the combustion core. In a conventional turbofan, the fan is enclosed in a nacelle. As engineers seek greater efficiency, they must increase the fan diameter to move more air.

However, a larger fan requires a larger, heavier nacelle, which creates aerodynamic drag. At a certain diameter, the drag penalty of the casing cancels out the efficiency gains of the larger fan. "Our most sustainable solutions—the ones that provide the greatest benefit—require an open-fan architecture, as a matter of physics," GE Aerospace engineers concluded during the architecture's development.[1]

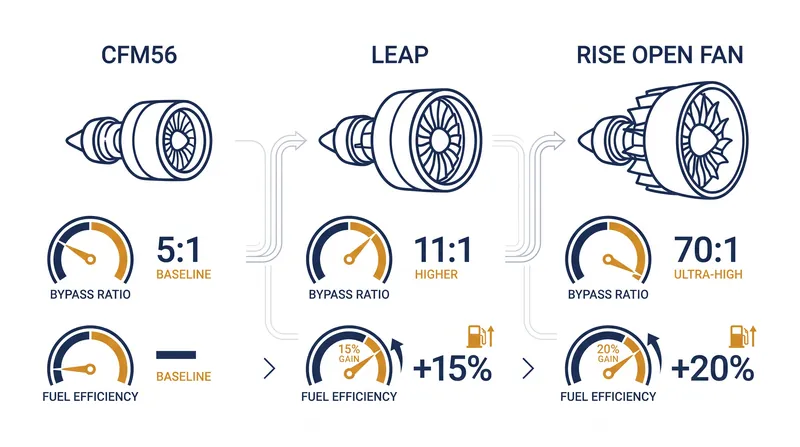

The historical progression of CFM International engines illustrates this physical limit. "If you reflect on it, our current newest engine at CFM, the CFM LEAP, is 15% better in fuel burn than its iconic predecessor, the CFM56 engine," notes Mohamed Ali, senior vice president and chief technology and operations officer at GE Aerospace. The CFM56, which entered service in 1982, operated with a bypass ratio of roughly 5:1. The LEAP engine increased that ratio to 11:1 to achieve that 15 percent reduction.

But pushing the bypass ratio significantly higher within a ducted architecture yields diminishing returns. Factlen's analysis of this progression reveals that while doubling the bypass ratio in ducted designs yielded a 15 percent efficiency gain, increasing it nearly sevenfold in the unducted RISE architecture yields only a further 20 percent gain, demonstrating that the aerodynamic drag of the nacelle itself becomes the primary limiting factor.

By removing the casing entirely, the RISE (Revolutionary Innovation for Sustainable Engines) architecture allows for a rotor diameter of up to 13 feet, achieving an unprecedented bypass ratio exceeding 70:1.[1][3][6]

That massive increase in bypass air translates directly to a projected 20 percent reduction in fuel consumption and carbon dioxide emissions compared to the LEAP engine. The challenge, however, was achieving that 70:1 ratio without recreating the deafening roar of the 1980s UDF. The primary noise source in an open rotor is the interaction between the front rotor tip vortex and the aft rotor blades, particularly during the high-lift conditions of takeoff.[1][3][4]

Beyond acoustics and fuel burn, the open architecture introduces new operational dynamics for airlines. Because the fan blades are exposed, they are subjected directly to environmental hazards. To address this, the RISE program incorporates an adaptive cycle engine capability, also known as variable bypass architecture.

This technology optimizes engine performance at every stage of flight, allowing more thrust during takeoff and more bypass air during cruise. Crucially, it also alters the internal airflow to eject dust and particulates before they enter the engine core, a critical durability feature for operators in hot and harsh environments.[1]

To solve the acoustic problem, GE Aerospace and Safran Aircraft Engines—the partners behind CFM—utilized exascale supercomputing, including the Frontier and Aurora systems at the U.S. Department of Energy, to model the exact aerodynamics of the open fan. By applying 3D computational fluid dynamics, engineers optimized the blade pitch and modified the tip vortex generation at takeoff. The blades themselves are manufactured from a specialized 3D-woven carbon fiber injected with resin, allowing for complex aerodynamic geometries that were impossible to fabricate during the GE36 era.[1]

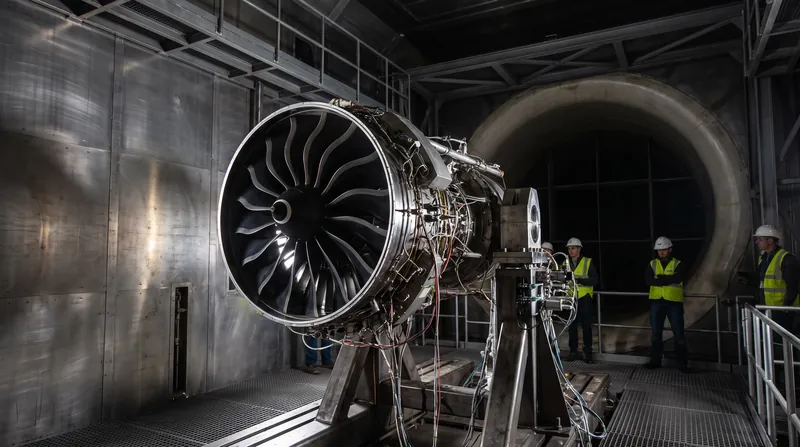

The empirical validation of these designs occurred in the 9-by-15-foot low-speed and 8-by-6-foot high-speed wind tunnels at NASA's Glenn Research Center. Testing of subscale models demonstrated that the modern open rotor could maintain high aerodynamic efficiency while mitigating the tip vortex interaction. Furthermore, the integration of the engine with the aircraft airframe—specifically utilizing the wing and tail surfaces as acoustic shields—further reduces the noise radiated to the ground.[2][4]

The regulatory benchmark for these acoustic achievements is ICAO Chapter 14, adopted by the Federal Aviation Administration as the Stage 5 noise standard. Applicable to new large aircraft designs with a maximum certificated takeoff weight of 55,000 kilograms or more submitted after December 31, 2017, Chapter 14 represents a 7 EPNdB increase in stringency over the previous Chapter 4 standard. For an open fan engine to be commercially viable, it must not only meet this standard but provide a margin against future, stricter regulations.[5]

The acoustic data confirms that the RISE architecture achieves this. By operating at lower rotational speeds than the 1980s prototypes and utilizing variable pitch blades that adjust dynamically during flight, the open fan minimizes core and shear noise.

The result is a propulsion system that delivers the double-digit fuel efficiency gains of an ultra-high bypass ratio without the acoustic penalties that grounded the technology four decades ago. The aviation industry's path to its 2050 net-zero emissions target now relies heavily on this exact mechanism: shedding the nacelle to let the fan breathe.[3][4]
