How the 8-Bit Exponent in BF16 Stabilizes Large Language Model Training

Large language models crash during training when their internal calculations produce a number too large for their memory format to store, a failure known as numerical overflow. The Bfloat16 (BF16) format prevents this by reallocating bits within a 16-bit number—stealing three bits from the fraction and giving them to the exponent—which expands the format's maximum representable value from 65,504 to an astronomical 3.4 × 10^38.[1][2]

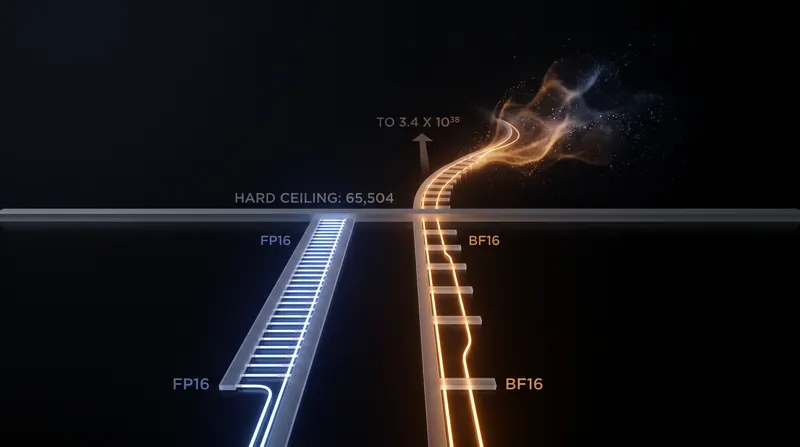

Before BF16, the artificial intelligence industry relied heavily on standard 16-bit floating-point math, known as FP16, to halve the memory requirements of 32-bit computing. FP16 assigns five bits to the exponent and ten to the fraction. This provides excellent decimal precision for small numbers, but creates a hard ceiling at 65,504. When a neural network's gradients spike above that threshold during a training run, the hardware cannot process the value.[3][6]

The system responds to this overflow by returning a "Not a Number" (NaN) error, which is not a minor glitch but a fatal training collapse. "The primary motivation for bfloat16 is to provide the same dynamic range as FP32," the Google Cloud team explains in their TPU documentation, noting that this range is essential for preventing these crashes. Recovering from an overflow requires rolling back to a previous checkpoint, wasting hours or days of compute time on clusters that cost thousands of dollars per hour to operate.[1]

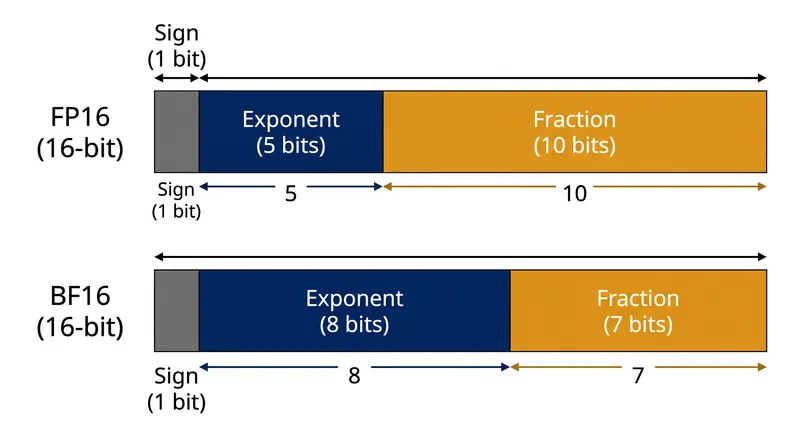

Google developed the "Brain Floating Point Format" specifically to eliminate this bottleneck in their Tensor Processing Units (TPUs). Instead of the five-bit exponent used in FP16, BF16 uses an eight-bit exponent, perfectly matching the exponent size of a full 32-bit float (FP32). The remaining seven bits are left for the fraction, or mantissa.[1][2]

This structural shift represents a deliberate mathematical trade-off. BF16 can only represent about three decimal digits of precision, compared to FP16's four. However, deep learning algorithms are remarkably resilient to small rounding errors in the fraction. What they cannot survive is a hard cap on the magnitude of the numbers they generate during gradient descent.[3][4]

Because BF16 shares the exact same eight-bit exponent as FP32, converting between the two formats requires almost zero hardware overhead. Processors simply truncate the bottom 16 bits of the FP32 fraction to create a BF16 value. This elegant conversion process allows hardware architects to build simpler, faster silicon multipliers without sacrificing the dynamic range of 32-bit math.[1][2]

The format's success on Google's TPUs in 2019 triggered rapid industry-wide adoption. Nvidia integrated native BF16 support into its Ampere architecture in 2020, and it has since become the default training format for nearly all large language models. Today, training a 70-billion parameter model in full 32-bit precision would require 280 gigabytes of memory just to load the weights, but BF16 drops that requirement to 140 gigabytes.[3][5][6]

Beyond memory capacity, this reduction fundamentally changes how fast data moves through a server. Storage infrastructure engineers rely on BF16 to accelerate data transfer speeds across server interconnects and reduce the size of model checkpoints saved to disk. Moving half as much data means GPUs spend less time waiting for memory and more time performing actual calculations.[5]

The success of BF16 has emboldened researchers to push precision even lower, experimenting with 8-bit floating-point formats (FP8) to halve the memory footprint again. However, moving to FP8 reintroduces the exact stability issues BF16 solved. In a 2024 analysis, ZenML researchers noted that "quantifying reduced precision effects on LLM training stability" reveals aggressive downcasting often requires complex scaling workarounds to prevent the return of NaN errors.[4]

For the foreseeable future, BF16 remains the undisputed standard for training frontier models. It perfectly balances the memory bandwidth constraints of modern hardware with the dynamic range requirements of neural network optimization. As long as artificial intelligence models continue to generate unpredictable numerical spikes during training, the eight-bit exponent will remain the structural foundation keeping those calculations from crashing.[6][7]
