How the 6-Axis IMU and Cornering ABS Rewrote the Rules of Motorcycle Safety

Every rider is taught the golden rule of cornering from day one: do your braking before the turn. Grabbing the front brake mid-corner is widely considered a guaranteed way to wash out the front tire, lose steering, and crash. For decades, this was an absolute truth of motorcycle physics, dictating how every rider approached a winding road.

But over the last decade, a quiet revolution in microelectronics has rewritten that rule entirely. The introduction of the Inertial Measurement Unit (IMU) and Cornering Anti-lock Braking Systems (Cornering ABS) means that modern motorcycles can now do the impossible: brake hard while leaned over, without losing grip or violently standing up mid-turn.[1][4]

To understand why mid-corner braking is historically so dangerous, you have to look at the physics of a leaning motorcycle. When a bike is upright, the tire's contact patch—the small area of rubber touching the road—is relatively large, and the suspension is perfectly aligned to absorb the forward weight transfer of heavy braking.[7]

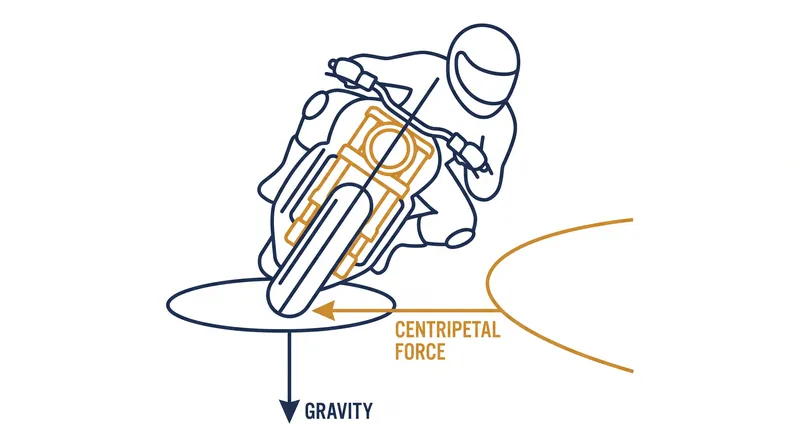

When the bike leans into a corner, the dynamics change completely. The centripetal force required to pull the bike through the turn uses up a significant portion of the tire's available grip. If a rider suddenly applies the brakes, the tire is asked to handle both cornering forces and braking forces simultaneously. If the combined demand exceeds the tire's absolute friction limit, it slips.[6][7]

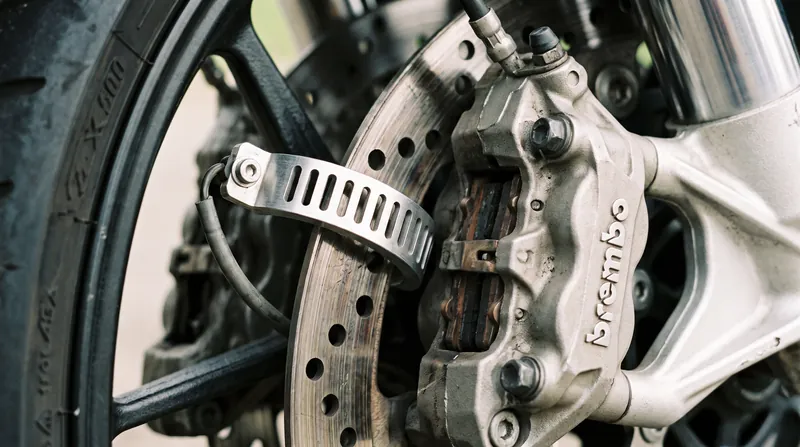

Standard ABS, which has been available on premium motorcycles since the late 1980s, cannot solve this specific problem. Traditional ABS relies solely on wheel-speed sensors to detect if a tire is locking up, assuming the bike is traveling in a straight line. If standard ABS activates while the bike is leaned over, the sudden pulsing of hydraulic brake pressure can upset the chassis, causing the bike to stand up and run wide off the road.[7]

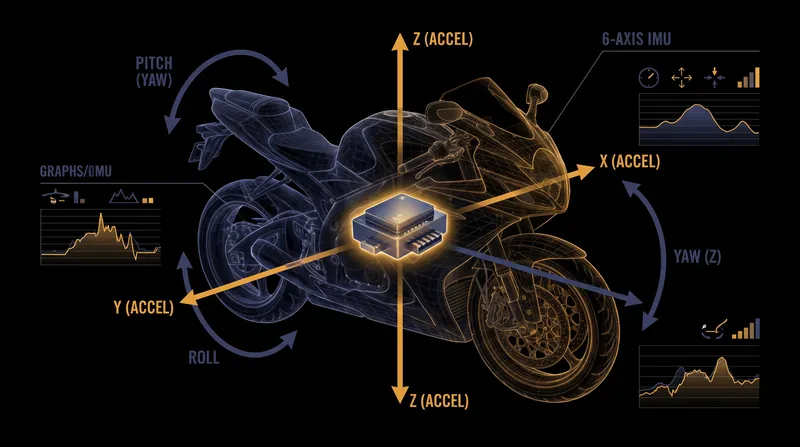

Enter the 6-axis IMU. Originally developed for ballistic missiles, aircraft, and spacecraft, modern IMUs have been miniaturized to roughly the size of a fingernail. These solid-state sensors contain three gyroscopes to measure angular rotation (pitch, roll, and yaw) and three accelerometers to measure linear acceleration (forward/back, up/down, left/right).[6]

The IMU acts as the motorcycle's inner ear. It samples the bike's dynamic state up to 100 times per second. By continuously calculating the roll angle (lean) and pitch (dive or squat), the IMU provides the bike's Engine Control Unit (ECU) with a real-time, high-fidelity 3D picture of exactly what the motorcycle is doing in space.[2]

When a rider grabs the brake mid-corner on an IMU-equipped bike, a system like Bosch's Motorcycle Stability Control (MSC) takes over. The ECU instantly cross-references the rider's brake pressure with the bike's current lean angle. It calculates exactly how much grip is available and modulates the hydraulic pressure at the brake caliper to ensure the tire never exceeds that limit.[2][4]

The result is seamless, controlled deceleration. Instead of the front wheel washing out, or the bike violently standing up and crossing the center line, the motorcycle simply slows down while maintaining its intended arc through the corner. The system can even intervene if the rider applies too much throttle on the exit, reducing engine torque to prevent a rear-wheel slide.

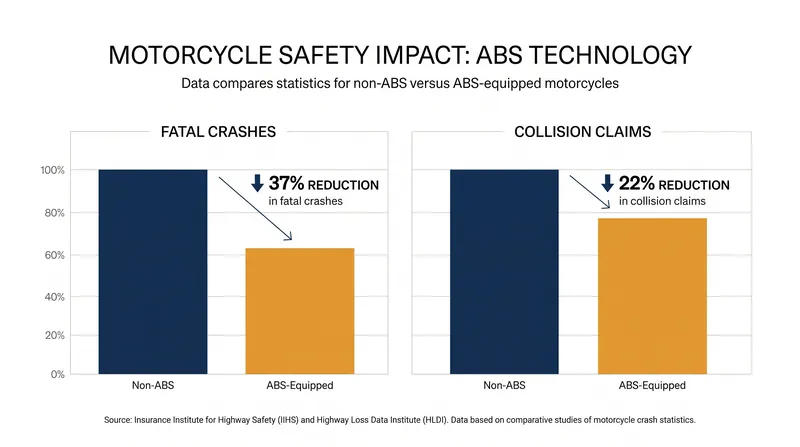

The safety implications of this technology are profound. According to the Insurance Institute for Highway Safety (IIHS), standard motorcycle ABS is already associated with a 37 percent reduction in fatal crash rates compared to non-ABS models. Furthermore, collision insurance claims are 22 percent lower for ABS-equipped bikes.[3]

However, standard ABS primarily protects riders in straight-line panic stops. Data from SAE International indicates that 24 percent of motorcycle crashes occur in curves. By integrating the IMU, modern stability control systems specifically target this remaining quarter of accidents, offering a safety net where riders are traditionally most vulnerable.[4][5]

Despite the technological leap, experts warn against overconfidence. An IMU cannot manufacture grip where none exists. If a rider hits a patch of oil, wet leaves, or enters a corner at a speed that fundamentally exceeds the physical limits of the tire's rubber, the bike will still crash. The electronics optimize the available traction; they do not rewrite the laws of physics.[1][2]

For the everyday rider walking into a dealership today, this technology changes the buying calculus. Cornering ABS is no longer restricted to $25,000 superbikes; as the hardware has become cheaper to produce, IMU-backed stability control is rapidly trickling down to mid-capacity, entry-level motorcycles. When choosing your next bike, checking the spec sheet for a 6-axis IMU or 'Cornering ABS' is arguably the single most important decision you can make for your own survival, transforming a mid-corner panic reaction from a guaranteed crash into a manageable stop.
