How Solid Rocket Motor Grain Geometry Dictates the Thrust-Time Curve

When a solid rocket booster ignites, its entire flight profile—from the initial kick off the pad to the steady burn through the upper atmosphere—has already been physically carved into the shape of its fuel. Unlike liquid-propellant engines, which rely on turbopumps and complex valving to throttle thrust up or down, a solid rocket motor contains no moving parts. The throttle is the fuel itself. The geometric shape of the hollow core running down the center of the propellant grain dictates exactly how much surface area is exposed to the flame at any given millisecond.[1][5]

This reliance on physical shape transforms propellant casting from a basic manufacturing step into a rigorous exercise in internal ballistics. The solid grain mass, typically composed of Ammonium Perchlorate Composite Propellant (APCP), burns in a highly predictable fashion. As the surface of the propellant deflagrates, the shape of the hollow core evolves. Because the thrust generated by the motor is directly proportional to the instantaneous burning surface area, controlling that area means controlling the rocket's acceleration.[5]

The fundamental constraint of solid rocketry is permanence. As noted in encyclopedic summaries of the technology, "Once ignited, a simple solid rocket motor cannot be shut off, as it contains all the ingredients necessary for combustion within the chamber in which they are burned." The oxidizer and fuel are already mixed and cured into a rubbery matrix. Therefore, the only way to program a specific thrust-time curve—such as a high-thrust boost phase followed by a lower-thrust sustain phase—is to engineer the initial geometry so that it burns away in a precisely calculated sequence.[5][6]

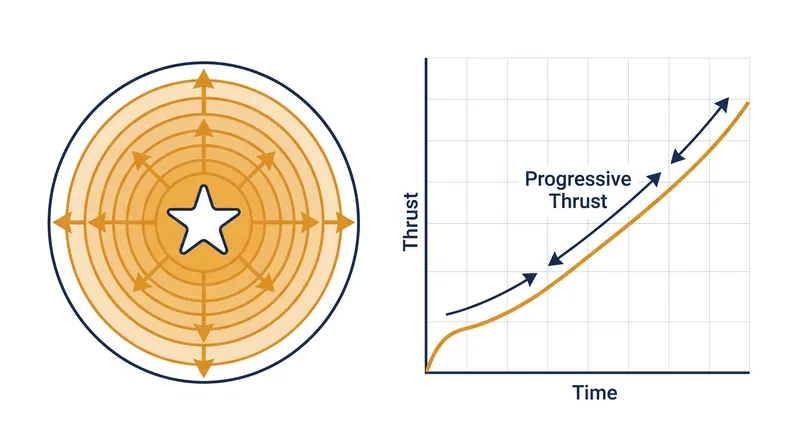

The simplest grain geometry is a cylindrical tube, known as a circular port. When ignited, the flame front burns outward radially from the center channel toward the motor casing. As the core diameter expands, the exposed surface area increases. This produces a "progressive" thrust curve: the motor generates more thrust and higher chamber pressure as the flight continues. While useful for certain applications, a purely progressive burn is often undesirable for orbital launch vehicles, which need maximum thrust at liftoff to overcome gravity and atmospheric density.

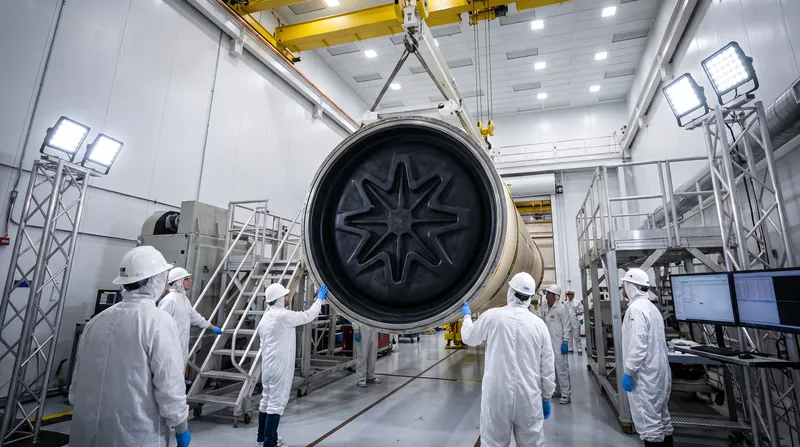

To achieve a "neutral" burn—where thrust remains relatively constant over time—engineers often turn to the star grain configuration. By casting the central core in the shape of a multi-pointed star, the initial burning surface area is significantly increased. As the points of the star burn outward, they eventually round off and the overall surface area begins to decrease, perfectly offsetting the increasing circumference of the outer cylinder. This geometric balancing act maintains a steady chamber pressure and a flat thrust-time curve.[2]

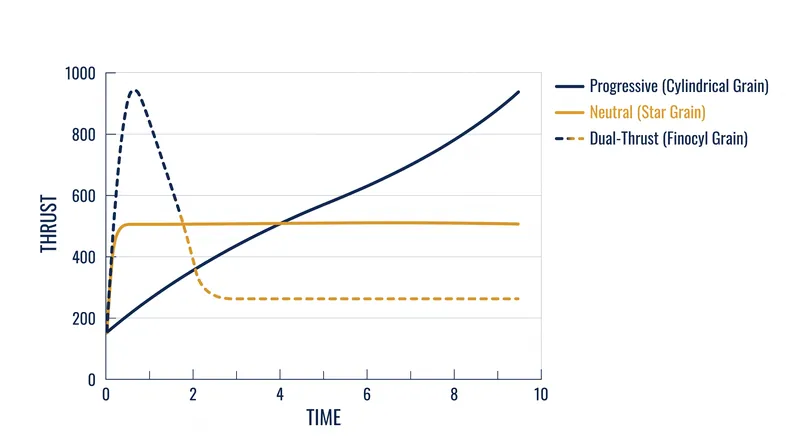

For missions requiring a dual-thrust profile, such as tactical missiles that need a rapid initial acceleration followed by a long cruise, designers utilize more complex 3D geometries like the "finocyl" (fin-in-cylinder). A finocyl grain features longitudinal slots or fins cast into the aft end of the propellant. This maximizes the burning surface area at ignition, delivering a massive spike in thrust. As the fins quickly burn away, the geometry transitions to a simple cylinder, dropping the thrust to a lower, sustained level for the remainder of the flight.[4][6]

Modern optimization of these complex shapes relies heavily on computational fluid dynamics and evolutionary algorithms. Researchers at MDPI published findings in 2022 and 2023 demonstrating that multi-objective optimization methods can tailor finocyl and modular slot grains to match target thrust curves with remarkable precision. By adjusting variables like fin height, slot count, and cylinder radius, these algorithms achieved a performance matching degree (r²) of 0.98 to 0.99 against the desired pressure profiles.[2][4]

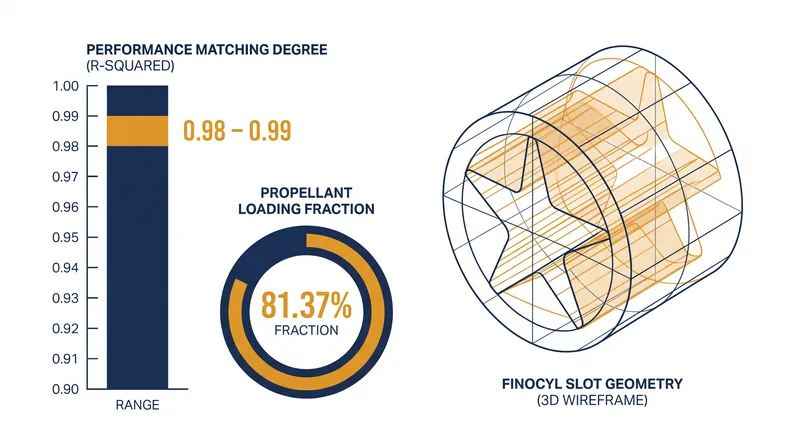

However, carving deep slots and sharp stars into the propellant introduces structural and volumetric trade-offs. The "price" for complex geometry is a reduction in the total amount of propellant that can fit inside the motor casing. In optimized dual-thrust grain designs, the propellant loading fraction—the percentage of the motor volume actually filled with fuel—often hovers around 81.37%. The remaining 18.63% is empty void space required to shape the initial burn.[2][6]

The internal ballistics of these motors are further complicated by the flow of exhaust gases down the length of the core. As the propellant burns, the hot gas must travel toward the nozzle. If the central port is too narrow, the high-velocity gas flow can scour the propellant surface, artificially increasing the burn rate in a phenomenon known as erosive burning. To mitigate this, engineers typically design the grain with a carefully calculated port-to-throat area ratio, ensuring the gas velocity remains low enough to prevent unpredictable pressure spikes.[1][6]

The chemical composition of the propellant also plays a critical role in how the geometry performs. In APCP, the ammonium perchlorate oxidizer is ground into crystalline particles ranging from 10 to 500 micrometers (μm) in diameter. The size of these particles, along with the addition of burn-rate catalysts, determines the baseline regression rate of the propellant—how fast the flame front advances into the solid mass at a given pressure.[5][6]

The interplay between the baseline chemical burn rate and the evolving geometric surface area dictates the equilibrium chamber pressure. At any given moment, the mass of gas generated by the burning surface must equal the mass of gas escaping through the nozzle throat. If the burning area increases, the chamber pressure rises until a new equilibrium is reached. This self-regulating feedback loop is what makes solid rocket motors inherently stable, provided the grain geometry does not create a sudden, unintended spike in surface area.[3]

Structural integrity is paramount. If the propellant grain cracks during ignition or flight, the crack instantly creates new, unplanned burning surface area. This can lead to a catastrophic overpressurization and motor failure. Consequently, the geometric design must not only produce the correct thrust curve but also minimize stress concentrations at the sharp corners of star points or finocyl slots.[1][4]

The scale of these geometric designs ranges from small amateur motors to massive orbital boosters. In 1998, the four-stage Athena II launch vehicle successfully sent the Lunar Prospector probe to the Moon using Castor 120 solid motors for its first and second stages. These massive grains were precisely cast to manage the intense thermal and mechanical loads of orbital ascent, relying on the same fundamental principles of surface area regression that govern smaller tactical systems.[5][6]

Today, the development of modular solid rocket grains allows for even greater flexibility. By stacking individual propellant segments with different internal geometries—such as combining a star grain segment with a cylindrical segment—engineers can construct a multi-thrust motor without needing to cast a single, highly complex monolithic grain. This modular approach reduces manufacturing costs and allows a single motor casing to be adapted for various mission profiles simply by swapping the internal segments.[2][6]

The engineering of solid rocket motor grains represents a unique intersection of chemistry, fluid dynamics, and pure geometry. By treating the physical shape of the fuel as a programmable variable, designers can coax highly specific, dynamic behaviors out of a system that has no moving parts. The thrust-time curve is not actively piloted during flight; it is mathematically predetermined and cast into rubber long before the countdown begins, leaving the rocket's trajectory bound entirely by the initial architecture of its core.[1][6]
