How Lossless LZW Compression and 256-Color Palettes Made GIF the Web Animation Standard

When browser developers at Netscape decided to support looping images in September 1995, they had to choose a format that could deliver animation over dial-up connections. What they were actually able to do was leverage the existing Graphics Interchange Format, a standard that had already solved the bandwidth problem for static images.[1]

They added a simple application extension to the GIF89a specification, instructing the browser to repeat the image sequence endlessly. The modern animated loop was born, but the underlying technology was already eight years old, having been introduced by CompuServe in 1987.[1][4]

While modern platforms often market their looping video clips as "GIFs", most of what users send today are actually silent MP4 or WebM video files wearing an old disguise. The actual capability shipped by CompuServe was much simpler: a rigid color palette and a text-compression algorithm applied to pixels.[1][3]

The format was never designed for video or high-resolution photography. It was engineered to move static graphics across slow, pay-by-the-minute network connections, prioritizing file size over visual fidelity to ensure users could download images without timing out their modems.[1][3]

Stripping true color for speed

The first step in creating a GIF is destroying most of the original image data. A raw, true-color image requires three bytes per pixel to represent millions of possible shades, which creates files too large for early modems to handle efficiently.[2]

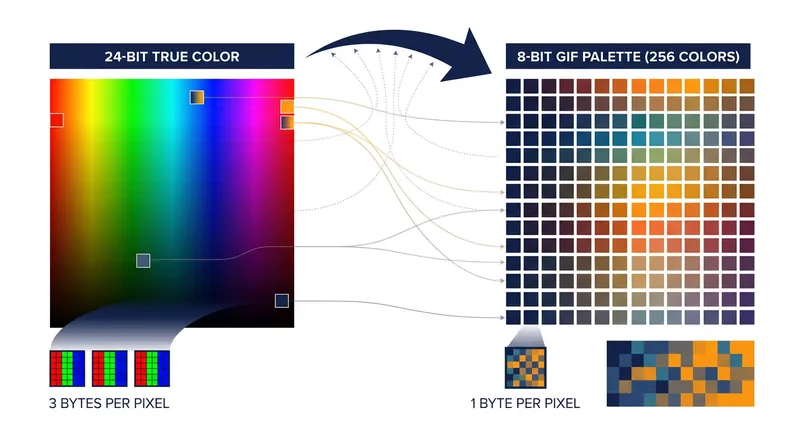

To solve this, the encoder quantizes the image, selecting a maximum of 256 colors that best represent the original picture. "Every pixel in a GIF frame is stored as a number pointing into a palette of at most 256 colors," explaining why complex gradients often look banded.

This palettization process immediately reduces the image size by a factor of three, as each pixel now requires only a single byte to reference its color index. The trade-off is the visible color banding often seen in GIF gradients, where the missing shades are abruptly rounded off to the nearest available match.[2]

Encoders sometimes attempt to hide this data loss using dithering, a technique that mixes available colors in a fine dot pattern to simulate missing shades. While dithering tricks the human eye into seeing smooth gradients, it introduces random noise that actively fights the format's next optimization step.

Finding patterns in the pixels

Once the image is reduced to a stream of palette indices, the format applies Lempel-Ziv-Welch compression. Originally designed for text, LZW is a lossless algorithm that builds a dictionary of repeating sequences on the fly as it scans the data.

As the encoder reads the pixels from left to right, it looks for patterns it has already seen. Instead of writing out a long run of identical blue pixels, it assigns that sequence a short dictionary code and uses the code whenever the pattern repeats.

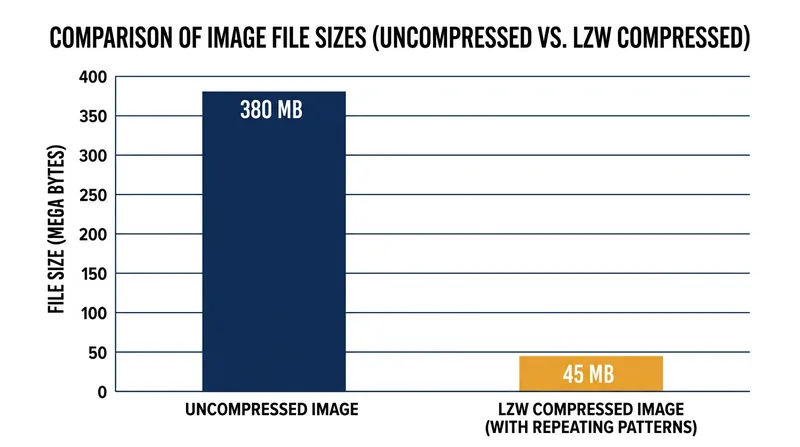

This approach works exceptionally well for simple graphics, logos, and flat illustrations with large areas of solid color. Because the dictionary is built dynamically during compression, the decoder can reconstruct the exact pixel sequences without needing a separate dictionary file attached to the image.

However, LZW compression struggles with photographic images or heavily dithered graphics. When pixels change constantly without repeating patterns, the dictionary fills up with useless short sequences, and the resulting file size barely shrinks at all, exposing the limitations of applying text compression to visual data.[2]

Reading the signature and headers

Every GIF file begins with a strict six-byte ASCII signature that identifies its version. A decoder reads the characters "GIF87a" or "GIF89a" verbatim, immediately knowing whether to expect the advanced extension blocks that enable animation and transparency.

Following the signature is the Logical Screen Descriptor, a fixed-length header that defines the total width and height of the virtual canvas. This descriptor also indicates whether a Global Color Table follows, which dictates the default 256-color palette for the entire file.[4]

The image data itself is broken into chunks, each preceded by an Image Descriptor that specifies where the frame should be positioned on the canvas. This modular architecture allows a small animated sprite to move across a larger static background without redrawing the entire scene.

Because the format treats the index data as a long, linear sequence of bytes, LZW compression is applied directly to the stream. The algorithm reads the bytes without understanding the two-dimensional nature of the image, which is why horizontal patterns compress better than vertical ones.[2]

Stacking frames in a single file

The original 1987 specification, known as GIF87a, was strictly for static images. Two years later, CompuServe released the GIF89a update, which introduced the ability to store multiple image blocks within a single file, laying the groundwork for web animation.[1][4]

This update included a Graphic Control Extension that allowed developers to specify a time delay between frames and designate one color index as transparent. By stacking these frames, a browser could display them in sequence to create a crude flipbook effect.[4]

Netscape Navigator 2.0 capitalized on this structure by introducing the "NETSCAPE2.0" application extension block. This undocumented addition told the browser how many times to loop the sequence, with a value of zero instructing it to repeat forever, establishing the standard behavior users expect today.[4]

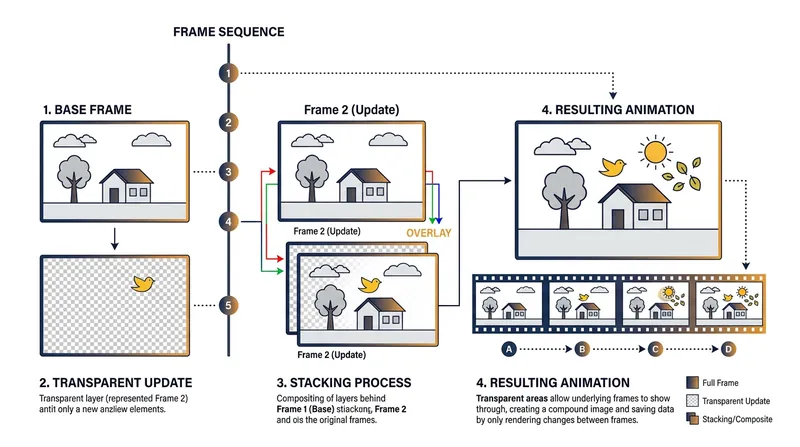

Because the format allows each frame to update only a portion of the canvas, encoders can optimize animations by leaving static background pixels alone. A new frame only needs to contain the pixels that actually changed, drastically reducing the data required for simple movements.

The algorithm that sparked a boycott

The widespread adoption of the format hit a major roadblock in 1994 when Unisys announced it held a patent on the LZW compression algorithm. The company began demanding licensing fees from software developers who created GIF encoders, sparking outrage across the early web.[1][3]

In response to the licensing demands, the open-source community mobilized to create a patent-free alternative. This effort produced the Portable Network Graphics format, which used a different, unpatented compression method called DEFLATE to achieve similar or better file size reductions.[1]

While PNG offered superior compression and true-color support, it lacked the ability to animate frames. This critical missing feature ensured that GIF remained the undisputed standard for web animation, even as developers protested its proprietary underpinnings by organizing "Burn All GIFs" campaigns.[1][3]

The Unisys patents finally expired worldwide between 2003 and 2004, returning the LZW algorithm to the public domain. By that time, the format was so deeply entrenched in web culture that replacing it was practically impossible, cementing its legacy as the default animation wrapper.[1]

Why social platforms fake the format

Today, the animations shared on social media platforms and messaging apps are rarely actual GIF files. The format's reliance on 256-color palettes and lossless LZW compression makes it horribly inefficient for the high-resolution, full-color video clips users expect on modern devices.[3]

When a user uploads a GIF to a modern platform, the server immediately converts it into a lossy HTML5 video format like MP4 or WebM. These modern codecs use inter-frame compression to track moving objects, achieving file sizes a fraction of the original GIF.[3]

The platforms then strip the audio track, set the video player to loop automatically, and hide the playback controls. They market the result as a "GIF" because the term has evolved from a specific file extension into a generic noun for a short, looping visual reaction.[1][3]

Despite its technical obsolescence, the original format survives in specific niches where its unique properties are still valuable. Web developers use it for simple loading spinners, pixel-art animations, and situations where video codecs are not supported by the target platform.[1][3]

The survival of the format is a testament to the power of early standardization. By solving the immediate problem of dial-up bandwidth in 1987, CompuServe accidentally created a cultural artifact that outlived its own technical relevance by decades.[1][3]

The next time a browser renders a looping animation, it is likely relying on video standards established long after the 1990s. But the expectation that a silent image should move endlessly on a screen traces directly back to a 256-color hack and a Netscape extension.[1][4]
