How Latent Heat of Fusion Limits Sub-Zero Frost Penetration in Moist Soil

Standard winterization guidelines and amateur landscaping advice often warn that waterlogged soil will freeze rapidly and deeply, threatening shallow pipes and foundations. The assumption rests on a simple observation: surface water turns to ice quickly when exposed to sub-zero air.

But thermodynamic measurements of the ground itself contradict this assumption entirely. In reality, soil moisture acts as a massive thermal shield. The physical process of water turning to ice releases so much energy that it actively fights the cold, stalling the downward march of the freezing front.

This phenomenon is governed by the latent heat of fusion. It is the specific mechanism that explains why dry, sandy soils allow frost to plummet deep into the earth, while damp, loamy soils hold the freezing boundary near the surface for weeks or even months.

The Physics of Phase Change

To understand the thermal buffer, one must look at the energy required to change the state of water. The latent heat of fusion for water is 333 kilojoules per kilogram. That is the exact amount of thermal energy that must be removed to turn liquid water at 0°C into solid ice.

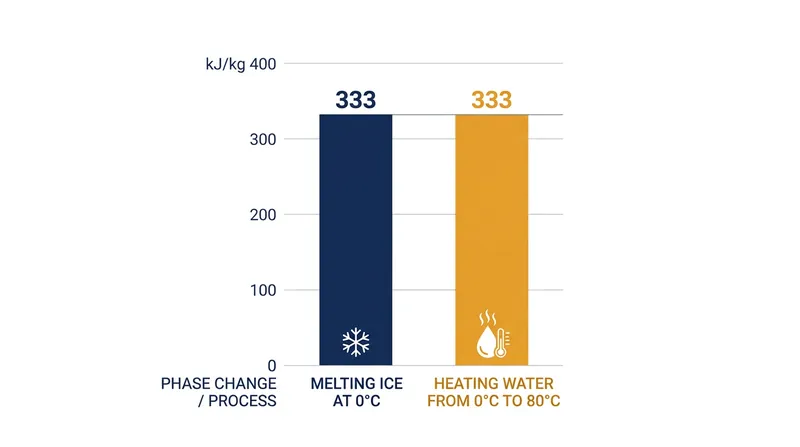

To put that magnitude into perspective, 333 kilojoules is the same amount of energy required to heat a kilogram of liquid water from freezing all the way to 80°C. When soil moisture freezes, it does not simply become cold; it exhausts that massive reserve of heat directly into the surrounding soil matrix.

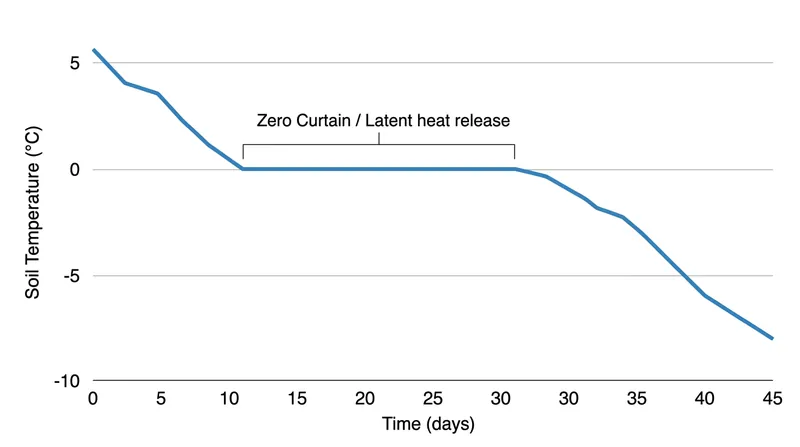

As the sub-zero air pulls heat from the ground, the freezing water replaces it. This creates a prolonged thermal stalemate known in geocryology as the zero curtain effect. The soil temperature drops to exactly 0°C and then flatlines, refusing to drop further until every drop of pore water has crystallized.

"This latent heat release causes ground temperatures initially to remain close to 0°C during the freezing process," researchers note in the Annals of Glaciology. In regions with high soil moisture or permafrost, this zero curtain can persist for as long as 115 days before the temperature finally breaks downward.[3]

Calculating the Frost Boundary

Engineers rely on mathematical models to predict how deep frost will penetrate during a given winter. The foundational tool for this is the Stefan equation, originally developed to calculate the thickness of ice on calm bodies of water before being adapted for soil mechanics.[5]

The Stefan formula calculates the depth of frost penetration by taking the square root of a fraction. In the numerator sits the thermal conductivity of the frozen soil multiplied by the freezing index, which is the cumulative accumulation of sub-zero degree-days over the winter season.

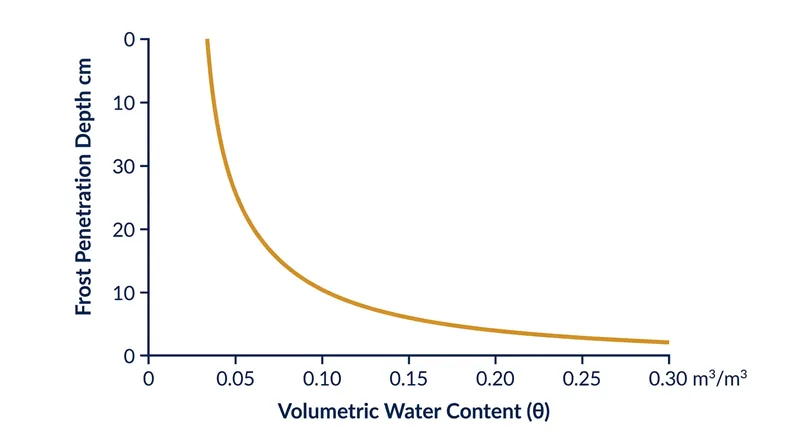

But the denominator of the Stefan equation is entirely occupied by the volumetric latent heat of fusion. Because this value sits at the bottom of the fraction, any increase in soil moisture exponentially reduces the final frost depth. The math dictates that wet ground simply cannot freeze deeply.

While commercial geotechnical software often markets its ability to deliver precision frost depth prediction using proprietary algorithms, the underlying physics engine in almost all of them is still wrestling with this basic latent heat ratio. If the moisture input is wrong, the software's output is fiction.[4]

Cryogenic Suction and Upward Flow

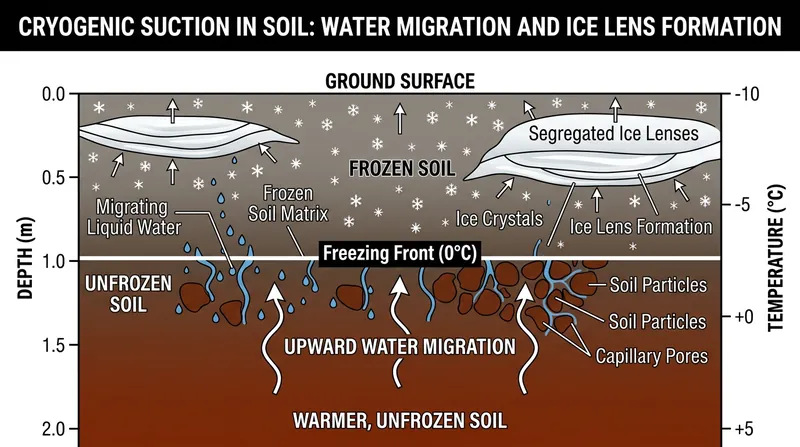

The freezing process is not static. As the frost front descends, it does not merely freeze the water it encounters in place. Instead, the phase change creates a pressure gradient that actively pulls liquid water from the warmer, unfrozen soil below up toward the freezing boundary.

This phenomenon, known as cryogenic suction, means the freezing front is constantly resupplying itself with moisture. "A substantial amount of water, enough to raise the upper surface of frozen saturated soil within 15 cm of the soil surface... appeared to have moved upwards during freezing," notes a 2012 Copernicus study on peat mesocosms.[2]

By drawing more water upward, cryogenic suction delivers a continuous stream of new latent heat to the boundary. The freezing front essentially builds its own thermal barricade, releasing more energy and further delaying its own downward progress into the earth.

This upward migration of water is also the primary driver of frost heave. As water accumulates and freezes at the boundary, it forms segregated ice lenses that physically push the soil upward, exerting enough hydraulic pressure to crack asphalt and lift concrete foundations.

Where the Math Breaks Down

Despite its utility, the basic Stefan equation has severe limitations when applied to real-world soil profiles. It assumes that the latent heat of soil moisture is the only heat that must be removed, entirely ignoring the volumetric heat capacity of the unfrozen soil beneath the frost line.

"The Stefan equation neglects the volumetric heat of the frozen and unfrozen soil, and, hence, tends to overestimate frost penetration," write researchers B.S. Sharratt and D.K. McCool in their analysis of frost depth models. Because it ignores the ambient warmth of the deep earth, the formula often predicts a freeze deeper than reality.[5]

To correct this, engineers often turn to the modified Berggren formula, published by Harl Aldrich in 1956. This adaptation introduces a dimensionless coefficient that accounts for the heat storage in the freezing soil, pulling the predicted frost depth back up to match empirical observations.

Yet even the modified Berggren formula struggles with dynamic moisture. A 2015 analysis of Road Weather Information System stations in Michigan found that calculated frost depths for saturated soils overshot measured reality by more than 25 inches, highlighting the difficulty of modeling latent heat in the field.[6]

The Thermal Conductivity Paradox

Adding to the complexity is the fact that freezing changes the physical properties of the soil itself. The volumetric heat capacity of ice is only half that of liquid water, but the thermal conductivity of ice is roughly four times greater than that of liquid water.[3]

This creates a thermodynamic paradox. Once the water finally freezes and the zero curtain breaks, the newly formed ice matrix actually conducts heat out of the deeper soil much faster than the liquid water did. The frozen layer becomes a thermal highway, accelerating the cooling of the earth below.

However, that acceleration only happens after the latent heat debt is fully paid. In highly saturated soils, the winter often ends before the zero curtain finishes releasing its 333 kilojoules per kilogram. The spring thaw arrives while the frost front is still stalled near the surface.

Engineering the Freeze

The counter-intuitive nature of latent heat forces civil engineers to make difficult trade-offs. Draining a construction site perfectly might seem like the best way to protect buried infrastructure from frost heave, but removing the water also removes the thermal buffer.

Without moisture to release latent heat, a dry, sandy trench will allow the freezing front to plummet rapidly. A water pipe buried at a depth that was perfectly safe in damp loam might suddenly freeze solid if the surrounding soil is replaced with dry, well-draining gravel.

Advanced models are now attempting to separate the types of water within the soil matrix. Capillary water, which sits loosely in the pores, freezes relatively easily. But adsorptive water, which is tightly bound to the soil particles by electrochemical forces, depresses the freezing temperature further.[1]

"The classical Clapeyron equation assumes constant values for both latent heat and soil-water density," notes a 2025 paper in the International Journal of Geomechanics. By treating all soil water as identical, older models underestimate the pressure at the freezing front and fail to predict how much water remains unfrozen at sub-zero temperatures.[1]

As sensor technology improves, the geotechnical industry is finally moving beyond the simplified Stefan assumptions. But no amount of high-resolution data changes the fundamental thermodynamic law at play: water will not go quietly into the ice phase without dumping its heat into the earth first.

The depth of winter frost is therefore not dictated simply by how cold the air gets, but by how much energy the ground can spend fighting it. Soil moisture serves as the currency of that thermal defense, paying out massive dividends of latent heat to keep the deep earth unfrozen.
