How Micro-Mesh Membranes Maintain Aerosol Output Across Tilting Angles

Inside a respiratory testing laboratory, a technician tilts a handheld nebulizer to a 45-degree angle while a laser diffractometer measures the exiting mist. Inside the plastic reservoir, the liquid medication sloshes away from the bottom of the chamber, leaving the traditional ultrasonic transducer completely dry. Yet, a steady plume of 3-micron droplets continues to pour from the mouthpiece.

This uninterrupted flow defies the standard physics of older aerosol devices. Patients using jet or ultrasonic nebulizers historically had to sit perfectly upright, holding their devices vertically to ensure the liquid medication remained pooled over the air jet or piezoelectric crystal.[5][6]

Manufacturers often market the newest generation of these devices—vibrating mesh nebulizers—primarily on their near-silent operation and pocket-sized form factors. While the portability is convenient, the actual engineering breakthrough lies in how they handle fluid dynamics and bypass the limitations of gravity.[4]

Because these evaluations are published in peer-reviewed journals like Aerosol and Air Quality Research, the literature relies entirely on quantitative bench data rather than direct quotations from clinicians. The numbers, however, speak clearly to the mechanical shift occurring in respiratory therapy.[4]

The Physics of Capillary Extrusion

Traditional ultrasonic nebulizers generate high-frequency sound waves at the base of a liquid reservoir. These waves travel up through the medication, creating a geyser at the surface that throws off aerosol particles into the patient's airstream.[6]

If the device is tilted, the liquid shifts away from the transducer. The sound waves hit empty air, the geyser collapses, and aerosol production stops instantly, making them useless for patients who need to lie down.[5]

Vibrating mesh technology abandons the geyser approach entirely. Instead of agitating a pool of liquid from below, it places a dome-shaped plate containing 1,000 to 7,000 laser-drilled microscopic holes directly in contact with the fluid.[4]

A piezoelectric ring surrounds this mesh plate, expanding and contracting at roughly 130,000 times per second. This vibration acts as a microscopic micropump, physically extruding the liquid through the tapered holes to form precise droplets.[4]

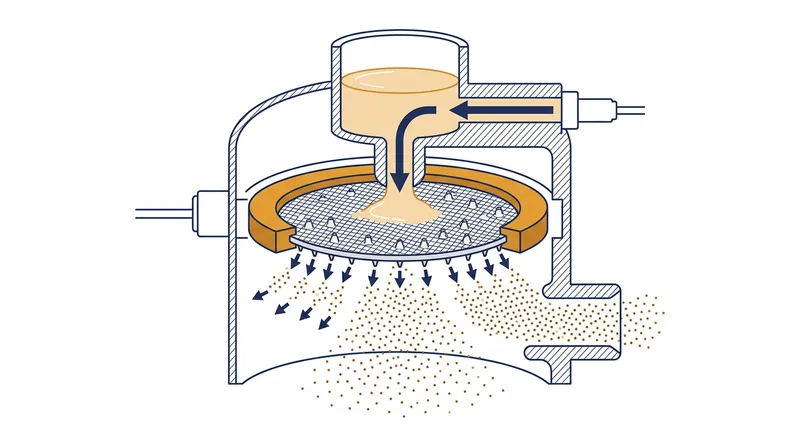

The engineering of the mesh itself relies on a specific geometric trick, as the holes are not simple cylinders. They are conical, tapering from a wider opening on the liquid reservoir side to a narrow aperture on the patient side.[4]

Defeating the Gravity Requirement

This conical shape acts as a one-way valve during the rapid vibration cycle. When the piezoelectric element pushes the plate forward, the liquid is forced through the narrow exit; when it pulls back, the shape prevents the droplet from being sucked back into the reservoir.[4]

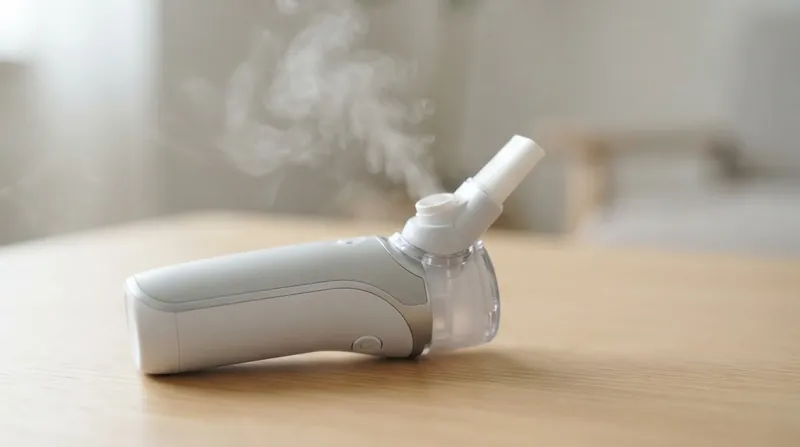

Because the mesh plate relies on direct contact with the fluid rather than a specific liquid depth, it leverages capillary action. As long as the medication touches any part of the vibrating mesh, the pumping action continues unabated.

Researchers testing miniaturized handheld vibrating mesh nebulizers found they could maintain consistent aerosol output across virtually all orientations. Whether held horizontally or completely upside down, the devices continued to function as long as fluid reached the membrane.

This geometric independence fundamentally changes how respiratory therapies are delivered in clinical settings. Infants, bedridden patients, and individuals experiencing severe acute asthma exacerbations often cannot maintain the rigid upright posture required by jet nebulizers.[5][6]

Clinical evaluations comparing the Omron NE U22 vibrating mesh device against standard jet nebulizers highlight the practical impact of this design. The mesh device delivered a significantly higher percentage of the nominal dose directly to the simulated patient airway.[2]

The Residual Volume Problem

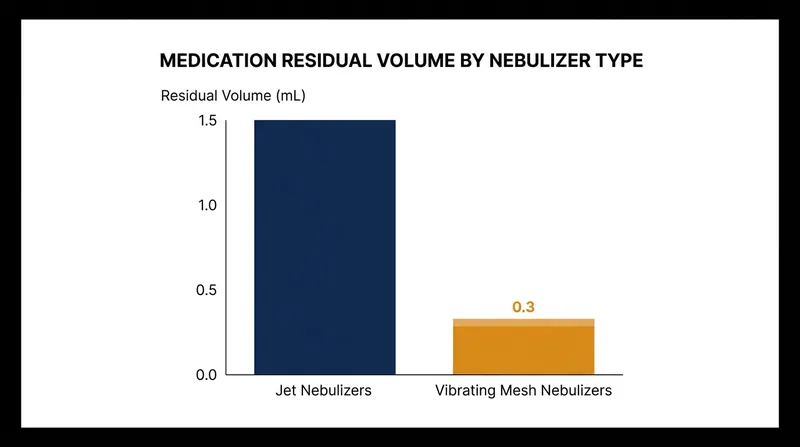

The gravity dependency of older devices creates a secondary problem known as dead volume or residual volume. According to the 2015 American Association for Respiratory Care guidelines, jet nebulizers typically leave behind 0.8 to 1.5 milliliters of medication sputtering at the bottom of the cup.[5]

Vibrating mesh nebulizers drastically reduce this waste by actively pulling liquid through their pores. They can drain the reservoir almost completely, leaving a residual volume between 0.1 and 0.5 milliliters, which maximizes the delivered dose.[4][6]

For expensive formulations like inhaled antibiotics or specialized pulmonary hypertension drugs, recovering that extra milliliter per dose translates to significant financial savings. It also ensures the patient actually receives the prescribed therapeutic payload rather than throwing it away.[6]

Furthermore, because the mesh does not require a high-velocity compressed air stream to shatter the liquid into droplets, the aerosol plume exits the device at a much lower velocity. This prevents the medication from simply impacting the back of the throat.[4]

High-velocity plumes from jet nebulizers often cause the droplets to be swallowed rather than inhaled. The gentle, low-velocity mist from a mesh nebulizer follows the inspiratory airflow more naturally down into the lower respiratory tract.[4][5]

Viscosity and the Clogging Trade-off

However, the precision of laser-drilled micro-pores introduces a distinct mechanical vulnerability. The holes in the mesh are typically 3 to 4 micrometers in diameter, designed to produce particles small enough to reach the deep alveolar regions of the lungs.[3][4]

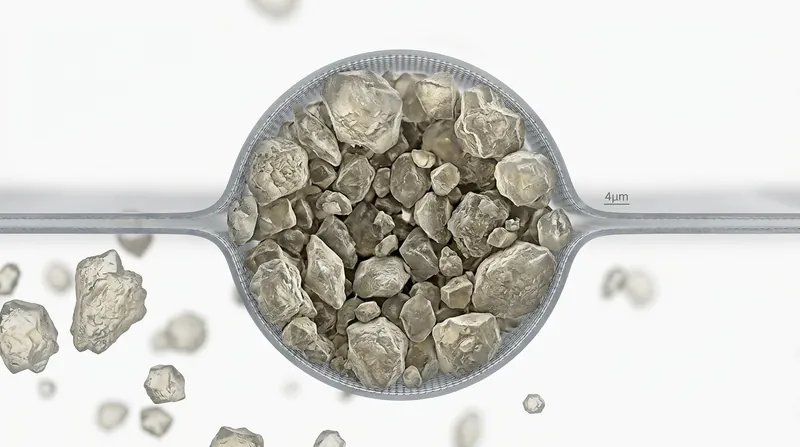

When patients nebulize suspensions—medications where solid drug particles are dispersed in liquid, rather than fully dissolved—these microscopic funnels can become blocked. The physical size of the suspended particles directly challenges the diameter of the mesh pores.[3]

Studies analyzing the physicochemical properties of budesonide micro-suspensions demonstrate that particle agglomeration can quickly foul the mesh. If the drug particles clump together to exceed the 4-micrometer threshold, the extrusion process halts, regardless of the device's angle.[3]

This vulnerability makes vibrating mesh nebulizers highly sensitive to user maintenance and cleaning routines. While a plastic jet nebulizer cup can be rinsed casually or replaced for a few dollars, the delicate metallic alloy of a mesh plate requires rigorous care.[4][5]

If proteins or viscous drug residues dry on the mesh, they harden inside the microscopic funnels. Users who attempt to clear these blockages by wiping the membrane with a cloth or cotton swab inevitably destroy the fragile dome, rendering the device useless.[4]

Adaptive Delivery and Plume Velocity

The distinction between active and passive mesh designs further complicates the maintenance landscape. Active meshes vibrate the plate itself, while passive meshes use an ultrasonic horn to push fluid through a stationary mesh.[4]

Passive systems are generally cheaper to manufacture but are more prone to the clogging issues seen with viscous suspensions. Active systems, by constantly flexing the membrane, provide a degree of self-cleaning during operation, though they still require meticulous post-treatment care.[4]

The decoupling of aerosol generation from gravity has also enabled the next phase of respiratory technology: adaptive aerosol delivery. Devices like the I-neb monitor a patient's breathing pattern and inject the aerosol precisely during the inspiratory phase.[1]

By combining orientation-independent mesh extrusion with breath-actuated timing, these systems prevent aerosol from being wasted into the room air while the patient exhales. This pushes lung deposition rates significantly higher than continuous-flow jet nebulizers.[1][6]

The next verifiable checkpoint for this technology relies on material science rather than fluid dynamics. Manufacturers must develop mesh alloys that resist protein adhesion without compromising the microscopic tolerances required to generate a 3-micron droplet.[4]
