How Histogram Binning Lets Gradient Boosting Train on Massive Datasets Without Feature Sorting

The exact moment a decision tree learns is when it chooses where to split a dataset. To find that optimal threshold, the algorithm must evaluate every possible dividing line across every feature, a process that dictates the entire computational cost of training.[8]

In early implementations, the standard approach was an exact greedy search. The algorithm would sort the data by feature values, scanning sequentially to calculate the information gain at each step to find the mathematically perfect split point.[1][7]

Sorting is mathematically expensive. An exact search requires an O(n log n) operation for every feature at every single node in the tree, meaning training time scales poorly as datasets grow into the millions of rows.[2]

The memory overhead is equally punishing. Exact greedy algorithms must store the entire dataset in memory as 32-bit or 64-bit floating-point numbers, often requiring out-of-core computation when the matrix exceeds available RAM.[6]

The Histogram Approximation

The solution that rescued gradient boosting from this bottleneck is quantile binning. Instead of evaluating every unique floating-point value, modern frameworks group continuous features into a fixed number of discrete buckets before training begins.[4][5]

This transformation converts a continuous search space into a histogram. If a dataset contains a million unique income values, the algorithm compresses them into just 255 distinct bins, evaluating only the boundaries between those buckets.[5][7]

"The cost of split finding is reduced to O(#data × #features) for building histograms and O(#bins × #features) for finding the best split," the LightGBM research team noted in their 2017 NeurIPS paper.[4]

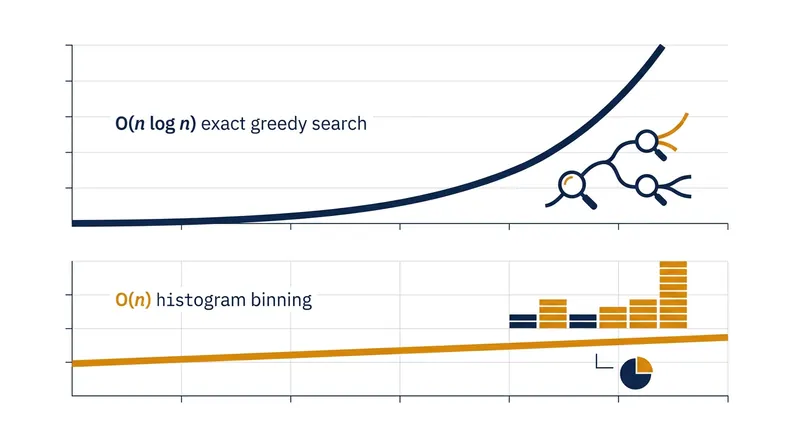

By eliminating the sorting step at each node, the time complexity drops from O(n log n) to linear O(n) time. The data only needs to be binned once at the start of training, a step that can be heavily parallelized.[3]

Memory Compression and 8-Bit Integers

Binning fundamentally changes how the dataset is stored in memory. Because the maximum number of bins is typically capped at 255 or 256, the framework can represent every feature value as an 8-bit integer rather than a 32-bit float.[5][6][7]

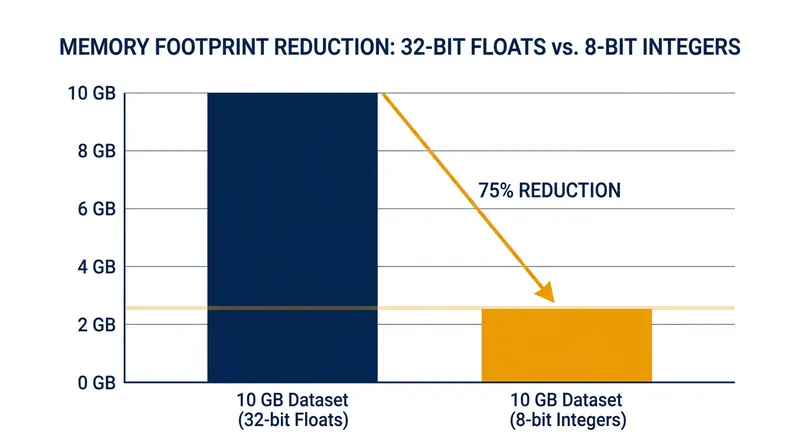

This integer compression reduces the memory footprint of the training data by at least 75 percent. A 10-gigabyte dense dataset shrinks to roughly 2.5 gigabytes, allowing much larger models to fit entirely within a GPU's VRAM or a server's main memory.[6]

The scikit-learn documentation notes that its histogram-based estimator is "orders of magnitude faster than GradientBoostingClassifier and GradientBoostingRegressor when the number of samples is larger than tens of thousands." This speed advantage becomes the deciding factor for production deployments handling web-scale traffic.[7]

Despite evaluating far fewer split points, the histogram approximation rarely degrades the model's final predictive performance. The regularization effect of binning can actually prevent the tree from overfitting to microscopic noise in the continuous training data.[2][10]

The Histogram Subtraction Trick

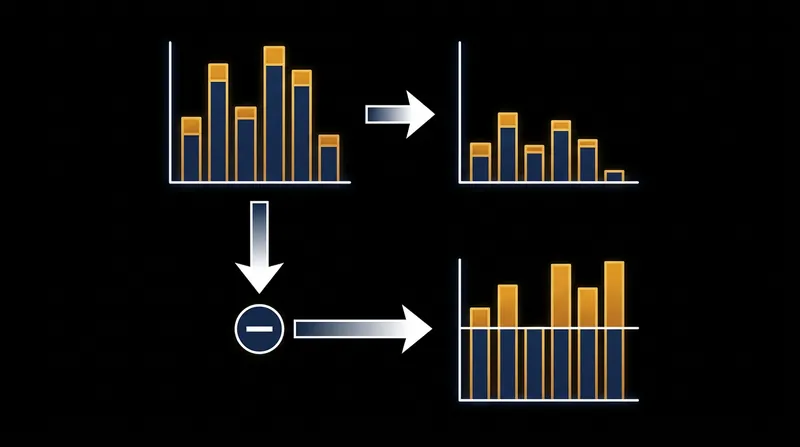

The true computational breakthrough of histogram-based boosting lies in how it traverses the tree structure. Once a parent node's histogram is built, the algorithm does not need to compute the histograms for both of its children from scratch.[3]

Instead, the framework calculates the histogram for the smaller child node, which contains fewer data points. It then subtracts that child's histogram from the parent's histogram to instantly derive the larger child's distribution.[4][5]

"Histogram subtraction halves the cost of histogram building," the Microsoft Research team explained in their foundational paper. They noted that the operation requires only a simple array subtraction that takes O(#bins) time rather than a full scan taking O(#data) time.[3][4]

This optimization means that as the tree grows deeper, the cost of evaluating splits does not scale linearly with the number of leaves. The subtraction trick ensures that the total work done at any depth level remains strictly bounded.[5]

Handling Sparsity and Missing Values

Real-world datasets are rarely dense matrices of continuous numbers. They are often riddled with missing values or dominated by zero-entries, particularly in click-through rate prediction or natural language processing tasks where features are highly dimensional.[1]

XGBoost introduced a sparsity-aware split finding algorithm that learns a default direction for missing values. When evaluating a split, the algorithm only iterates over the non-missing entries, assigning all missing values to the branch that maximizes the information gain.[2]

"This unified way of handling all sparsity patterns is highly efficient," the XGBoost authors wrote in their 2016 ACM paper. They reported that the technique ran 50 times faster than a naive exact search on sparse data matrices.[1]

LightGBM further optimized this by ignoring zero values during histogram construction. By only allocating memory and computing gradients for non-zero elements, the framework drastically reduces the computational overhead on highly sparse datasets without losing predictive accuracy.[5]

The Categorical Feature Challenge

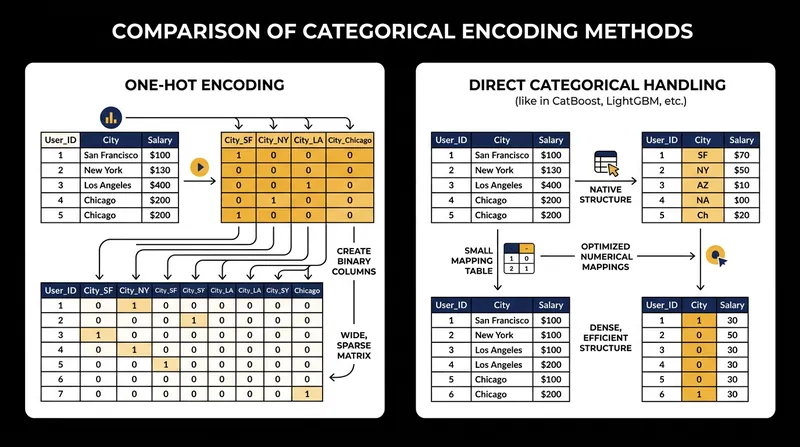

Categorical variables present a different mathematical challenge for decision trees. Traditional approaches require one-hot encoding, which transforms a single categorical column with 100 distinct levels into 100 separate binary features, artificially inflating the dimensionality of the dataset.[9]

One-hot encoding destroys the efficiency of histogram binning. It creates deeply imbalanced, sparse trees that require significantly more depth to achieve the same predictive power, slowing down both the training phase and the final inference speed.[7]

Modern frameworks bypass this by sorting categorical levels based on their correlation with the target variable. LightGBM evaluates splits on these sorted categories directly, finding the optimal partition without expanding the feature space into sparse matrices.[4][5]

CatBoost takes this further with ordered target encoding. The algorithm calculates the expected target value for each category dynamically during training, using random permutations to prevent data leakage and overfitting on categorical columns.[9]

Hardware Efficiency and Cache Misses

Beyond algorithmic complexity, exact greedy searches suffer from severe hardware inefficiencies. Sorting features requires indirect memory fetching, where the algorithm constantly jumps between non-contiguous memory addresses to retrieve gradient statistics for each individual row in the dataset.[2]

These non-continuous memory accesses cause frequent CPU cache misses. When the processor cannot find the required data in its high-speed cache, it must wait for the slower main memory, stalling the entire computation pipeline while data is retrieved.[1][6]

Histogram binning resolves this by accumulating statistics into a compact, contiguous array. Because the histogram fits entirely within the CPU's L1 or L2 cache, the processor can read and update the bins without triggering expensive memory fetches.[6][10]

XGBoost explicitly designed its architecture to be cache-aware. The algorithm allocates internal buffers to store gradients, accumulating them in a localized manner before evaluating the split points, which significantly improves throughput on modern multi-core processors.[2]

The Evolution of Gradient Boosting

The theoretical foundation for gradient boosting was laid by Jerome Friedman in 1999, framing the algorithm as a greedy function approximation. His original work demonstrated how optimizing a loss function in a forward stage-wise manner could produce highly accurate predictive models.[8]

For over a decade, implementations relied heavily on exact greedy searches. They were highly accurate but fundamentally limited by single-core processing and memory constraints, making them impractical for the massive datasets generated by modern web platforms.[7]

The release of XGBoost in 2016 marked the turning point, introducing cache-aware access patterns and out-of-core computation. This engineering breakthrough made distributed training practical for the first time, allowing models to scale across multiple machines.[1]

LightGBM followed in 2017, proving that histogram binning and leaf-wise tree growth could push the boundaries of speed even further. Today, the histogram approximation is the undisputed industry standard for training models on tabular data.[3]

The transition from exact sorting to discrete binning illustrates a core principle of machine learning engineering. The most impactful optimizations often come not from better hardware, but from finding mathematical shortcuts that trade imperceptible precision for massive scale.[10]

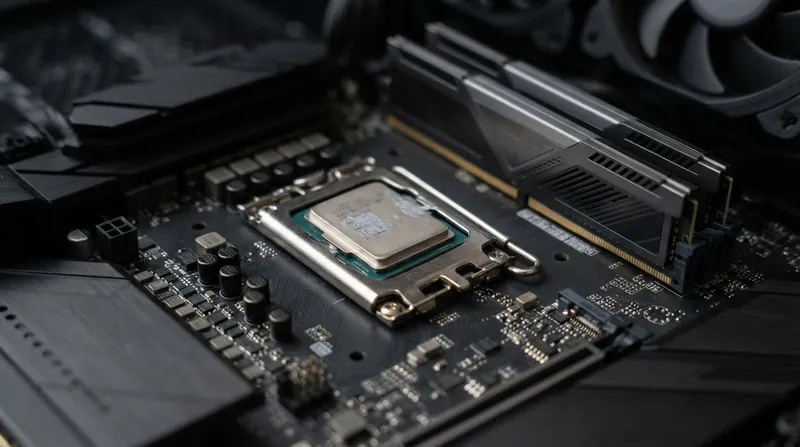

The success of histogram-based boosting lies in its alignment with modern hardware constraints. By compressing data into 8-bit integers and localizing memory access, these frameworks ensure that the processor spends its time calculating rather than waiting for data.[10]
