How Differential Amplification Eliminates Noise in Balanced Audio Cables

When wiring a home studio or a live sound rig, choosing between a standard RCA cable and a balanced XLR cable dictates whether your audio will survive electrical interference. When a standard unbalanced RCA cable picks up noise from a nearby power cord, that hum is permanently baked into the signal. A balanced XLR cable, however, can run for hundreds of feet through a nest of electromagnetic interference and deliver a pristine signal. The difference is not that the balanced cable magically repels the noise on its own. The difference is that the balanced system expects the noise, captures it equally on two identical wires, and relies on a differential amplifier at the receiving end to mathematically erase it.[5]

The physical architecture of a balanced cable sets the stage for this subtraction, requiring specific hardware to function. A standard balanced line contains three distinct conductors: a ground shield and two identical signal wires, typically labeled 'hot' (positive) and 'cold' (negative). Instead of sending a single waveform, the audio source sends the exact same signal down both wires, but it intentionally inverts the phase of the cold signal by 180 degrees. This creates a mirrored pair of audio waveforms traveling side-by-side down the length of the cable.[5]

As the cable travels toward its destination, it essentially acts as a long antenna. Any external electromagnetic interference (EMI) from lighting rigs, power supplies, or radio transmitters penetrates the outer shield and induces a noise voltage on the wires inside. Because the hot and cold wires are tightly twisted together within the cable jacket, they occupy the exact same physical space and absorb the exact same noise in phase, ensuring the interference is identical on both lines.[1]

The actual noise cancellation happens at the destination. The receiving device—whether a mixing console, an active studio monitor, or a digital audio interface—features a specialized differential amplifier circuit. The differential amplifier's sole job is to measure the voltage difference between the hot and cold inputs and amplify only that specific difference, completely ignoring any voltage that is common to both wires. 'The figure of merit that quantifies the ability of a line-receiver circuit to reject noise that is common to both signal lines is the common-mode rejection ratio (CMRR),' explains a technical brief from Texas Instruments. Measured in decibels (dB), CMRR dictates exactly how much of the unwanted interference actually reaches the final output.[2][4]

The subtraction mechanism is elegant in its mathematical simplicity. When the dual signal arrives, the differential amplifier flips the cold signal back to its original phase. This action perfectly aligns the two audio waveforms, effectively doubling the overall signal strength. But crucially, flipping the cold wire also flips the phase of the noise that was picked up along the journey. The noise on the hot wire is now exactly 180 degrees out of phase with the noise on the cold wire. When the two are summed together by the circuit, the noise completely cancels itself out. What started as equal distortion across both lines ends up as positive distortion on one and negative on the other, leaving only the pure audio signal behind.[6]

Real-world numbers demonstrate the sheer power of this circuit design. 'Single-chip instrumentation amplifiers typically have laser-trimmed resistors to achieve a CMRR in excess of 100 dB,' according to engineering documentation. To put that logarithmic scale into perspective, a 100 dB CMRR reduces a 1-volt noise spike by a massive factor of 100,000, leaving a microscopic 10-microvolt artifact. Even a modest 60 dB CMRR provides a 1,000-to-1 reduction, rendering most ground-loop hums and radio-frequency interference completely inaudible to the human ear, regardless of how loud the environment is.[4]

A common misconception in modern 2026 audio engineering is that the phase inversion of the audio signal is the most critical element of a balanced connection. In reality, impedance matching is the true key to common-mode rejection. 'The true nature of balanced interfaces is widely misunderstood,' notes Elliott Sound Products. 'The purpose of a balanced audio interface is to efficiently transfer signal voltage from driver to receiver while rejecting ground noise.' If the impedance of the hot and cold lines is mismatched by even a fraction of a percent, the noise induced on the two wires will not be identical.[3]

When the noise voltages differ due to an impedance mismatch, the differential amplifier cannot perfectly subtract them, and a portion of the interference leaks directly into the audio path. 'The key to achieving a high CMRR is usually the use of very precisely matched resistors (better than 0.1%) to minimise any difference in the amplification of the negative and positive sides of the signal.' This strict requirement for impedance symmetry explains why high-end studio gear commands a premium price tag. The physical cable is only a transport medium; the actual noise rejection happens entirely within the precision silicon of the receiving equipment.[4]

Ground loops present another major challenge that differential amplification elegantly solves. In complex audio setups, different pieces of equipment may be plugged into different electrical outlets across a building, creating slight variations in ground potential. These variations drive unwanted electrical currents through the audio cables, producing a loud, persistent 50 Hz or 60 Hz hum that ruins recordings. Because a balanced receiver only amplifies the difference between the hot and cold pins, it completely ignores the ground pin for signal transfer. The ground is used exclusively for shielding the internal wires.[3][5]

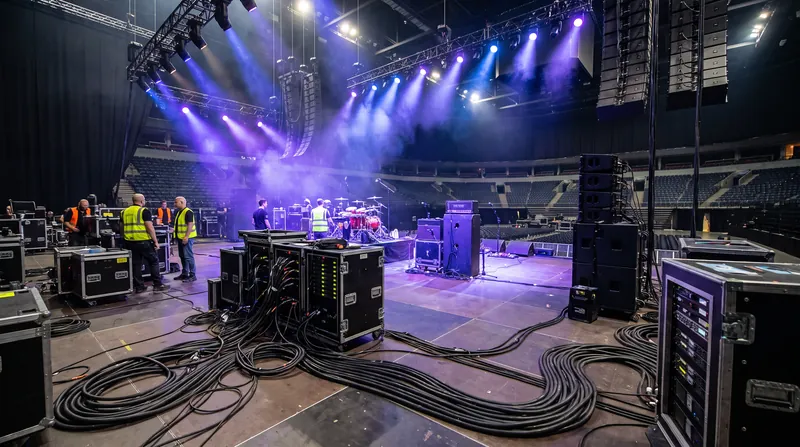

'The ground noise received... since it exists on or is common to both wires, is called the common-mode voltage and the differential amplifier provides common mode rejection.' By decoupling the audio signal from the electrical ground, differential amplifiers break the ground loop entirely. This isolation is what allows live sound engineers to run massive 300-foot analog snakes from a concert stage to a front-of-house mixing desk without drowning the mix in electrical hum. As digital audio networks like Dante and AES67 become more prevalent in 2026, the reliance on massive analog cable runs has decreased, but the final analog mile still relies entirely on the physics of differential amplification to maintain absolute signal purity.[3]

For consumers building a home setup, understanding this mechanism dictates where to spend money. Upgrading to heavily shielded, expensive RCA cables will never provide the noise rejection of a basic balanced XLR or TRS cable, because the RCA format lacks the third conductor required for differential subtraction. However, if the source device and the receiving device do not both feature balanced circuitry, simply using an adapter cable will not magically create noise cancellation. The differential amplifier must physically exist at the end of the chain to perform the math.[6]

When troubleshooting a noisy balanced connection, the physics of common-mode rejection point directly to the culprit. If a loud hum persists on an XLR line, the differential amplifier is likely being fed unequal noise, meaning the cable has suffered physical damage that altered the capacitance of one wire, or the source device has a failing output stage causing an impedance mismatch. By trusting the math behind the circuit, technicians can stop guessing and systematically isolate the hardware failure, ensuring the audio remains pristine from the microphone to the master bus.[1][6]
