Glowing Lithium Fluoride Crystals Reveal Cosmic Radiation Doses Aboard Artemis I

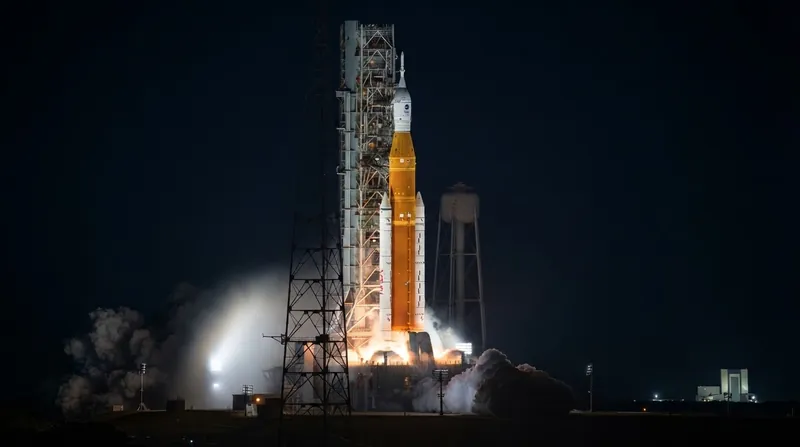

When the uncrewed Orion capsule orbited the moon during the Artemis I mission in late November and early December 2022, it carried an unusual payload in its passenger seats. Two anthropomorphic mannequins, designed to meticulously mimic human bone and soft tissue, were strapped in for the journey.[1][2]

These phantoms were the centerpiece of the Matroshka AstroRad Radiation Experiment, an international effort to measure the exact radiation environment of deep space. Embedded within their synthetic organs were more than 10,000 small crystals, quietly recording the cosmic bombardment beyond Earth's protective magnetic field.[1][2]

Understanding this environment is the primary biological hurdle for future crewed lunar missions. Cosmic radiation contains a wide array of atomic nuclei, ranging from zippy hydrogen protons to heavy lead ions traveling at near the speed of light, which can easily penetrate standard spacecraft hulls.[1]

Space biologists measure the potential danger from these particles using a metric called linear energy transfer. This value calculates exactly how much kinetic energy a charged particle deposits into surrounding matter as it passes through a physical structure.[1]

Measuring Biological Havoc

Unsurprisingly, larger heavy ions deposit massive amounts of energy over a very short distance. When these particles strike human tissue, they cause severe biological havoc along their path, tearing through cellular structures and increasing the long-term risk of severe radiation sickness and cancer.[1]

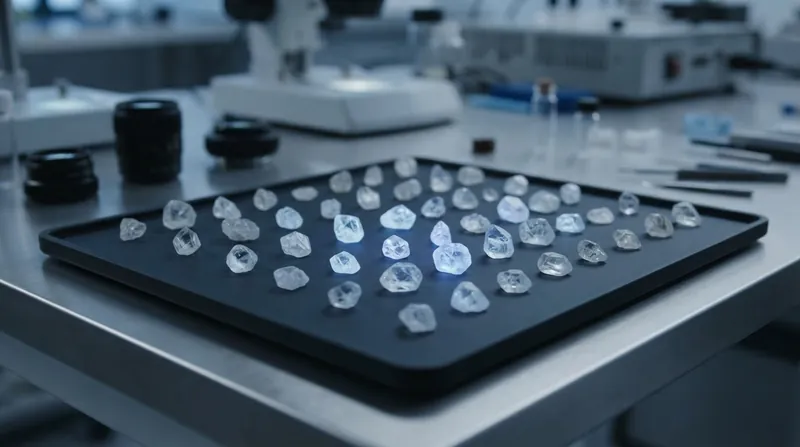

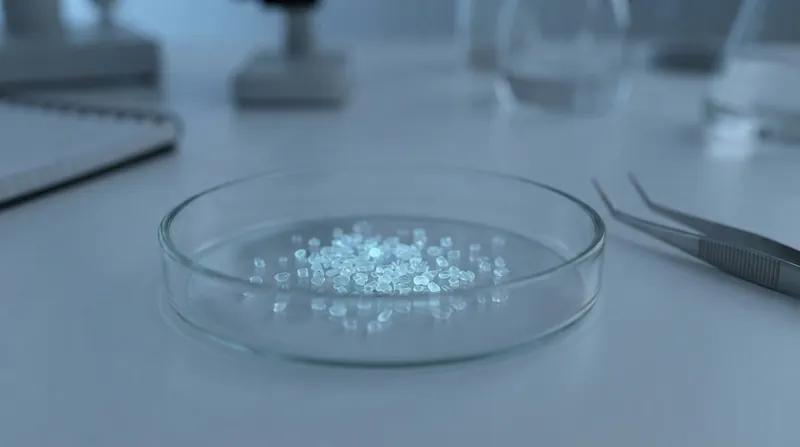

To track these microscopic impacts, researchers at the Institute of Nuclear Physics of the Polish Academy of Sciences developed a novel passive sensor. They utilized millimeter-sized fluorescent nuclear track detectors made of lithium fluoride salt, grown in laboratories using the specialized Czochralski method.[2][5]

When high-energy particles encounter the crystal structure of the lithium fluoride, they knock loose electrons and force the lattice to change. This microscopic collision creates a persistent optical blemish inside the salt, known to physicists as a color center.[1][2]

"The fluorescent radiation dose detectors based on lithium fluoride, developed at our institute, are passive in nature," said Paweł Bilski, a lead researcher at the Polish Academy of Sciences. "In other words, they work like photographic film."[2][5]

Because they require no power during the flight, the crystals simply accumulate a physical record of every particle strike. "Once the crystals have been exposed to radiation, the tracks left by individual particles must be analyzed optically under a microscope," Bilski explained.[2][5]

Glowing Red Tracks

During the laboratory readout process back on Earth, scientists excite the color centers by shining a blue laser through the crystal. The blemishes respond by emitting a distinct red fluorescence, illuminating the exact path the ionizing particle traveled through the material.[2][5]

By capturing stacks of microscope images separated by just a single micrometer, the research team followed the glowing tracks through the entire crystal structure. This allowed them to build a mathematical framework to reconstruct the full energy spectrum of the radiation delivered during the flight.[1]

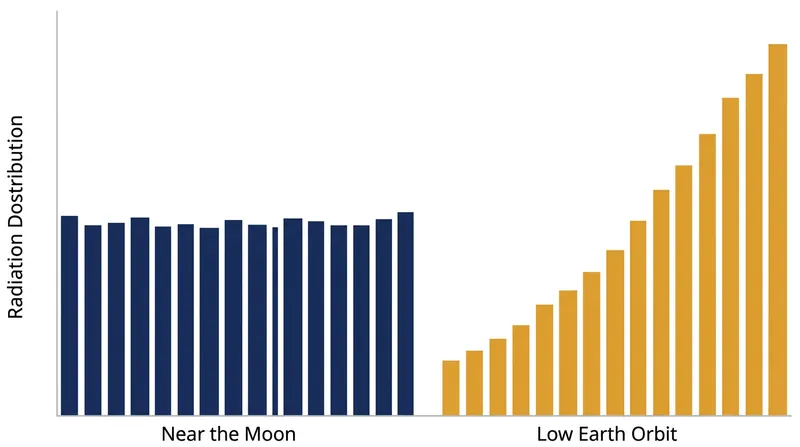

The data, recently published in the journal Radiation Measurements, revealed a crucial difference between deep space and operations closer to home. While radiation doses in low Earth orbit typically show a strong spatial gradient, the distribution recorded inside the phantoms near the moon was essentially uniform.[2][5]

The new technology also demonstrated significant operational advantages over traditional plastic radiation detectors. Reading a traditional plastic sensor physically destroys it, generates hazardous chemical waste, and requires highly specialized labor to process the results.[1]

In contrast, the lithium fluoride crystals provide a persistent, non-destructive optical record that can be re-examined multiple times. However, the initial Artemis I deployment did reveal some unexpected calibration challenges when measuring the most energetic cosmic rays.[1]

The Lithium-7 Solution

For intermediate energy transfer ranges, the crystals perfectly matched the readings from traditional plastic detectors placed side-by-side on the mannequins. But for high-energy transfers, the new sensors overestimated the total radiation dose by approximately 30 percent.[1]

Researchers suspect this discrepancy was caused by the specific nuclear physics of the fluoride crystal itself. When a high-energy secondary neutron collides with a lithium nucleus inside the detector, it can knock that lithium atom entirely out of alignment.[1]

This violent knockback creates its own glowing track inside the lattice, which the optical scanners initially confused for a primary radiation trail. To combat this false signal, the researchers turned to test crystals manufactured using the specific lithium-7 isotope.[1]

While the lithium-7 isotope does not completely stop these knock-on collisions, it significantly suppresses the secondary reactions. The team ultimately ignored the data from the natural lithium detectors, relying on the refined isotope to provide a more accurate picture of the high-energy environment.[1]

Preparing for Human Crews

Despite these calibration hurdles, the successful optical reconstruction represents a major leap forward for passive space-based dosimetry. The ability to precisely map how radiation penetrates deep into simulated human tissue provides invaluable data for aerospace engineers.[1]

As space agencies prepare for long-term stays on the lunar surface, these measurements will dictate how future habitats and spacesuits are constructed. The glowing crystals have given flight surgeons a much clearer idea of exactly what they are dealing with in the deep-space environment.[1]
