FDA Clears First-Ever Dental-Dedicated MRI for Non-Ionizing Soft-Tissue Diagnostics

For over a century, the practice of dentistry has relied almost exclusively on ionizing radiation to peer beneath the gum line. From the earliest bite-wing X-rays to modern Cone Beam Computed Tomography (CBCT) scanners, these imaging tools have been the undisputed gold standard for visualizing hard tissues like cortical bone and dental enamel. However, they share a significant and frustrating limitation: they are notoriously blind to soft tissue. When a dentist looks at a standard X-ray, the intricate network of nerves, blood vessels, and connective tissues that keep a tooth alive simply do not appear, leaving clinicians to infer their condition based on the shadows cast by the surrounding bone.

This imaging blind spot has forced dental professionals to rely on indirect evidence and subjective chairside tests for decades. When a patient presents with mysterious jaw pain, or a clinician needs to determine if the pulp inside a tooth is infected, they often resort to provocative measures—such as applying extreme cold to the tooth to gauge the nerve's reaction. These tests can be uncomfortable for the patient and are not always definitive, occasionally leading to misdiagnoses or unnecessary exploratory procedures. The inability to directly see the soft tissues has long been considered one of the final frontiers in dental diagnostics.

That frontier is now being crossed. The U.S. Food and Drug Administration (FDA) has officially cleared the MAGNETOM Free.Max Dental Edition, marking the arrival of the first-ever magnetic resonance imaging (MRI) system dedicated specifically to the dentomaxillofacial region. By bringing the unparalleled soft-tissue contrast of an MRI into the dental clinic, the technology promises to fundamentally alter how complex oral health issues are diagnosed and treated, all without exposing the patient to a single dose of ionizing radiation.[1]

The landmark system was developed through a joint venture between dental equipment manufacturer Dentsply Sirona and medical imaging giant Siemens Healthineers. Recognizing that traditional hospital MRI machines are massive, intimidating, and poorly optimized for the small, artifact-prone anatomy of the human mouth, the companies set out to engineer a bespoke solution. The resulting dental-dedicated MRI (ddMRI) utilizes a lower-field magnet paired with specialized hardware designed specifically for the contours of the jaw and face.[3]

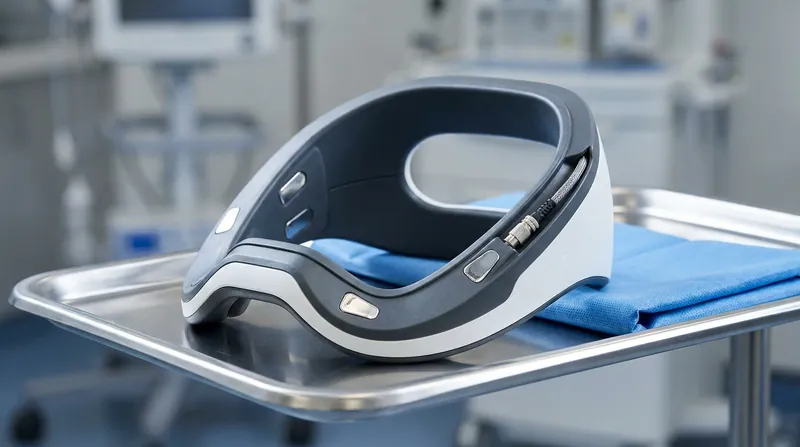

At the heart of the system's innovation is its proprietary dental coil and custom software algorithms. Traditional MRI scans of the head capture the entire brain, which is unnecessary for dental purposes and can complicate the imaging process. The ddMRI creates a highly targeted, dental-specific field of view that focuses exclusively on the teeth, the mandible, the maxilla, and the surrounding oral tissues. By digitally excluding the brain, the system maximizes the resolution of the dental anatomy while streamlining the data acquisition process.[1]

For the patient, the experience is designed to be significantly more comfortable and efficient than a conventional hospital MRI. The physical footprint of the machine is smaller, and the workflow has been optimized for the pace of a dental or maxillofacial clinic. According to the developers, the average workflow time from patient positioning to image acquisition is under 20 minutes. This efficiency is critical for ensuring that the technology can be practically integrated into a busy clinical schedule rather than being relegated to a purely academic research tool.[3]

The FDA clearance was granted following a comprehensive clinical trial that rigorously validated the system's efficacy across a wide spectrum of dental specialties. The trial demonstrated the technology's applicability in endodontics, periodontics, orthodontics, temporomandibular joint (TMJ) analysis, and oral and maxillofacial surgery. By providing clear, non-ionizing imaging of the soft tissues, the ddMRI proved capable of answering complex diagnostic questions that have historically stumped even the most advanced CBCT scanners, offering a new layer of diagnostic confidence for specialists handling borderline cases.

One of the most significant clinical breakthroughs highlighted by the trial is the system's ability to non-invasively assess tooth pulp vitality. Instead of guessing whether the nerve inside a root canal is alive, dying, or necrotic based on a patient's wince during a cold test, endodontists can now directly visualize the blood flow and tissue health inside the tooth. This objective visual evidence allows for far more accurate treatment planning, ensuring that root canals are only performed when absolutely necessary and that failing teeth are identified earlier.[1]

Furthermore, the clinical validation underscored the scanner's capacity to differentiate between active inflammation and dormant scar tissue. On a standard dental X-ray, a dark radiolucent shadow at the apex of a tooth root indicates bone loss, but it cannot definitively tell the dentist whether there is an active, raging infection or simply a healing scar from a previous surgery. The ddMRI removes this ambiguity by clearly illuminating the inflammatory markers in the soft tissue, guiding the clinician toward the appropriate intervention.[1]

For oral and maxillofacial surgeons, the technology offers an unprecedented level of anatomical mapping and safety. When extracting deeply impacted wisdom teeth or placing complex dental implants, surgeons must carefully navigate around the inferior alveolar nerve—a major sensory nerve running through the lower jaw. The ddMRI allows for the simultaneous, high-resolution visualization of the tooth, the surrounding bone structure, and the exact three-dimensional pathway of the nerve bundle in a single scan, drastically reducing the risk of accidental nerve damage.[1]

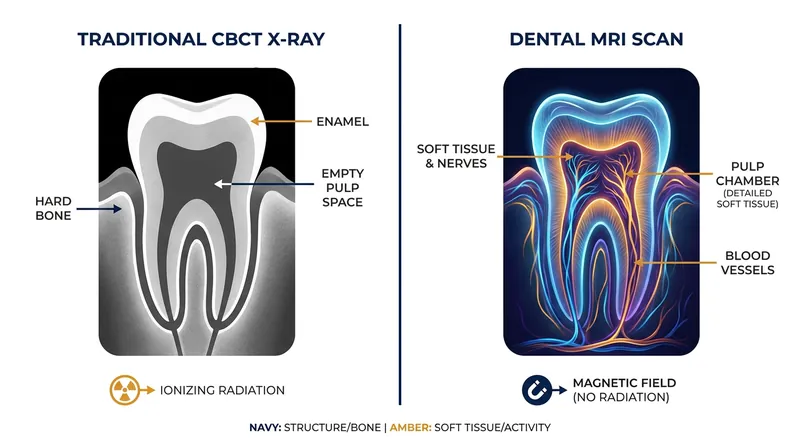

Despite its groundbreaking capabilities, experts are quick to point out that ddMRI is not poised to replace CBCT or traditional X-rays overnight. Magnetic resonance imaging is fundamentally challenged by hard tissues; cortical bone and dental enamel lack the free water protons needed to generate a strong MRI signal, causing them to appear as dark voids on a standard scan. While specialized 'black bone' MRI sequences are improving, CBCT remains the undisputed gold standard for assessing bone volume, micro-fractures, and the structural integrity of enamel.

Therefore, the dental community views the new technology as a powerful complement rather than a wholesale replacement. In the near future, a patient requiring a complex full-mouth reconstruction might receive a rapid CBCT scan to map the bone, followed by a targeted ddMRI scan to assess the health of the nerves and gums. The two datasets can then be digitally fused, providing the clinician with a complete, 360-degree understanding of both the hard and soft tissues before a single incision is made.

Accessibility and cost remain the most significant immediate hurdles to widespread adoption. The initial rollout of the MAGNETOM Free.Max Dental Edition is primarily targeted at hospitals, large multi-specialty imaging centers, and university dental schools. The substantial capital cost of the machine, combined with the specialized infrastructure required to house it, means that the technology will likely remain out of reach for the average solo private practice for the foreseeable future.[3]

Additionally, introducing a powerful magnetic field into a dental environment requires the implementation of rigorous new safety protocols. Dental clinics are traditionally filled with ferromagnetic tools, from scalers and drills to the metal components of the dental chair itself. Facilities housing a ddMRI will need to construct specialized magnetic shielding, meticulously screen patients for pacemakers and metallic implants, and train their staff to operate safely within an MRI environment.[4]

To bridge this knowledge and infrastructure gap, leading academic institutions are already stepping up to train the next generation of practitioners. The University of Minnesota School of Dentistry, for instance, has launched advanced, hands-on training programs designed specifically for clinicians interested in incorporating ddMRI into their diagnostic workflow. These courses cover everything from imaging protocols and patient safety to the practical interpretation of soft-tissue dental scans.[1]

As the first commercial systems come online and begin scanning patients across the United States, the dental field is crossing a major technological threshold. By finally illuminating the soft tissues that have long been hidden in the shadows of traditional X-rays, dental-dedicated MRI promises to dramatically reduce diagnostic guesswork. Ultimately, this innovation will spare patients from unnecessary exploratory procedures, minimize the risk of surgical complications, and usher in a new era of precision, radiation-free dentistry that treats the whole tooth—nerves, blood supply, and all.[2]
