Breakthrough Enables Mass-Production of Quantum Photonic Systems on Commercial Silicon Foundries

For decades, the development of quantum computing has been trapped in a frustrating paradox. The underlying physics promises unparalleled computational power capable of solving problems that would take classical supercomputers millennia, but the hardware required to harness that power has remained stubbornly bespoke. Traditional quantum setups demand pristine laboratory environments, relying on bulky lasers, extreme cryogenic cooling, and custom-built components that are nearly impossible to scale efficiently. The central tension in the field has always been the vast gulf between the theoretical requirement for millions of stable qubits and the physical reality of painstakingly building and calibrating them one by one.[6]

Now, a series of coordinated breakthroughs across academia and industry has begun to resolve this manufacturing bottleneck. Researchers and commercial semiconductor manufacturers have successfully moved quantum hardware out of the isolated laboratory and into the exact same silicon foundries that produce the chips powering modern smartphones and laptops. By proving that fragile quantum components can survive standard commercial manufacturing processes, the industry has fundamentally shifted the trajectory of quantum technology from a bespoke physics experiment to a scalable engineering discipline.[1][3][6]

The core mechanism enabling this shift is a technology known as silicon photonics. Instead of relying on electrical currents to transmit data, silicon photonics uses particles of light—photons—to carry quantum information through microscopic channels etched into silicon. While photons are excellent carriers of quantum information because they can operate at room temperature and resist environmental interference better than other qubit types, generating and controlling them has historically required massive external equipment. Even slight temperature fluctuations or imperceptible manufacturing imperfections can destroy the fragile quantum states required for computation.[1][2]

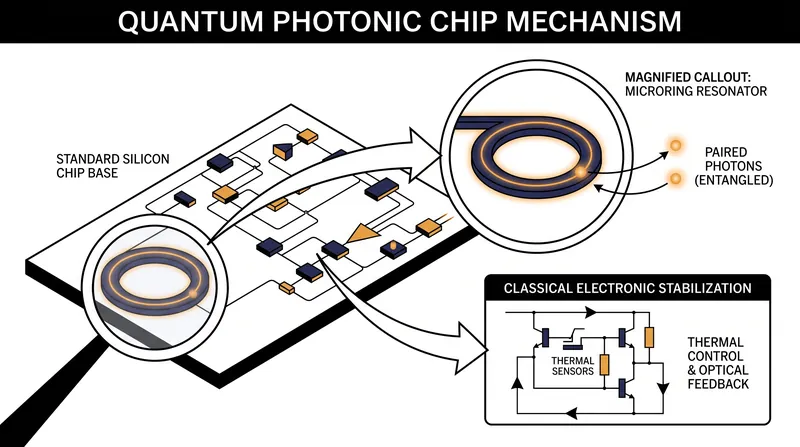

A consortium of scientists from Northwestern University, Boston University, and UC Berkeley recently dismantled this barrier by demonstrating the world's first electronic-photonic-quantum system integrated onto a single chip. Fabricated using a standard 45-nanometer complementary metal-oxide semiconductor (CMOS) process, the chip packs both quantum light-generating components and classical electronic control circuits into an area measuring just one millimeter by one millimeter. When a concentrated laser is directed into tiny, ring-shaped channels on the chip, it naturally generates pairs of entangled photons that serve as the foundational qubits for the system.[1][2]

The true breakthrough of this academic demonstration lies in the integration of classical control electronics directly alongside the quantum components. The built-in smart electronics monitor and stabilize the quantum light sources in real-time, automatically correcting for the environmental noise and thermal fluctuations that previously necessitated a pristine laboratory setting. By embedding the control mechanisms directly on the silicon, the researchers proved that complex quantum processes can be managed autonomously within a mass-produced architecture, eliminating the need for sprawling racks of external stabilization equipment.[1][2]

Applying a skeptical-curious lens to the broader industry landscape reveals an important distinction between what has actually shipped and what is merely being announced in marketing materials. Press releases from quantum startups frequently tout the imminent arrival of "million-qubit" processors and fault-tolerant computing. However, the hardware currently rolling off assembly lines proves only that the foundational manufacturing processes work at scale, not that a fully realized, error-corrected quantum computer is ready for commercial deployment today. The current phase is about establishing the supply chain, not delivering the final computational product.[5][6]

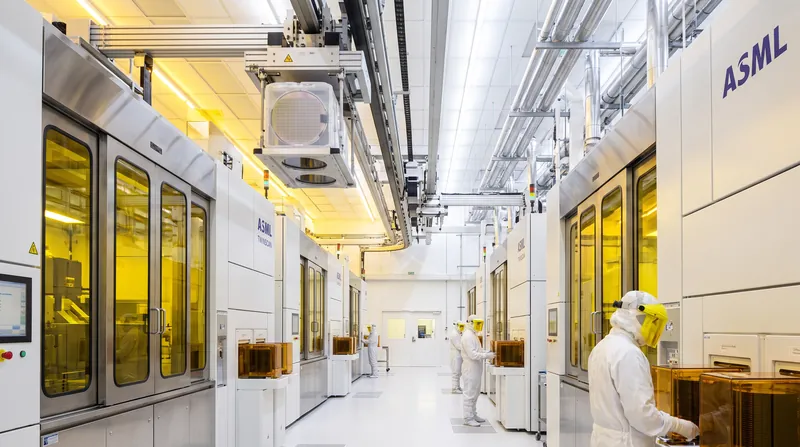

Despite the hype, the manufacturing milestones achieved in recent months are genuinely significant. Major commercial foundries are actively retooling their production lines to support silicon photonics, driven both by the needs of quantum computing and the massive bandwidth demands of artificial intelligence data centers. UMC recently announced that its Singapore 12-inch fabrication facility successfully delivered its first batch of mass-produced silicon photonics wafers. This delivery marks a critical transition from research and development into actual commercialization, proving that existing 12-inch wafer equipment can be adapted for photonic production.[3]

Other major semiconductor players are rapidly following suit to secure their position in the emerging photonic supply chain. Tower Semiconductor has expanded its strategic partnership with quantum hardware firm Xanadu to industrialize a custom silicon photonic quantum stack. Their joint engineering effort focuses on transitioning Xanadu's measurement-based quantum computing architecture from prototype to demonstrator systems on an established 200-millimeter manufacturing platform. The collaboration specifically targets the optimization of ultra-low loss silicon nitride waveguides, which are critical for entangling thousands of qubits on a single chip.[4]

Similarly, PsiQuantum has published detailed blueprints for a manufacturable platform that leverages commercial semiconductor foundry processes at GlobalFoundries to create fully integrated quantum photonic systems. Their technical approach modifies baseline silicon photonics manufacturing to accommodate quantum-specific requirements—such as the co-integration of room-temperature optical components with cryogenic detectors—while maintaining strict compatibility with high-volume production standards. By validating these complex designs on established manufacturing platforms, these companies are ensuring that future quantum modules will be able to integrate seamlessly with existing telecommunications and data center infrastructure, rather than requiring entirely new operational paradigms.[5]

The transition to mass production is not without severe engineering hurdles that the industry must still overcome. Integrating high-precision optical waveguides with standard electronic circuitry requires sub-nanometer alignment during the manufacturing process. Yield rates—the percentage of fully functional chips produced per silicon wafer—remain a closely guarded industry secret, and the capital expense required to equip a multi-billion-dollar fabrication facility with specialized photonic testing infrastructure is immense. Until these manufacturing nuances are fully smoothed out, the unit economics of quantum photonic chips will remain higher than traditional silicon electronics.[3][6]

The convergence of data-intensive workloads and mature silicon photonics processes is reshaping the broader communications ecosystem. While quantum computing represents the most advanced application of this technology, the immediate financial driver for foundries is the demand for ultra-high-bandwidth, low-latency interconnects in AI accelerators. This dual-use nature of silicon photonics—serving both near-term AI infrastructure and long-term quantum development—provides the economic justification for foundries to invest billions of dollars in new lithography and etching equipment. The shared manufacturing foundation ensures that quantum hardware development will benefit from the massive capital already flowing into artificial intelligence.[3][6]

Ultimately, the successful fabrication of quantum photonic systems in commercial foundries represents a permanent shift in how the industry approaches hardware development. The era of hand-crafted, artisanal quantum devices is giving way to standardized, wafer-scale integration. While the realization of a fault-tolerant quantum computer capable of breaking modern encryption or simulating complex molecules remains years away, the physical infrastructure required to build it is now actively rolling off the same assembly lines that built the modern digital world.[1][2][6]
