AI Maps Arctic 'Zero Curtain,' Revealing Hidden Permafrost Thaw Stage and Carbon Release Risk

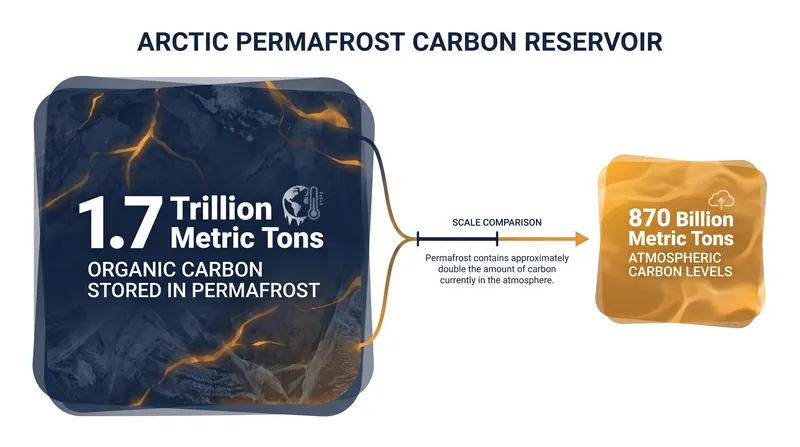

Across the circumarctic, approximately 1.7 trillion metric tons of organic carbon lie locked in permafrost—nearly twice the amount currently circulating in Earth's atmosphere. For decades, standard climate models operated on a simplified assumption: when the short Arctic summer ends, the ground freezes solid, locking away this vast carbon reservoir until the following spring.

But the reality of the freeze-thaw transition is far more complex. As autumn gives way to winter, the ground does not immediately freeze. Instead, soils often linger near the freezing point for days or even weeks in a hidden phase known as the 'zero curtain.'[1]

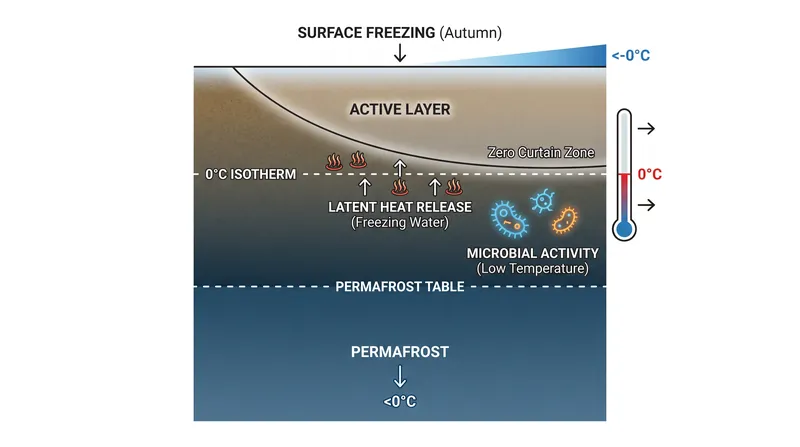

The zero curtain acts much like a glass of ice water left on a counter. The water remains precisely at the freezing point because incoming heat melts the ice rather than raising the overall temperature. In the Arctic autumn, the reverse thermodynamic process occurs. As water in the soil begins to freeze, it releases latent heat. This thermal energy holds the surrounding ground near 0°C, buffering it against the plummeting air temperatures above and preventing the soil from cooling further until the phase change is entirely complete.[1]

This subsurface thermal plateau has profound biological consequences. During the zero curtain, liquid water is sustained within the active layer of the soil through a process called cryosuction. This unfrozen moisture allows microbial communities to persist and remain highly active well into the dark, cold season. As these microbes continue to break down ancient organic matter, they steadily release carbon dioxide and methane into the atmosphere long after the surface appears frozen solid.[1]

Until now, the intensity, duration, and spatial extent of this phenomenon remained inadequately quantified. The zero curtain occurs entirely underground, making it invisible to standard optical satellites. Furthermore, the sheer scale and microclimatic heterogeneity of the Arctic landscape made it nearly impossible to track these subsurface dynamics using traditional physical models, which struggle to resolve the complex interactions between topography, vegetation, and thermal inertia. This blind spot has severely limited our understanding of permafrost-climate feedbacks.[1]

To illuminate this hidden stage of the Arctic freeze, a team of researchers developed GeoCryoAI, a hybridized artificial intelligence framework. Described in a recent study, the AI model integrates an unprecedented volume of multimodal Earth observation data. The researchers fed the system 62.71 million in situ field measurements—dating back decades—alongside 3.3 billion remote sensing observations from satellites and flux towers. By processing this massive dataset, GeoCryoAI generated the first high-resolution, 30-meter maps of zero-curtain conditions across the entire circumarctic region.[1][2]

Crucially, GeoCryoAI is not a traditional 'black box' machine learning algorithm. Standard AI models often prioritize predictive accuracy at the expense of physical consistency, sometimes generating unphysical warm biases under extreme cold conditions. To prevent this, the researchers designed GeoCryoAI as a physics-informed transfer learning framework. It embeds domain-specific physical constraints—such as Stefan's equation and Fourier's law of heat conduction—directly into the learning process, providing essential thermodynamic regularization.[1][2]

This physics-informed architecture yielded a massive leap in performance. Ablation studies confirmed that the full GeoCryoAI framework achieved a 96.4% detection accuracy for zero-curtain events. This represents a 39% improvement over conventional baseline models, effectively reducing errors in the critical cold regime. By successfully bridging the gap between ground-truth field data and broad satellite coverage, the AI was able to resolve hidden geophysical feedbacks that had previously eluded climate scientists.[1]

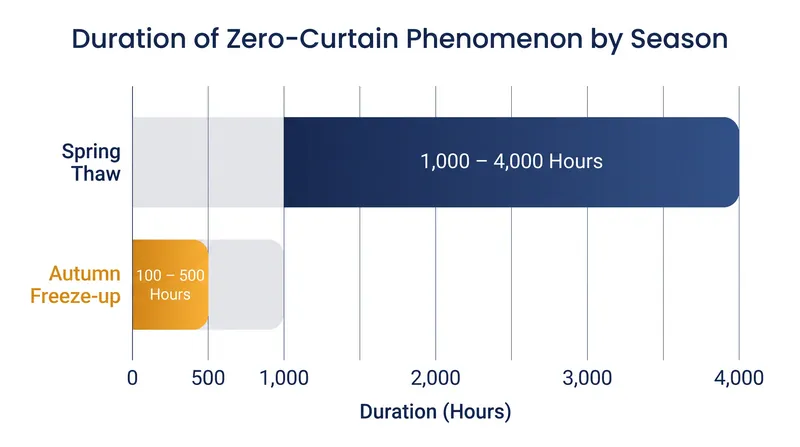

The resulting high-resolution maps reveal that the zero-curtain phenomenon exhibits pronounced seasonal asymmetry. The data shows that the spring thaw generally produces much longer zero-curtain periods than the autumn freeze-up. During the vernal transition, the zero curtain can extend for 1,000 to 4,000 hours as the ground slowly absorbs heat. In contrast, the winter occurrence is relatively compressed, typically lasting between 100 and 500 hours.[1]

The AI also uncovered significant longitudinal variations across the Arctic landscape. While the North American Arctic exhibits moderate intensity patterns, the maps show enhanced vernal amplification in Siberia. Meanwhile, Fennoscandia experiences reduced winter suppression, and the Canadian Archipelago demonstrates a delayed vernal response. These regional nuances highlight how local topography and climate conditions uniquely shape the subsurface thermal regime.[1]

Through mechanistic analysis, the researchers pinpointed the primary driver of this variability. The coupling of soil moisture and latent heat is responsible for 60% to 90% of the variation in zero-curtain duration. Regions with higher moisture levels consistently experience longer zero-curtain periods, as the greater volume of water requires more time—and releases or absorbs more latent heat—to complete the phase transition.[1]

Most alarmingly, the data shows that warming conditions are systematically amplifying this effect. Between 2015 and 2024, the duration and intensity of the zero curtain increased by 20% to 40% across the observed regions. As the Arctic warms at more than twice the rate of the rest of the planet, the zero curtain is expanding, keeping soils moist and microbes active for increasingly extended periods.[1]

This extended biological activity threatens to accelerate the permafrost carbon feedback—a vicious cycle where warming releases more greenhouse gases, which in turn drives further global warming. Because the zero curtain allows methanogenesis and carbon respiration to continue into the non-growing season, it complicates the delicate balance between carbon uptake and release. Quantifying this dynamic is essential for determining how much of the 1.7 trillion tons of permafrost carbon is at immediate risk of destabilization.[1][2]

Looking ahead, the research team designed the GeoCryoAI framework to be fully compatible with upcoming spaceborne missions, including the US-India NISAR (NASA-ISRO Synthetic Aperture Radar) satellite. This integration establishes a NISAR-ready circumarctic monitoring protocol. By continuously assimilating new radar data, the system will enable operational three-to-six-month forecasts of permafrost stability, providing quantitative constraints for Earth system models.[1]

As researchers continue to refine these AI-driven maps, the global scientific community is gaining its clearest view yet of the invisible forces reshaping the frozen north. By transforming the zero curtain from a poorly understood anomaly into a precisely mapped and predictable phenomenon, GeoCryoAI is helping to replace uncertainty with actionable data, offering a critical new tool in the effort to forecast the future of the global carbon cycle.[1][2]
