Researchers Achieve Cryogen-Free Optical Cooling in Ultra-Thin 2D Materials

The relentless miniaturization of modern electronics has finally collided with a fundamental, unavoidable limit of physics: thermal dissipation. As engineers pack billions of microscopic transistors into ever-shrinking silicon real estate, the sheer density of the electrical current generates immense amounts of thermal energy. If left unchecked, this heat threatens to literally melt the delicate circuits that power our digital world. For decades, the semiconductor industry has managed this bottleneck by relying on brute-force thermal management solutions, ranging from bulky copper heat sinks and mechanical fans to elaborate liquid cooling loops. However, as the industry begins to pivot toward next-generation architectures utilizing two-dimensional materials—substances that are only a single atom thick—these traditional, macroscopic cooling methods are proving entirely inadequate for the task at hand.[6]

Now, a major scientific breakthrough published in the journal Nature offers a radical, elegant alternative to mechanical cooling: using targeted lasers to cool electronics down. A team of researchers has successfully demonstrated that light can be utilized to actively siphon heat out of ultra-thin solid-state structures. In their highly controlled laboratory experiments, the team achieved a staggering temperature drop of more than 100 Kelvin between stacked layers of microscopic materials. Crucially, they accomplished this massive thermal gradient entirely through optical means, completely eliminating the need for the bulky, expensive liquid cryogens that are typically required to reach such extreme temperature differentials in advanced electronic systems.[1][2]

The underlying concept of "laser cooling" is not entirely new to the world of physics. For decades, scientists have successfully used precisely tuned lasers to slow down the movement of individual atoms suspended in vacuum chambers, a groundbreaking technique that was awarded the Nobel Prize in Physics in 1997. However, translating this elegant principle from isolated atoms in a vacuum to solid-state materials—like the dense, tightly packed crystal lattices of computer chips—has been notoriously difficult. In a solid, atoms are bound tightly together, and introducing laser light typically adds energy to the system, causing the material to heat up rather than cool down.[4]

The new research, spearheaded by materials scientists at Nanjing University, successfully bypasses these historical hurdles by exploiting the unique quantum mechanical properties of 2D heterostructures. These advanced materials are essentially microscopic sandwiches, created by carefully stacking different atomically thin substances on top of one another. Because the layers are so incredibly thin, the electrons within them are subject to intense quantum confinement, altering how they interact with both light and heat. By precisely engineering the interface between these stacked layers, the research team created an environment where light can be used to extract thermal energy rather than deposit it.[1][3]

The specific cooling mechanism at the heart of this breakthrough relies on a complex quantum phenomenon known as "phonon-assisted interfacial charge transfer." To conceptualize how this works, it is helpful to visualize heat not as a warm fluid flowing through a material, but rather as physical vibrations rippling through the material's atomic crystal lattice. In the realm of quantum physics, these quantized units of vibrational heat energy are referred to as phonons. The entire optical cooling process hinges on forcing electrons to interact with these phonons in a very specific, highly controlled manner.[1][7]

The process begins when the researchers shine a specific, carefully calibrated frequency of laser light onto the 2D heterostructure. The electrons residing in the material absorb the incoming photons of light, gaining a burst of energy. However, the researchers intentionally tune the laser to be slightly "energy-deficient." This means the laser photon provides almost—but not quite—enough energy for the excited electron to make the necessary quantum leap across the physical interface separating the two stacked layers of the heterostructure.[1][7]

Stranded with insufficient energy to complete its journey, the electron is forced to steal the missing energy from its immediate surroundings. It accomplishes this by absorbing a phonon directly from the crystal lattice. By consuming this phonon to bridge the energy gap, the electron is effectively sucking a discrete unit of heat out of the material. Once the electron successfully crosses the interface into the adjacent layer, it eventually relaxes back down to its original, lower-energy ground state, emitting a new photon of light in the process.[1][7]

Because the electron absorbed a heat-carrying phonon during its journey across the interface, the new photon it emits carries away significantly more energy than the original laser photon brought into the system. The net result of this quantum transaction is that thermal energy is actively removed from the crystal lattice and radiated away as light. By continuously bombarding the material with the energy-deficient laser, the researchers create a continuous cycle of phonon absorption and high-energy photon emission, steadily driving the temperature of the 2D heterostructure down.[1][7]

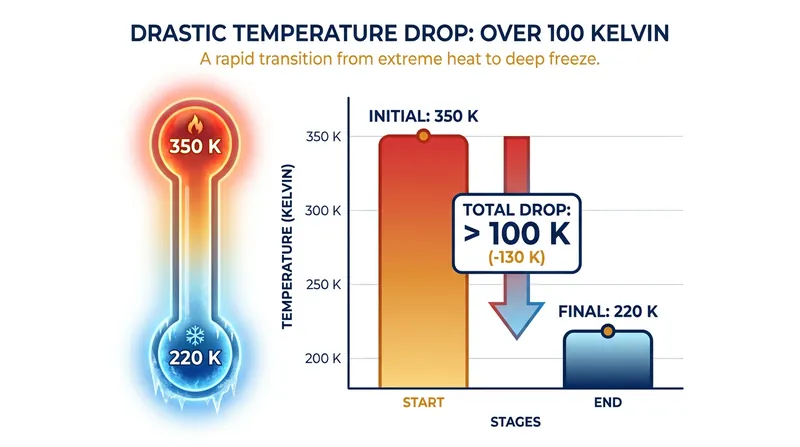

The sheer efficiency of this optical cooling process in the Nanjing University experiment is unprecedented in the field of solid-state physics. The research team recorded a localized temperature difference of over 100 Kelvin between the stacked layers. To put this into perspective, achieving a 100-degree Celsius thermal gradient across a structure measured in mere nanometers represents a massive manipulation of thermodynamics. It proves that optical cooling can be highly effective in the exact types of ultra-thin materials that are slated to form the backbone of future microprocessors.[1][2]

This ability to achieve localized, highly targeted cooling is precisely what the next generation of advanced microelectronics desperately requires. In a modern, high-performance computer processor, heat is not generated or distributed evenly across the silicon die. Instead, thermal energy concentrates in microscopic, highly localized "hotspots" where the most intensive mathematical calculations and data transfers are occurring at any given millisecond. Traditional cooling methods are highly inefficient because they must blanket the entire chip in a cooling solution just to manage these isolated, shifting hotspots.[6]

An optical cooling system, by contrast, could theoretically be integrated directly into the silicon architecture itself. Engineers envision a future where microscopic, on-chip light emitters are positioned adjacent to known thermal chokepoints. These microscopic lasers could fire precisely at hotspots the exact moment they begin to overheat, siphoning away the thermal energy as light before it can damage the surrounding circuitry. This would allow processors to run at significantly higher clock speeds without triggering the thermal throttling that currently limits the performance of modern computers.[7]

The practical implications of this technology extend far beyond the realm of consumer smartphones and desktop computers. The field of quantum computing stands to benefit immensely from cryogen-free cooling solutions. Currently, superconducting quantum computers require massive, highly complex dilution refrigerators to maintain their delicate qubits at temperatures hovering just fractions of a degree above absolute zero. These cryogenic systems are room-sized, consume immense amounts of electricity, and cost millions of dollars to build and maintain.[7]

If optical cooling techniques can be scaled and refined to achieve and maintain these ultra-low temperatures without the need for liquid helium, it could fundamentally alter the trajectory of quantum hardware. It could decouple quantum processors from their massive cryogenic life-support systems, paving the way for rack-mounted, or even desktop-sized, quantum computers. This democratization of quantum hardware would drastically accelerate the timeline for achieving widespread quantum advantage in fields ranging from drug discovery to cryptography.[7]

Similarly, optical cooling could revolutionize the design of sensors and electronics deployed in extreme environments, such as deep space exploration. Satellites and space probes currently rely on heavy, mechanical cooling pumps to keep their sensitive infrared cameras and scientific instruments at optimal operating temperatures. These mechanical systems add significant weight to the payload and introduce moving parts that are prone to mechanical failure over long missions. Solid-state optical cooling would provide a lightweight, vibration-free alternative with no moving parts to break down.[7]

Despite the palpable excitement surrounding the Nature publication, significant engineering and manufacturing hurdles remain before laser-cooled electronics can transition from the laboratory to the commercial market. The current demonstration, while groundbreaking, is a proof-of-concept executed in a highly controlled, pristine laboratory environment. Scaling this delicate quantum phenomenon into a robust, mass-manufacturable technology will require years of dedicated research and development across multiple disciplines of materials science and engineering.[7]

One of the most pressing unknowns is the overall "wall-plug efficiency" of a complete optical cooling system. While the 2D heterostructure itself cools down dramatically, the laser required to generate the specific frequency of light consumes electricity and generates its own waste heat in the process. For the system to be commercially viable as a thermal management solution, the total energy equation must balance out favorably; the cooling benefit provided to the chip must significantly outweigh the energy cost and thermal output of running the laser itself.[7]

Additionally, manufacturing these atomic-scale 2D heterostructures at an industrial scale remains a formidable logistical challenge. Stacking atomically thin layers of different materials with the precise crystallographic alignment required to enable efficient interfacial charge transfer is currently a bespoke, highly time-consuming process. The semiconductor industry will need to develop entirely new fabrication techniques capable of reliably depositing and aligning these 2D materials on standard 300-millimeter silicon wafers without introducing microscopic defects that would ruin the cooling effect.[5][7]

Nevertheless, the successful demonstration of cryogen-free optical cooling in a solid-state device marks a definitive paradigm shift in how scientists approach thermal management. It proves that the relentless heat generated by our increasingly powerful electronics does not always have to be fought with the brute force of fans and fluids. By elegantly manipulating the quantum interactions between light and matter at the atomic scale, researchers have opened a new frontier in physics—one where light itself becomes the ultimate heat sink.[2][7]
