900 MHz vs. 2.4 GHz: How Z-Wave and Thread/Zigbee Frequencies Dictate Range and Interference

The decision of which smart home protocol to adopt—Z-Wave, Zigbee, or the newer Thread standard—is rarely made by examining the radio frequency they operate on. Homeowners typically choose based on device compatibility, hub requirements, or ecosystem integration. However, the physical properties of the radio waves these protocols use dictate their performance in a real-world environment more than any software feature. The fundamental divide lies between the sub-1 GHz band (specifically 908.42 MHz in North America), used by Z-Wave, and the 2.4 GHz band, used by both Zigbee and Thread [1][4].[1][4]

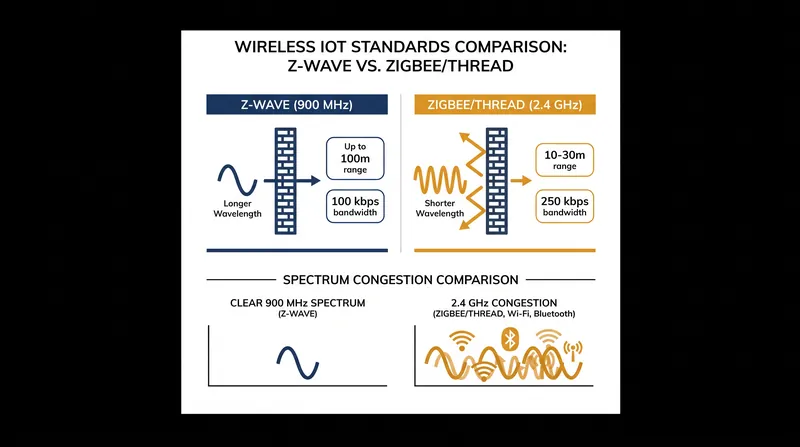

This frequency difference is not merely a technical specification; it governs how a signal behaves when it encounters obstacles. Radio waves are a form of electromagnetic radiation, and their wavelength is inversely proportional to their frequency. A 900 MHz signal has a longer wavelength than a 2.4 GHz signal. In practical terms, longer wavelengths are better at penetrating solid objects like drywall, brick, and concrete [3][4]. When a Z-Wave signal hits a wall, a larger percentage of its energy passes through compared to a Zigbee or Thread signal, which is more likely to be absorbed or reflected.[3][4]

The result is a significant difference in effective range. In an open-air environment with no obstructions, a Z-Wave device can communicate with a hub up to 100 meters (328 feet) away [3]. Zigbee and Thread devices, operating at 2.4 GHz, typically max out at around 10 to 30 meters (33 to 100 feet) indoors [4]. While all three protocols utilize mesh networking—where devices act as repeaters to extend the network's reach—the starting range of each individual node dictates how many repeaters are necessary to cover a given area.[3][4]

For a homeowner installing a smart lock on a detached garage or a gate sensor at the end of a driveway, this physical reality is paramount. A Z-Wave network might reach the garage with only one intermediate repeater, or perhaps directly from the hub. A Zigbee or Thread network would likely require a chain of several mains-powered devices acting as routers to bridge the same distance [2][5]. If those intermediate devices lose power or go offline, the connection to the distant sensor is broken.[2][5]

However, the 900 MHz band is not without its limitations. Its primary drawback is bandwidth. Z-Wave data rates are relatively low, maxing out at 100 kilobits per second (kbps) [1]. This is perfectly adequate for transmitting simple commands like "turn on light" or "door opened," but it cannot handle high-bandwidth applications like streaming audio or video. The 2.4 GHz band used by Zigbee and Thread offers significantly higher data rates, up to 250 kbps for Zigbee, allowing for more complex data transmission and faster firmware updates [1][4].[1][4]

The 2.4 GHz band's most significant challenge is congestion. It is the same frequency band used by Wi-Fi, Bluetooth, microwave ovens, and cordless phones [4][5]. In a typical modern home, the 2.4 GHz spectrum is crowded, leading to potential radio frequency (RF) interference. When a Zigbee or Thread device attempts to transmit data, it must compete with the home's Wi-Fi router and other devices for airtime. This interference can cause dropped packets, delayed commands, and network instability.[4][5]

Mitigating this interference requires careful network planning. The Home Assistant Community, a major hub for smart home enthusiasts, dedicates extensive resources to optimizing Zigbee networks. A primary strategy involves manually selecting a Zigbee channel that does not overlap with the home's active Wi-Fi channels [5]. Wi-Fi channels 1, 6, and 11 are commonly used, so placing a Zigbee network on channel 15, 20, or 25 can significantly reduce interference [5]. Thread networks face the same challenge and require similar channel management for optimal stability [2].[2][5]

Z-Wave, operating in the sub-1 GHz band, largely avoids this congestion. The 900 MHz spectrum is far less crowded, primarily used by older cordless phones and some baby monitors [4]. This lack of interference, combined with its superior wall-penetrating capabilities, makes Z-Wave highly reliable for critical applications like security sensors and door locks, where a missed signal is unacceptable. The trade-off is a strict limit on network size; a Z-Wave network is capped at 232 devices, whereas Zigbee can theoretically support over 65,000 nodes [3][4].[3][4]

The choice between these protocols ultimately hinges on the specific needs of the installation. For a sprawling property with thick walls or outbuildings, Z-Wave's physical characteristics offer a distinct advantage in range and reliability [3]. For a dense deployment of hundreds of smart bulbs and sensors within a smaller footprint, the higher bandwidth and massive node capacity of Zigbee or Thread become necessary, provided the 2.4 GHz interference is actively managed [2][5].[2][3][5]
