Why mmWave Radar is Replacing Passive Infrared in Smart Home Occupancy Sensing

On one side of the smart home industry are the defenders of Passive Infrared (PIR) sensors, who argue that a $15 device running for two years on a single coin cell battery is the perfect, proven tool for automating a hallway light.

On the other side are the early adopters of millimeter-wave (mmWave) radar, who argue that waving your arms in a dark bathroom because the sensor thinks the room is empty is an unacceptable failure of modern automation. The debate centers on a fundamental distinction in environmental monitoring: the difference between detecting motion and detecting presence.[3]

Since the earliest days of automated security, PIR sensors have been the default choice for residential and commercial occupancy controls. The U.S. Department of Energy has long recognized PIR-based systems as a proven tool for energy savings, and they remain ubiquitous in security alarms and automated lighting.

But as smart home systems have grown more sophisticated, the limitations of PIR have become the most common source of user frustration. The technology is excellent at knowing when someone enters a room, but it is notoriously bad at knowing when they stay there.[3]

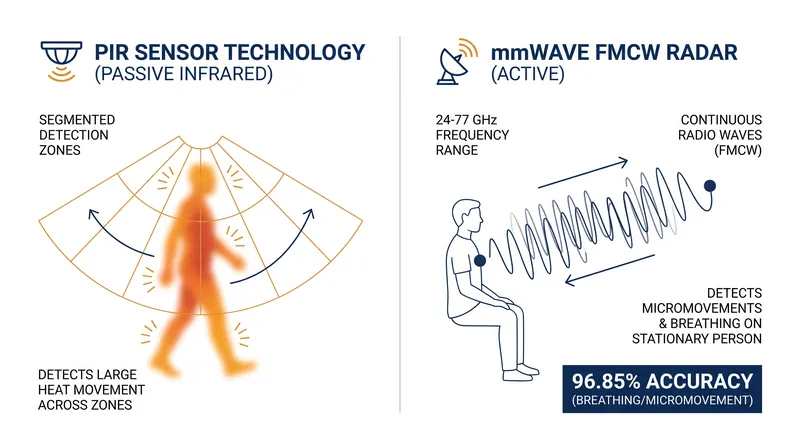

The limitation is baked into the physics of how PIR operates. A passive infrared sensor does not emit any energy; instead, it detects changes in infrared radiation—essentially, heat differences—across its field of view. When a warm human body moves across the sensor's segmented detection zones, the sudden change in thermal energy triggers an event. This mechanism is inexpensive, highly energy-efficient, and lightning-fast.[1][3]

However, if a person sits perfectly still to read a book, work at a desk, or use the restroom, the thermal delta across the sensor's zones drops to zero. The sensor assumes the room is empty and triggers the system to turn off the lights or adjust the thermostat. To prevent this, users have historically had to artificially inflate the "cooldown" period—telling the system to wait 30 minutes after the last detected motion before turning off the lights—which defeats the purpose of energy-saving automation.[2][3]

The solution rapidly gaining traction in the smart home market is millimeter-wave (mmWave) radar, specifically Frequency Modulated Continuous Wave (FMCW) technology. Unlike PIR, which passively waits for heat changes, an FMCW radar is an active sensor. It continuously emits high-frequency radio waves, typically in the 24 GHz or 60 GHz bands, and analyzes the reflections that bounce back from objects in the room.[1][3][4]

By measuring the time delay and frequency shift of the returning signals, an FMCW radar can detect incredibly subtle micro-movements. A 24GHz radar sensor is sensitive enough to detect the millimeter-scale expansion and contraction of a human chest during breathing, or even the subtle vibrations of a heartbeat. Because it detects the physiological mechanics of life rather than gross physical translation across a room, it knows a person is present even if they are completely stationary.[1][2][6]

This active detection method unlocks capabilities that PIR cannot match. Because FMCW radar measures both the distance to a target and its velocity, it can effectively filter out false positives that would confuse simpler sensors.

As engineering firm Novelic notes in its technical breakdown, "mmWave radar sensors can offer multi-modal capabilities by detecting presence, distance from the sensor, and the velocity of the target." For example, an oscillating ceiling fan or water running through a pipe has velocity, but its distance from the sensor does not change. The radar can identify these as mechanical movements and ignore them.[2]

The precision of these systems is backed by rigorous academic testing. In a 2024 study published by the IEEE, researchers tackled one of the most difficult challenges in indoor radar sensing: distinguishing between the rhythmic motion of swinging window blinds and the breathing patterns of a stationary human. By applying a three-dimensional convolutional neural network to the motion frequency data, the FMCW radar system achieved a 96.85% classification accuracy, delivering real-time presence predictions every three seconds.[7]

Furthermore, mmWave sensors allow for spatial mapping. A single sensor can track multiple people simultaneously and divide a room into virtual zones. A user can configure the system to turn on a desk lamp only when someone is sitting in the specific coordinate zone of the desk, rather than illuminating the entire room the moment someone walks through the door. Standard 24GHz FMCW modules can maintain this detection at ranges up to 10 meters.[4][6]

Despite these advantages, mmWave technology has historically faced one massive hurdle: power consumption. Emitting continuous radio waves and processing complex reflection algorithms requires significantly more energy than passively monitoring for heat. Early mmWave smart home sensors required a constant power source, forcing users to route USB-C cables across their walls or rely on hardwired installations, which severely limited placement options.[3]

To solve this, manufacturers are increasingly turning to hybrid architectures that combine both technologies into a single device. Devices like the Aqara FP300 and the SwitchBot Presence Sensor integrate a traditional PIR sensor, an ambient light sensor, and a high-frequency mmWave radar into one chassis. This allows the device to leverage the strengths of both detection modalities while mitigating their respective weaknesses.[4][5]

In these hybrid systems, the power-hungry radar is kept dormant most of the time. The ultra-low-power PIR sensor acts as a wake gate, providing lightning-fast initial detection the moment someone walks into a room. Once the PIR triggers, the device activates the mmWave radar to verify the presence and maintain the "occupied" state through micro-movement tracking.

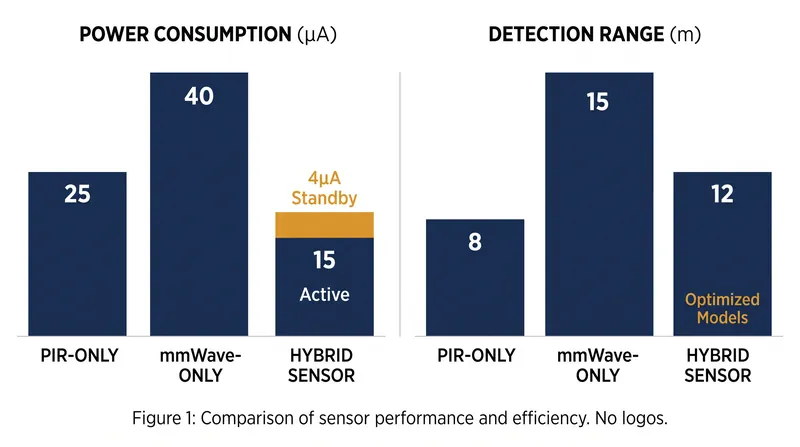

By handing off the detection duties, these optimized sensors have dropped their standby power draw to just 4 microamps. As manufacturers push these hybrid modules into the new Matter-over-Thread standard, the industry's next threshold is scaling production to bring the unit cost of a dual-sensor array down to the $15 floor currently dominated by PIR alone.[4][5]
