Why Superficial Endometriosis Evades Ultrasound Detection to Produce False-Negative Pelvic Scans

Inside the darkened reading rooms of the Society of Radiologists in Ultrasound consensus conference, specialists stared at a mechanical paradox. Millions of women were reporting debilitating pelvic pain, yet their transvaginal imaging returned completely normal results. The discrepancy was not a failure of operator skill, but a hard limit of acoustic physics.[4]

The consensus panel formally acknowledged what gynecological surgeons had known for decades regarding pelvic imaging. Standard ultrasound probes simply cannot resolve the flat, millimeter-scale lesions that characterize superficial peritoneal endometriosis, leaving the disease entirely invisible on a monitor.[4]

"A normal pelvic US examination does not exclude endometriosis," the Society concluded in its published guidelines. That single sentence explains why the average diagnostic delay for the condition still stretches between seven and ten years worldwide.[4]

To understand why these lesions vanish on a screen, one must look at how diagnostic sonography actually builds an image. A transvaginal probe emits high-frequency sound waves that travel through the pelvic cavity and interact with the surrounding tissue.[3]

When those acoustic waves hit a dense structure—like a fibroid, a cyst, or a thick nodule of deep infiltrating endometriosis—they bounce back. The machine's transducer catches these returning echoes and translates them into the grayscale pixels of a sonogram.[5]

The Physics of Acoustic Reflection

The system relies entirely on acoustic impedance, which is the resistance sound waves encounter when moving between tissues of different densities. If there is no significant difference in density between two structures, there is no echo for the machine to record.[7]

This is exactly where superficial peritoneal implants exploit a blind spot in the technology. These lesions grow on the peritoneum, the thin, clear membrane that lines the inside of the abdominal cavity and covers the pelvic organs.[1]

Unlike deep infiltrating endometriosis, which burrows more than five millimeters into organs and creates dense, fibrotic scar tissue, superficial implants are essentially two-dimensional. They sit flat against the peritoneal lining like a thin coat of paint.[2]

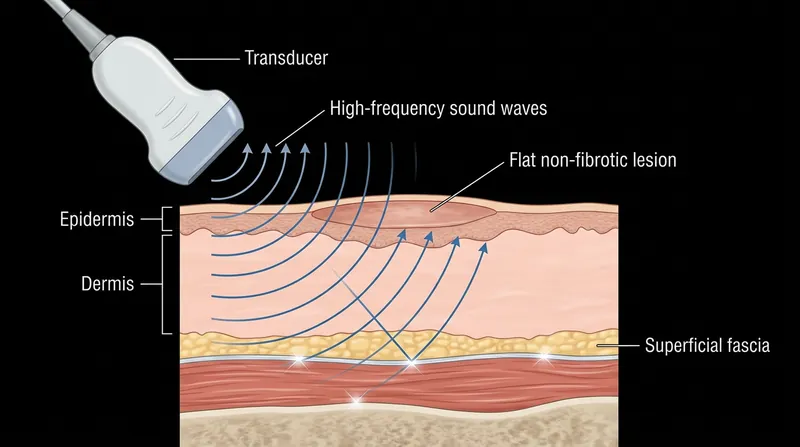

Because they lack fibrotic bulk, superficial lesions do not alter the acoustic impedance of the surrounding tissue. The ultrasound waves pass straight through them without bouncing back to the probe, rendering the disease entirely invisible to the software.[7]

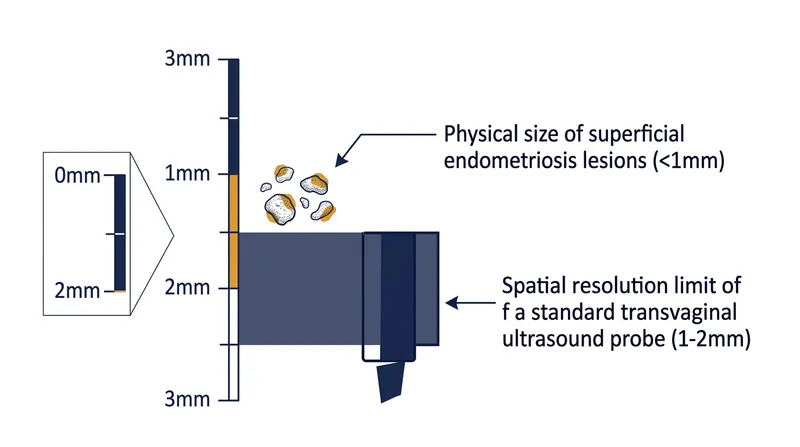

Furthermore, the physical size of these implants falls below the spatial resolution limit of standard clinical ultrasound machines. Most transvaginal probes operate at frequencies that can only resolve physical structures down to one or two millimeters in size.[4]

Superficial lesions are frequently smaller than a single millimeter in depth. Even if they possessed the density to reflect an echo, the machine's software could not draw a distinct pixel for something that microscopic.[7]

The Morphological Camouflage

Superficial peritoneal implants are not uniform in appearance, presenting in a variety of colors and shapes. While some are classic blue-black powder-burn lesions, others manifest as subtle clear, red, or white vesicles that blend into the pelvic environment.[2]

A clear or red vesicular lesion is highly vascularized and filled with fluid that perfectly mimics the acoustic properties of the healthy peritoneal fluid surrounding it. This biological camouflage strips the ultrasound of the contrast it needs to draw an edge.[7]

Because the ultrasound machine relies on contrast between tissues to differentiate structures, these fluid-filled lesions blend seamlessly into the background noise of the scan. The radiologist sees a perfectly healthy pelvic cavity, while the patient experiences severe inflammatory pain.[7]

This mechanical limitation would be a minor issue if superficial disease were rare. However, clinical data shows that superficial peritoneal implants are the most common presentation of the condition, appearing in roughly 80 percent of all endometriosis cases.[2]

For many patients, it is the only type of endometriosis they have. A woman can have dozens of active, bleeding superficial lesions scattered across her pelvis, generating severe inflammation, while her reproductive organs appear structurally perfect on a scan.[6]

A Systemic Inflammatory Response

"Endometriosis is a systemic disease," explains Dr. Hugh Taylor, a leading researcher in the field. He notes that the localized lesions trigger widespread inflammatory responses that affect the entire body, even when the implants themselves are too small to see.[6]

The International Deep Endometriosis Analysis group published a systematic approach to sonographic evaluation in an attempt to standardize how radiologists look for the disease. Their 2016 protocol is highly effective at mapping advanced pathology and structural damage.[5]

The protocol directs sonographers to look for "sliding signs" to detect adhesions, and to systematically scan the anterior and posterior compartments for deep nodules. Yet, even this rigorous framework concedes that superficial implants will evade detection.[5]

Instead of just taking static pictures of the uterus and ovaries, the technician uses the ultrasound probe to gently push on the pelvic organs. They watch the monitor to see if the organs slide freely against one another.[5]

If the bowel or uterus appears stuck, it indicates that endometriosis has created sticky adhesions binding the organs together. While this dynamic test is a brilliant workaround for detecting secondary effects, it requires the disease to have caused structural tethering.[5]

Early-stage superficial lesions that have not yet caused adhesions will pass this dynamic test perfectly. The organs will slide freely, the scan will be marked normal, and the underlying microscopic disease will continue to spread unchecked.[5]

The Psychological Toll of False Negatives

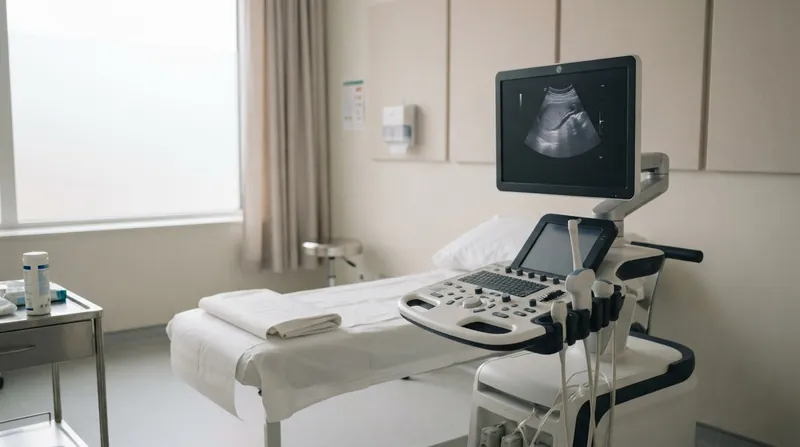

The disconnect between the severity of a patient's symptoms and the clarity of her imaging results frequently leads to medical gaslighting. When a scan comes back clear, physicians without specialized training often conclude the pain is psychosomatic or normal menstrual cramping.[1]

The National Institute for Health and Care Excellence in the UK explicitly warns against this assumption in its clinical guidelines. The agency directs physicians to listen to the patient's clinical history rather than relying solely on imaging results.[1]

"Do not exclude the possibility of endometriosis if the abdominal or pelvic examination, ultrasound or MRI are normal," the NICE guideline states. The directive aims to stop the cycle of dismissal that leaves patients suffering without medical intervention.[1]

The American College of Obstetricians and Gynecologists echoes this stance in its Practice Guideline No. 11. The organization recommends that clinicians initiate empirical medical therapy, such as hormonal suppression, based on symptoms alone rather than waiting for proof.[8]

When an ultrasound returns clear, patients frequently ask to be sent for a Magnetic Resonance Imaging scan. They assume the larger, more expensive machine will reveal the hidden lesions that the ultrasound probe missed.[3]

Why MRI Faces the Same Limits

Unfortunately, MRI faces a similar physical limitation regarding spatial resolution. While MRI uses magnetic fields and radio waves rather than sound, its resolution for routine pelvic scans is still generally limited to slices of two to three millimeters.[3]

A flat, one-millimeter superficial lesion will fall between the imaging slices or be lost in the volume averaging of the pixels. The Cochrane review found that neither modality is equipped to definitively rule out superficial disease.[3]

If ultrasounds cannot see the most common form of the disease, patients often wonder why the test is universally ordered. The answer lies in surgical planning and ruling out other acute conditions before entering an operating room.[3]

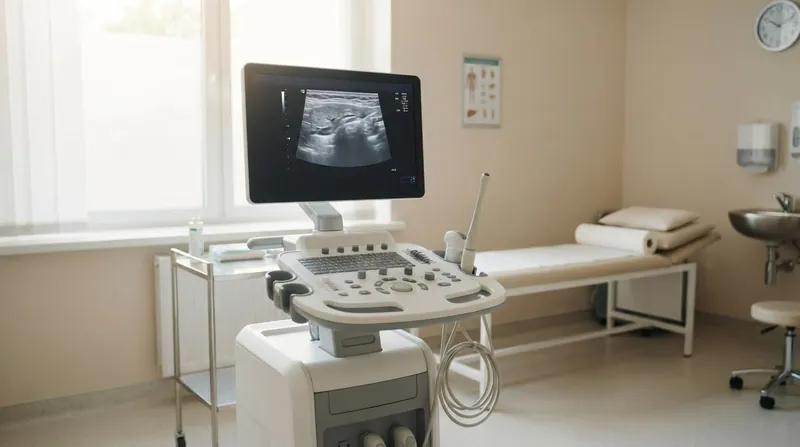

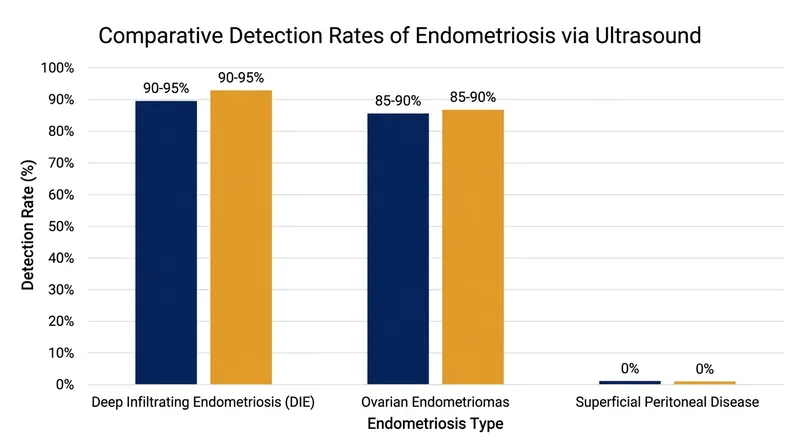

A transvaginal ultrasound is highly accurate at identifying ovarian endometriomas, commonly known as chocolate cysts. It is also the best first-line tool for detecting deep infiltrating endometriosis that has invaded the bowel, bladder, or ureters.[5]

Knowing whether a patient has deep disease or large cysts is critical before surgery begins. A surgeon needs to know if they will require a bowel resection specialist or if the procedure will be a straightforward excision of surface lesions.[2]

The Shift Toward Clinical Diagnosis

Because imaging cannot bridge the resolution gap, the only definitive way to diagnose superficial peritoneal endometriosis remains diagnostic laparoscopy. This minimally invasive surgery allows a specialist to physically look inside the pelvic cavity with a camera.[8]

During a laparoscopy, a trained excision surgeon can visually identify the flat, atypical lesions that ultrasound waves pass right through. They can then cut the tissue out and send it to a pathology lab for microscopic confirmation.[2]

However, surgery carries inherent risks, requires general anesthesia, and is expensive. This is why the European Society of Human Reproduction and Embryology updated its 2022 guidelines to emphasize clinical diagnosis over immediate surgical intervention.[2]

The European guidelines advise clinicians to treat suspected endometriosis medically first. They reserve surgery for patients who do not respond to medication, those with complex deep disease visible on scans, or those facing infertility challenges.[2]

By recognizing the mechanical limitations of ultrasound, modern guidelines empower primary care physicians to validate a patient's pain immediately. Initiating treatment with continuous oral contraceptives can suppress the hormonal fluctuations that feed the invisible lesions.[8]

Until imaging technology advances to a point where acoustic waves can resolve sub-millimeter, non-fibrotic tissue, the clear ultrasound will remain a frustrating milestone. The medical community's challenge is ensuring that a negative scan is understood as a limitation of the machine, not a dismissal of the patient.[4]
