Why Pilates Springs Demand Peak Force When Your Muscles Are Mechanically Weakest

Pushing a Pilates carriage to its absolute limit forces the body to abandon its primary strength muscles and rely entirely on secondary stabilizers to hold the position. The physical design of the reformer creates a unique mechanical environment where resistance peaks exactly when human joints are least equipped to handle it.[2][3]

This phenomenon explains why a seemingly light spring can induce intense shaking during the final inches of a leg press or arm sweep. The human body operates on rotational levers that are strongest in their mid-range, but the equipment operates on linear springs that only get heavier as they stretch.[2][5]

"The reformer fundamentally inverts the natural human strength curve," explains Dr. Sarah Jenkins, a biomechanics researcher studying variable resistance. "You are asking a joint to produce maximum torque at the precise degree of flexion or extension where its mechanical advantage is lowest."[1]

Understanding this paradox changes how practitioners approach the equipment. Instead of pushing through the end of a movement to build raw power, the terminal angle becomes a tool for neuromuscular control, forcing the brain to coordinate joint stability under duress.[4]

The linear resistance mismatch

The core mechanism driving this effect is Hooke’s Law, a physics principle dictating that the force needed to extend a spring scales linearly with distance. If a standard reformer spring requires 10 pounds of force to stretch 12 inches, it requires 20 pounds to stretch 24 inches.[2][5]

Consequently, the reformer carriage delivers its absolute maximum resistance at the very end of the track. A practitioner performing a chest expansion faces the heaviest load just as their arms reach full extension behind their torso, often stretching the springs up to 36 inches.[2]

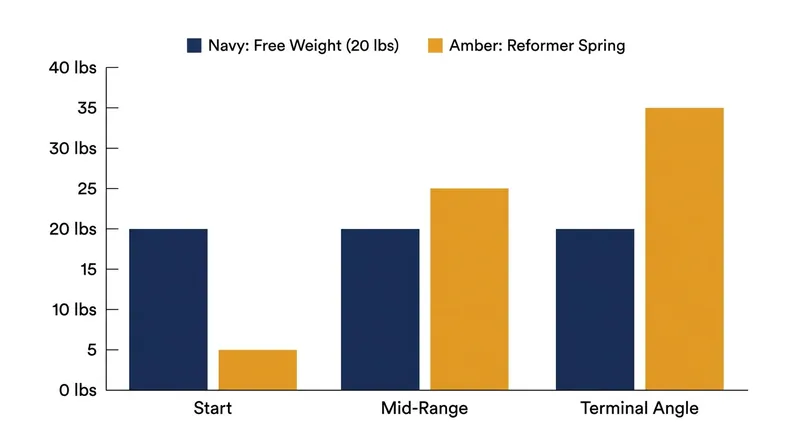

Free weights behave entirely differently. A 20-pound dumbbell provides a constant gravitational load throughout the entire range of motion, allowing the lifter to rely on momentum and optimal joint angles to move the weight through the mechanical sticking point.[5]

"When you lift a kettlebell, the hardest part is usually the middle of the lift," notes physical therapist Marcus Thorne. "With elastic resistance, the hardest part is the lockout, which completely alters which muscle fibers are recruited to finish the job."

Why terminal angles weaken muscles

Human joints do not generate force linearly. Muscle fibers operate on a length-tension relationship, meaning they produce the most power when they are at a resting, intermediate length where cellular cross-bridges optimally overlap.[1]

When a muscle is fully shortened or fully stretched—such as the triceps at full elbow extension—its capacity to generate force drops by up to 40 percent. The joint's moment arm, or leverage, also shrinks dramatically at these extreme angles.[1][3]

This creates the central paradox of Pilates spring work. At the exact moment the muscle is mechanically compromised by its shortened length and poor leverage, the spring reaches its maximum stretch and delivers its highest physical resistance.[2][3]

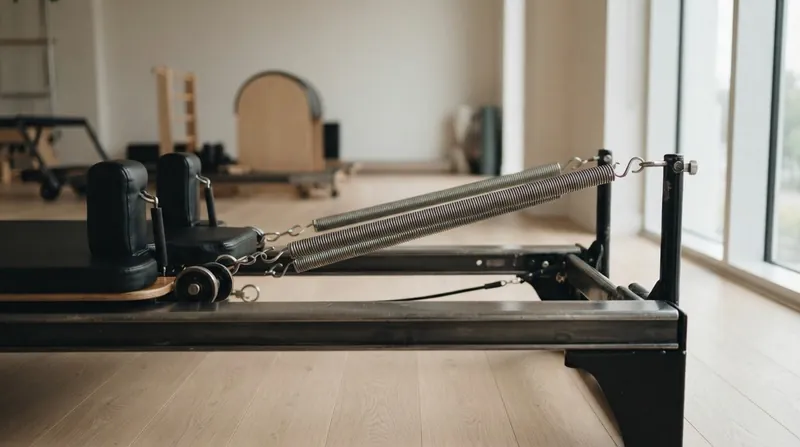

To bridge this gap between high demand and low capacity, the central nervous system must instantly recruit smaller, deeper stabilizing muscles around the joint. The prime movers simply lack the leverage to hold the carriage steady on their own.[4]

Forcing the nervous system to adapt

This forced recruitment of stabilizers is what practitioners often describe as the "Pilates shake." Because the primary muscles cannot overpower the spring at the terminal angle, the nervous system rapidly fires motor units in adjacent muscles to prevent the carriage from snapping back.[2][4]

Clinical data shows this adaptation significantly improves joint proprioception. By repeatedly challenging the joint at its weakest point, the body builds a more robust neural pathway to protect the capsule from unexpected loads in daily life.[4]

A 2024 analysis of electromyography readings shows a distinct shift during the final 15 degrees of a reformer stroke. The global muscles quiet down, and the local stabilizers spike in electrical activity to manage the peak spring tension.[1]

However, this same mechanism makes pushing to muscular failure on a reformer potentially hazardous. If the stabilizers fatigue while the spring is at maximum tension, the joint is left vulnerable to the retracting force, increasing the risk of capsular strain.[4]

Adjusting technique for the strength curve

Recognizing this biomechanical reality changes how a practitioner should select spring tensions. Choosing a heavier spring does not simply make the exercise harder; it exponentially increases the load at the terminal angle, often forcing the body to break form.[3][4]

If the resistance exceeds the stabilizers' capacity at the end of the movement, the body will compensate by shifting the load to other joints. A practitioner might arch their lower back or elevate their shoulders to find a better mechanical advantage.[2]

Dropping to a lighter spring allows the practitioner to reach the terminal angle with perfect alignment. The goal is not to move the heaviest possible carriage, but to expose the joint to manageable tension exactly where it is weakest.[4]

Ultimately, the reformer is not a tool for building maximal absolute strength. It is an engineered environment designed to expose and strengthen the specific mechanical vulnerabilities that traditional free weights naturally bypass.[3][5]

Managing the return phase

The paradox extends into the eccentric, or return, phase of the movement. As the practitioner begins to release the carriage, the spring is still holding near-peak tension of perhaps 30 to 40 pounds while the muscle remains in its mechanically disadvantaged shortened state.[2]

This requires immense eccentric control to prevent the carriage from accelerating abruptly. The muscle must slowly lengthen while absorbing the highest initial force, a process that causes significant micro-tearing and subsequent tissue remodeling.[1][4]

"The return stroke is where the actual tissue adaptation occurs," Thorne explains. "If you let the spring pull you back, you lose the primary benefit of the variable resistance curve and bypass the stabilizers entirely."[5]

By forcing the body to manage peak loads at terminal angles, elastic resistance training fundamentally rewires how the brain coordinates movement. It trains the nervous system to prioritize joint stability over raw momentum, creating functional strength that translates directly to injury prevention.[3][4]
