Why Microwaves Require Turntables to Move Food Through 6.1-Centimeter Standing-Wave Hot Spots

A conventional oven surrounds a meal in a uniform blanket of hot air, slowly driving thermal energy from the outside in. A microwave oven, by contrast, throws invisible electromagnetic waves directly into the food's water molecules. Yet it does so with profound spatial unevenness, projecting a fixed, three-dimensional grid of intense heat and absolute zero.

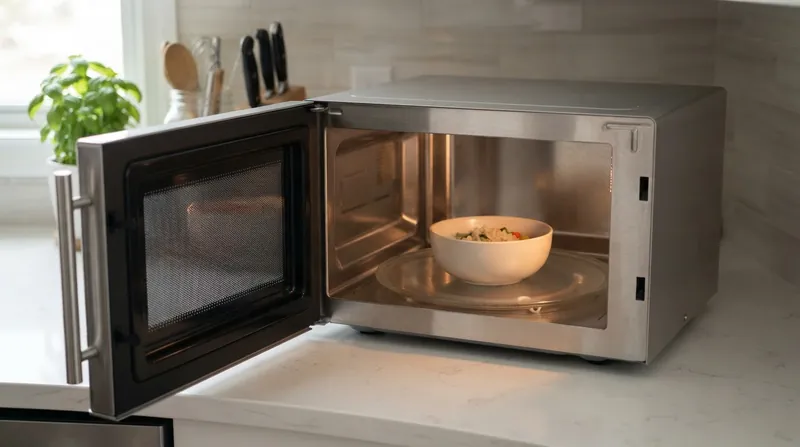

This unevenness is not a design flaw, but an inescapable consequence of wave physics. The appliance relies on a mechanical turntable to drag the plate through these stationary pockets of energy. Without that rotation, a meal would emerge simultaneously boiling and frozen.

The Geometry of a Standing Wave

The magnetron inside a standard domestic microwave generates electromagnetic radiation at a frequency of 2.45 gigahertz. This means the electric and magnetic fields reverse direction 2.45 billion times every second. The United States Food and Drug Administration mandates this specific frequency band for household appliances to prevent interference with telecommunications.[2]

This frequency is highly effective at dielectric heating. Water molecules are polar, meaning they carry a slight positive charge on one end and a negative charge on the other. As the electromagnetic field rapidly alternates, the water molecules physically flip back and forth billions of times per second, generating immense molecular friction.[4]

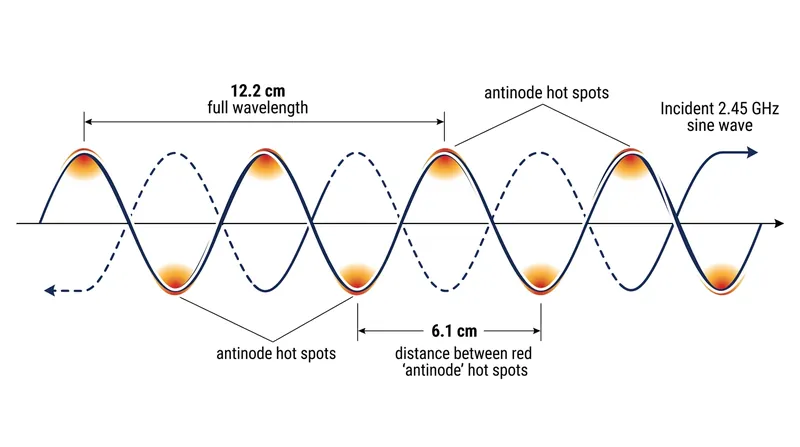

As these high-energy waves flood the metal-lined cooking cavity, they reflect off the walls and cross paths. When two identical waves travel in opposite directions and superpose, they form what physicists call a standing wave. Rather than propagating forward like ripples on a pond, the wave appears to oscillate in place.[3]

This interference creates a permanent architectural pattern inside the box. At specific points called nodes, the waves cancel each other out entirely, leaving the electromagnetic field at zero. Midway between these dead zones lie the antinodes, where the waves amplify each other to create points of maximum displacement and intense thermal energy.[3]

Calculating the Hot Spots

The physical distance between these intense hot spots is dictated entirely by the speed of light. Because all electromagnetic radiation travels at exactly 299,792,458 meters per second in a vacuum, dividing that velocity by the 2.45-gigahertz frequency yields a wavelength of approximately 12.2 centimeters.[3]

In a standing wave, the antinodes occur exactly every half wavelength. This means the absolute peaks of cooking power inside the appliance are permanently stationed 6.1 centimeters apart. A plate of food sitting stationary inside the cavity rests across a patchwork of these 6.1-centimeter intervals.[5]

Consequently, the food absorbs massive energy in some locations and none in others. "When waves interfere constructively, the amplitude doubles and the energy of the wave increases," notes Science ABC. "When this happens in the microwave cavity, a hot spot is created that warms the food near it."[1]

The inverse is equally true. "When the waves interfere destructively, there is no net radiation, which creates a cold spot," the outlet explains. Because the metal walls of the cavity do not move, this three-dimensional grid of hot and cold spots remains entirely stationary while the appliance runs.[1]

The Mechanical Solution

Because the electromagnetic grid cannot be smoothed out, the food itself must move. Early commercial microwaves in the 1950s struggled with this uneven heating, often requiring users to manually pause the cycle and rotate their dishes. The rotating glass turntable solved the standing-wave problem mechanically rather than electromagnetically.[4]

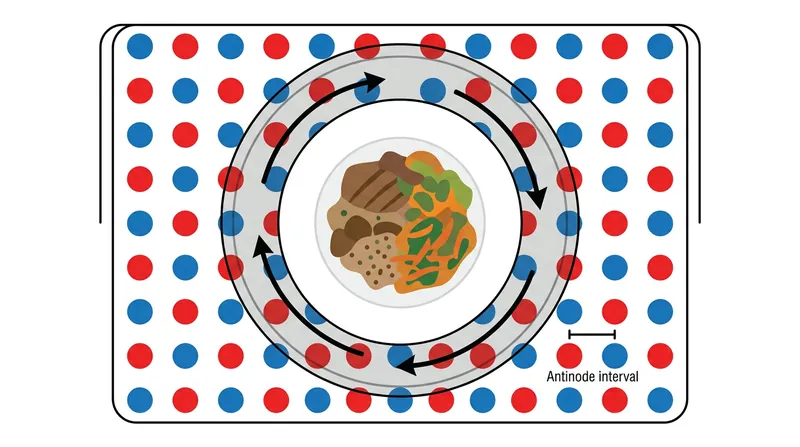

As the platter turns, it sweeps every sector of the meal through the fixed 6.1-centimeter antinodes. A piece of chicken that spends three seconds in a dead node is soon carried into a maximum-energy hot spot. This constant transit averages out the thermal delivery over the duration of the cooking cycle.[5]

This geometry explains why the exact center of the turntable is the worst place to position a dense item. Because the center point merely spins in place rather than traveling a wide circumference, it does not sweep through multiple standing-wave peaks. It remains vulnerable to resting permanently inside a cold node.[5]

The physical properties of the food also dictate how effectively the turntable can average out the heat. Liquid water responds instantly to the 2.45-gigahertz frequency, but ice forms a rigid crystalline lattice that locks the polar molecules in place. This prevents them from rotating freely in the electromagnetic field.[4]

Beyond the Turntable

Because ice absorbs microwaves so poorly, a frozen meal relies heavily on conduction. The edges melt first as they pass through the 6.1-centimeter hot spots, turning into liquid water that rapidly absorbs more energy. That heat must then physically conduct inward to thaw the frozen center.[4]

Modern flatbed microwaves eliminate the turntable entirely by hiding a rotating antenna, known as a mode stirrer, beneath the floor of the cavity. Instead of moving the food through the stationary wave pattern, the spinning metal fan constantly alters the reflection angles inside the box.[1]

This scrambles the standing waves, forcing the hot spots to sweep rapidly across the stationary food. While this maximizes the usable space inside the appliance, the underlying physics remain identical. The 2.45-gigahertz waves still cross, and the antinodes still form every 6.1 centimeters.[1]

Whether the food moves through the waves, or the waves move through the food, the 12.2-centimeter wavelength cannot be cheated. The speed of light and the frequency of the magnetron dictate the geometry of the heat, leaving mechanical rotation as the only way to cook a meal evenly.[5]

Measuring Light in the Kitchen

This fixed geometry makes the household microwave an accessible laboratory instrument. Physics educators frequently use the appliance to demonstrate wave mechanics to students, relying on the visible effects of the 6.1-centimeter antinodes to measure the speed of light directly on a kitchen counter.[3]

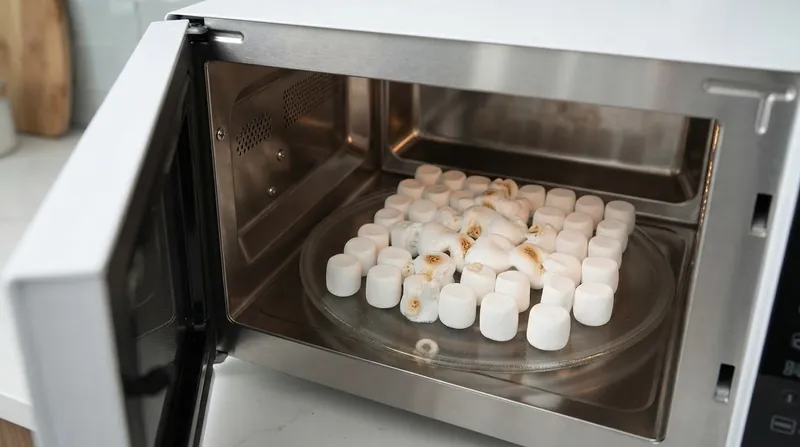

By removing the turntable and heating a flat layer of chocolate or marshmallows, the stationary hot spots become visible as melted pools. Measuring the distance between these pools confirms the 6.1-centimeter half-wavelength. Multiplying that distance by two yields the full 12.2-centimeter wavelength.[3]

When that wavelength is multiplied by the 2.45-billion-hertz frequency printed on the back of the appliance, the result matches the speed of electromagnetic waves in a vacuum. The same physical constant that governs the cosmos dictates exactly why a bowl of soup requires a rotating glass plate.[5]
