Why Documentary Sound Crews Swap Shotgun Microphones for Hypercardioids During Indoor Dialogue

Amateur filmmakers and entry-level audio tutorials routinely claim that a shotgun microphone is the ultimate tool for isolating dialogue in any environment. Because the microphone looks like a precision instrument, the assumption is that it acts like a laser pointer, capturing only what it directly faces and ignoring the rest of the room.[2]

The physical evidence dictates otherwise. The exact acoustic mechanism that gives a shotgun microphone its pinpoint outdoor reach actively degrades human speech when brought inside a standard room. When a documentary sound mixer walks through a doorway, the long shotgun microphone goes back into the case, replaced immediately by a shorter, stubbier hypercardioid condenser.

The swap is not a matter of physical clearance or weight. It is a strict mathematical necessity driven by how sound waves behave when they bounce off drywall and plaster. Using a shotgun microphone under a low ceiling forces the equipment to process reflections it was never designed to handle, resulting in a hollow, metallic vocal track.[1][4]

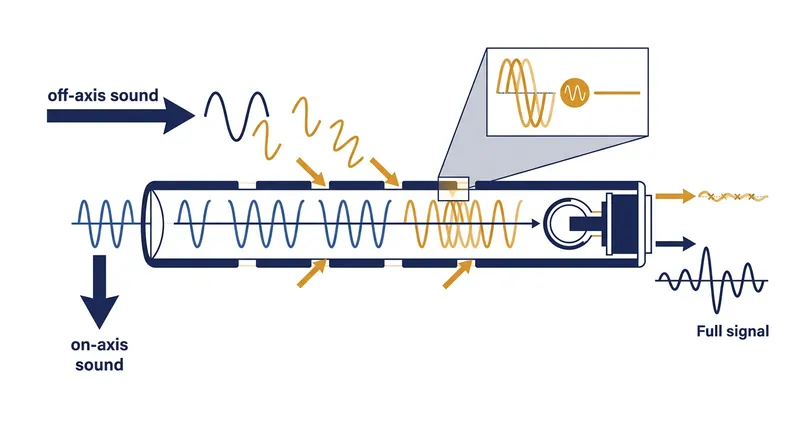

To understand why the microphone fails indoors, one must look at how it succeeds outdoors. A shotgun microphone achieves its extreme directionality through a hollow, slotted cylinder called an interference tube, which sits directly in front of the microphone capsule. Sound arriving from straight ahead travels down the tube unimpeded and strikes the diaphragm.[4]

Sound arriving from the sides, however, enters through the precisely spaced slots along the length of the barrel. Because these off-axis sound waves enter multiple slots simultaneously, they travel different distances to reach the capsule. This staggered arrival time means the waves hit the diaphragm out of phase, effectively canceling each other out.[4]

The Comb Filtering Effect

Outdoors, this phase-cancellation system works flawlessly to erase ambient traffic or wind noise. But indoors, the primary sound source—the subject’s voice—radiates outward and bounces off the ceiling, the floor, and the walls. These rapid, hard-surface reflections ricochet back toward the microphone from multiple side angles.[1]

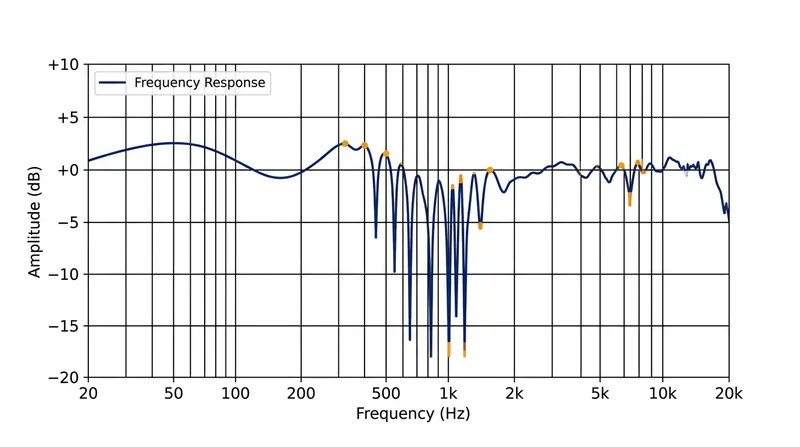

When these early reflections enter the interference tube’s side slots, they do not just cancel out background noise. They cancel out specific frequencies of the subject’s own voice. Because the reflections arrive mere milliseconds after the direct sound, the phase cancellation creates a phenomenon known as comb filtering, named for the tooth-like gaps it leaves in a frequency spectrum analyzer.[4]

The severity of the comb filtering depends entirely on the length of the interference tube and the distance to the ceiling. A standard ten-inch shotgun microphone typically begins phase-canceling audio at a crossover frequency of around 500 to 1,000 hertz. Because human speech sits squarely in this range, the destructive interference targets the most critical part of the signal.[4]

Comb filtering aggressively hollows out the human vocal range, leaving the audio sounding thin, phasey, and distinctly unnatural, as if the subject were speaking from inside a tin can. No amount of post-production equalization can restore the frequencies that the interference tube physically erased before the signal reached the recorder.[1]

This acoustic trap obliges professional sound crews to rely on a completely different piece of technology for indoor dialogue: the hypercardioid microphone. Often referred to as a small diaphragm condenser or a pencil mic, a hypercardioid achieves its directional pickup pattern entirely through the acoustic design of its capsule, completely omitting the slotted interference tube.[1][2]

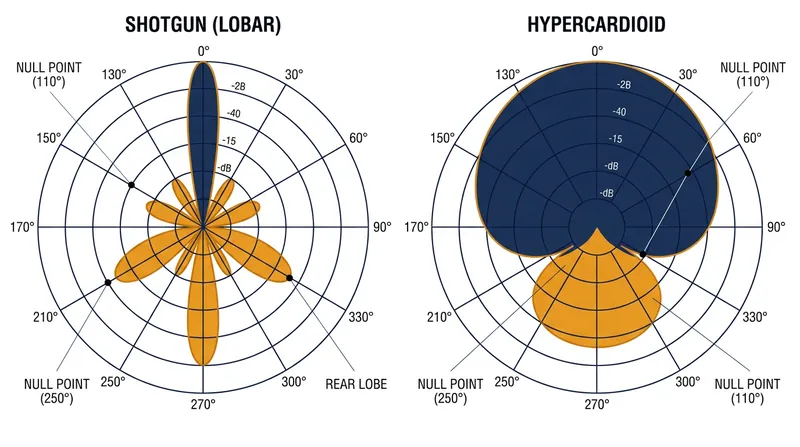

Without an interference tube, a hypercardioid microphone cannot aggressively phase-cancel off-axis sound. Instead, it relies on a naturally tight pickup pattern that gradually rejects sound as it moves away from the center axis. The microphone features two distinct null points of maximum rejection, typically sitting at 110 degrees and 250 degrees from the front.[1][2]

The hypercardioid achieves this specific rejection geometry by carefully venting the rear of the microphone capsule. By allowing a calculated amount of sound pressure to reach the back of the diaphragm, the manufacturer creates a pressure gradient that naturally deafens the microphone to audio arriving from the immediate sides.[1]

Managing the Proximity Effect

Because a hypercardioid does not delay incoming sound waves, ceiling and wall reflections do not trigger comb filtering. The off-axis reverberation that does reach the capsule sounds natural and uncolored, accurately reflecting the acoustic reality of the room rather than a phase-distorted artifact. The dialogue remains rich, full, and mathematically intact.

However, the hypercardioid design introduces its own physical trade-offs that a boom operator must actively manage. The narrow front pickup area creates a highly pronounced proximity effect, meaning that low-frequency bass frequencies increase dramatically as the microphone moves closer to the speaker's mouth. This requires precise distance management and careful high-pass filtering at the mixer.[2]

Furthermore, the physics of a hypercardioid capsule inherently produce a rear lobe of sensitivity. While the microphone rejects sound from the sides, it picks up audio originating directly behind it. If a boom operator angles the microphone so its rear points at a noisy air conditioning vent, that mechanical hum bleeds straight into the dialogue track.[2]

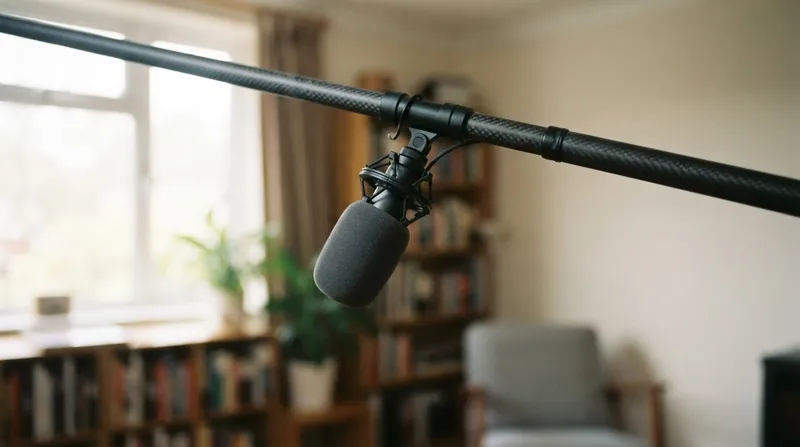

To combat this rear-lobe vulnerability, sound mixers must constantly calculate the geometry of the room. The boom operator typically positions the hypercardioid microphone two to three feet overhead, angling it downward toward the subject's sternum. This geometry ensures the rear lobe points up at a quiet, dead section of the ceiling rather than a noisy appliance.

The working distance is also strictly governed by the microphone's acoustic reach. The distance factor of a standard cardioid microphone allows it to be placed 1.7 times further from a sound source than an omnidirectional microphone while maintaining the same ratio of direct sound to ambient noise. A hypercardioid extends this reach slightly, but it still demands close proximity.[1][2]

The Limits of Acoustic Treatment

If an indoor location is exceptionally large and heavily treated with acoustic dampening—such as a dedicated Hollywood soundstage—the rules occasionally bend. In a space where heavy baffling absorbs early reflections before they can bounce, a shotgun microphone can sometimes be deployed indoors without triggering severe comb filtering.

But documentary crews rarely work on treated soundstages. They shoot in tiled kitchens, glass-walled corporate boardrooms, and cramped residential bedrooms. In these highly reflective, uncontrolled acoustic environments, the interference tube is a liability rather than an asset, magnifying the room's worst sonic characteristics.

When a documentary scene transitions seamlessly from an interior room to an exterior street, the sound mixer faces a logistical hurdle. Because swapping microphones takes time, crews often deploy a hypercardioid for the entire sequence, accepting a slightly wider outdoor pickup pattern to guarantee the indoor dialogue remains free of phase artifacts.

As digital noise-reduction software becomes increasingly sophisticated, the physical limitations of interference tubes remain a hard boundary. Software can easily strip a steady mechanical hum from a dialogue track, but it cannot mathematically reconstruct vocal frequencies that a shotgun microphone's phase-cancellation slots erased before the audio ever reached the recorder.[3][4]
