Why 32-Bit Pointers Lack the Entropy to Support Address Space Layout Randomization

For memory randomization to protect a system, the attacker must be mathematically incapable of guessing where a vulnerable program resides. That constraint requires a search space so vast that brute-force guessing triggers a system crash before the correct address is found. On 32-bit architectures, this fundamental condition simply does not hold.[1]

Address Space Layout Randomization serves as the primary defense against memory corruption exploits. By shifting the locations of the stack, heap, and libraries every time a program executes, the operating system attempts to blind the attacker. If the exploit cannot find its target, the malicious payload fails to execute.

Security vendors frequently market this randomization as a robust, impenetrable shield for legacy hardware. The reality is that the effectiveness of this defense scales directly with the size of the address space. A smaller address space provides fewer hiding places, reducing the mathematical complexity of the attacker's task.[5]

The security industry often treats randomization as a binary checkbox on compliance audits. However, researchers have long known that the protection is entirely quantitative. The metric that defines this protection is entropy, which measures the number of unpredictable bits in a memory address.[1]

When entropy falls below a certain threshold, the defense degrades from a mathematical impossibility to a minor computational delay. On modern processors, guessing a low-entropy address takes milliseconds. This transforms a theoretical security feature into a fragile barrier that automated exploit scripts easily bypass.[3]

The Anatomy of a 32-Bit Address Space

A 32-bit processor can natively address exactly 4,294,967,296 bytes, or four gigabytes of memory. This hard limit defines the absolute maximum boundaries of the playground where the operating system can hide executing code. Every application and system library must fit within this confined mathematical box.

However, an application never gets access to that entire four-gigabyte range. Operating systems typically divide this space in half, reserving the upper two gigabytes exclusively for the kernel. This architectural split immediately removes one bit of potential entropy, leaving only two gigabytes for the user-space program.[2]

"The 2GB/2GB user-kernel split is a fundamental design choice in 32-bit Windows and Linux," notes the Linux kernel documentation. "This immediately halves the available virtual address space before any randomization even begins." This structural limitation forms the first major bottleneck for memory security.[2]

Within that remaining two-gigabyte space, the operating system must load the executable, its dependencies, the heap, and the stack. These components cannot simply be placed at any arbitrary byte address. Hardware memory management units require that memory allocations align with specific boundaries to function efficiently.

This alignment requirement introduces the second massive reduction in available entropy. The operating system cannot hide a library at byte 1,025 or 1,026; it must place it at a mathematically convenient boundary. This predictability gives attackers a massive advantage when scanning for vulnerable code.[1]

Subtracting the Architectural Overhead

Modern processors manage memory in discrete chunks called pages, which are almost universally 4,096 bytes in size. Because memory mapping occurs at the page level, every randomized address must be a multiple of 4,096. This hardware constraint is non-negotiable for system performance.[2]

Mathematically, requiring a 4-kilobyte alignment means the lowest 12 bits of any memory address are always zeroes. The attacker never has to guess these bits because they never change. Subtracting these 12 bits from the address space drastically shrinks the remaining pool of unpredictable locations.[1]

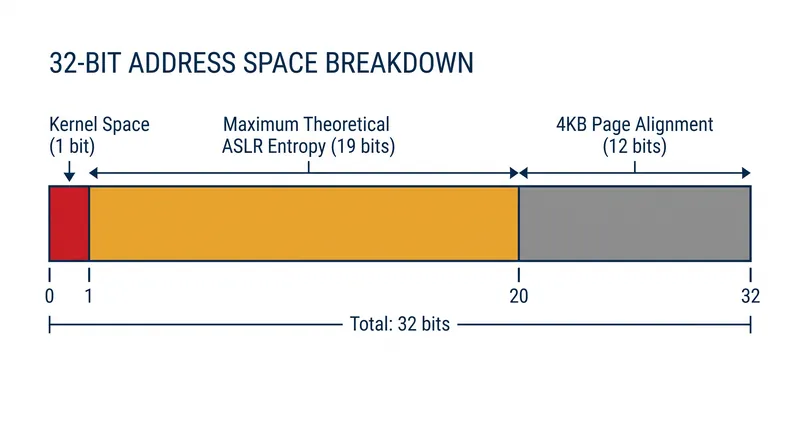

Starting with a 32-bit address, subtracting the one bit for the kernel split and the 12 bits for page alignment leaves a maximum theoretical entropy of 19 bits. In a perfect implementation, the operating system would have 524,288 possible locations to hide a memory segment.[5]

In practice, operating systems cannot even utilize those remaining 19 bits. Fragmentation and the need to keep memory segments contiguous force developers to restrict randomization further. Most 32-bit operating systems cap their actual randomization entropy at just 8 to 16 bits to maintain system stability.

"When we implemented ASLR for 32-bit architectures, we had to balance security against address space fragmentation," explains a Microsoft security engineering bulletin. "Providing more than 8 bits of entropy for the heap often caused large allocations to fail." This compromise leaves the system highly vulnerable.

The Brute-Force Reality of Low Entropy

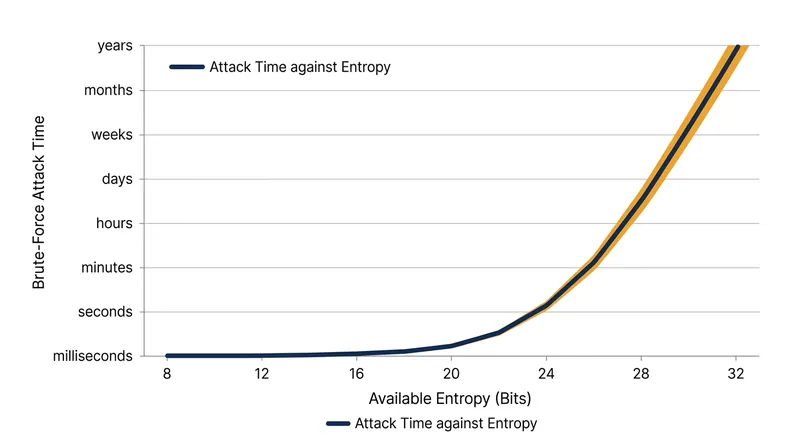

An entropy level of 16 bits means there are only 65,536 possible locations for a randomized memory segment. If the entropy drops to 8 bits, that number plummets to just 256 possible locations. These numbers are catastrophically small for modern computing speeds.[3]

In a brute-force attack, a malicious script simply guesses an address, attempts the exploit, and catches the resulting crash if it guesses wrong. If the target application automatically restarts after a crash, the attacker can rapidly cycle through all possible memory locations.[4]

A classic 2004 paper by Hovav Shacham and colleagues demonstrated that 16 bits of entropy could be brute-forced in exactly 216 seconds on a standard server. Processor speeds have increased exponentially since then, reducing that timeframe to a fraction of a second on contemporary hardware.[1]

"The fundamental flaw in 32-bit ASLR is that the search space is small enough to be exhausted before administrators even notice the crash logs," the Phrack vulnerability research group noted. "It is a speed bump, not a wall." The math heavily favors the attacker.[3]

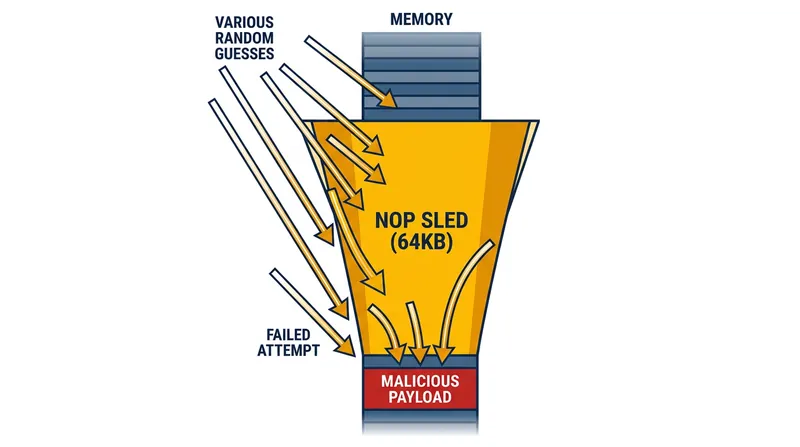

To make matters worse, attackers rarely need to guess the exact starting address of a payload. By padding their exploit with a 'NOP sled'—a long sequence of harmless instructions that slide the execution flow into the malicious code—they effectively widen their target.[4]

How Attackers Exploit the Mathematical Limit

A NOP sled acts like a massive funnel for the exploit. If the attacker pads their payload with 64 kilobytes of these harmless instructions, they reduce the required precision of their guess. This technique directly cancels out several bits of the already limited entropy.[4]

When an attacker combines a NOP sled with a low-entropy 32-bit system, the number of required guesses drops into the dozens. A web server handling thousands of requests per second can be compromised almost instantly, as the exploit blends in with normal traffic volume.[3]

Security vendors often obscure this vulnerability by highlighting the presence of ASLR rather than its mathematical strength. A product datasheet will proudly declare that memory randomization is active, ignoring the fact that a 32-bit environment renders the feature structurally deficient.[5]

This false sense of security is particularly dangerous in industrial control systems and embedded IoT devices. These sectors rely heavily on legacy 32-bit microcontrollers, and administrators often assume their networks are protected by modern exploit mitigations. The underlying math proves otherwise.[5]

The National Vulnerability Database frequently logs exploits that specifically target 32-bit applications running on modern servers. Because the application itself is compiled for a 32-bit architecture, it inherits the constrained address space, even if the host operating system is fully modernized.[4]

The 64-Bit Transition and Future Mitigations

The only permanent mathematical solution to this entropy deficit is migrating to a 64-bit architecture. A 64-bit processor expands the theoretical address space to 16 exabytes, providing an astronomically larger canvas for the operating system to randomize memory locations.

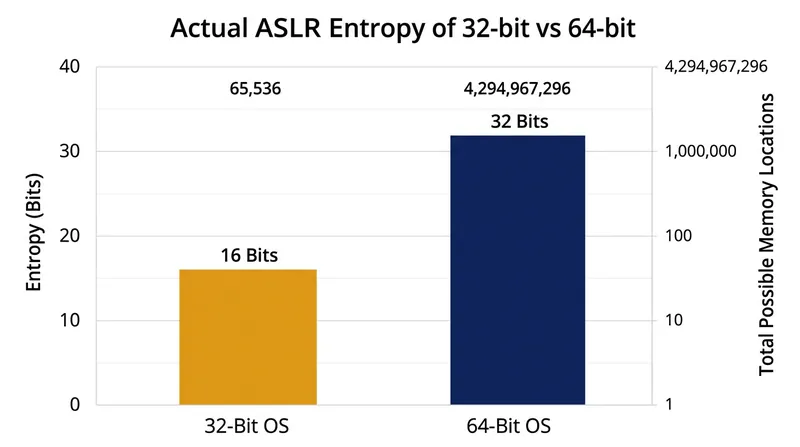

Current 64-bit operating systems typically utilize 48 bits for virtual addressing. Even after subtracting the kernel split and the 12 bits for page alignment, a 64-bit system can easily provide 28 to 32 bits of actual entropy for memory randomization.[2]

Thirty-two bits of entropy translates to over four billion possible locations. Brute-forcing a search space of this magnitude would take years, and the resulting millions of application crashes would trigger even the most basic intrusion detection systems long before the exploit succeeded.[1]

However, the transition to 64-bit computing remains incomplete. Countless legacy applications, specialized industrial software, and low-power embedded devices remain tethered to 32-bit constraints. For these systems, memory randomization provides a dangerous illusion of security rather than a mathematical guarantee.[5]

To protect these vulnerable systems, administrators must layer additional defenses that do not rely on spatial unpredictability. Hardware-enforced execution prevention, strict control flow integrity, and rapid anomaly detection must compensate for the structural weakness of the underlying architecture.[4]

The security of a system ultimately rests on the physical and mathematical limits of its hardware. As long as 32-bit pointers dictate the boundaries of memory allocation, attackers will continue to exploit the narrow margins of an address space that simply cannot hide its secrets.[5]
