Urban Canyon Multipath Skews Satellite Fixes by Tens of Meters, Forcing Autonomous Vehicles to Localize via LiDAR Map Matching

To navigate safely, a Level 4 autonomous vehicle must know its exact position on the Earth's surface down to a 10-centimeter tolerance. This binding constraint requires a continuous, uncorrupted data stream from the vehicle to a fixed reference frame. In open environments, satellite navigation provides this link, but in dense city centers, the physical geometry of the skyline breaks the connection.

Standard Global Navigation Satellite Systems rely on a direct line of sight to at least four satellites in orbit. The receiver calculates its position by measuring the time of flight of radio signals traveling at the speed of light. Under optimal open-sky conditions, consumer-grade receivers achieve an accuracy of roughly five to ten meters.[5]

However, commercial robotaxi deployments target dense downtown cores and financial districts, where high-rise buildings create deep urban canyons. These concrete and glass structures physically block the direct transmission path from space. Without a direct signal, the vehicle cannot compute a reliable position fix using standard trilateration.[1]

When the direct path is obstructed, the receiver often locks onto a Non-Line-of-Sight signal that has bounced off a nearby skyscraper. Because radio waves travel at 300,000 kilometers per second, a signal that reflects off a building takes slightly longer to arrive. This microscopic delay fundamentally corrupts the distance calculation.[7]

The Mechanics of Multipath Errors

This phenomenon is known as the multipath effect, and it introduces catastrophic positioning errors. In deep urban canyons like those in Hong Kong or New York, GNSS multipath errors can displace a vehicle's estimated position by up to 100 meters. A deviation of that magnitude places the vehicle on the wrong side of a divided highway.[1]

When a satellite signal grazes the edge of a building, it can also experience diffraction. This bends the radio wave and attenuates its signal strength, further degrading the measurement quality. The receiver struggles to distinguish between a weak direct signal and a strong reflection, often locking onto the corrupted data.[4]

Engineers cannot solve this by simply installing more expensive GPS receivers. The error originates in the physical environment, not the hardware; the signal has genuinely traveled a longer path. Excluding all reflected signals is also impossible in a downtown core, as the vehicle would be left with too few satellites to compute any position at all.[3]

GNSS researchers are attempting to mitigate this by developing three-dimensional mapping-aided satellite positioning. This technique uses a virtual model of the city to predict which satellites are blocked and which signals are likely reflections. By comparing the predicted visibility against the actual received signals, the system attempts to exclude the corrupted multipath data.[4]

However, this approach relies heavily on the accuracy of the building models and requires a strong initial guess of the vehicle's position. It also struggles to account for dynamic obstacles, such as double-decker buses or large freight trucks, which can create temporary multipath reflections that do not exist in the static city model.[1][4]

Why Dead Reckoning Drifts

To bridge the gap during brief satellite outages, vehicles use Inertial Measurement Units and wheel odometry to track their movement. This process, called dead reckoning, calculates the current position based on the last known location, speed, and heading. While effective for a few seconds, inertial sensors accumulate microscopic measurement errors over time.[2]

Without constant absolute position updates, an inertial navigation system will drift by several meters within minutes of free-mode operation. Because urban canyons can stretch for miles, dead reckoning alone cannot safely guide a vehicle through a downtown grid. The vehicle requires a localized ground truth that does not rely on the sky.[2]

To achieve centimeter-level localization without satellites, autonomous vehicles abandon the sky and look at the street. They utilize High-Definition maps, which are pre-surveyed, three-dimensional representations of the operating environment. These maps store the exact geometric coordinates of every building facade, traffic pole, and curb.[5]

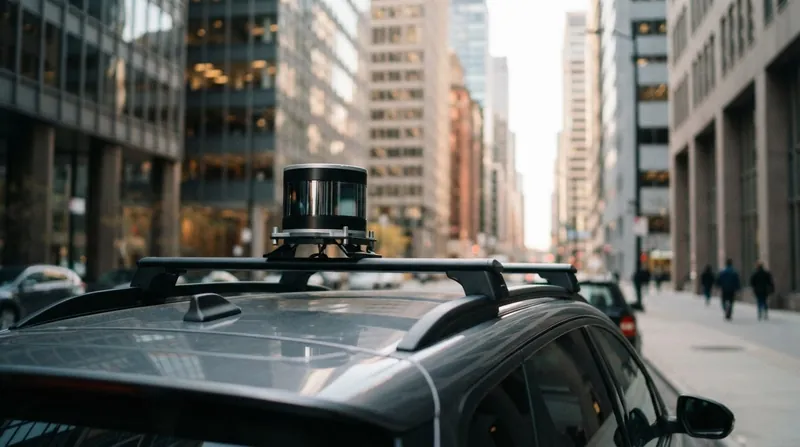

As the vehicle drives, its roof-mounted Light Detection and Ranging sensor fires millions of laser pulses per second to create a live point cloud of its surroundings. The onboard computer then continuously compares this live scan against the pre-built map. By finding the exact mathematical alignment between the two, the vehicle determines its precise location.[8]

Aligning the Point Clouds

This process, known as map matching, effectively anchors the vehicle's perception to a known physical reality. Algorithms rotate and translate the live point cloud until it perfectly overlaps with the stored map. The output is a highly reliable position estimate that ignores satellite drift entirely.[2]

The Iterative Closest Point algorithm minimizes the distance between the source points from the live sensor and the target points in the map. It iteratively calculates the optimal transformation matrix to align the two datasets. While highly accurate, this standard approach can be computationally expensive if the initial position guess is poor.[2]

Alternatively, the Normal Distribution Transform converts the reference point cloud into a set of probability density functions on a grid. Instead of matching individual points, the live scan is matched against these statistical distributions. This approach is often faster and more robust to slight variations in the environment, making it popular for automotive applications.[2]

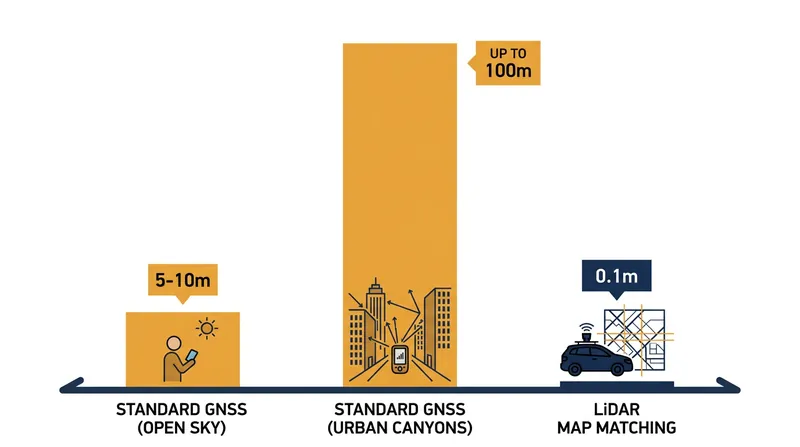

The accuracy gains from map matching are massive. Field tests using specialized map structures demonstrate that laser localization achieves a positioning accuracy of 6 to 13 centimeters. It also provides an attitude accuracy of 0.15 degrees, ensuring the vehicle knows exactly which way it is pointing.[2]

Computational Costs and Sensor Fusion

Matching high-dimensional point clouds in real time requires immense computational power. A single scan contains hundreds of thousands of data points, and the vehicle must perform this alignment dozens of times per second. To reduce the processing load, engineers divide the maps into efficient grid cells and extract specific geometric features.[2]

Storing centimeter-accurate maps of an entire metropolitan area requires massive data capacity. A raw point cloud map of a single city block can consume gigabytes of storage, making it impractical to store onboard a vehicle. To solve this, developers compress the data into lightweight formats that retain only the essential geometric boundaries.[2]

Advanced map structures, such as the Extended QuadTree map, use a planar grid for block division and a four-level occupancy probability model. This specialized formatting reduces the required storage space by a factor of eight compared to standard grid maps, allowing the vehicle to cache entire neighborhoods locally.[2]

Rather than comparing every single laser return, the system focuses on static, distinct landmarks like building corners and road edges. Dynamic objects, such as pedestrians and other cars, are filtered out of the matching process to prevent false alignments. This selective matching allows the computers to maintain real-time performance without draining the battery.[3]

The Limits of the Map

Despite its precision, map matching is not a standalone silver bullet. If a city undergoes heavy construction, the physical environment will no longer match the stored digital twin, causing the alignment algorithms to fail. Snowbanks and heavy rain can also alter the geometry of the street or introduce false returns into the laser scan.[5]

To guarantee safety under all conditions, production autonomous vehicles employ a layered localization architecture. They fuse map matching with visual odometry from cameras, inertial data, and whatever degraded satellite signals are available. This multi-sensor fusion ensures that if one system is blinded by the environment, the others seamlessly take over the navigation load.[5]

The transition from satellite reliance to map-based localization represents a fundamental shift in autonomous engineering. By treating the city itself as the navigation infrastructure, developers have bypassed the physical limitations of radio waves. The urban canyon is no longer a dead zone, but a highly structured environment that guides the vehicle forward.[6]
